NKK S8AWB IP68 waterproof 3 position 12mm Dual Seal momentary toggle switch S 8AW/B

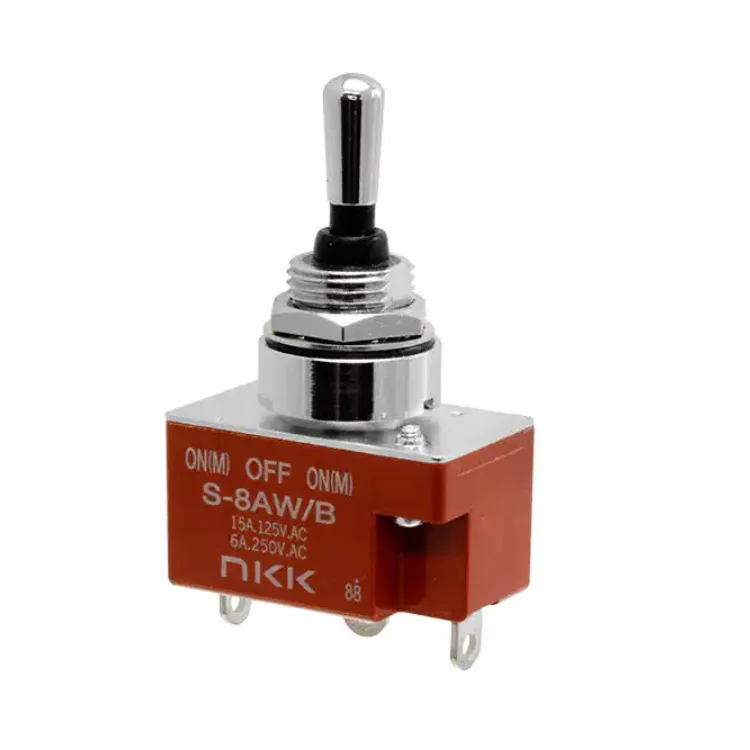

Product Overview

Description

NKK S8AWB IP68 waterproof 3 position 12mm Dual Seal momentary toggle switch S-8AW/B
Distinctive Characteristics
Dual protection with internal o-ring and external rubber washer, sealing
the switch to achieve IP68 of IEC 60529 Standards (dust tight and
water protected against immersion for as long as 30 minutes, in 1.5
meters of water).
Additional panel seal security against wet environments provided by
waterproof boot at base of toggle.
Fluid actuation delivered in smooth, sturdy tactile feel.
Sleek design incorporates functionality with polished, chrome-plated
actuator paired with waterproof boot.
Superb quality and construction design prohibit entry of foreign
particles that may otherwise compromise lever operation.
Power Level: 15A , AC 125V . 6A 250VAC ; 20A 30VDC
Contact Resistance: ≤10 mΩ
Insulation Resistance: ≥1,000 MΩ @ 500V DC
Dielectric Strength: 2,000V AC minimum for 1 minute minimum
Mechanical Life: 50,000 operations minimum for S1AWB, S2AWB, S3AWB, S6AWB, S7AWB, S21AWB
30,000 operations minimum for S5AWB, S8AWB, S25AWB, S28AWB
Electrical Life: 25,000 operations minimum
Environmental Data
Operating Temperature Range: -30°C ~ +70°C ( -22°F through +158°F)
Sealing: Waterproofing, achieved with boot at base of lever plus o-rings inside and outside of bushing,
meets IP68 of IEC60529 Standards (dust tight and protection against effects of temporary immersion).
Processing Soldering: Manual Soldering: 390°C for 4 seconds, 2 cycles
Circuit Pole & Throw : SPDT
Switch function : (ON) OFF (ON) ; MOM-OFF-MOM
Angle of Throw : 24°
PANEL CUTOUT : 12.5 mm
Maximum Panel Thickness : 4.0mm

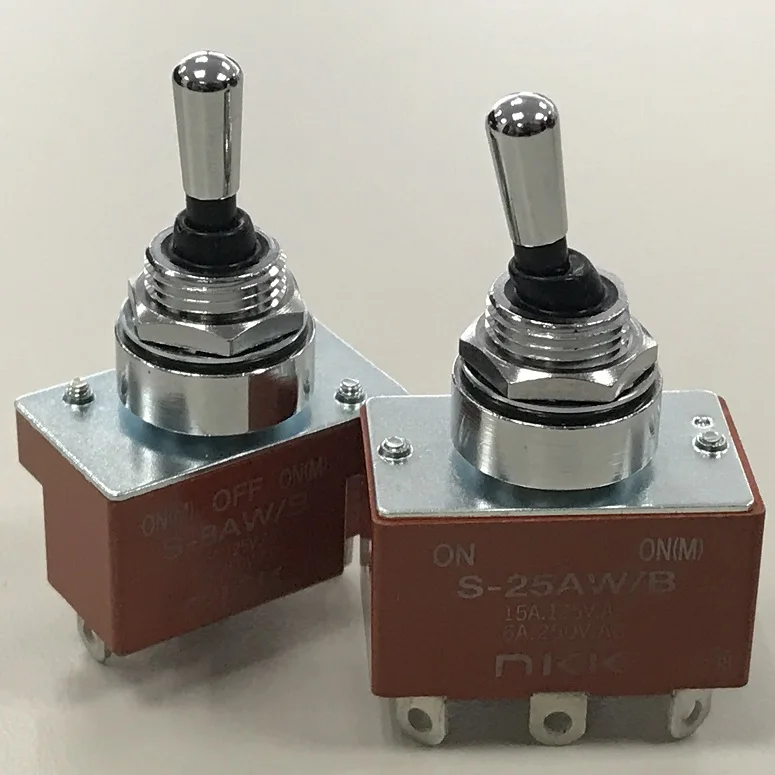

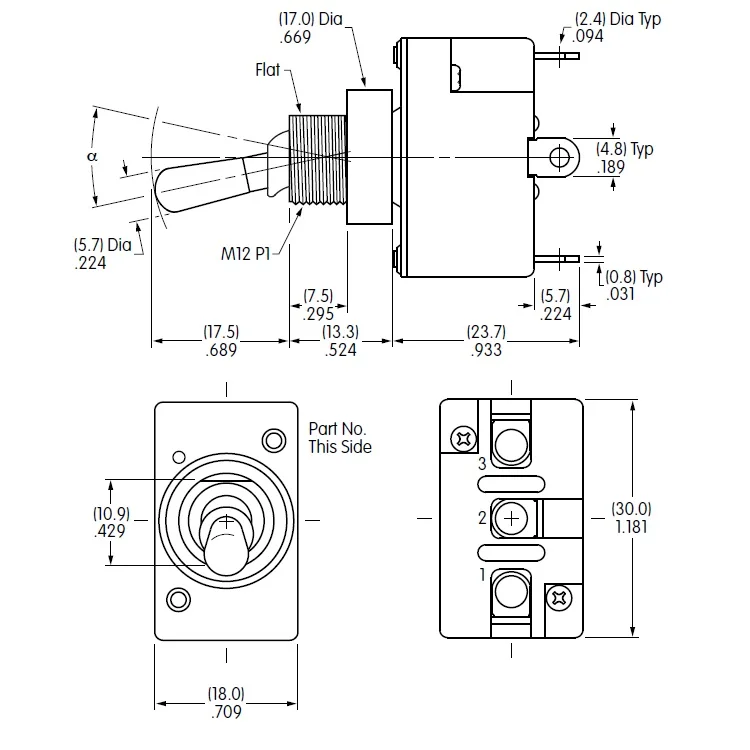

Dimensions : 30 x 18 x 53.7 mm
