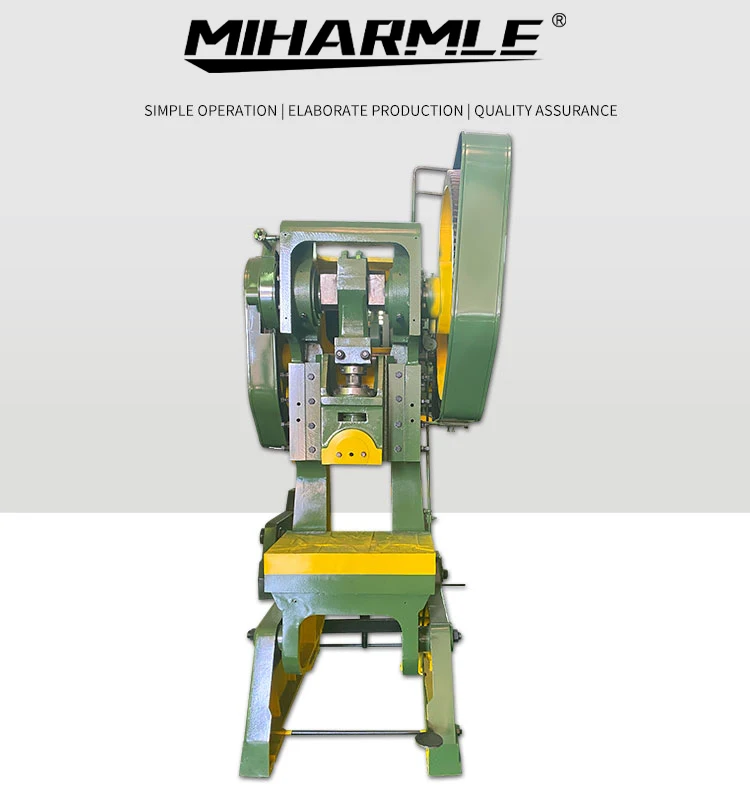

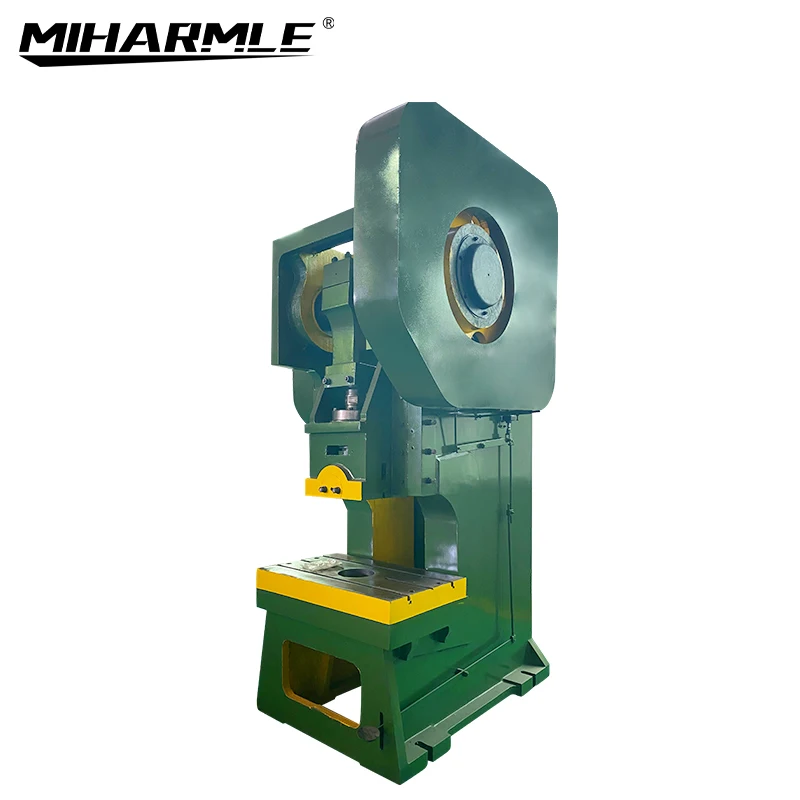

Mechanical Power Press Machine for Cutting Metal Sheet

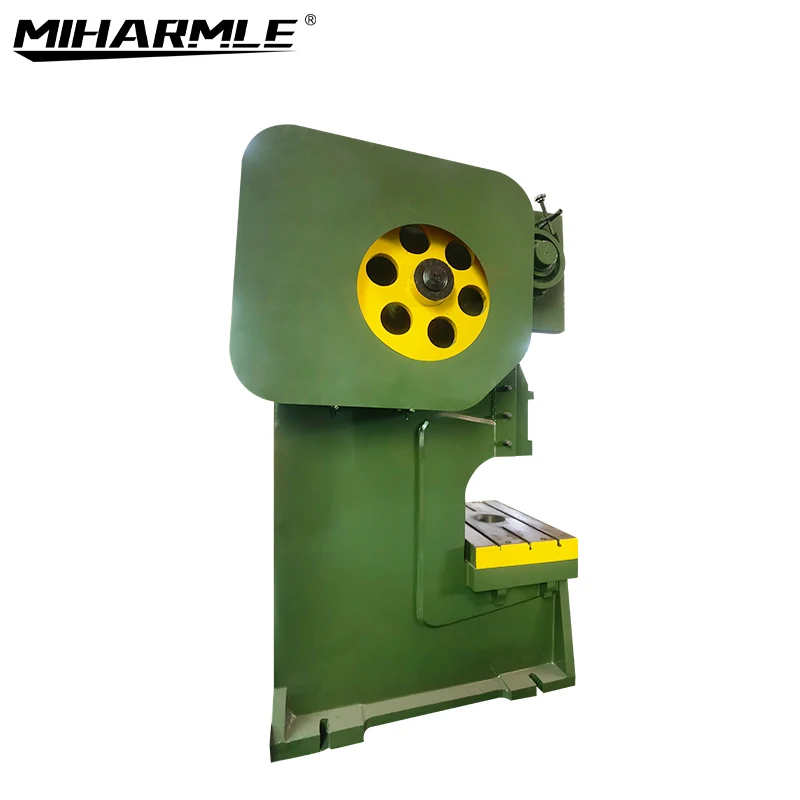

JB23 series punch press is a suitable open type crank press featuring a left and right open type machine body (i.e. C-shaped machine body).
Its steel plate welded body has high shock-absorbing performance.Its novel overall design gives the machine elegant appearance.
Its steel plate welded body has high shock-absorbing performance.Its novel overall design gives the machine elegant appearance.
Its throat has certain depth.The compact structure makes the use convenient and operation safe. The punch press is equipped with a turn-key rigid clutch, a cam band brake and a press-down type safety device.
Its working table is open on three sides, so the mold loading and unloading and operation are convenient.
Its working table is open on three sides, so the mold loading and unloading and operation are convenient.
Details Images
Standard Execution
•JIS I accuracy.v
•Steel welded frame with high rigidity.

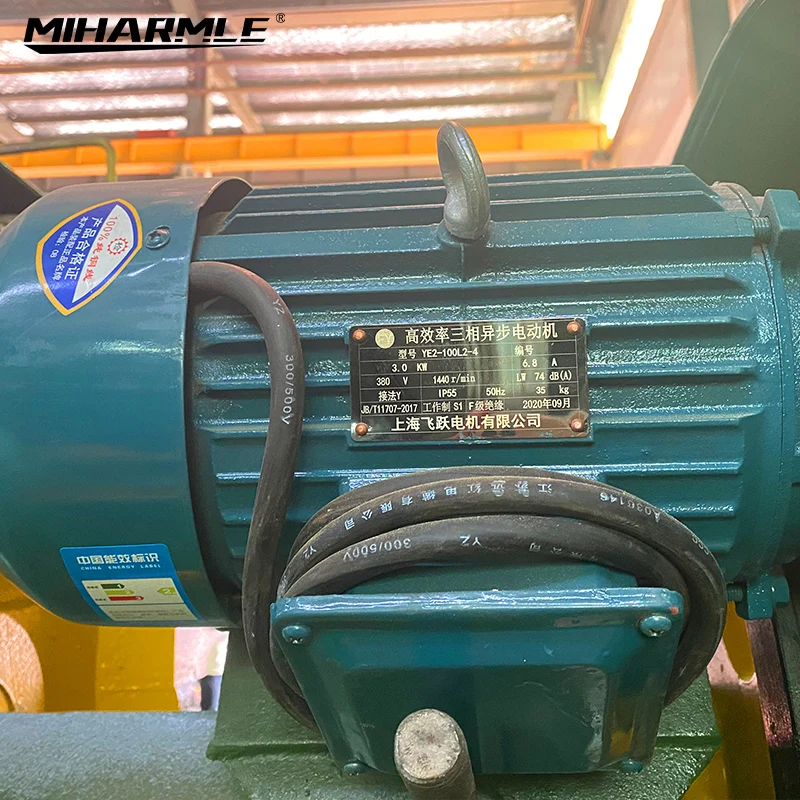

•Motor with inverter.
•Combined wet friction clutch.

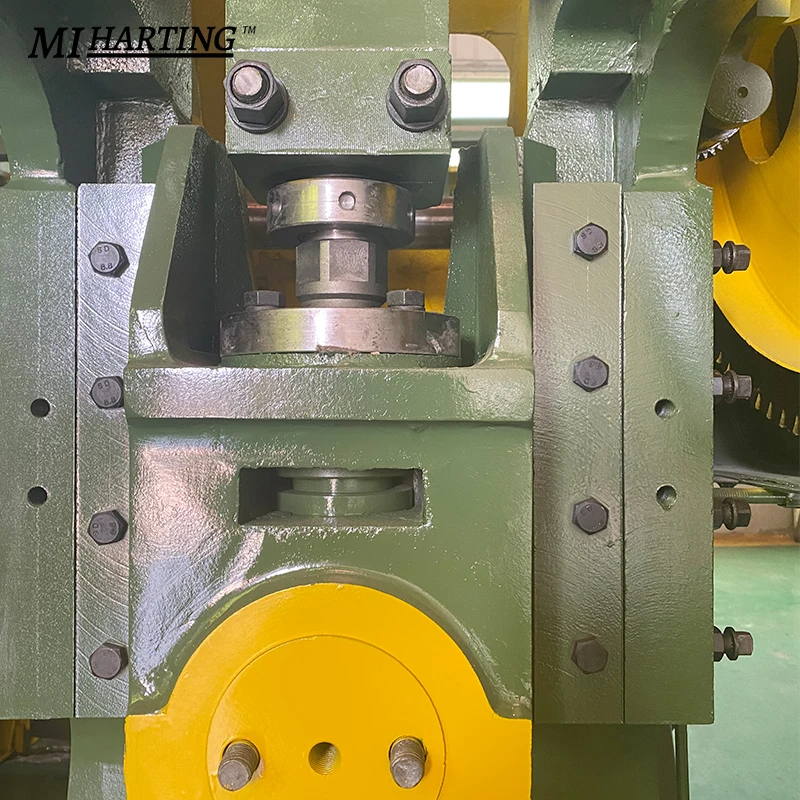

•Rectangular hexahedron lengthened guide; OCP-315/400 with octahedral lengthened guide.
•Hydraulic overload protector.
•Lifting balance cylinder.
•Imported dual solenoid valve.
•Forced grease lubrication.
•Balance cylinder: manual oil lubrication.
•Integrated panel (elec.cam included).
•PLC control of international brand.
•Contactor and button of international brand.
•JIS I accuracy.v
•Steel welded frame with high rigidity.
•Motor with inverter.
•Combined wet friction clutch.
•Rectangular hexahedron lengthened guide; OCP-315/400 with octahedral lengthened guide.
•Hydraulic overload protector.
•Lifting balance cylinder.
•Imported dual solenoid valve.
•Forced grease lubrication.
•Balance cylinder: manual oil lubrication.
•Integrated panel (elec.cam included).
•PLC control of international brand.
•Contactor and button of international brand.
Specification
Item | J23-10T | J23-16T | J23-25T | J23-40T | J23-63T | J23-80T | J23-100T | J23-125T |
Nominal Pressure | 100KN | 160KN | 250KN | 400KN | 630KN | 800KN | 1000KN | 1250KN |
Slide stroke (Times/min) | 145 | 140 | 70 | 55 | 50 | 45 | 45 | 38 |
Slide strokes | 50mm | 60mm | 70mm | 100mm | 110mm | 115mm | 130mm | 150mm |
Max closing height | 150mm | 170mm | 200mm | 300mm | 330mm | 380mm | 380mm | 500mm |
Die height adjustment | 40mm | 40mm | 40mm | 70mm | 80mm | 80mm | 100mm | 100mm |
Distance between slider center and machine | 130mm | 160mm | 180mm | 215mm | 230mm | 250mm | 280mm | 390mm |
Workbench diameter(mm) | 240x360 | 300x480 | 320x525 | 400x650 | 440x700 | 480x750 | 540x840 | 720x1100 |
Pole distance | 180mm | 220mm | 240mm | 300mm | 300mm | 300mm | 380mm | 550mm |
Shank hole diameter | 30mm | 35mm | 40mm | 50mm | 60mm | 60mm | 60mm | 60mm |
Shank hole depth | 50mm | 60mm | 60mm | 70mm | 70mm | 80mm | 80mm | 75mm |
Pad thickness | 50mm | 50mm | 50mm | 75mm | 80mm | 95mm | 100mm | 130mm |
Body tilting angle | 30° | 20° | 20° | 20° | 20° | 20° | 20° | 13° |
Motor power | 1.5Kw | 1.5KW | 2.2KW | 3KW | 4KW | 7.5KW | 7.5KW | 11Kw |
Weight | 450Kg | 750KG | 1500KG | 2500KG | 4000KG | 5000KG | 6000KG | 7000Kg |
