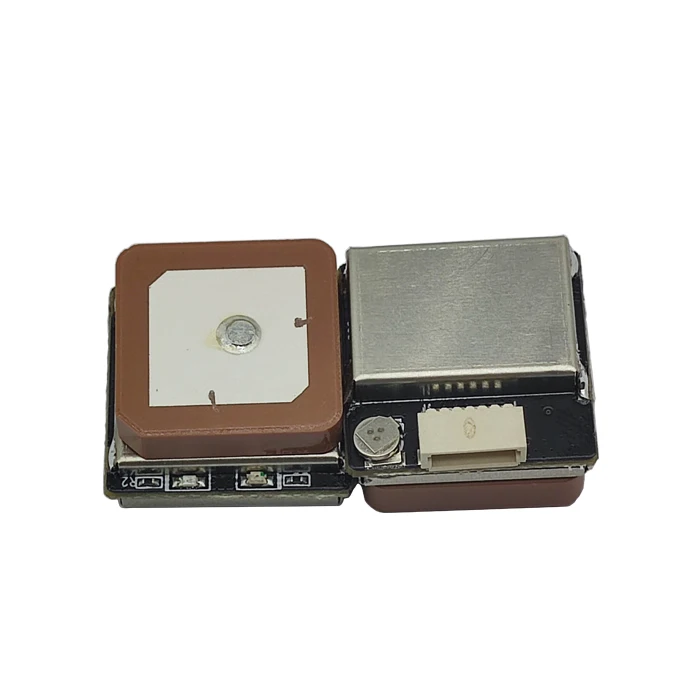

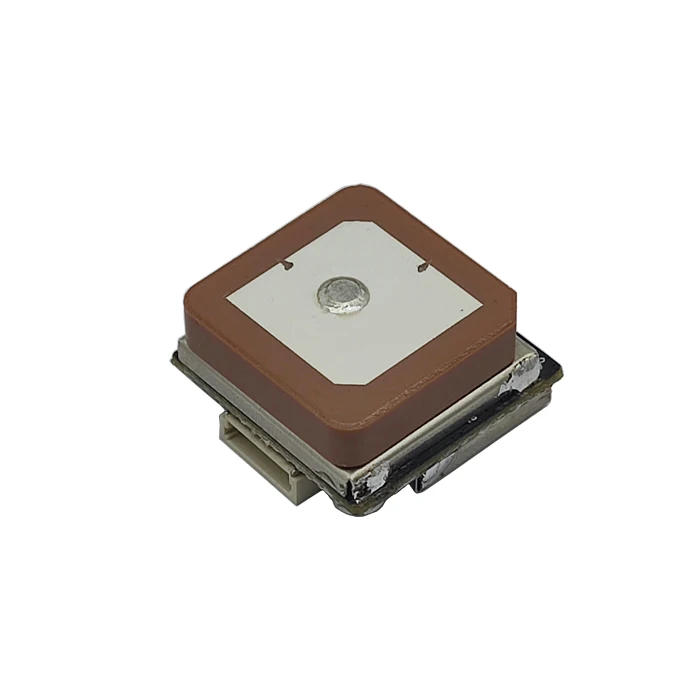

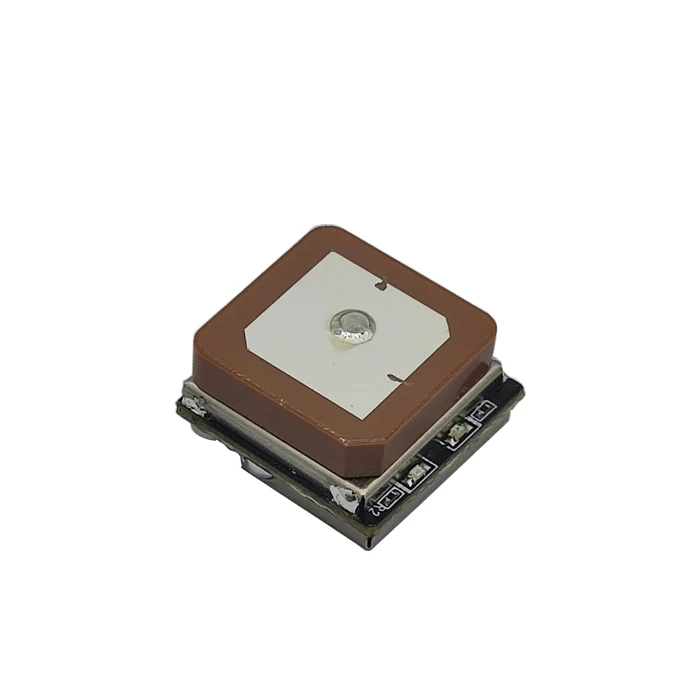

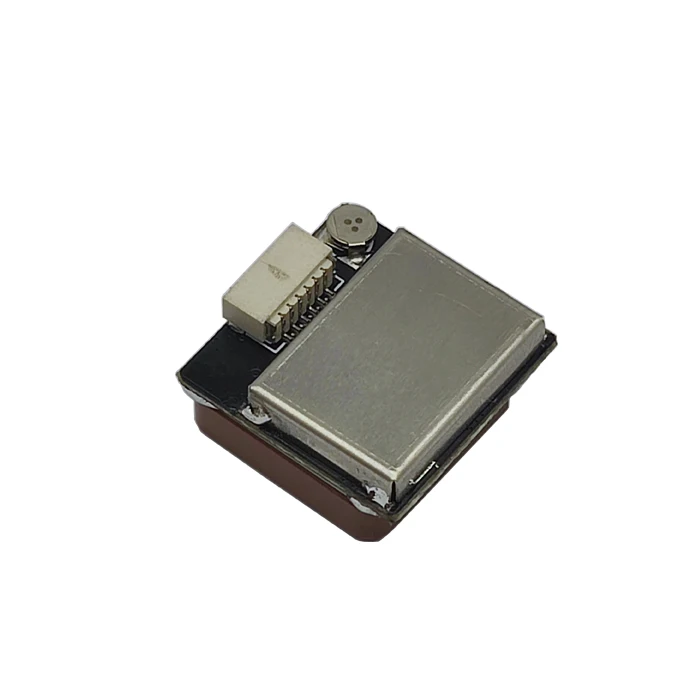

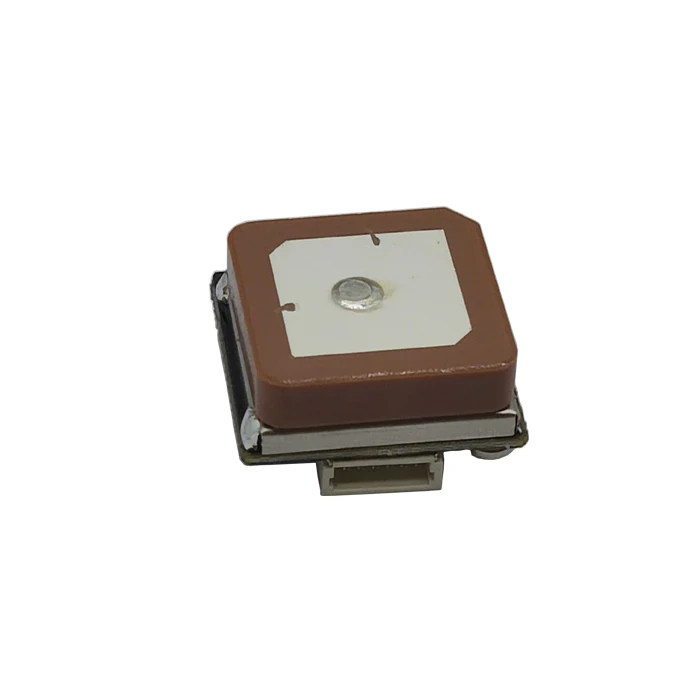

QMC5883L Small Size Crossing Small UAV NMEA 0183 GLONASS Ublox GPS Module
QMC5883L Small Size Crossing Small UAV NMEA-0183 GLONASS Ublox GPS Module
QMC5883L Small Size Crossing Small UAV NMEA-0183 GLONASS Ublox GPS Module
QMC5883L Small Size Crossing Small UAV NMEA-0183 GLONASS Ublox GPS Module
QMC5883L Small Size Crossing Small UAV NMEA-0183 GLONASS Ublox GPS Module
QMC5883L Small Size Crossing Small UAV NMEA-0183 GLONASS Ublox GPS Module
QMC5883L Small Size Crossing Small UAV NMEA-0183 GLONASS Ublox GPS Module

QMC5883L Small Size Crossing Small UAV NMEA 0183 GLONASS Ublox GPS Module

Share on (11000006490387):


Price:$19.90 - $29.00

Quantity:


Product Overview

Description



Products Description 1


Product name
GPS module
Place of origin
China Guangdong
Delivery date
10 Days
MOQ
1 Pieces


Details Images 2


Product Highlights：
■ Product main chip: UBX-M10050-KT
■ Product Size:18 x 18x 8.5 mm
■ Built-in LNA signal amplifier
■ Industry standard 18 x 18 x 4mm high sensitivity ceramic antenna
■ Built-in TCXO crystal and Farad capacitor for faster warm-up
■ 1-10Hz positioning update rate
■ Built-in high-precision magnetometer QMC5883L

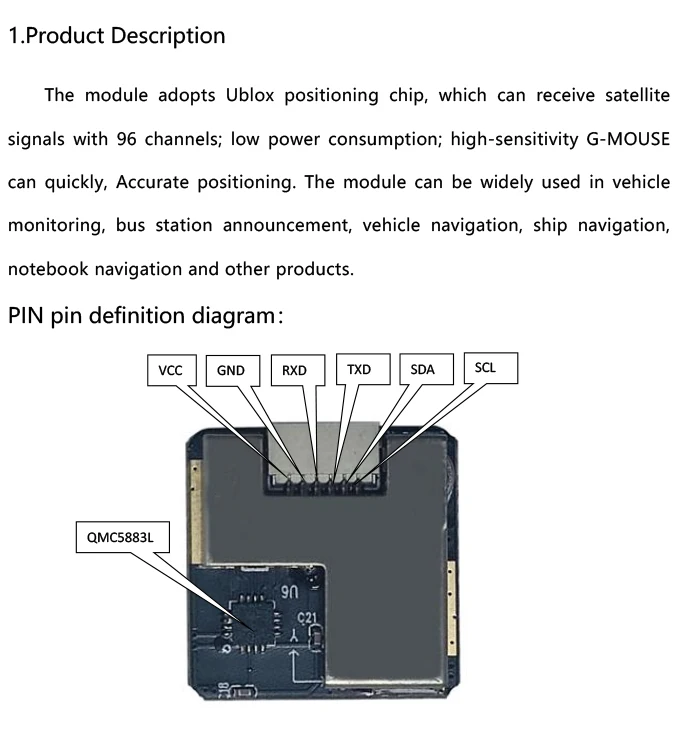

PIN pin function：
PIN name
Describe
VCC
The main power supply of the system, the supply voltage is 3.3V-5V, and the current is about 25mA during operation
GND
Ground
RXD
TTL interface data input
TXD
TTL interface data output
SDA
Serial Data – I2C Master/Slave Data
SCL
Serial Clock – I2C Master/Slave Clock


2.Technical Specifications
Product performance
Chip
UBX-M10050-KT
Frequency
L1, 1575.42MHz/B1,1561.10MHZ/G1,1602.00MHZ
Baud rate
4800,9600,19200,38400,57600,115200bps
Receive channel
96CH
Sensitivity
Tracking: -162dBm Capture: -160dBm Cold Start -148dBm
Cold start
Average 29s
Warm start
Average 3s
Hot Start
Average 1s
Precision
Horizontal position accuracy <2.5M
SBAS < 2.0M
Timing Accuracy: 30 ns
Maximum height
50000M
Maximum speed
500 m/s
maximum acceleration
≦ 4G
Update frequency
1-10 Hz
Physical properties
Dimensions
18 x 18 x 8.5 mm
Working environment
Operating temperature
-40℃ to 85℃
Storage temperature
-40℃ to 85℃




Company Profile 3




Shenzhen Zhishengtian Electronic Technology Co., Ltd. was established on November 29,2013. It is registered on the 3rd floor of Building C13, Fuyuan Industrial City, Jiuwei, Xixiang Street, Baoan District. The business scope includes general business items: technology research and development and sales of digital products, electronic products, hardware connectors, wireless communication modules and components; technology research and development and sales of communication terminal products; domestic trade; import. Shenzhen Zhishengtian Electronic Technology Co., Ltd. is a high-tech innovation company integrating R & D, production and sales. Companies adhering to scientific management, honesty and trustworthiness, open and enterprising scientific business philosophy; since its inception has been committed to satellite positioning and communications, wireless communications and other product design.The company by the high quality service, the perfect technology, the fine quality, dares to enterprising and the unceasing innovation team spirit, wins in the profession the consistent high praise. Products are widely used in precision agriculture, drones, automotive electronics, vehicle security monitoring, bus reporting, agricultural surveying, mapping, navigation, clock timing, handheld devices, wireless communications and other global industry customers to provide customized
products and system solutions.




Packing & Delivery 4




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


FAQ


1. Could I have prices of your products?
Welcome. Please feel free to send us an email here. You will get our reply in 24 hours

2.Can we print our logo/website/company name on products?
Yes, MOQ1

3. What's the lead time for regular order?
7-15 days for order quantity lower than 1pcs

4. Can I get a discount?
Yes, for the order quantity more than 1pcs, please contact us to get the best price.

5. Do you inspect the finished products?
Yes, each step of production and finished products will be came out inspection by QC department before shipping.
