FF 403 1 5V Analog Output Fiber Sensor Amplifier
- Category: >>>
- Supplier: F&C Sensing Technology(Hunan) Co. Ltd.
Share on (11000006493682):
Product Overview
Description

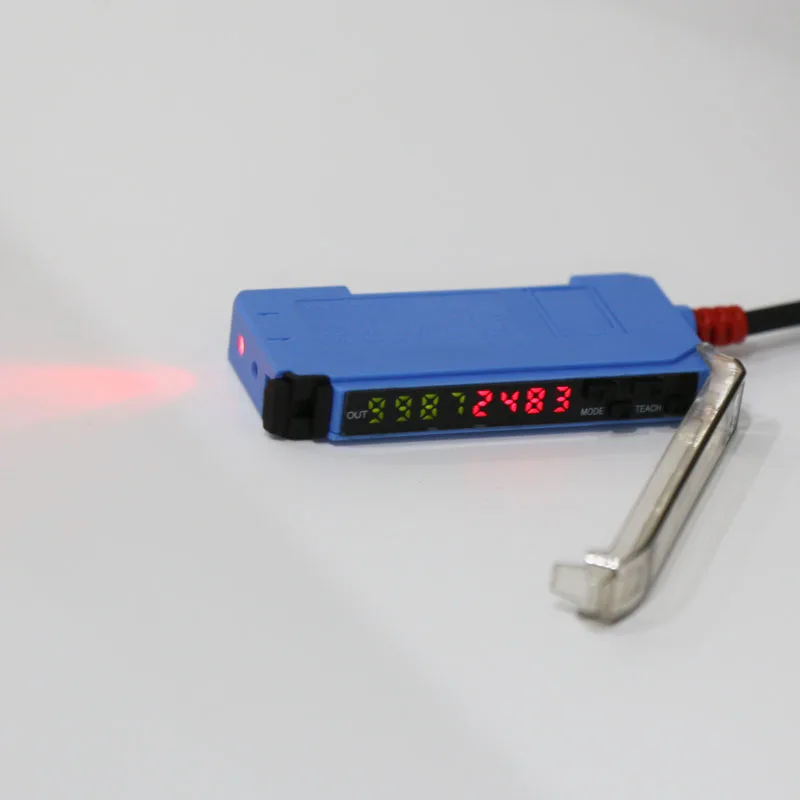

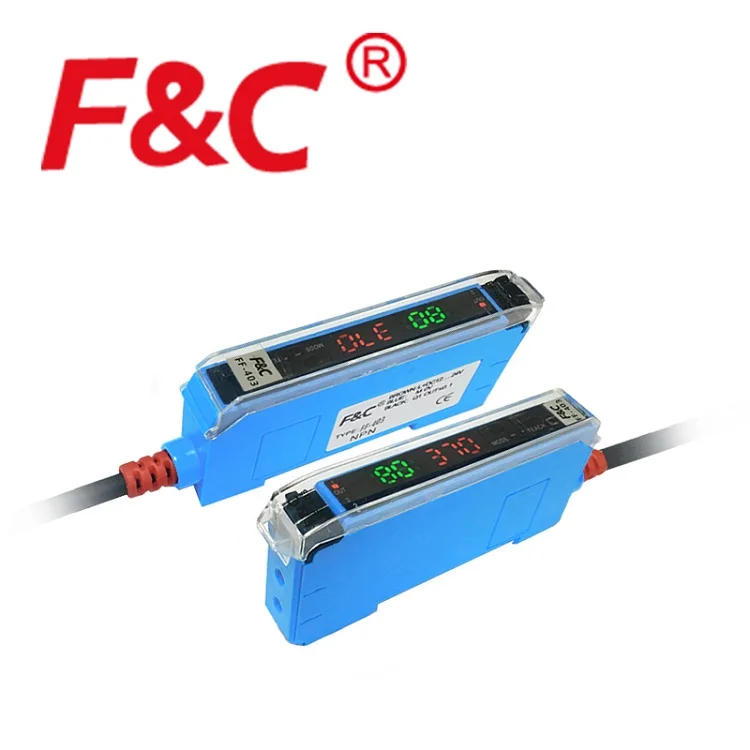

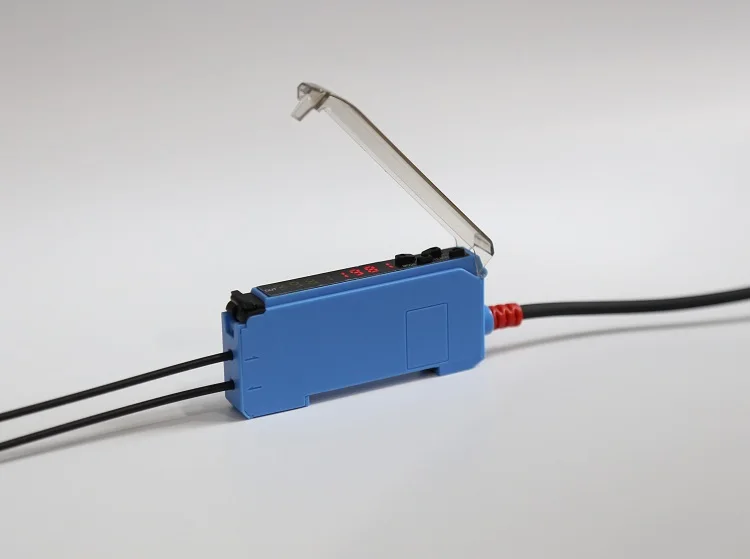

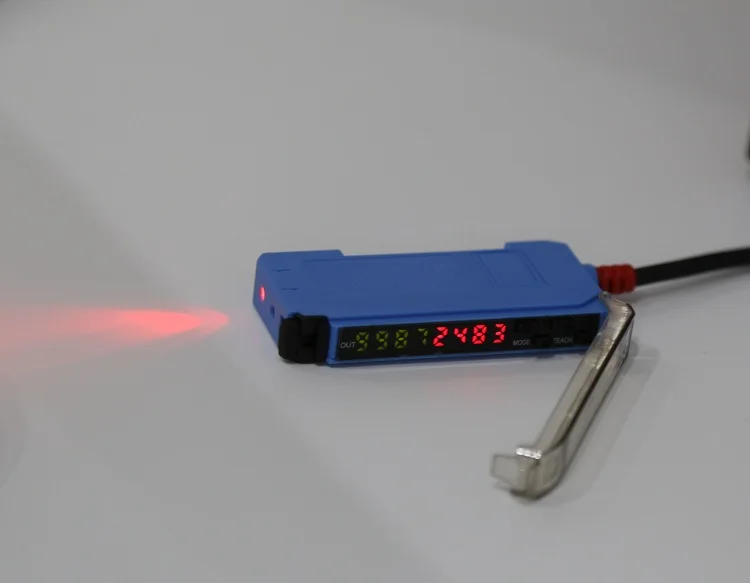

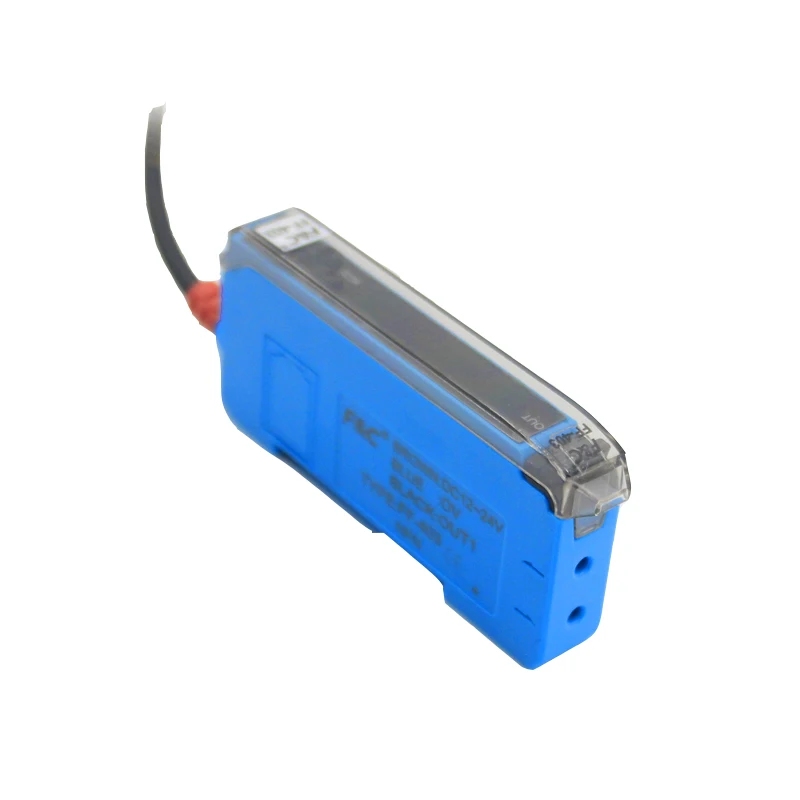

FF-403 Analog Output Fiber Sensor Amplifier
Why Choose F&C sensor?
(1) 23+ years manufacture and 10+ years OEM service sensor experience.
(2) 4000+ models Sensors
(3) Long service time, 8+ years
(4) 18 months years warranty time
(5)Fast delivery time. Most delivery within 1 days (Stocks)
(6) IP67 protection grade
(7) CE, RoHS certification
Product Description
| Product Name | FF-403 Fiber Optical Amplifier |
| Model | FF-403 |
| Output Mode | NPN/PNP |
| Operating Voltage | 12~24V DC |
| Reaction Time | 100us highest |
| Timer Function | adjustable |
| Current Consumption | 100mA Max |
| Load Current | 10mA Max @24V DC |
| Short-circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Output Indicator | Red LED |
| Power Indicator | Green LED |
| Isolation Resistance | 20M Ω @500V DC |
| Insulation Strength | 60 seconds @500V AC 60HZ |
| Operating Temperature | -10~50℃ |
| Operating Humidity | 35~85%RH |
| Waterproof Grade | IP64 |
| Power consumption | <40mA/24V |
| Weight | 65g |
| Detecting distance | 200mm for diffuse; 1200mm for Through-beam |
| Material | ABS/PC |

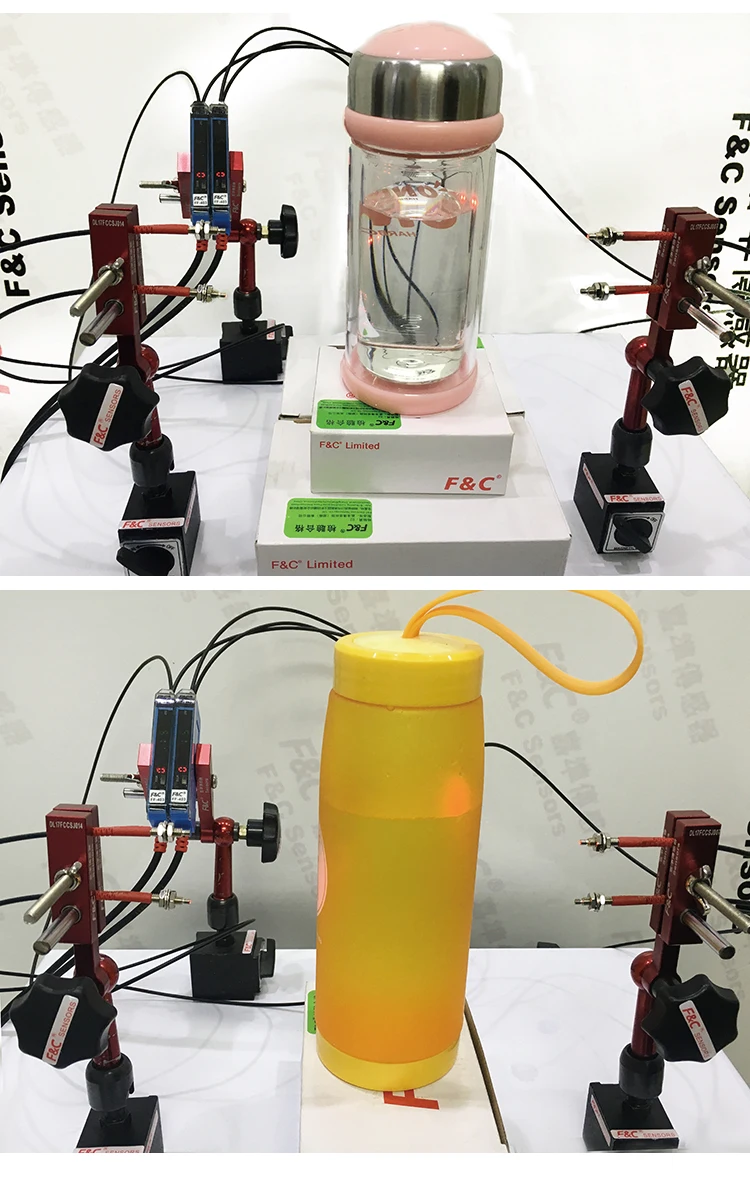

FF-403 Fiber Optical Amplifier Application:
F&C Sensor products range:
(1)proximity sensor 1000+ models,
(2)Fiber amplifier and Optic Sensor 3000+ models,
(3)Photoelectric Sensor 500+ models
(4)Magnetic Switch 100+ models,
(5)Lable sensors 40+ models
F&C sensor production Machine:
