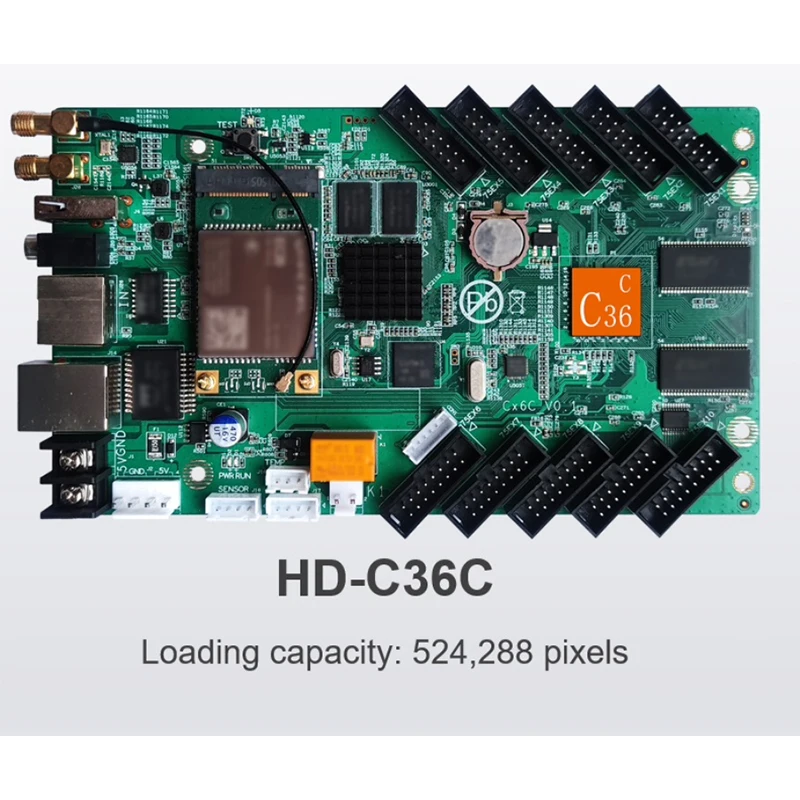

HD wifi remote full color led display control card C36C C16CD16 led commercial advertising led display screen

Function

Parameters

Module type

Compatible with indoor and outdoor full   color and single color module

Support conventional chip and   mainstream PWM chip

Scan Mode

Static to 1/64 scan mode

Control Range

1024*512, widest 8192, highest 1024

Gray Scale

256-65536

Basic functions

Video, Pictures, Gif, Text, office, Clocks, Timing etc.

Remote, Temperature, Humidity, Brightness etc.

Video format

Support 1080P HD video hardware decoding, direct transmission,   without transcoding waiting.

60Hz frame frequency output;

AVI, WMV,   MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc.

Image Format

Support BMP, GIF, JPG, PNG, PBM, PGM, PPM, XPM, XBM etc.

Text

Text editing, Image, Word, Txt, Rtf, Html etc.

Document

DOC, DOCX, XLSX, XLS, PPT, PPTX etc. Office2007Document format.

Time

Classic Analog clock, digital clock and of clock with image   background.

Audio output

Double track stereo audio output.

Memory

4GB Flash memory; Indefinite expanding of U-disk memory.

Communication

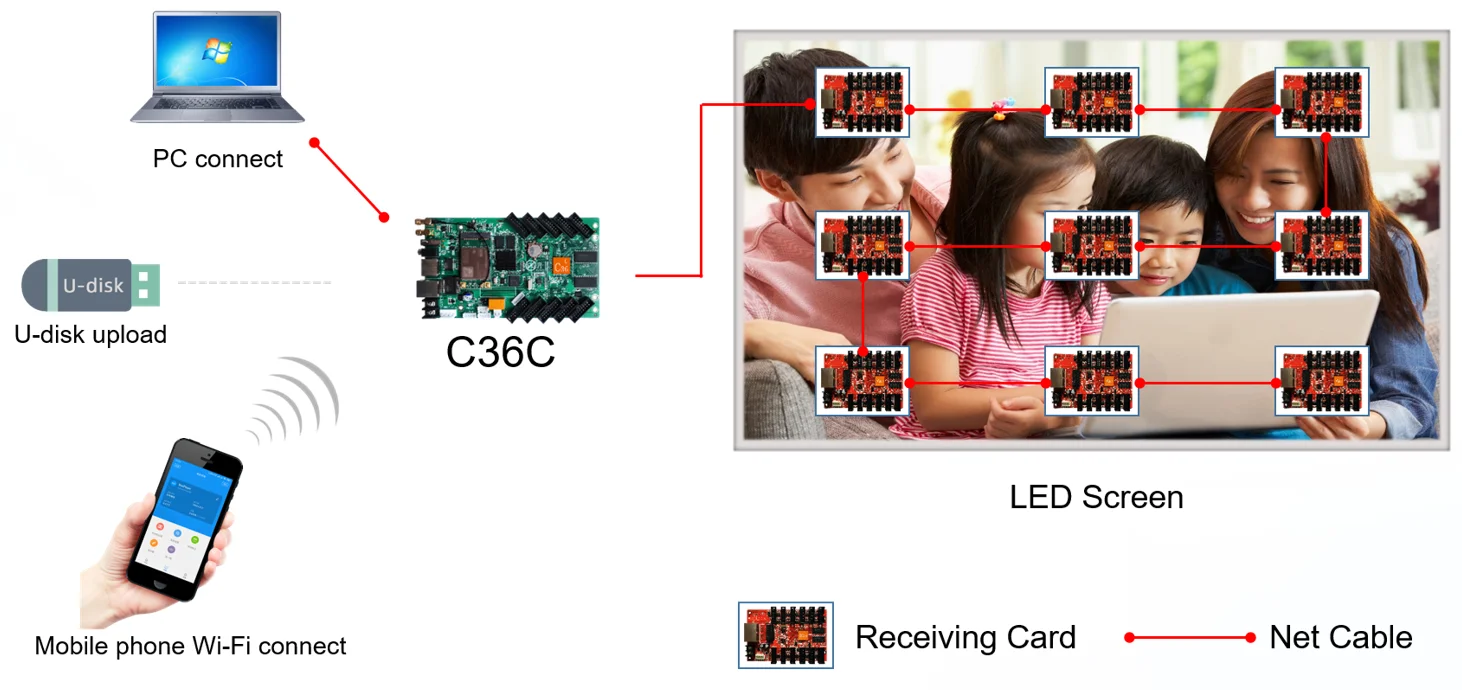

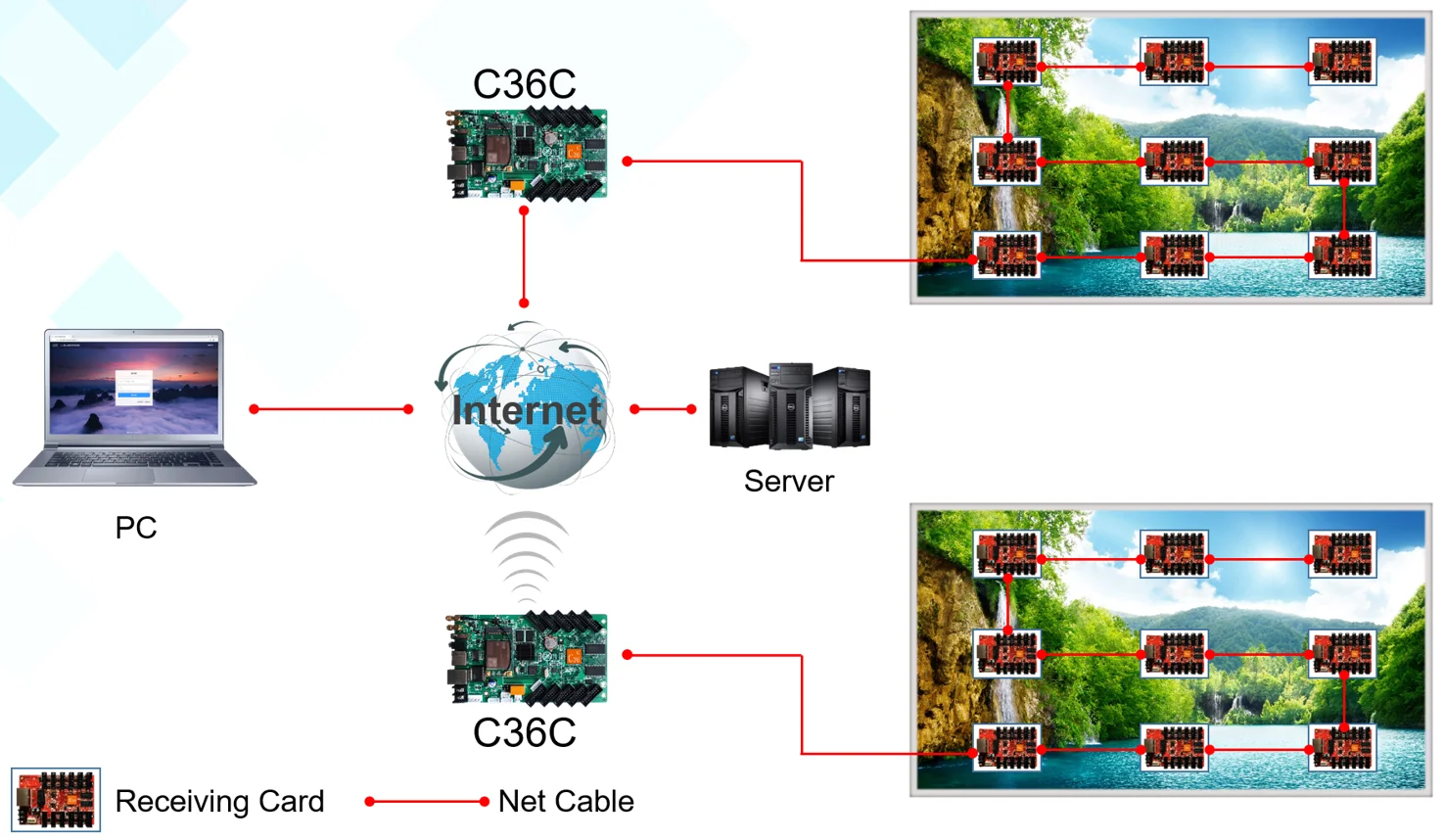

Ethernet LAN port, 4G network (optional), Wi-Fi, USB.

Working   Temperature

-20℃-80℃

Port

INPUTS: 5V DC*1, 100 Mbps RJ45*1, USB 2.0*1, test button*1, sensor port*1, GPS port*1.

OUT:1Gbps RJ45*1, AUDIO*1

Power

8W
