Ultrasonic cutter wholesale Japan tools equipments cutting knife
- Category: Plastic Cutting Machines >>>
- Supplier: Maruwa Co. Ltd.
Share on (11000006537870):
Product Overview
Description
Products Information
Ultrasonic cutter ZO-95\t\t\t\t\t
Super hobby tool, Ultrasonic cutter ZO-95.
Professional model.Attached Torque screwdriver ZH25T & Foot switch ZH801.\t\t\t\t\t
\t\t\t\t
\t\t\t\t\t
Products Information\t

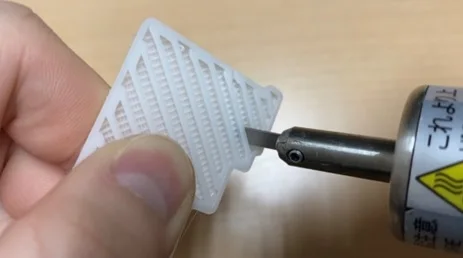

Ultrasonic cutter ZO series could cut plastic like butter.\t\t\t\t\t
\t\t\t\t\t
Blade vibration 40,000 times (40 kHz) per second enhances blade sharpness and fully supports user's works.\t\t\t\t\t
Compact size unit, adjustable power modes, replacement blades (sold separately) solves your wide problems.\t\t\t\t\t
\t\t\t\t\t
Products Information\t
Ultrasonic cutter ZO series could cut plastic like butter.\t\t\t\t\t
\t\t\t\t\t
Blade vibration 40,000 times (40 kHz) per second enhances blade sharpness and fully supports user's works.\t\t\t\t\t
Compact size unit, adjustable power modes, replacement blades (sold separately) solves your wide problems.\t\t\t\t\t

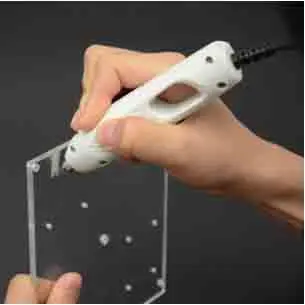

The unit on picture is Ultrasonic cutter ZO-91 (Standard model).\t\t\t\t\t
\t\t
\t\t\t\t\t
Product information\t\t\t\t\t
(Echo Tech HP)\thttps://echotech.co.jp/en/\t\t\t\t
(You Tube)\thttps://www.youtube.com/channel/UCeAIn1nK8pOpySk_Eg1vgng\t\t\t\t
(Instagram)\thttps://www.instagram.com/echotechstaff/\t\t\t\t
(Weibo)\thttps://weibo.com/u/7566822712\t\t\t\t
\t\t
\t\t\t\t\t
Product information\t\t\t\t\t
(Echo Tech HP)\thttps://echotech.co.jp/en/\t\t\t\t
(You Tube)\thttps://www.youtube.com/channel/UCeAIn1nK8pOpySk_Eg1vgng\t\t\t\t
(Instagram)\thttps://www.instagram.com/echotechstaff/\t\t\t\t
(Weibo)\thttps://weibo.com/u/7566822712\t\t\t\t
【Features】\t\t\t\t\t
●After turned ON main unit and pushed ultrasonic button once, Ultrasonic vibration will start activation.\t\t\t\t\t
●New driving method, TAF circuit supports to cut materials powerfully.\t\t\t\t\t
●When unit temperature become higher, lamp on hand piece will start blinking and ultrasonic vibration stops automatically.\t\t\t\t\t
●Heat sensor observes temperature increasing inside the hand piece.\t\t\t\t\t
\t\t\t\t\t
【Specification】\t\t\t\t\t
●Product model：ZO-95\t\t\t\t\t
●Power mode/ Normal (10 min.) / High (5 min.) / S-High (3 min.)\t\t\t\t\t
(Ultrasonic vibration will stop automatically within time mentioned with each power modes above.)\t\t\t\t\t
●Frequency：40kHz\t\t\t\t\t
●External size：Main unit 185×169×55mm\t\t\t\t\t
Hand piece φ28×150 (Including blade)\t\t\t\t\t
●Weight：Main unit Approx. 1.2 kg\t\t\t\t\t
Hand piece Approx. 350g (Including cable）\t\t\t\t\t
●Rated voltage：DC12V\t\t\t\t\t
●Consumption power：Max approx. 110 VA\t\t\t\t\t
●AC adaptor：AC100 V-240 V 50/60 Hz OUTPUT：DC12 V (※1)\t\t\t\t\t
●Circuit protection：Installed temperature sensor inside the hand piece\t\t\t\t\t
●Operating conditions：10-35℃ (No condensation)（※2）\t\t\t\t\t
●Accessories：\t\t\t\t\t
BDC-200P/１case (40 pcs.) Do not use blade with hole.\t\t\t\t\t
Blade anchor ZH04/１pc.\t\t\t\t\t
Blade anchor screw HB03/３ pcs.\t\t\t\t\t
Hexagon wrench RR02/１ pc.\t\t\t\t\t
Torque screwdriver ZH25T/ 1 pc.\t\t\t\t\t
Foot switch ZH801/ 1 pc.\t\t\t\t\t
\t\t\t\t\t
※1 Power code is conformed to Europe law and safety standard. If you are going to use at other countries, please use power code which is conformed to the country's law and safety standard.\t\t\t\t\t
※2 Operation conditions is not a term that ensures device operation.\t\t\t\t\t
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・\t\t\t\t\t
\t\t\t\t\t
Before you purchase our products, please read regulation of overseas exportation below and push select box.\t\t\t\t\t
\t\t\t\t\t
We(purchaser) do not use for following purposes and resell products to following places.\t\t\t\t\t
\t\t\t\t\t
(1) Manufacturing facilities to have nuclear weapons potential NSG(Nuclear Supplies Group)\t\t\t\t\t
\t\t\t\t\t
(2) Materials and manufacturing facilities to have chemical biological weapons potential AG (Australia Group)\t\t\t\t\t
\t\t\t\t\t
(3) Missiles, the components and manufacturing facilities capable of delivering weapons of mass destruction MTCR(Missile Technology Control Regime)\t\t\t\t\t
\t\t\t\t\t
(4) Conventional arms and dual-use goods and technologies WA (Wassenaar Arrangement)\t\t\t\t\t
\t\t\t\t\t
*Please confirm below 2 elements before purchasing\t\t\t\t\t\t
We recognize that this product is oversea model.\t\t\t\t\t
Read all regulations of overseas exportation, and agreed to all terms.
●After turned ON main unit and pushed ultrasonic button once, Ultrasonic vibration will start activation.\t\t\t\t\t
●New driving method, TAF circuit supports to cut materials powerfully.\t\t\t\t\t
●When unit temperature become higher, lamp on hand piece will start blinking and ultrasonic vibration stops automatically.\t\t\t\t\t
●Heat sensor observes temperature increasing inside the hand piece.\t\t\t\t\t
\t\t\t\t\t
【Specification】\t\t\t\t\t
●Product model：ZO-95\t\t\t\t\t
●Power mode/ Normal (10 min.) / High (5 min.) / S-High (3 min.)\t\t\t\t\t
(Ultrasonic vibration will stop automatically within time mentioned with each power modes above.)\t\t\t\t\t
●Frequency：40kHz\t\t\t\t\t
●External size：Main unit 185×169×55mm\t\t\t\t\t
Hand piece φ28×150 (Including blade)\t\t\t\t\t
●Weight：Main unit Approx. 1.2 kg\t\t\t\t\t
Hand piece Approx. 350g (Including cable）\t\t\t\t\t
●Rated voltage：DC12V\t\t\t\t\t
●Consumption power：Max approx. 110 VA\t\t\t\t\t
●AC adaptor：AC100 V-240 V 50/60 Hz OUTPUT：DC12 V (※1)\t\t\t\t\t
●Circuit protection：Installed temperature sensor inside the hand piece\t\t\t\t\t
●Operating conditions：10-35℃ (No condensation)（※2）\t\t\t\t\t
●Accessories：\t\t\t\t\t
BDC-200P/１case (40 pcs.) Do not use blade with hole.\t\t\t\t\t
Blade anchor ZH04/１pc.\t\t\t\t\t
Blade anchor screw HB03/３ pcs.\t\t\t\t\t
Hexagon wrench RR02/１ pc.\t\t\t\t\t
Torque screwdriver ZH25T/ 1 pc.\t\t\t\t\t
Foot switch ZH801/ 1 pc.\t\t\t\t\t
\t\t\t\t\t
※1 Power code is conformed to Europe law and safety standard. If you are going to use at other countries, please use power code which is conformed to the country's law and safety standard.\t\t\t\t\t
※2 Operation conditions is not a term that ensures device operation.\t\t\t\t\t
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・\t\t\t\t\t
\t\t\t\t\t
Before you purchase our products, please read regulation of overseas exportation below and push select box.\t\t\t\t\t
\t\t\t\t\t
We(purchaser) do not use for following purposes and resell products to following places.\t\t\t\t\t
\t\t\t\t\t
(1) Manufacturing facilities to have nuclear weapons potential NSG(Nuclear Supplies Group)\t\t\t\t\t
\t\t\t\t\t
(2) Materials and manufacturing facilities to have chemical biological weapons potential AG (Australia Group)\t\t\t\t\t
\t\t\t\t\t
(3) Missiles, the components and manufacturing facilities capable of delivering weapons of mass destruction MTCR(Missile Technology Control Regime)\t\t\t\t\t
\t\t\t\t\t
(4) Conventional arms and dual-use goods and technologies WA (Wassenaar Arrangement)\t\t\t\t\t
\t\t\t\t\t
*Please confirm below 2 elements before purchasing\t\t\t\t\t\t
We recognize that this product is oversea model.\t\t\t\t\t
Read all regulations of overseas exportation, and agreed to all terms.
Product name | Super hobby tool, Ultrasonic cutter ZO-95. Professional model. |
Brand Name | ZO series |
Place of Origin | Japan |
