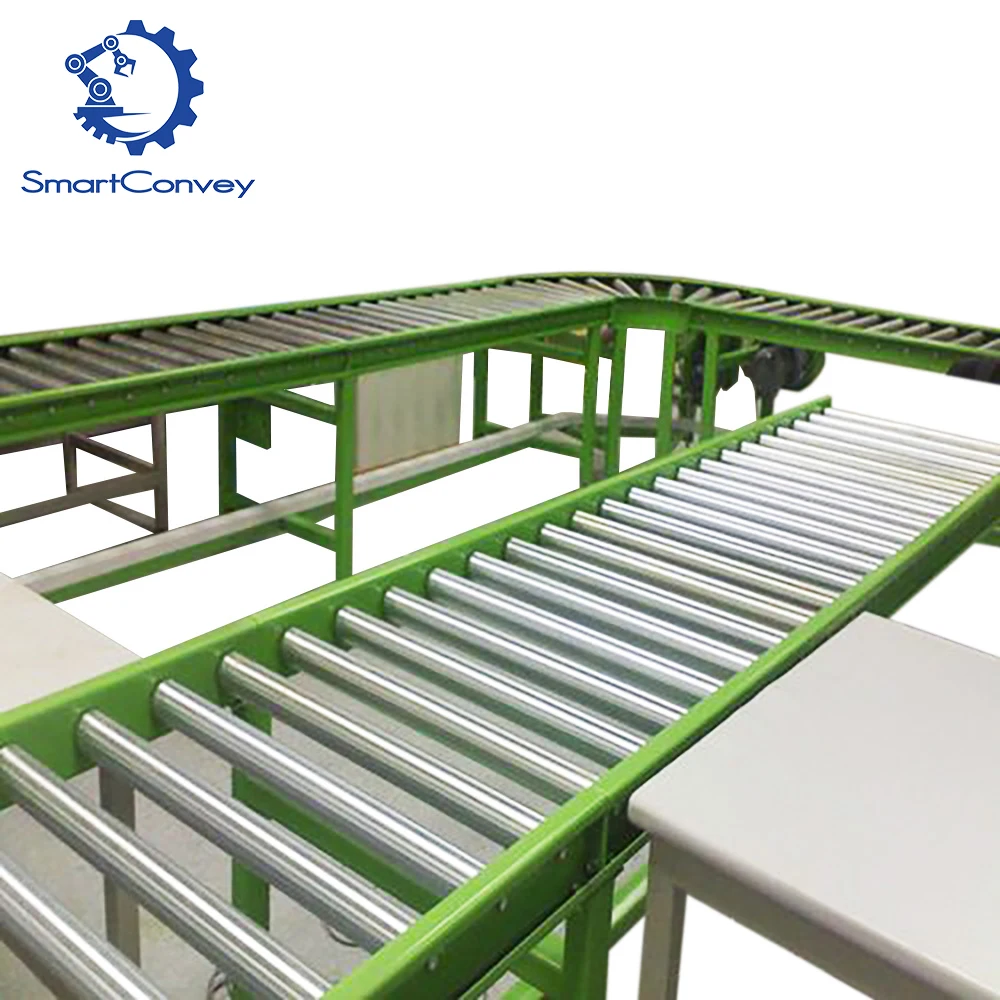

Industrial Factory Electric Power 90 Degree 180 Degree Turning Roller Conveyor
- Category: >>>
- Supplier: Smart Convey Automation (shanghai) Co. Ltd.
Share on (11000006538295):
Product Overview
Description
Product Description

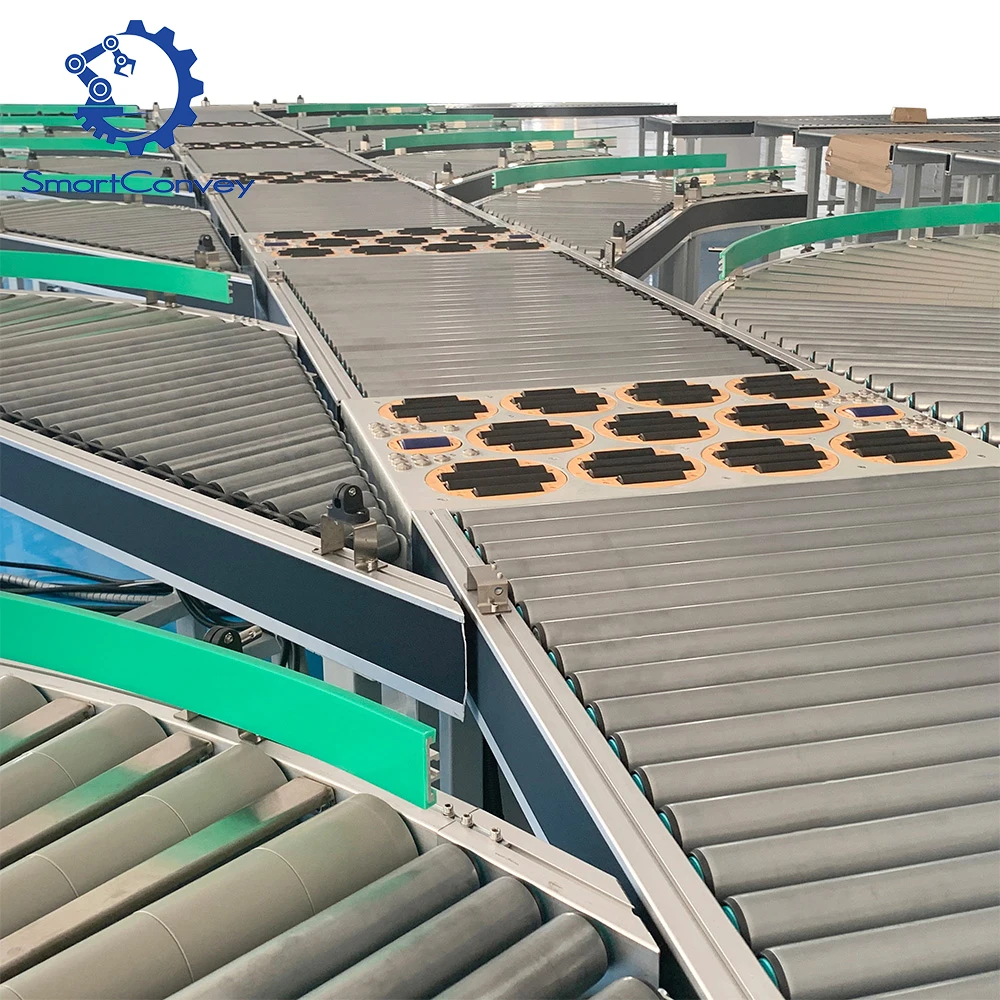

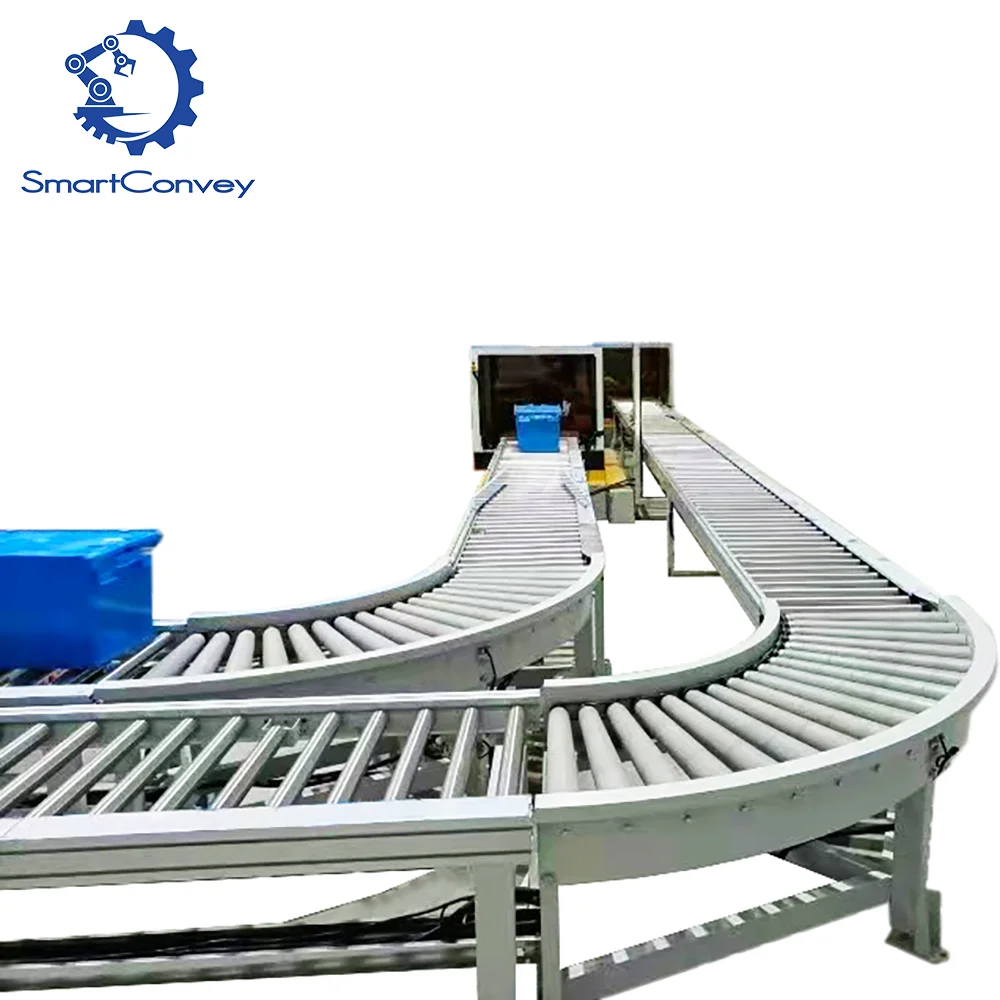

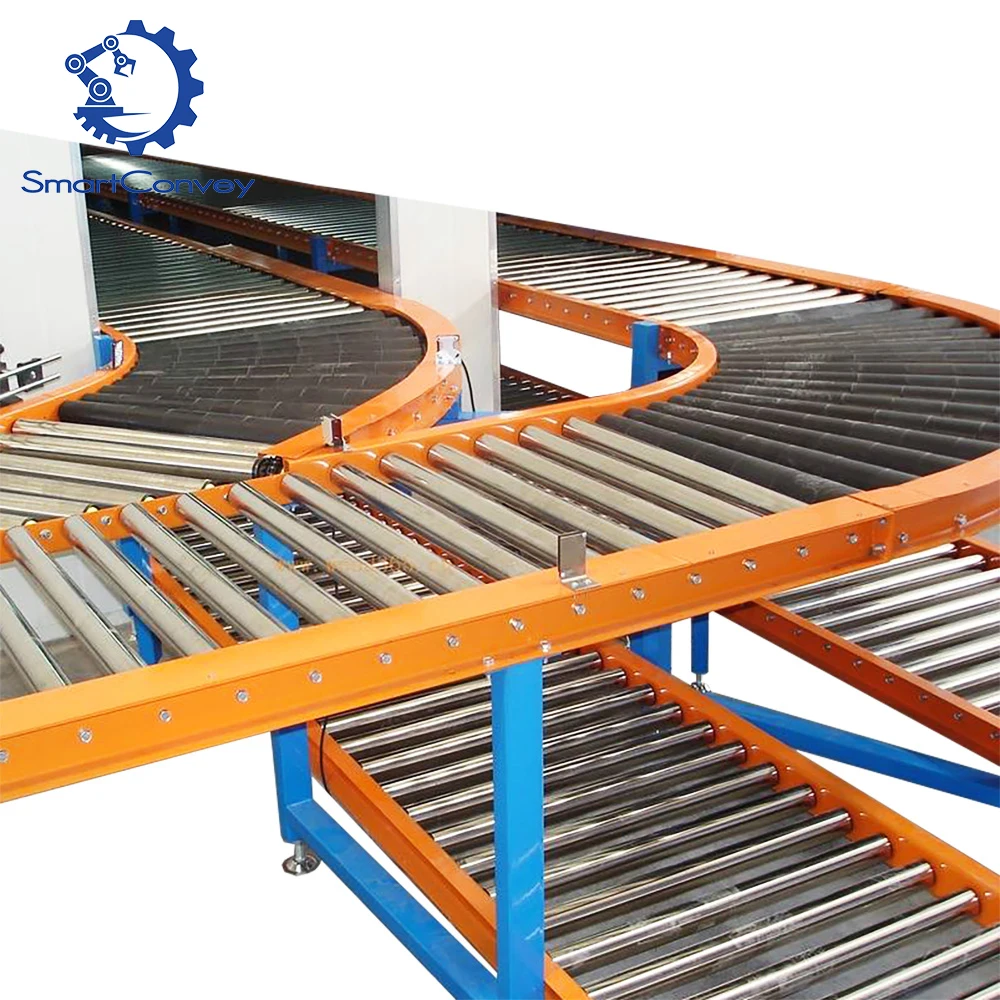

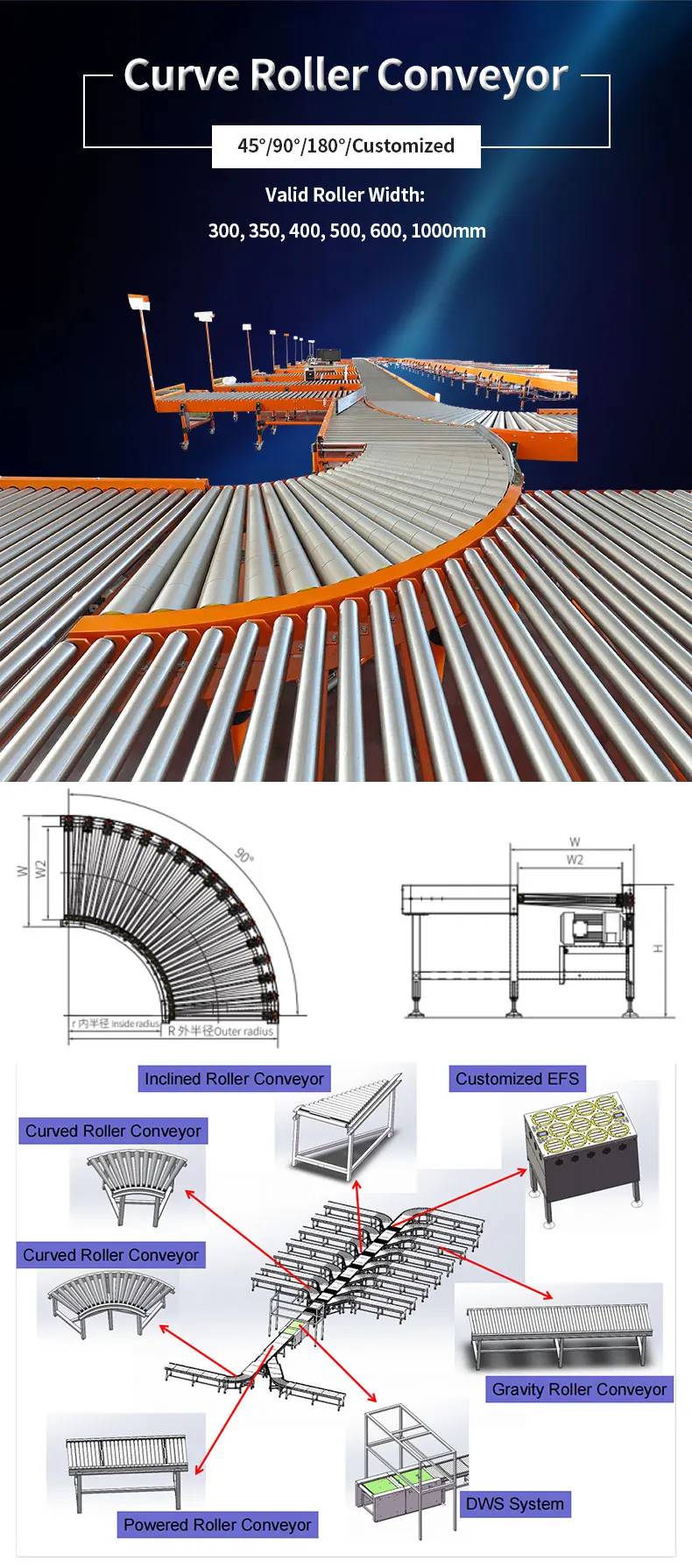

Curve Roller Conveyor

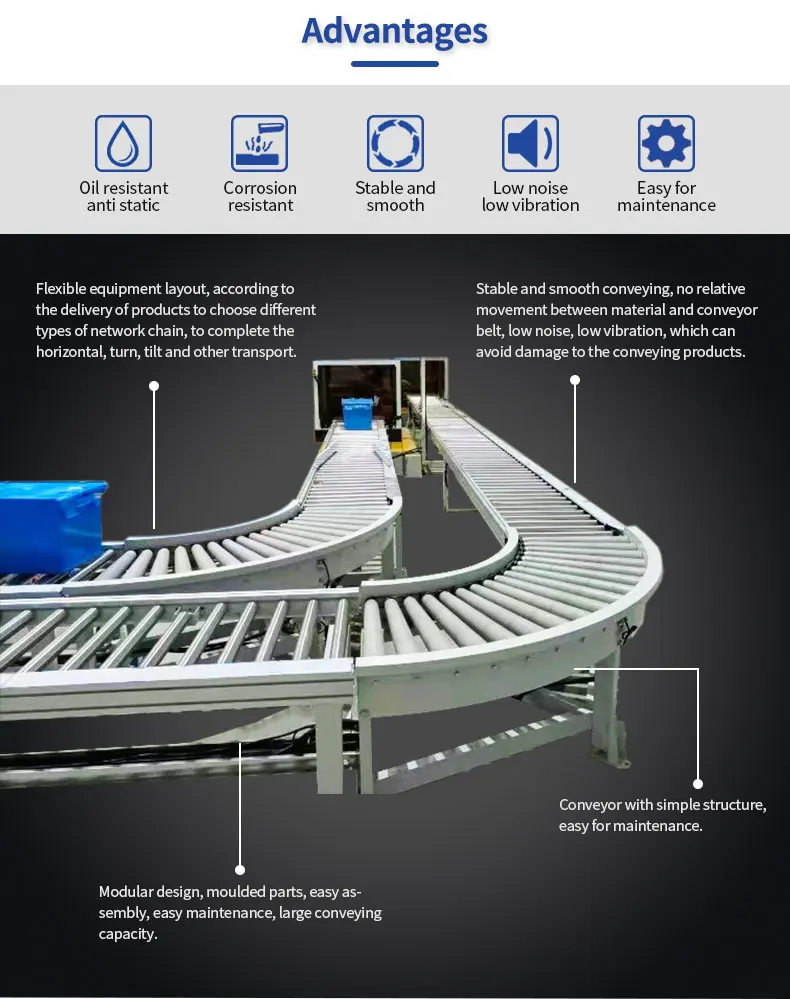

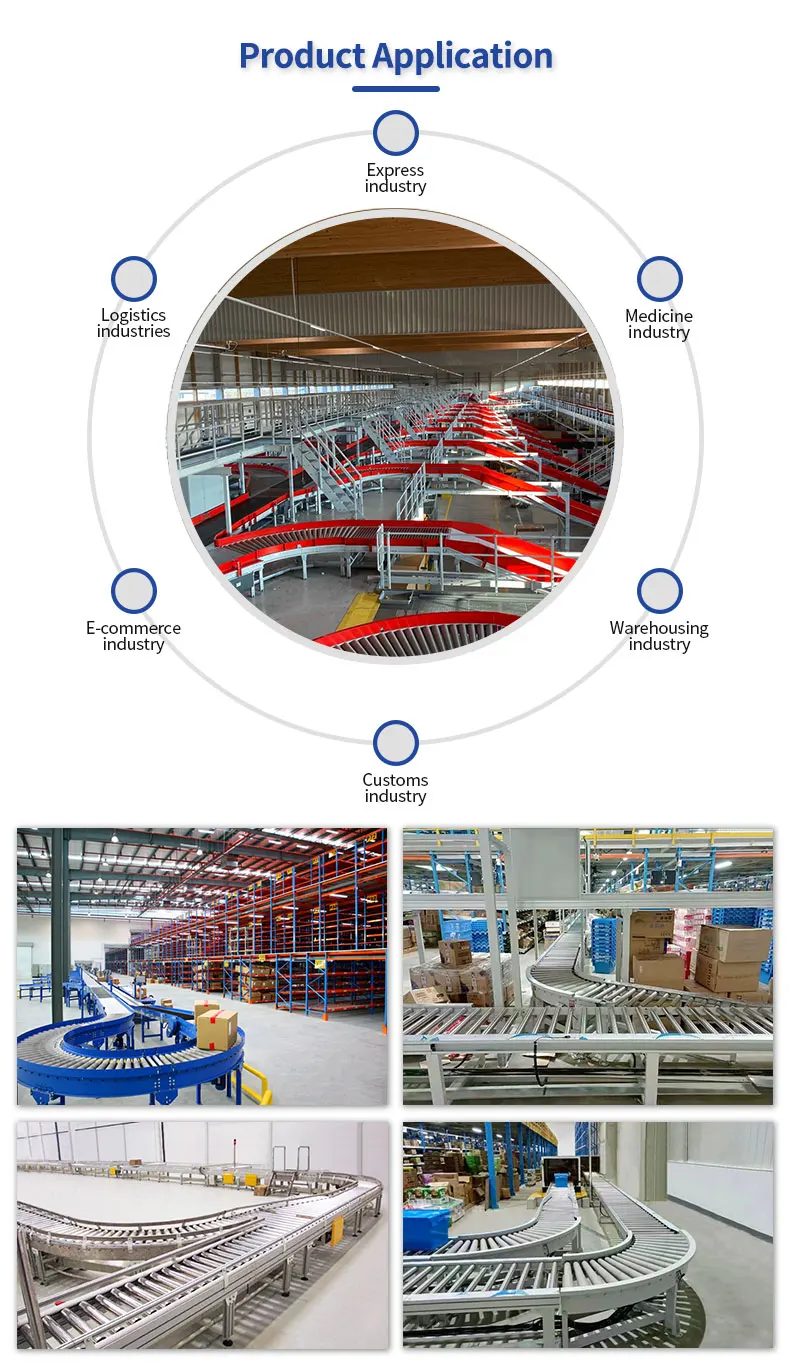

Curve roller conveyor uses cone rollers as the carrier, which can transport the products along the curve smoothly. There are single-chain drive and double-chain drive. It plays an important role in turning part of whole conveying line, as a transition part. The turning degrees could be 45°,90°,180°, or other customized ones. It is widely applied in logistics industry, tobacco industry, tire industry, printing industry, express and logistics industries, and etc.
Product Data Sheet
| Conveyor Form | Curve Roller Conveyor | |
Roller Data | Valid Roller Width(mm) | 300, 350, 400, 500, 600, 1000 | |
Roller Material | Roller Tube | Galavanized CA, Stainless Steel | |
Sprocket | Carbon Steel | ||
Conveyor Data | Frame Material | Carbon Steel Painted | |
Conveyor Width(mm) | 400 ~ 1200 ( Other to be Customized) | ||
Conveyor Height(mm) | ≥500 ( Other to be Customized) | ||
Turning Radius r(mm) | 400, 600, 800 | ||
Speed(m/min) | ≤ 30 | ||
