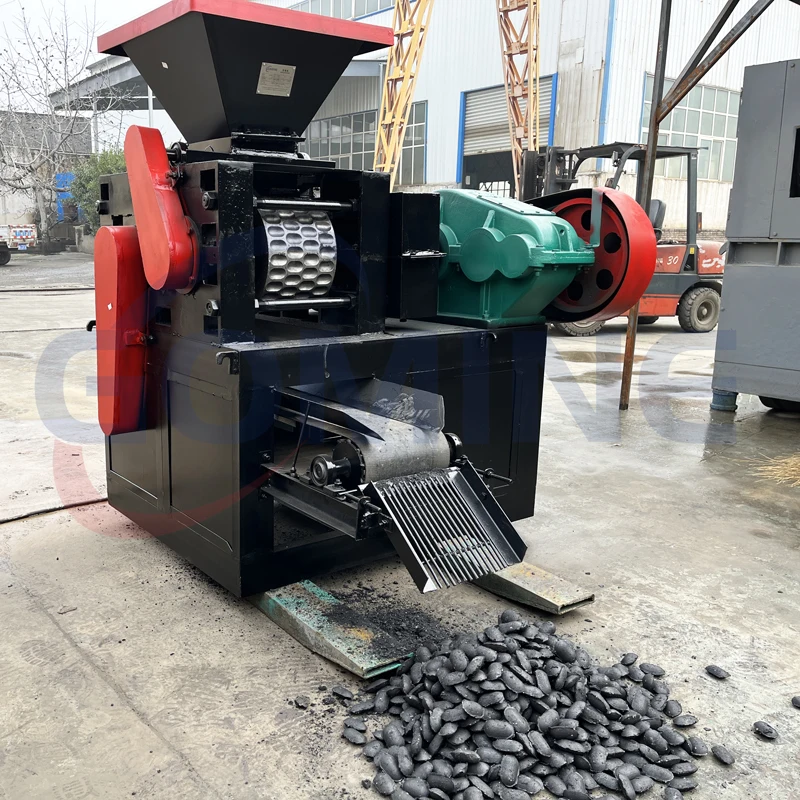

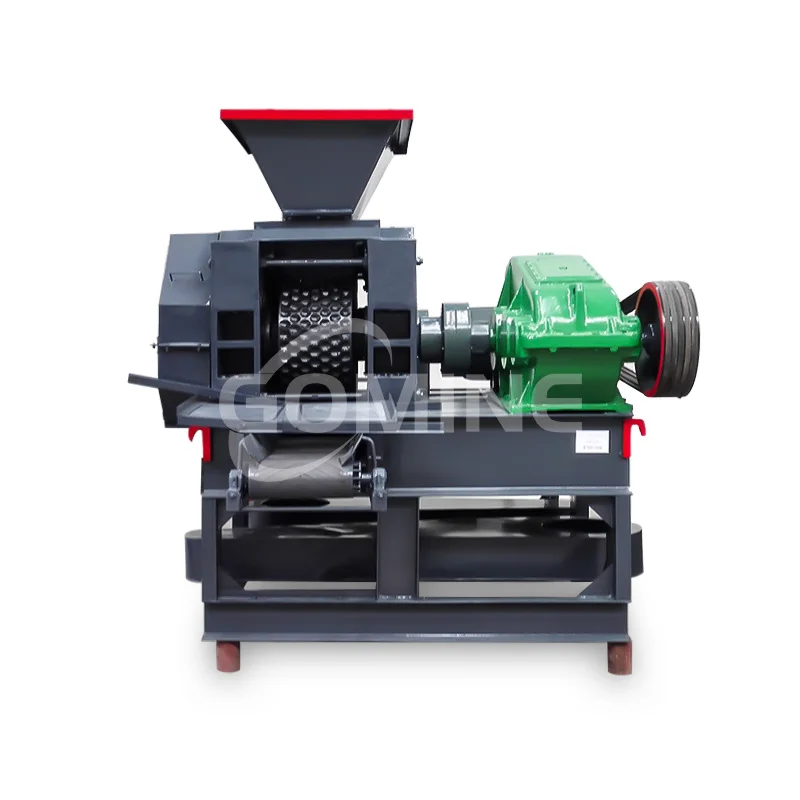

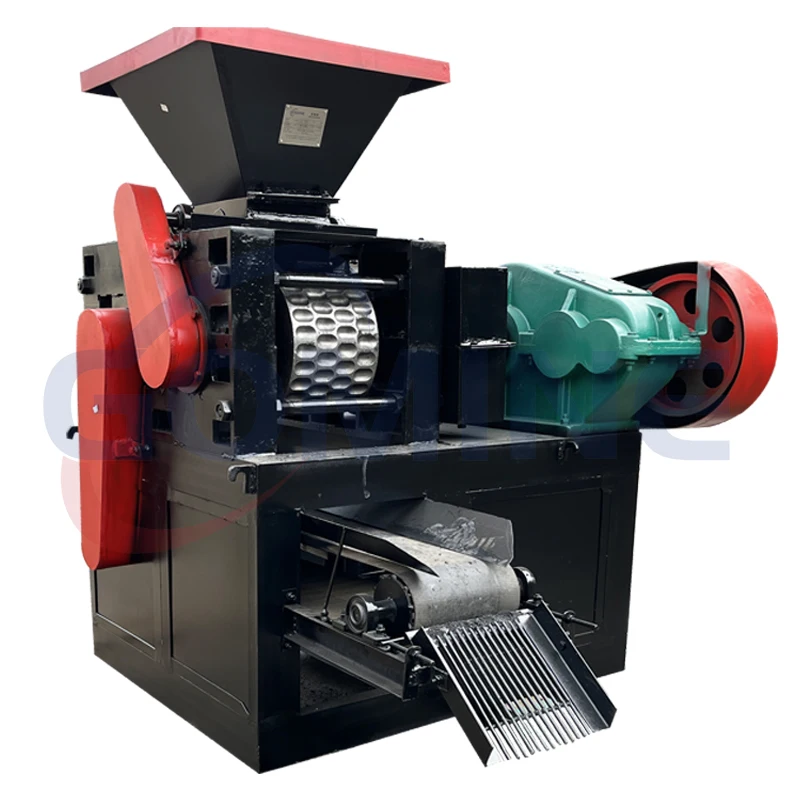

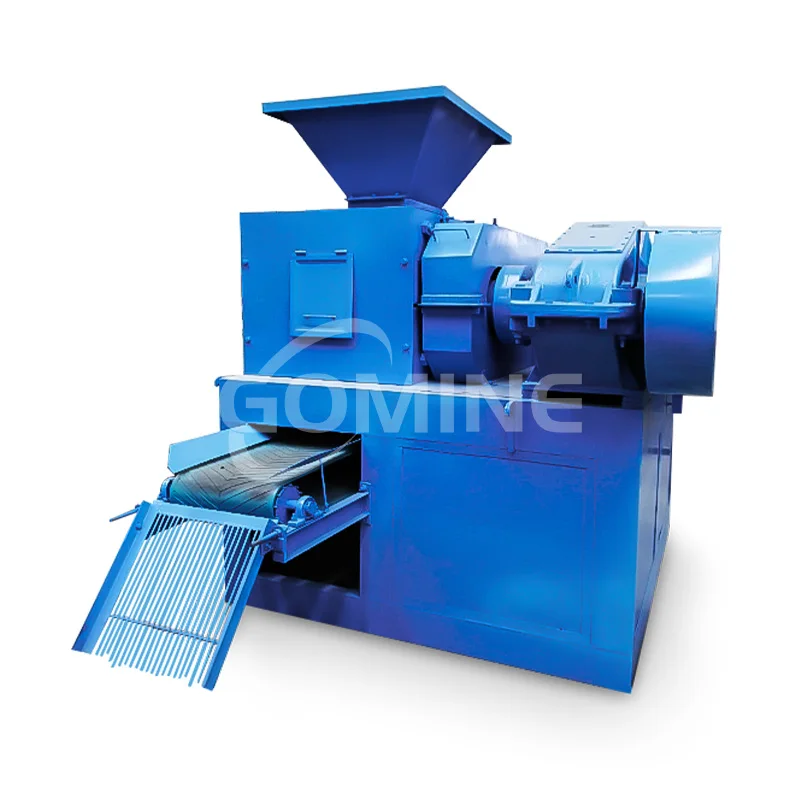

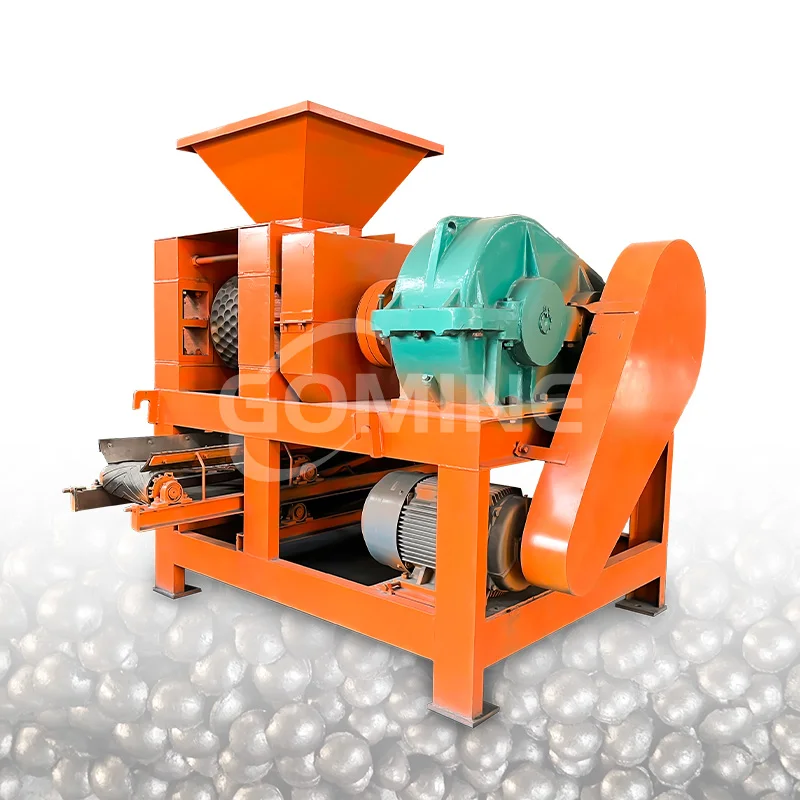

High efficiency Charcoal Powder Briquette Screw Making Machine Carbon powder Fly ash briquette briket making machine
- Category: >>>
- Supplier: Henan Gomine Environmental Protection Technology Co. Ltd.
Share on (11000006544092):
Product Overview
Description
Automatic Roller Type Aluminum Powder Briquette Machine High Efficiency Mineral Powder Coal Dust Ball Press Machine
Products Description
Raw materials of roller type ball press machine:
Roller type briquette making ball press machine is a widely used in many range, our machine can press briquettes from coal fines, anthracite coal, bituminous coal, subbituminous coal, coke fines, carbon powder, charcoal powder, carbon black, iron ore fines, mineral powder, metal dust, iron dust, mill scale, manganese ore fines, fluorite powder, gypsum powder, chemical salt, ferrosilicon powder, nickel alloy, blast furnace ash, converter dust, MgO, graphite, oil shale, potash fertilizer, urea fertilizer, sea sand powder etc.
Model | Roller Diameter (mm) | Capacity (t/h) | Power (kw) | Reducer |
GM-290 | 290 | 1-2.5 | 5.5-7.5 | 350 |
GM-360 | 360 | 3-5 | 7.5-11 | 350 |
GM-430 | 430 | 5-8 | 15 | 500 |
GM-500 | 500 | 8-11 | 30 | 650 |
GM-650 | 650 | 10-15 | 37-45 | 750 |
GM-750 | 750 | 20-25 | 45 | 750 |
GM-850 | 850 | 20-28 | 55 | 850 |
GM-1000 | 1000 | 23-35 | 90 | 1000 |
Roller type ball press machine is made up of three parts: feeding, driving and briquetting.
1. Feed section: To make sure materials enter double rollers evenly by feeding in ration. Driven by the electromagnetic speed regulating motor and after the belt wheel and worm reducer turn, the spiral feed device of briquette machines presses materials into the main feed port. As the constant matrix feature of the electromagnetic speed regulating motor, when the spiral feeder has the same pressing quantity with the inventory of the main body of the briquetting machine or briquettes machine, the feeding pressure will stay constant thus stabilizing the balling quality. If there is a large feed amount, the electricity of the feeding device will be overloaded and vice versa. Therefore, it's very important to operate the machine skillfully.
2. Driving section: The driving system consists of electromotor, triangle section, reducer, open gear and rollers. The briquetting machine runs relying on the cooperation of driving and driven shaft supported by the exposed gear. It is driven by the electromagnetic speed regulating motor; after the belt wheel and cylindrical gear reducer, the power is transferred to the pin coupling shaft. Hydraulic pressure device is installed on the back of the driven shaft block. The hydraulic protection device of briquette machine can make axial displacement of the piston as the hydraulic pump pushes the high pressure oil into the hydraulic tank. The front connecting end of the piston supports the bearing pedestal to meet the production requirement.
3. Briquetting section: Referring to the main body of the briquetting machine or briquette machine with the rollers as its core working part. When too many materials or metal blocks enter the space between the two compression rollers, the piston rod of the hydraulic cylinder gets so pressed that the pump will stop working and the energy accumulator will make buffer action facing pressure changing. Then the flood valve starts the oil return and the piston rod replacement will widen the space between the rollers thus forcing hard materials to pass the rollers. Finally, the whole pressure system of briquette machine or briquette press machine returns to normal condition so that the rollers won't be damaged.
Packaging & Shipping
Company Profile
Gomine Environmental Protection Technology Co., Ltd. is a comprehensive environmental protection equipment manufacturing enterprise integrating process design, technology research and development, manufacturing, sales and after-sales service.
Our company's main business: solid waste recycling and processing equipment, electronic waste crushing and sorting equipment and related environmental protection equipment, products include waste cable and wire crushing and sorting equipment, waste circuit board CCL crushing and sorting equipment, aluminum-plastic separation equipment, copper-aluminum radiator separation equipment, mini copper granulator and so on.
Our factory covers an area of 100,000 m2 with more than 50 sets of big and medium machine lathes. With 12 years experiences in machine manufacturing and technical development, we always take the quality and utility as priority. Now we have customers from more than 60 countries, including USA, Germany, Mexico, Japan, Thailand.
Why Choose Us
We have rich experience in e waste recycling machines manufacturing. Our machines have high reputation both at home and abroad. Over years, our machines have been exported to more than 60 countries, including USA, Germany, Mexico, Japan, Thailand, Egypt, etc.
FAQ
1.Why Choose Us?
(1) Several Year's Experience: We have rich experience in e waste recycling machines manufacturing. Our machines have high reputation both at home and abroad.
(2) Reliable quality: Use the best raw materials to ensure the machine works stably and efficiently for a long time.
(3) Professional team: From pre-sales to after-sales, we always provide you with the best service.
(4) Competitive price: Self-design and manufacturing, cost efficient.
(2) Reliable quality: Use the best raw materials to ensure the machine works stably and efficiently for a long time.
(3) Professional team: From pre-sales to after-sales, we always provide you with the best service.
(4) Competitive price: Self-design and manufacturing, cost efficient.
2.What Is Our Service?
(1)According to the customers' special requirements,we provide the most suitable project design, process design and the purchase program. Guide customers to choose the best and economical plant, recover investment within short time.
(2)You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.
(3)We will provide one year warranty for our machine.According to your need,we will dispatch our engineers to your factory to guide the installation,commissioning and training your workers.
(2)You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.
(3)We will provide one year warranty for our machine.According to your need,we will dispatch our engineers to your factory to guide the installation,commissioning and training your workers.
3.How Do You Ensure The Roller Type Ball Press Machine Quality?
You can send your sample materials to us and we will test the machine for you without charging the fees. And we can send the briquette making machine test video to you. According to your time, you can pay a visit to our factory to test our machine.
4.How About The Motor?
We use domestic Chinese-famous motors,but you can choose Siemens or other brand motor as your requirement.
