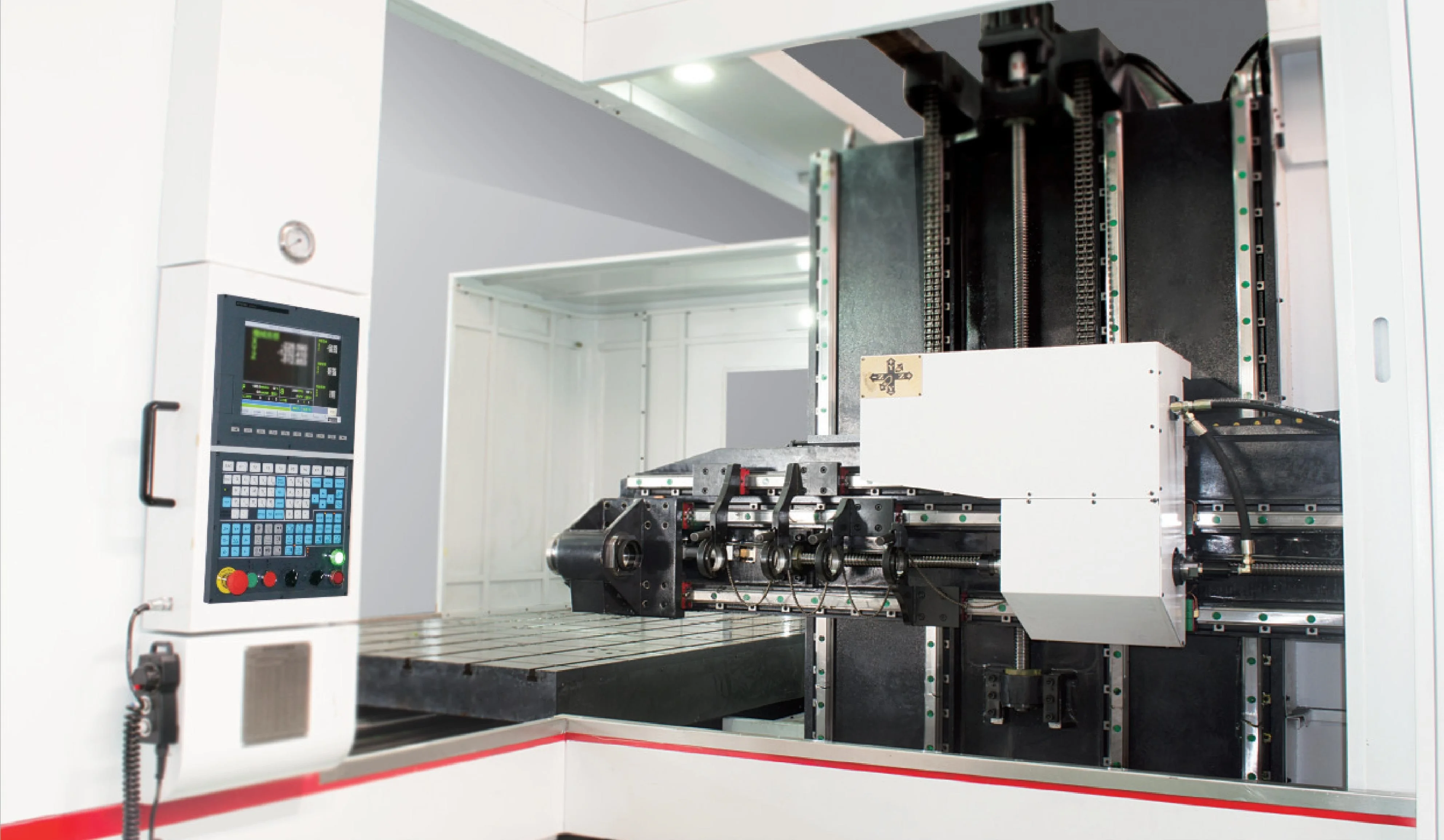

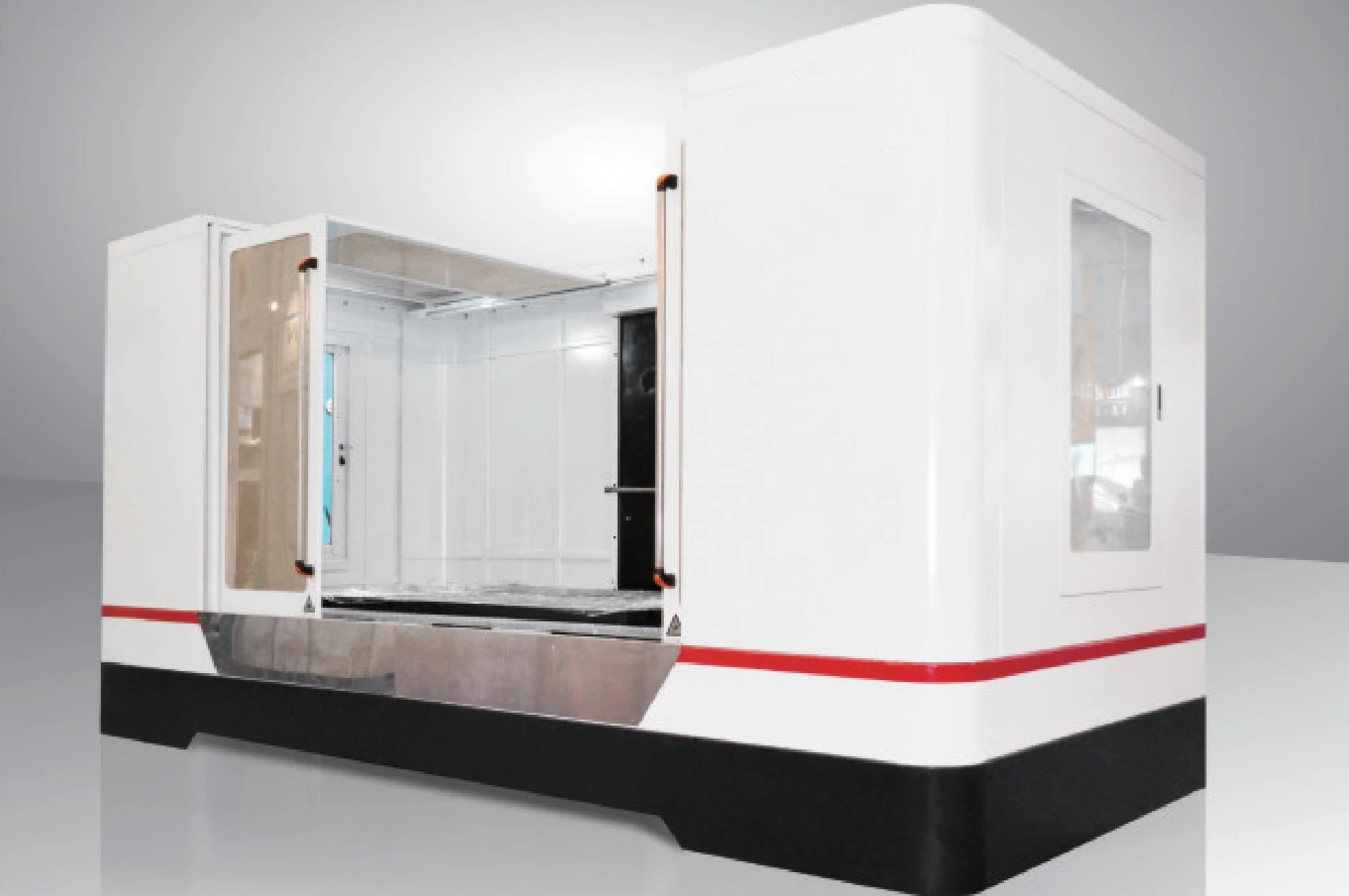

Cnc Special Purpose Deep Hole Drilling Machine With Properties Of High Efficiency, High Accuracy And High Automation

Product Overview

Description

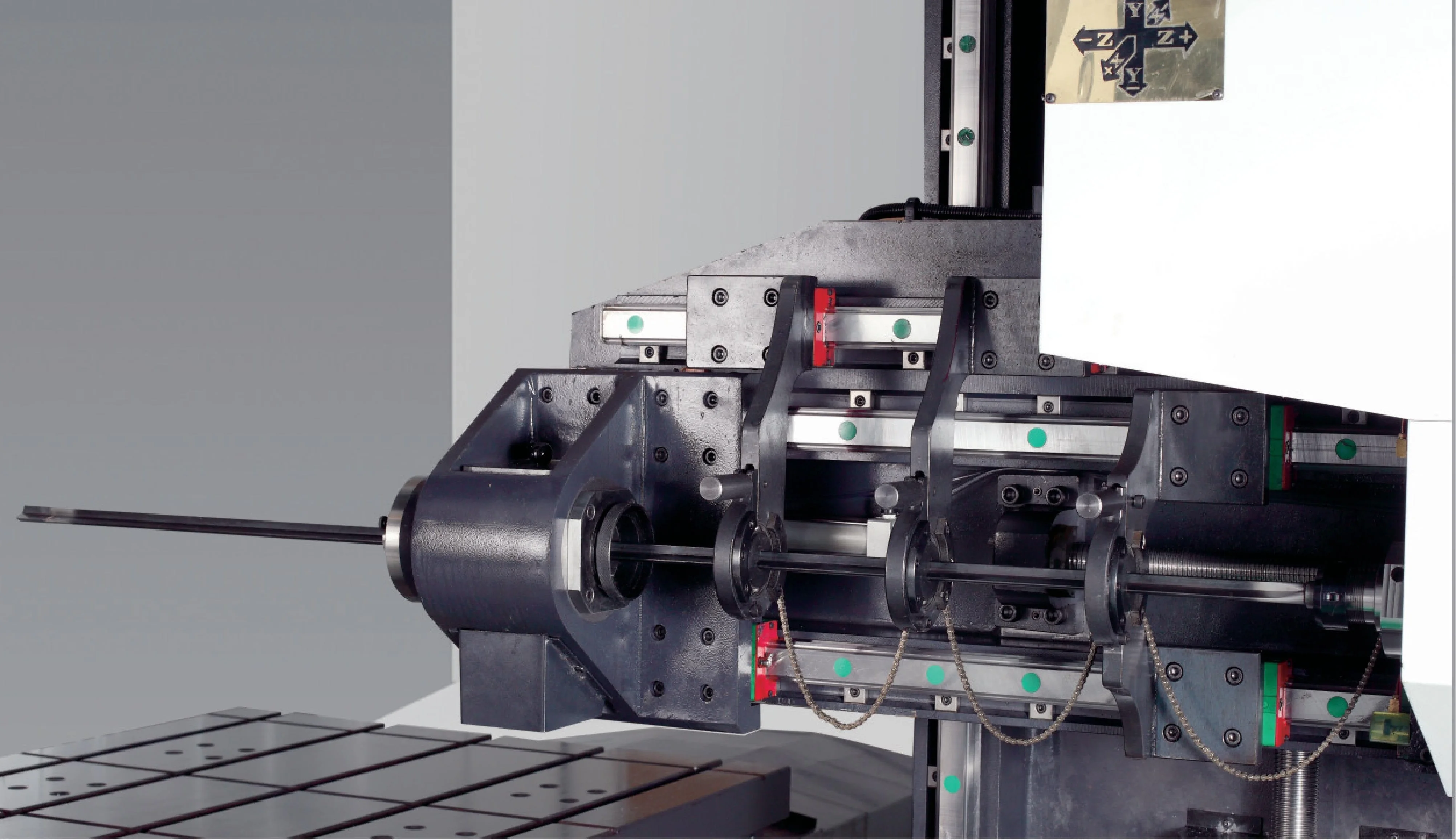

PRODUCT FEATURES

Ø Three coordinates NC linkage runs automatically;

Ø Slender deep hole machining process without return, drilling efficiency is

as high as 6 times more than ordinary drilling machines;

Ø Processing aperture range, gun drill: 30-35 mm, BTA: 30 18-65-mm (BTA is optional);

Ø Unilateral processing depth of up to 2500 mm, length to diameter ratio of 100 or higher;

Ø With the ideal size accuracy, hole drilling accuracy of straightness, and roughness.

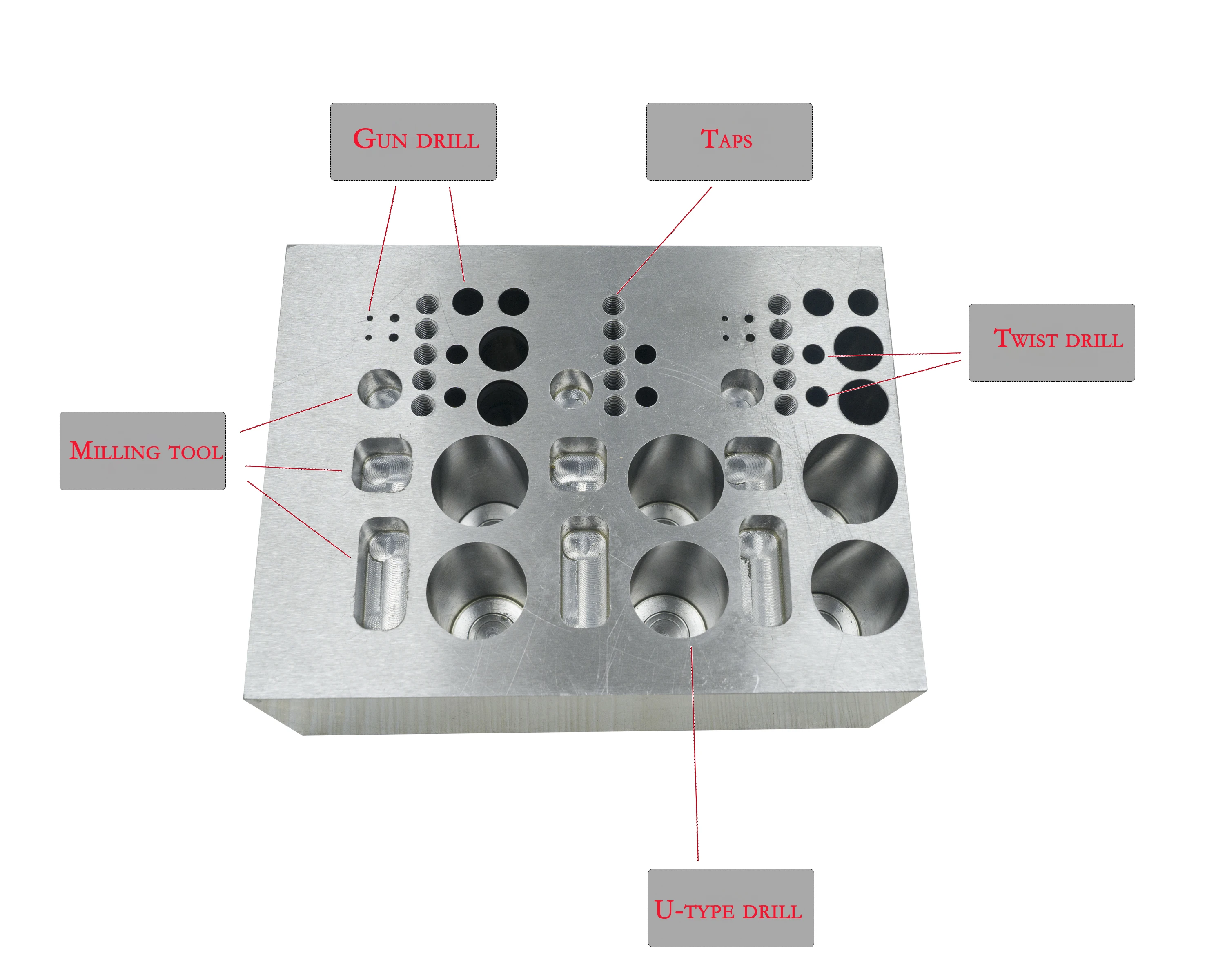

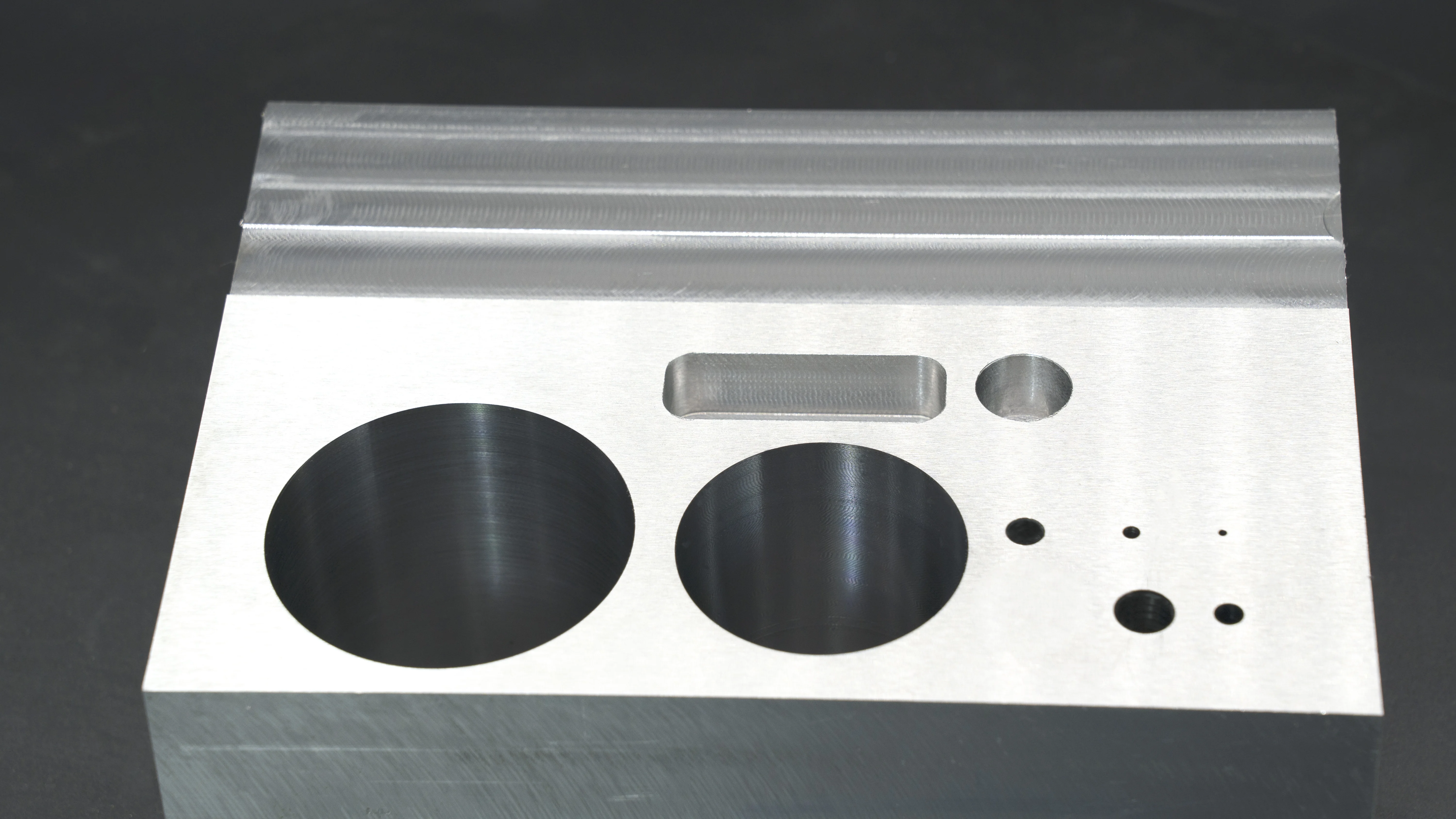

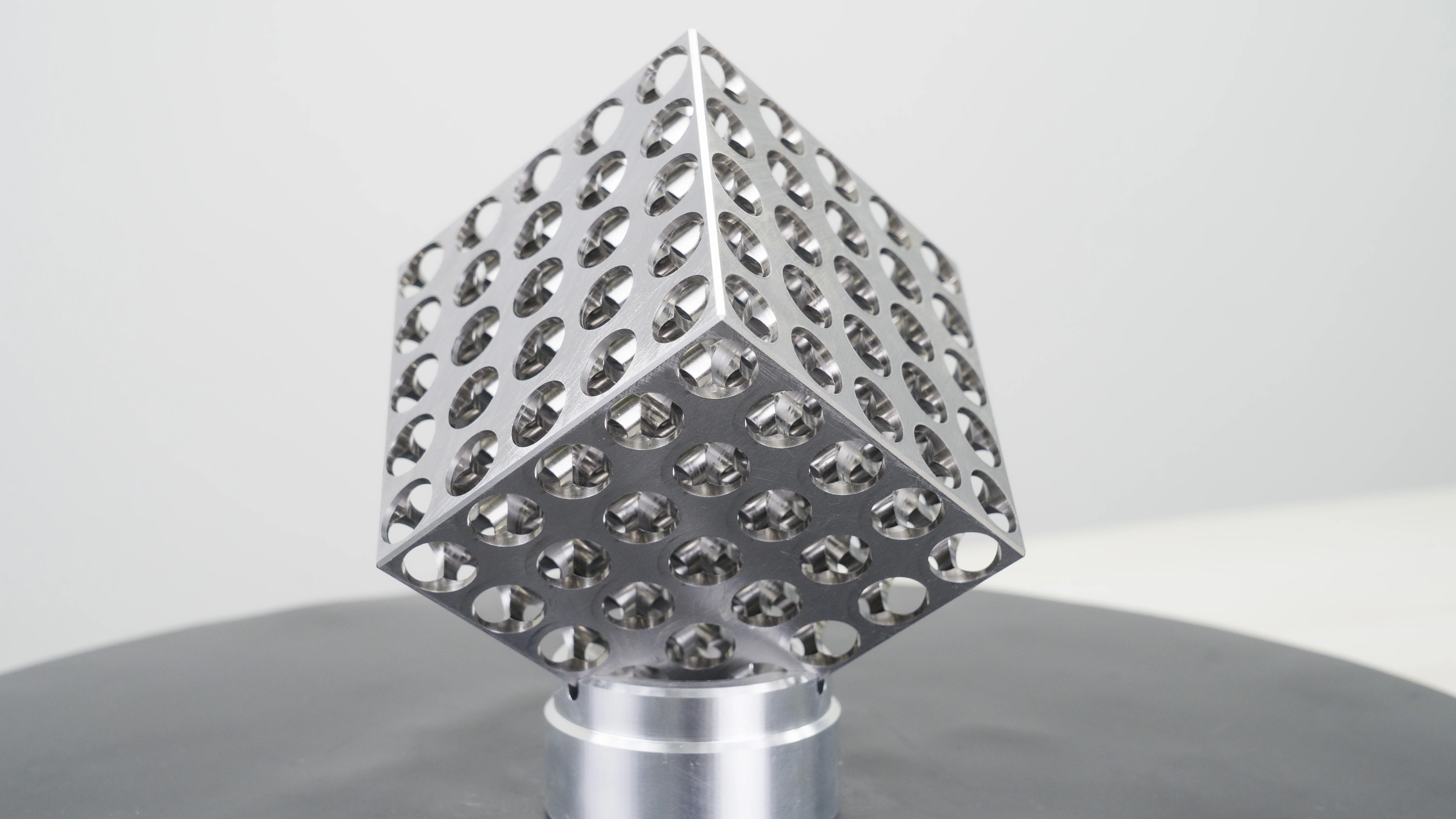

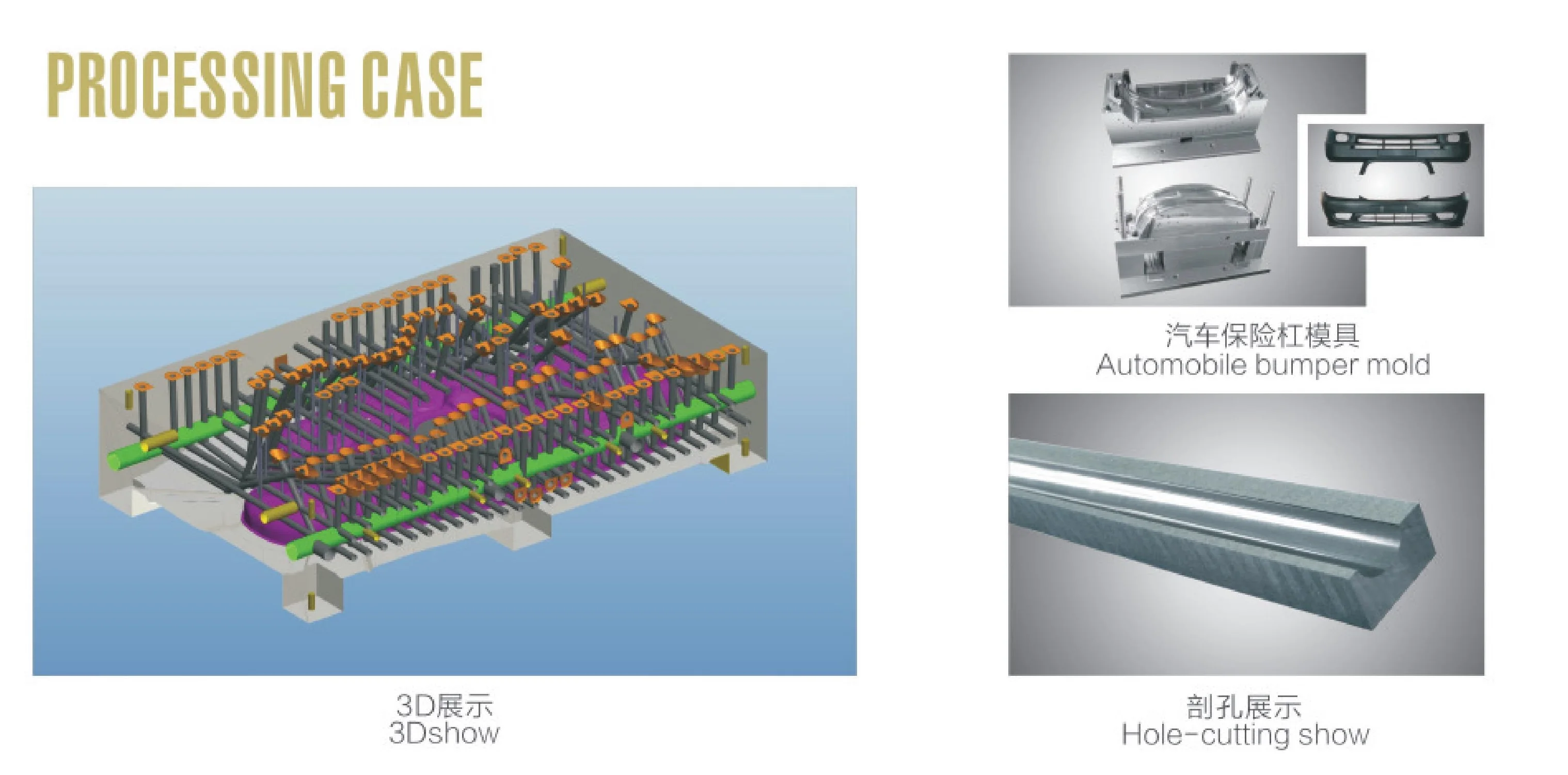

 workpiece

 Specification

ltems	A06-0606		A10-1008	A13-1310	A13-1610	A15-1612	A16-2012	A15-2515	A20-3015
Driling capacity
Driling aperture	3~20mm		3~32mm	+3~32mm	+3~32mm	+3~32mm	+3~35mm	3~35mm	+3~35mm
Drilling depth	600mm		1000mm	1300mm	1300mm	1500mm	1600mm	1500mm	2000mm
Travel
Table horizontal	600mm		1000mm	1300mm	1600mm	1600mm	2000mm	2500mm	3000mm
Main spindle vertical	600mm		800mm	1000mm	1000mm	1200mm	1200mm	1500mm	1500mm
Speed
Spinde speed	4500rpm
Feed speed	0~3000mm/min
Table
Size	500×800mm		800×1200mm	900×1500mm	1000×1700mm	1000×1700mm	1400×2200mm	2500×1500mm	1600×3000mm
Max. loading capacity	3ton		5ton	8ton	10ton	12ton	15ton	15ton	20ton
Power
Spindle motor	5.5KW		11kW	11KW	11KW	11KW	11KW	11KW	11KW
Xaxis motor	10 N.m		15N.m	15 N.m	15N.m	28 N.m	28N.m	28N.m	35 N.m
Y-axis motor	10 N.m		15 N.m	15 N.m	15N.m	28N.m	28N.m	28N.m	28 N.m
Z-axis motor	10 N.m		10 N.m	10N.m	10 N.m	10 N.m	10 N.m	10 N.m	10N.m
Total Power	24KW		30KW	30KW	32KW	32KW	36KW	36KW	36KW
Cooling system
Cooling pressure		2-100kg/cm²
Rate of fow		6-80L/min
Size&Weight
Floor space   require(L×W)	4200×2600mm		4500×3200mm	4900×3700mm	5000×4000mm	5500×4000mm	6100×5400mm	6600×5500mm	8200×6500mm
Machine heght	2300mm		2650mm	2800mm	2800mm	3050mm	3250mm	3700mm	3600mm
Machine weght	5 ton		9 ton	11 ton	12 ton	13ton	18 ton	18.5 ton	21ton
