2Pin Right Angle Tactile Switch
It is a right angle type 2pin and bracket tactile switch, with 3.5mm x6.0mm in size, and from 3.15mm to 5.5mm knob height optional. There are four operating force options: 100gf, 160gf, 240gf, and 330gf. The series tact switch has a life cycle of 300,000 to 500,000 actuations depending on the operating force and is electrically rated for 20mA of 15 VDC current. With its small footprint, low profile, and SMT design, this ultra miniature tact switch can be used for many small applications, Wearable technology and so on.
Products Description
Product Structure Description

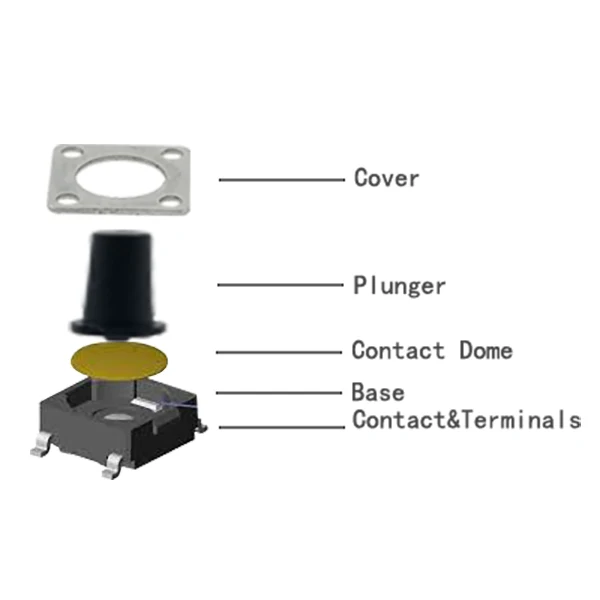

Generally speaking, the universal touch switch is composed of 5 parts, such as cover, pluger, contact dome,base and terminals, as shown on the right.
(1) The cover, is made of nickel-plated stainless steel plate. (2) The plunger, is made of nylon with black,red,yellow,green color optional. (3) The contact dome, is made of stainless steel plated silver. (4) Bass, is made of Nylon with black color. (5)Terminals，are made of brass.
(1) The cover, is made of nickel-plated stainless steel plate. (2) The plunger, is made of nylon with black,red,yellow,green color optional. (3) The contact dome, is made of stainless steel plated silver. (4) Bass, is made of Nylon with black color. (5)Terminals，are made of brass.

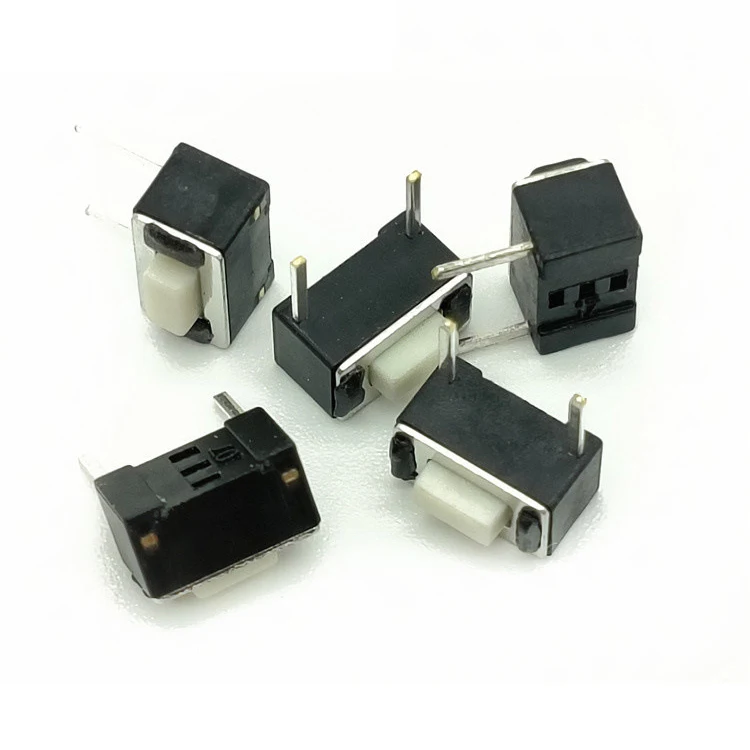

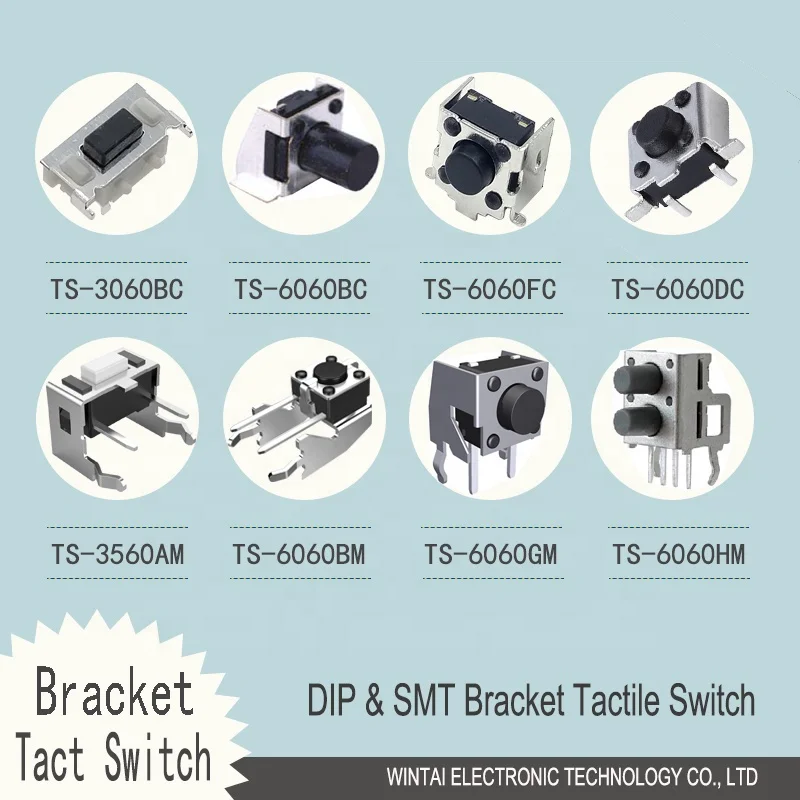

Details Images
The circuits characteristics
PCB installation method
Product Paramenters
Product Name | Tactile Switch |
Current Rating | 50mA 12VDC |
Travel | 0.25±0.05mm |
Operating Force | 160gf, 250gf |
Contact Resistance | 100mΩ |
Operating Temperature | -25oC ～ +80oC |
Materials | Brass/PT66 |
Life Time | 300,000 Cycles |
