Product Overview
Description
Products Description

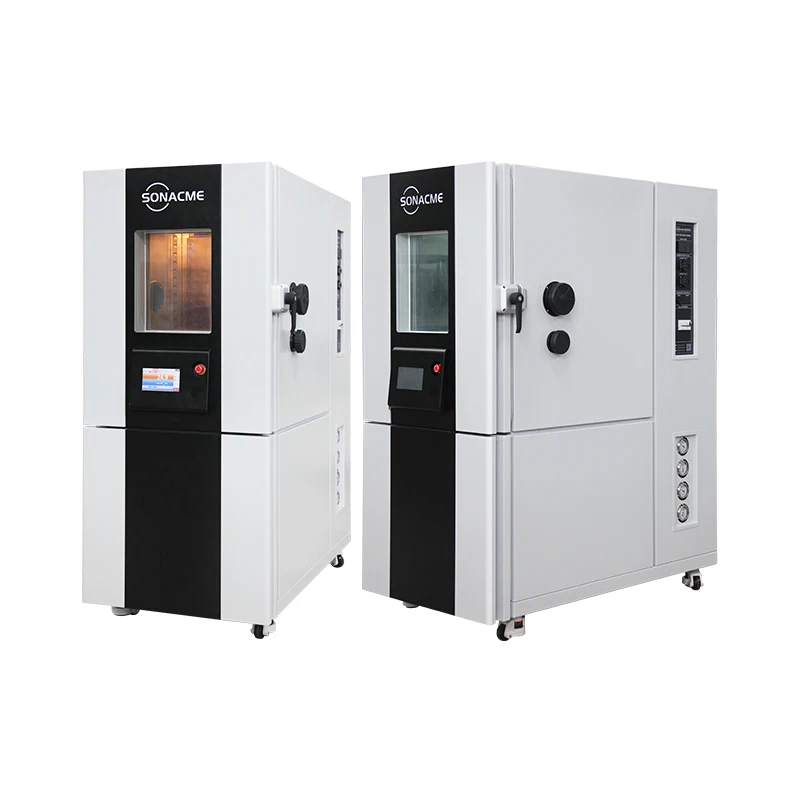

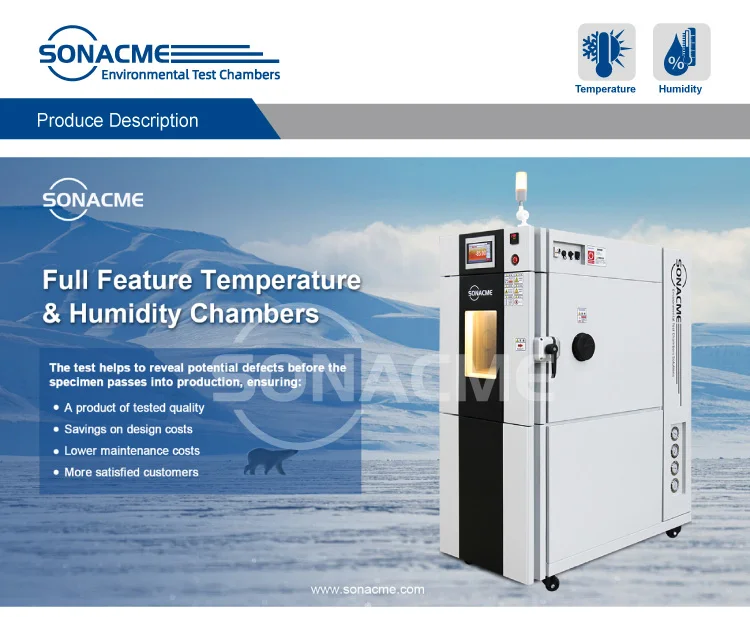

SONACME Touch Screen environmental test chamber for Temperature Humility Test of Lab

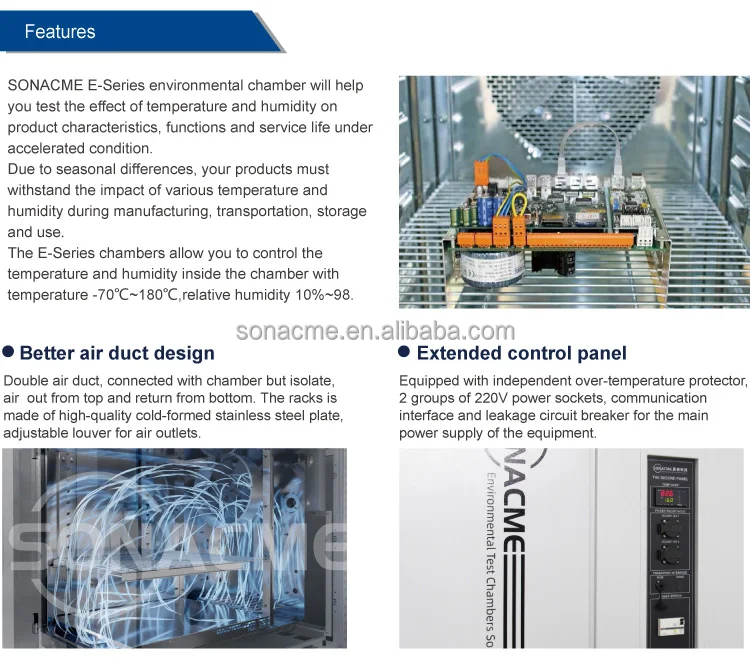

Seasonal differences, different climate zones-your products must be able to withstand various temperatures during manufacturing, transportation, storage and use. The environmental test chamber of Sonacme Technology will help you to test the effects of temperature and humidity on the characteristics, functions and service life of your products under accelerated conditions.
The Sonacme environmental test chamber and constant temperature and humidity test chamber with a wide range of applications allow you to control the temperature and humidity in the test chamber, ranging from -70°C to +180°C (temperature) and from 20% to 98%(relative humidity).
The Sonacme environmental test chamber and constant temperature and humidity test chamber with a wide range of applications allow you to control the temperature and humidity in the test chamber, ranging from -70°C to +180°C (temperature) and from 20% to 98%(relative humidity).
2022 hot sale 10% discount environmental test chamber for humility test of battery
This model is 64 L humility and temperature test chamber, and used to test the performance and stability of our products at different temperatures and
SONACME Touch Screen environmental test chamber for Temperature Humility Test of Lab

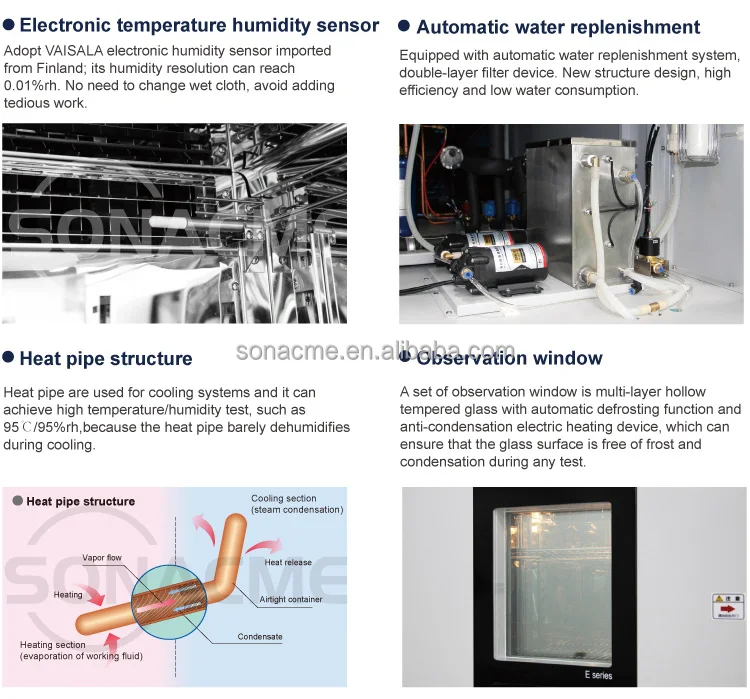

We use the VAISALA electronic humidity sensor to ensure the resolution of our environmental test chamber.
Manufacturing Technique
2022 hot sale 10% discount environmental test chamber for humility test of battery
We use the VAISALA electronic humidity sensor to ensure the resolution of our environmental test chamber.
SONACME Touch Screen environmental test chamber for Temperature Humility Test of Lab

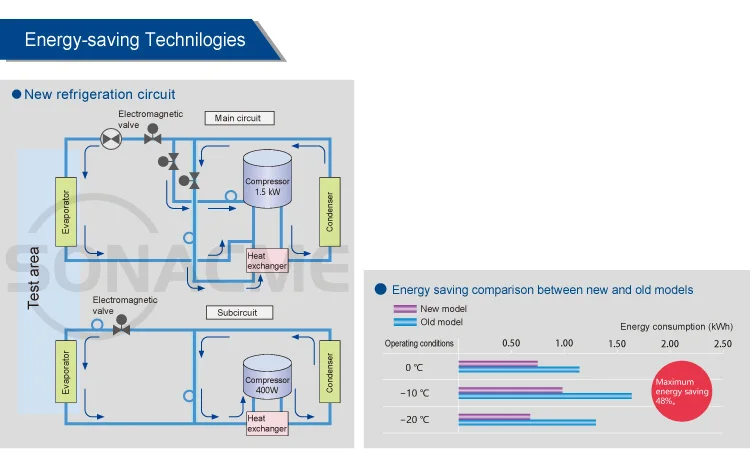

The refrigeration system supplies sufficient low-temperature refrigerant to the heat exchanger so that the temperature of the heat exchanger is lower than the air temperature. The heat in the air will be absorbed by the heat exchanger and taken out of the chamber, causing the air temperature to drop, which has a cooling effect. The cooling power is precisely controlled by the PID algorithm, and the flow and cooling capacity of the refrigerant are adjusted by the solenoid valve.
Product Paramenters
Model | ST/1000/40(H) | |||
System | Temperature and Humidity Balance Control (BTHC) System | |||
Test area capacity | 1000L | |||
Test area load-bearing capacity | 100KG | |||
Internal dimensions W×H×D mm | 1000*1000*1000 | |||
Dimensions W×H×D mm | 1200*2050*1780 | |||
Weight | 680kg | |||
Power | 1φ220V AC&50/60Hz，24A or 3φ380V AC&50/60Hz，10A | |||
Performance | Temperature & Humidity Range | -40～＋100℃ (+150℃/+180℃) / 10～98%rh | ||
Temperature & Humidity Fluctuations | ±0.3°C / ±2.5%rh | |||
Temperature uniformity | 1.5°C | |||
Temperature change rate | Heating rate：3.0°C/min Cooling rate：2.0°C/min | |||
Extreme temperature reach time | Heating time：from＋20 to＋100℃ 30 minutes Cooling time：+20 to -40°C 40 minutes | |||
Allowable heat load | est area temperature +20°C：300 W | |||
Structure | Appearance material | Using 1.5mm thick FC advanced electrolytic plate + spray anti-corrosion | ||
Test area material | 1.2mm thick SUS304 stainless steel | |||
Heater | Finned Nichrome Explosion-Proof Heater | |||
Humidifier | Stainless Steel Sheathed Humidifier (Steam Humidification) | |||
Condenser | Air-cooled condenser | |||
Air circulator | Centrifugal fan | |||
Water supply | Standard water tank 10 L | |||
Refrigeration unit | System | Mechanical single-stage compression cooling | ||
Compressor | Scroll/Piston Compressor | |||
Refrigerant | R404A [R449A available on request] | |||
Power | 3.0 Kw | |||
Noise level | 68dB | |||
*1 Performance values based on IEC60068-3-5:2001 and IEC60068-3-6:2001； Performance data is given at +23°C ambient temperature, 65±20%rh relative humidity, rated voltage and no samples in the test area. *2 Minimum temperature attainable at ambient temperature +5 to +30°C. *3 When the temperature inside the chamber is +20℃. | ||||
Company Profile
SONACME Touch Screen environmental test chamber for Temperature Humility Test of Lab
SONACME Technology (Guangdong) Co.,Ltd. established at 1995 with Europe technologies, with abundant capital invested at 2016 to become a backup listed company, we re-registered our company to be SONACME Technology (Guangdong) Co.,Ltd. with more than two decades hard working in this industry, we built our own manufacture facility at 2006, capacity reaches to 12,000 square meters which allow us to provide customers with one-stop station products and services from R & D, Sheet metal processing, mass production, sales service, after-sales service, rent & lease,internal testing to import & export.We dedicate to provide technologies and whole solutions with most secure and reliable environmental test chambers for our client. Achieved 'National High-tech Enterprise' award and became an CASC permanent member. Certified by ZRX with ISO9001:2015 and ISO14001:2015 and recently verified by Alibaba with Gold Plus supplier.

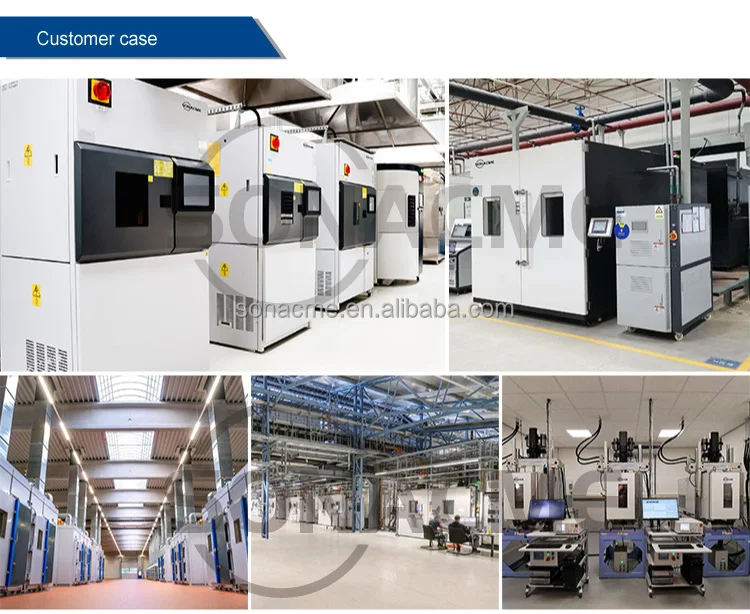

Customer cases
Certifications
Product packaging
Paper corners are used around the environmental test chamber to prevent bumps, and wrapped with foam, and packed in special wooden boxes for export to ensure that the products arrive at your site safely.
