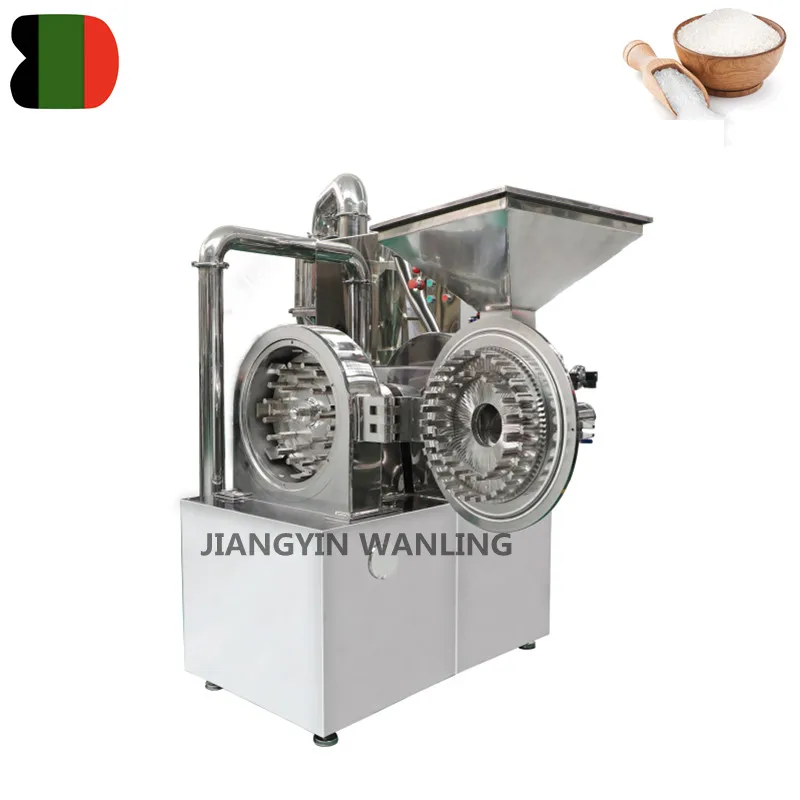

WLF automatic sea salt talc medicine chemical powder making grinding crushing grinder mill machine
Application
WF pin cyclone deusting & grinding machine is a new generation of grinding machine, which is carefully designed and developed by our company based on our crushing experience and actual conditions. This machine is mainly applied to crush material with low hardness in chemicals, dyes, additives, feed, food, medicine and non-metalic mineral, fineness adjusted between 20-120 mesh. It has advantages such as high production capacity, fine grain, low noise, low energy consumption, easy maintenance and easy installation, especially for crushing oily, viscous, heat-sensitive and fibrous material with low hardness (example: ginger, chili, pepper, naked oats, soybean, star anise and cinnamon).
Feature
1.Powerful grinding ability, low energy consumption, relatively fine grain
2.Crush in a large space, high-strength wind pressure is generated when the turbine operates, not only to increase production capacity and reduce phenomenon of over-crushing, but also to effectively avoid the deposition and clogging of material in the screen during the production.
3.Crushing ability of fibrous materials is stronger than common equipment because of the strengthening of the cut,.
4.Easy screen installation, reliable positioning, adopting plug-in type; Service life is relatively longer than the ring-screen.
5.Interal-mounted motor lows the center of gravity and noise.
Technical Parameters
TYPE | 20B | 30B | 40B | 50B | 60B |
Capacity(kg/h) | 20-80 | 50-300 | 100-400 | 200-500 | 300-800 |
Main Speed (r/min) | 4500 | 3500 | 3400 | 2900 | 2900 |
Feed Size (mm) | 6 | 10 | 12 | 12 | 12 |
Discharge Size(mesh) | 20-150 | 20-150 | 20-150 | 20-150 | 20-150 |
Crush Power (kw) | 4 | 5.5 | 7.5 | 11 | 22 |
Fan Power(kw) | 2.2 | 2.2 | 2.2 | 3 | 3 |
Discharge motor(kw) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
Weight(kg) | 350 | 500 | 600 | 750 | 1000 |
Overall Dimensions(mm) | 1000* 800*1600 | 1200* 850*1780 | 1480* 900*1890 | 1580* 1000* 2000 | 1800* 1200*2250 |

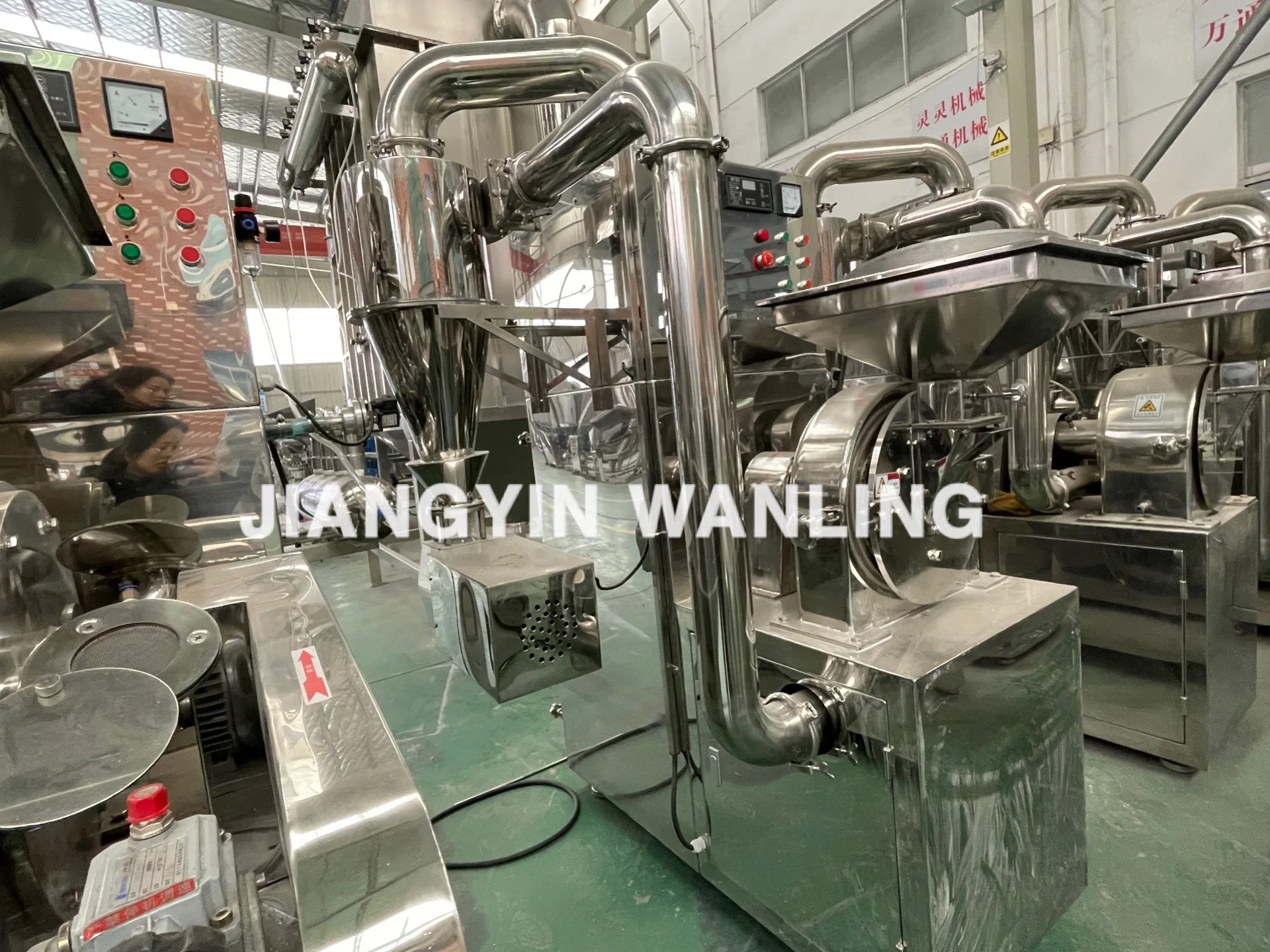

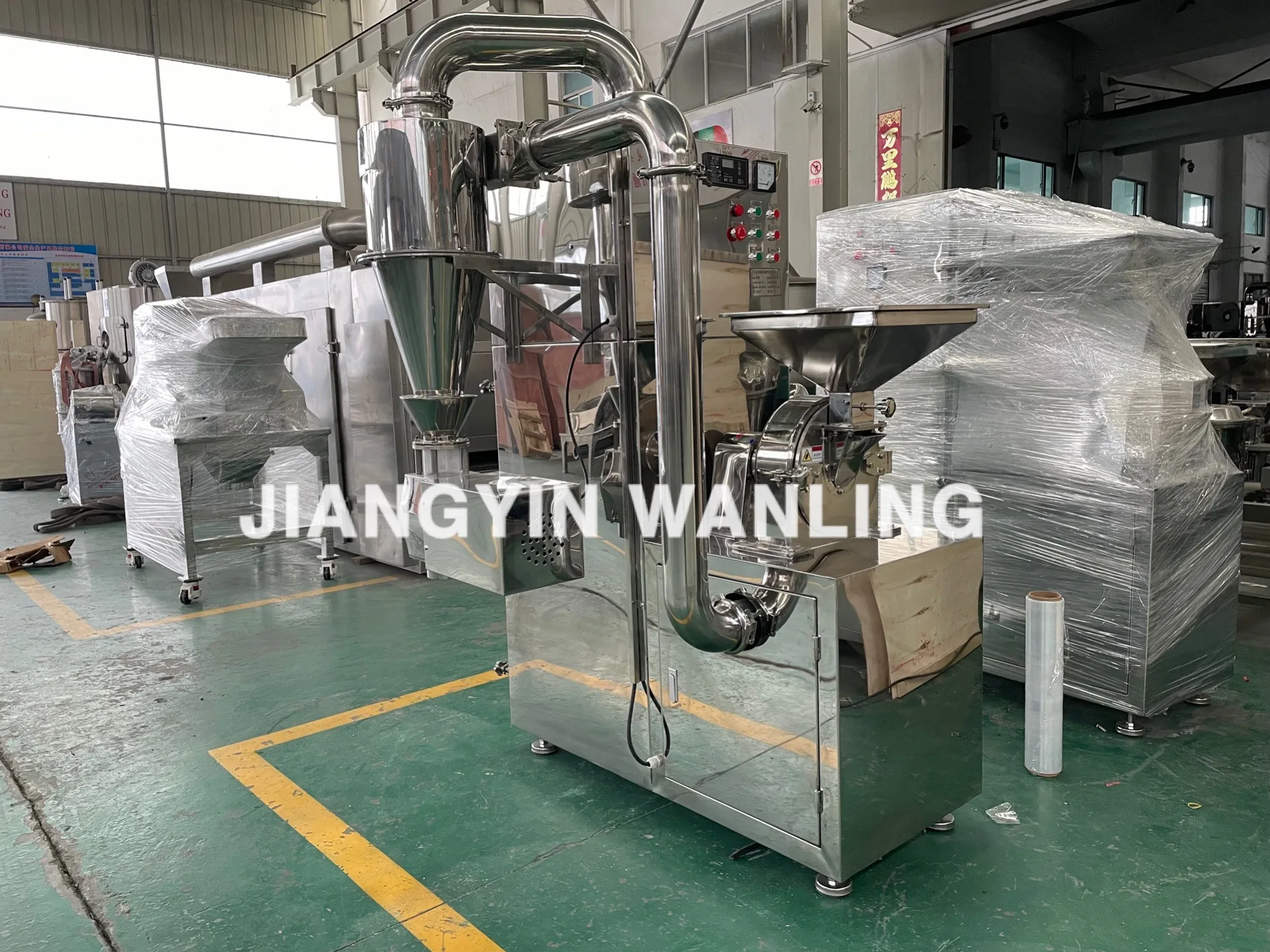

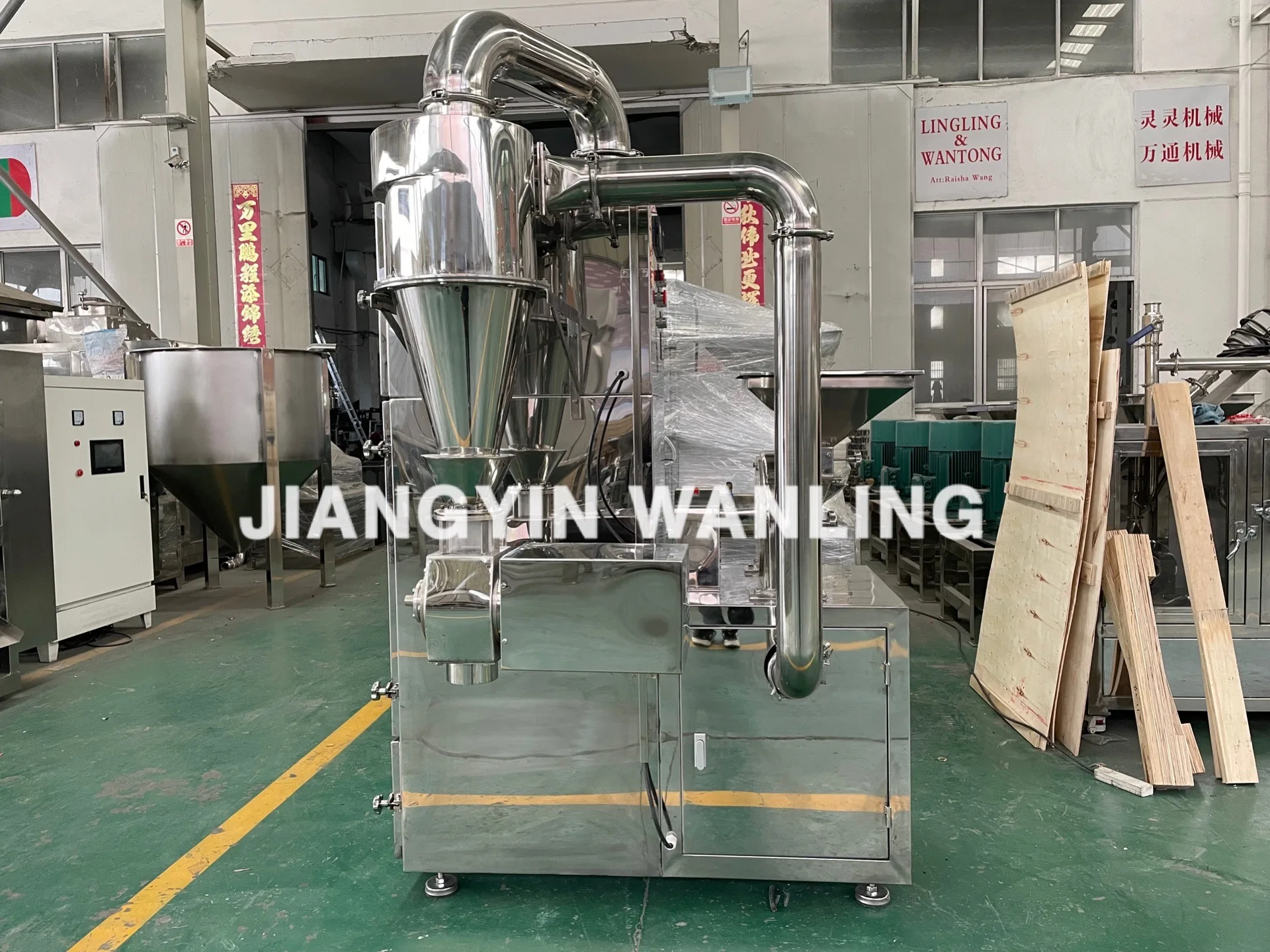

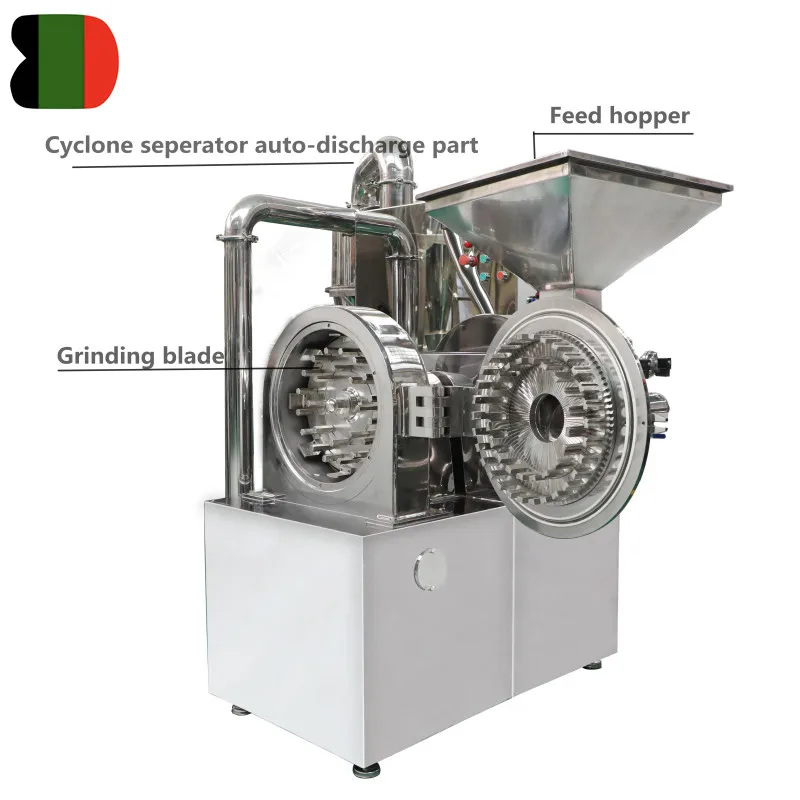

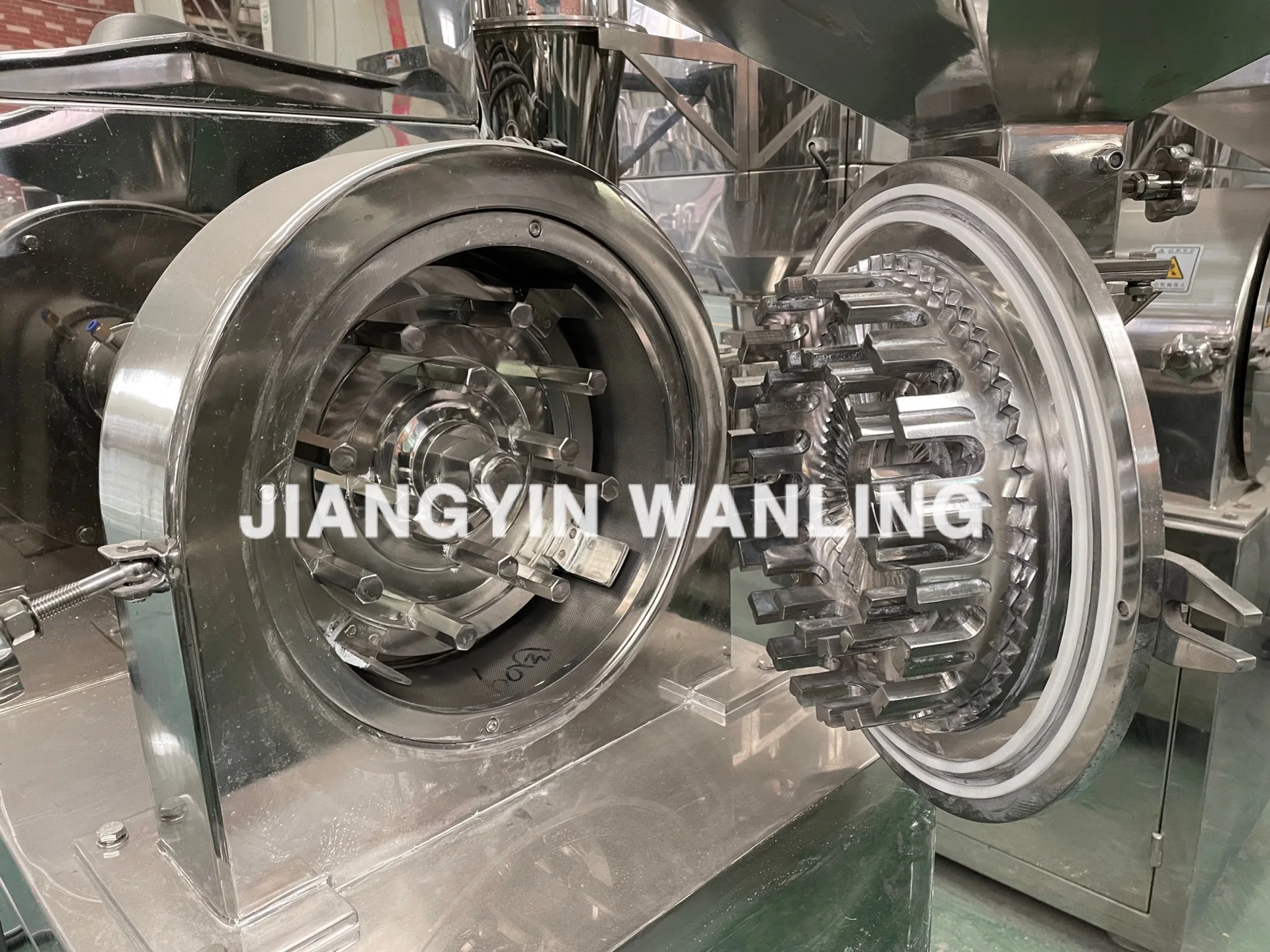

Machine Pics
Company Information
PLEASE LET US BE MORE HONEST, TELL US YOUR DETAIL REQUEST !! THEN ANY QUESTION WILL BE REPLYED 100%SINCERELY AND VERY EFFCIENTLY BY CONTACTING ME.
FAQ
ARE YOU REAL FACTORY OR TRADING COMPANY?
YES ! We have self factory specialized in producing spice, pharmaceutical, chemical, food machinery. Like pre-washing, cutting, crushing, fine grinding, mixing, drying, sifting, granulating, packing, filling, conveyer etc series.
In the meaning while, for bigger our market, we opened our own trading company, especially for designing customized machine production line upon clients’ requests.
CAN YOU GIVE ME GUIDE ON OTHER MACHINE ? TO FULL MY PRODUCTION LINE
YES ! We have built more than 23years, we know and have many good partners in china. We have good and expert acknowledge in this field, We know this industry very well and know a lot of high-quality partners. Can always give you efficient answer and economical solution ,help you bigger your market and business quickly !
HOW TO VISIT YOUR COMPANY?
Our company is in WUXI city, near shanghai cisty, only 20mins away from WUXI EAST TRAIN STATION. Or you can call us anytime you arrive Wuxi, i will go to pick you.
WHAT'S YOUR BEFORE & AFTER SERVICE ?
1) Professional advice and rich experience help to choose machine.
2) Longtime maintainance and considerate technical support
3) Technicians can be sent to abroad to install.
5)ONE year guarantee. WHOLE life service. Within1 year, any problem part can send to us, we can give provide free new part(only damaged by machine itself).
4) Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.
5) Video / CD of test running and installation, Maunal book, tool box sent with machine if client request.
WHAT'S YOUR SHIPPING ITEM PROCESS?
We have long-term working shipping forwarder. We can do our best to send machine to your port safe and sound .
If your need , we can help you do custom clearance .
Packaging Details: 1. Outside package: Standard export wooden cases.
2. Inner package: Stretch film.
Delivery Details: Machine will be finished in about 25 workdays after payment.
HOW ABOUT YOUR PAYMENT TERM?
1. Normally we can work on T/T or L/C.
2. On T/T term, 30% down payment is required in advanced. And 70% balance shall be settled before shipment.
3. On L/C term, a 100% irrevocable L/C without soft clause can be accepted.Please seek the advice from the individual sales manager whom you work with.
5) Video / CD of test running and installation, Maunal book, tool box sent with machine
Contact way in my company website www.wanlingmachine.com contact us page.
===>CONACT ME NOW FOR new and live videos/photos, talk to u in the VIDEO CALL !
STILL ON LOOKING FOR GOOD AND REAL TRADING $ MANUFACTURER IN CHINA?
MAY I INVITE YOU VISIT US?PLEASE. YOU ALREADY FIND US.
WF automatic white sugar chilli powder making grinding grinder pulverizer machine spice crushing machine WF automatic white sugar chilli powder making grinding grinder pulverizer machine spice crushing machineWF automatic white sugar chilli powder making grinding grinder pulverizer machine spice crushing machine WF automatic white sugar chilli powder making grinding grinder pulverizer machine spice crushing machine
