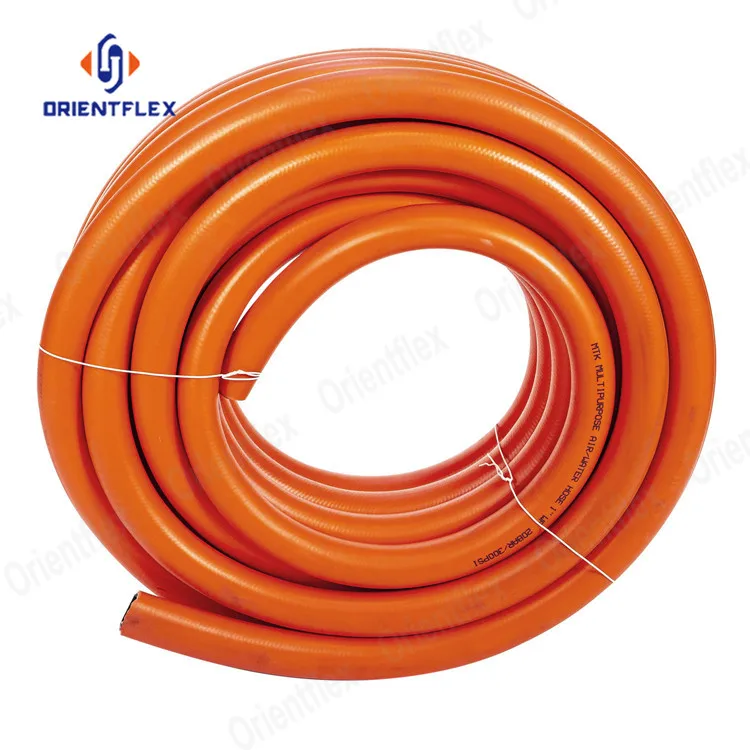

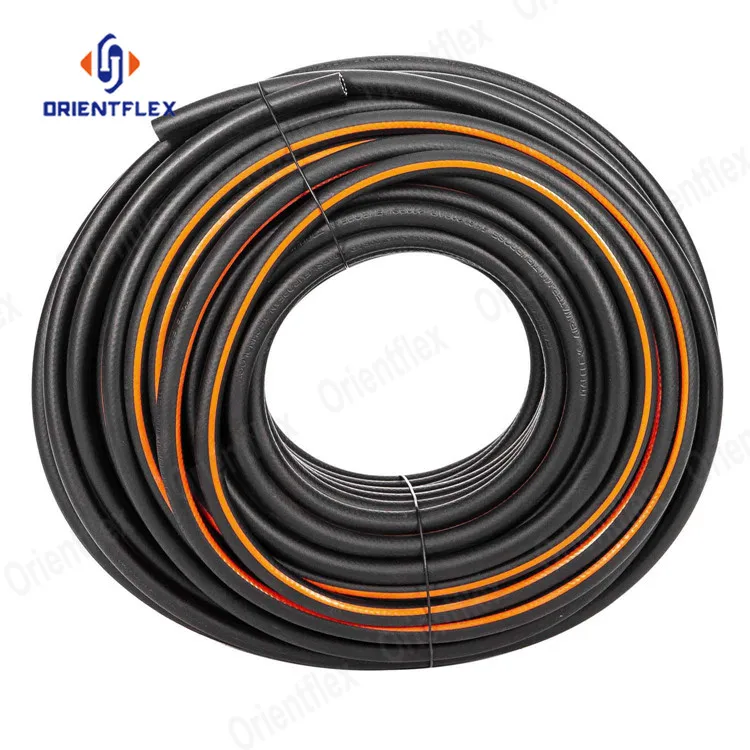

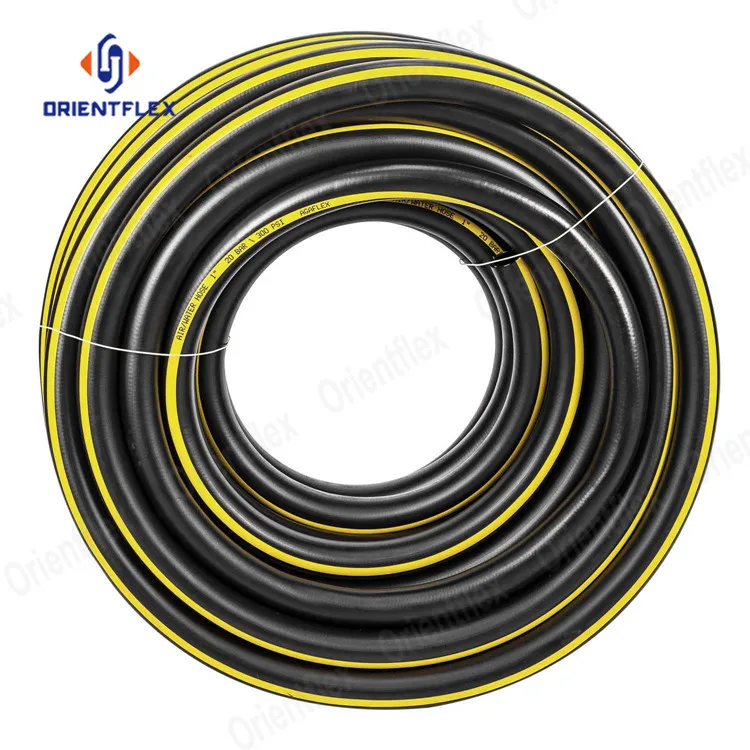

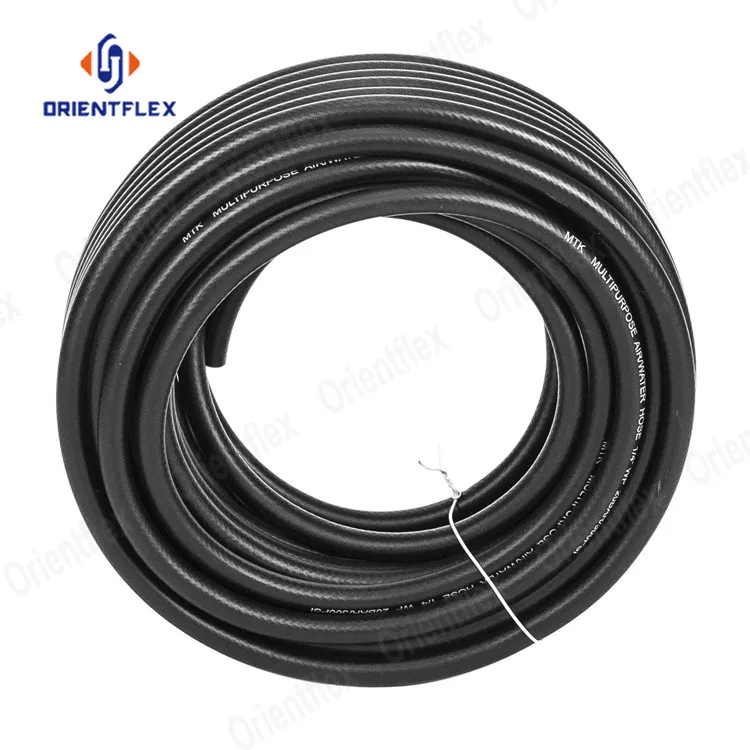

manguera compresor mangueras para compresores de aire rubber compressed air hose reel 3/8
- Category: >>>
- Supplier: Hebei Orient Adma Tech Group Co. Ltd.
Share on (11000006582570):
Product Overview
Description

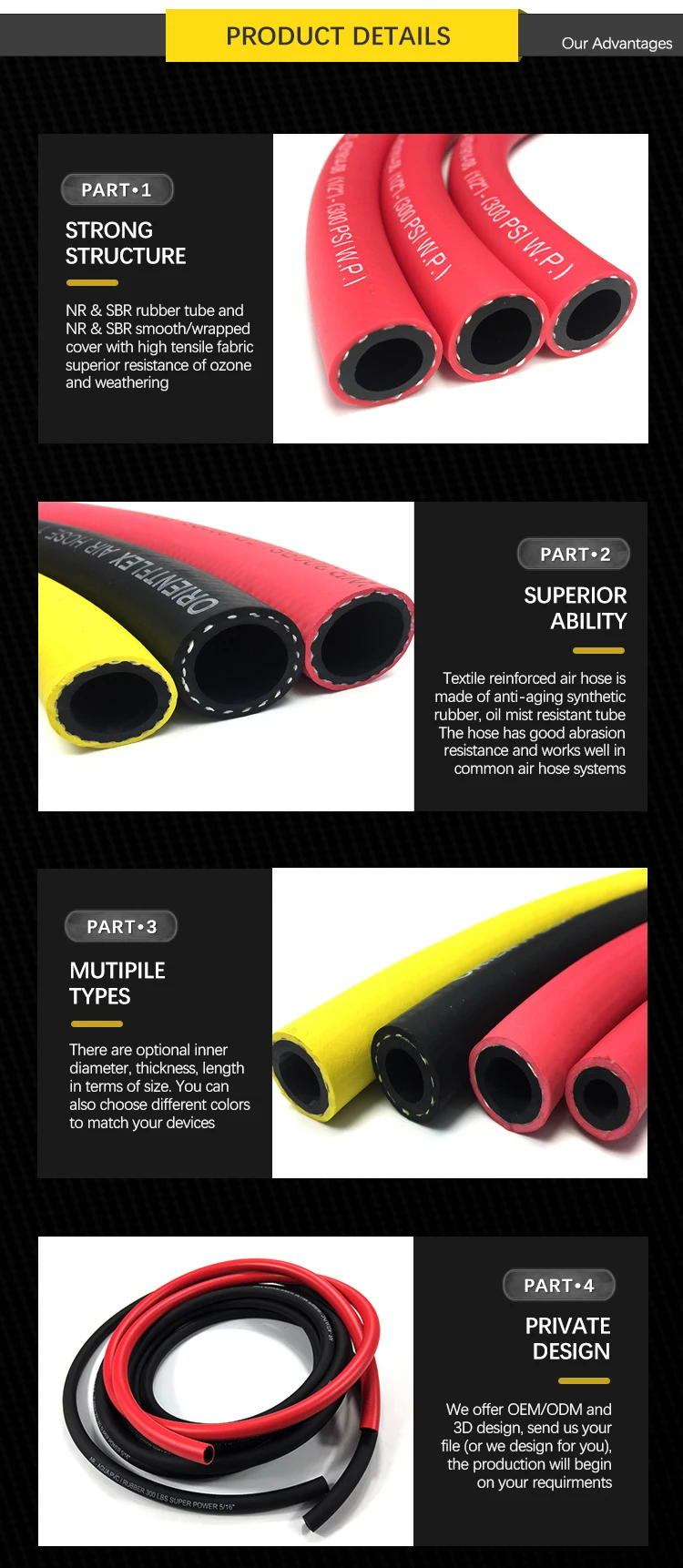

JACK HAMMER AIR HOSConstructionConstruction:

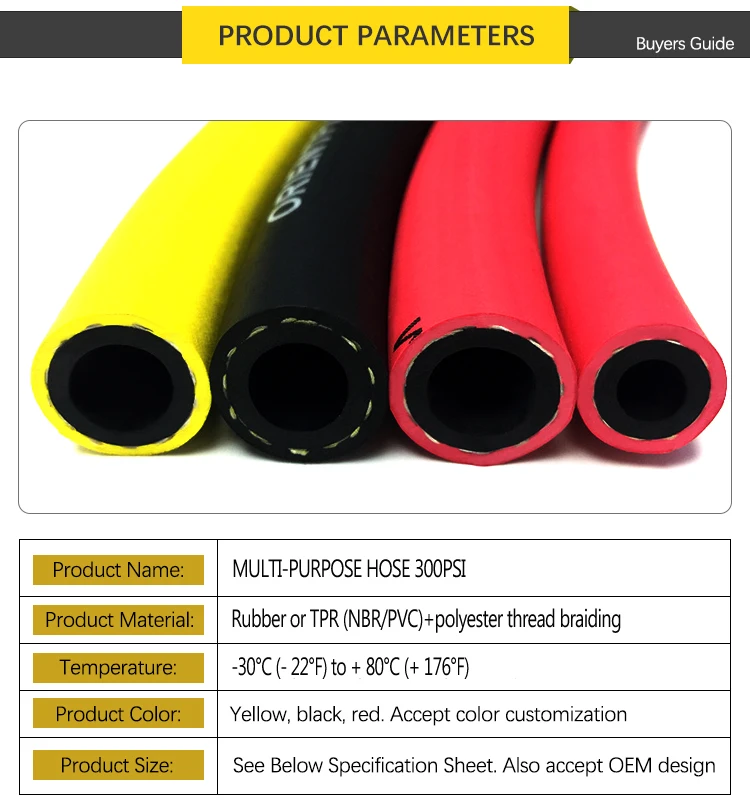

Construction:
Tube and Cover: Rubber or TPR (NBR/PVC),smooth, oil resistance
Reinforcement: 1ply or 2ply polyester thread braiding

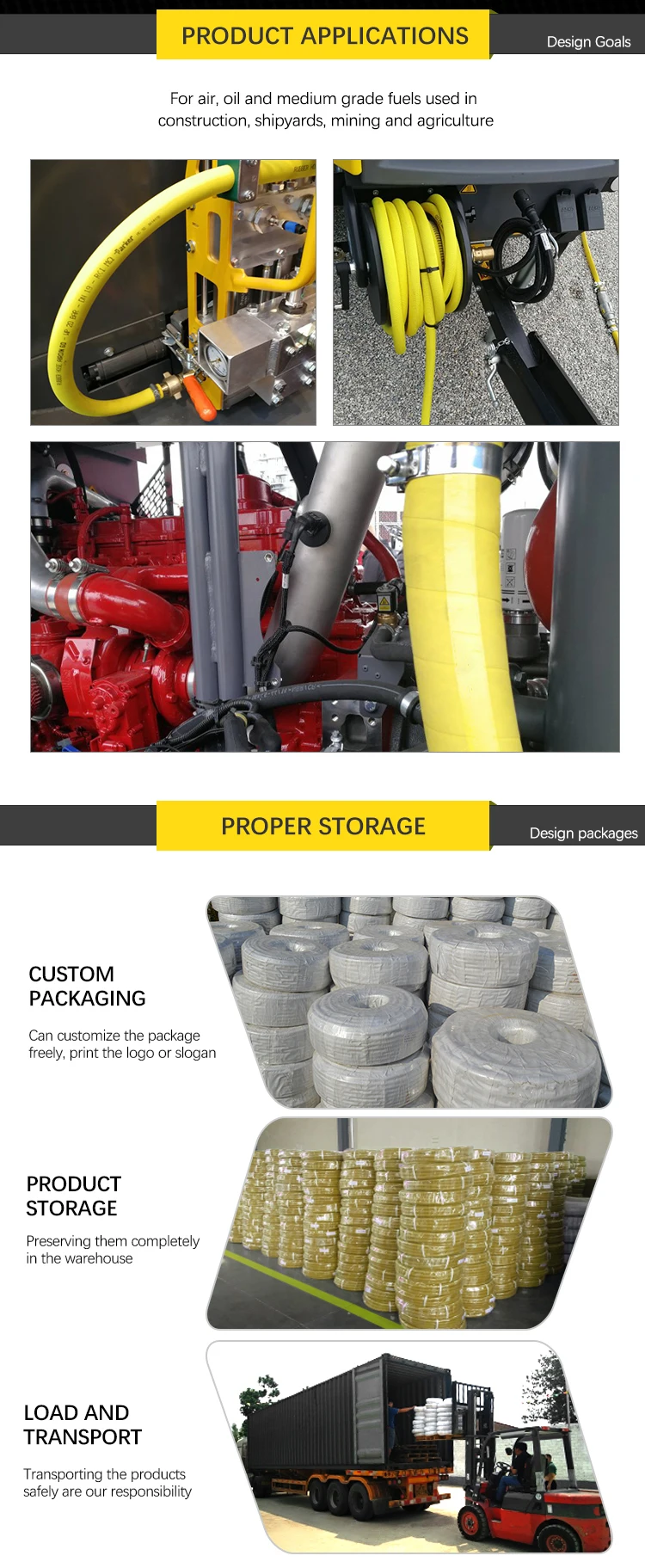

Application:
For air, oil and medium grade fuels used in construction, shipyards, mining and agriculture.
Characteristics:
1.Oil mist resistant tube and cover.
2.Ozone and weather resistant.
3.Resistant to ultra-violet (UV)
| Rubber Multipurpose Hose | ||||||||
| Item Code | I.D | O.D | W.P | B.P | L | |||
| inch | mm | mm | bar | psi | bar | psi | m | |
| MPH-005 | 3/16" | 4.8 | 12 | 20 | 300 | 60 | 900 | 100 |
| MPH-006 | 1/4" | 6.4 | 13 | 20 | 300 | 60 | 900 | 100 |
| MPH-008 | 5/16" | 7.9 | 15 | 20 | 300 | 60 | 900 | 100 |
| MPH-010 | 3/8" | 9.5 | 17 | 20 | 300 | 60 | 900 | 100 |
| MPH-012 | 1/2" | 12.7 | 21 | 20 | 300 | 60 | 900 | 100 |
| MPH-016 | 5/8" | 15.9 | 26 | 20 | 300 | 60 | 900 | 100 |
| MPH-019 | 3/4" | 19.1 | 29 | 20 | 300 | 60 | 900 | 100 |
| MPH-025 | 1" | 25.4 | 36 | 20 | 300 | 60 | 900 | 100 |
| MPH-032 | 1-1/4" | 31.8 | 44 | 15 | 225 | 45 | 675 | 60 |
| MPH-038 | 1-1/2" | 38.1 | 54 | 15 | 225 | 45 | 675 | 60 |
| MPH-050 | 2" | 50.8 | 66 | 15 | 225 | 45 | 675 | 60 |
| TPR(Rubber&PVC mixed) Multipurpose Hose | ||||||||
| Item Code | I.D | O.D | W.P | B.P | L | |||
| inch | mm | mm | bar | psi | bar | psi | m | |
| RTPR--06 | 1/4" | 6 | 12 | 20 | 300 | 60 | 900 | 100 |
| RTPR--08 | 5/16" | 8 | 15 | 20 | 300 | 60 | 900 | 100 |
| RTPR--10 | 3/8" | 10 | 17 | 20 | 300 | 60 | 900 | 100 |
| RTPR--13 | 1/2" | 13 | 22 | 20 | 300 | 60 | 900 | 50 |
| RTPR--16 | 5/8" | 16 | 25 | 20 | 300 | 60 | 900 | 50 |
| RTPR--19 | 3/4" | 19 | 28 | 20 | 300 | 60 | 900 | 50 |
| RTPR--25 | 1" | 25 | 35 | 20 | 300 | 60 | 900 | 50 |
