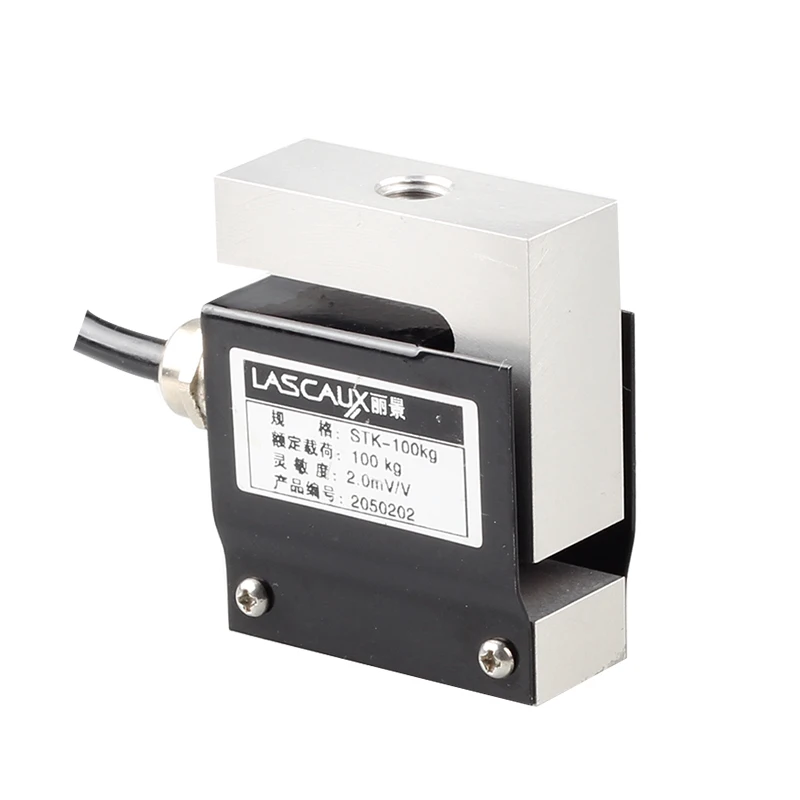

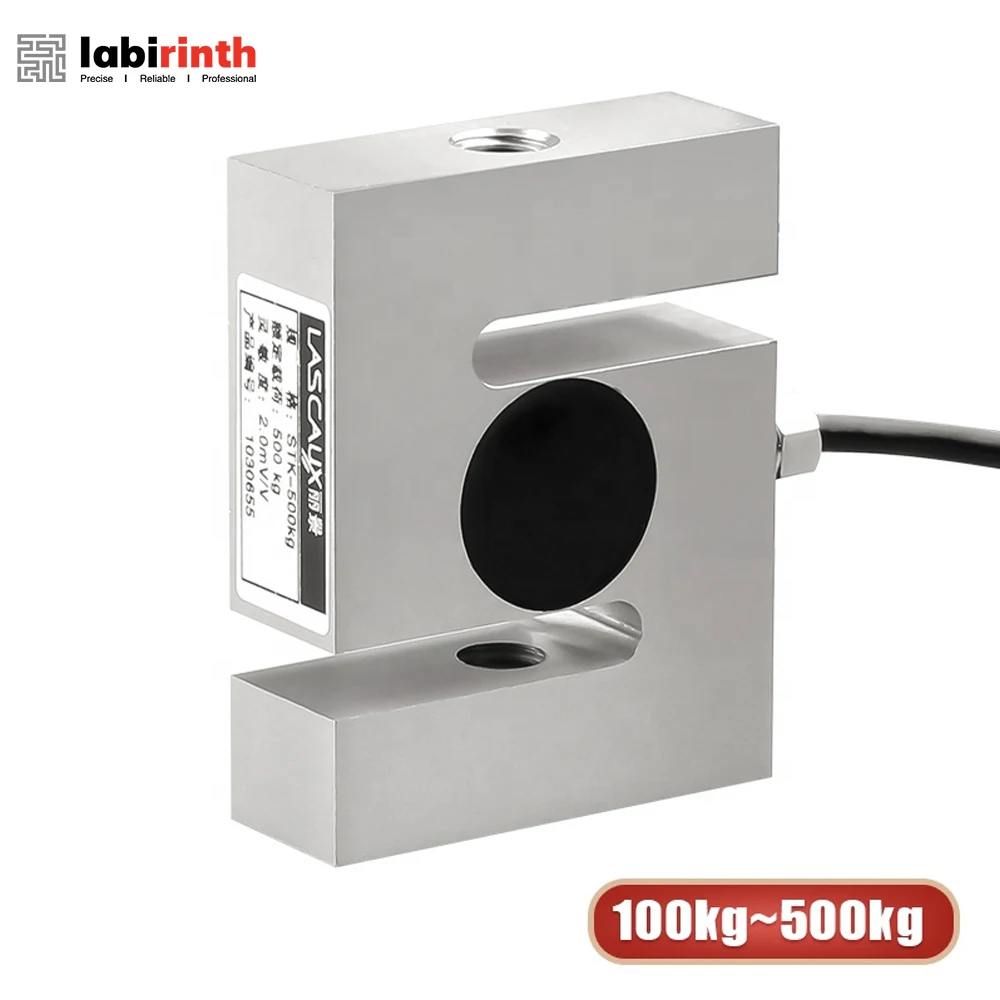

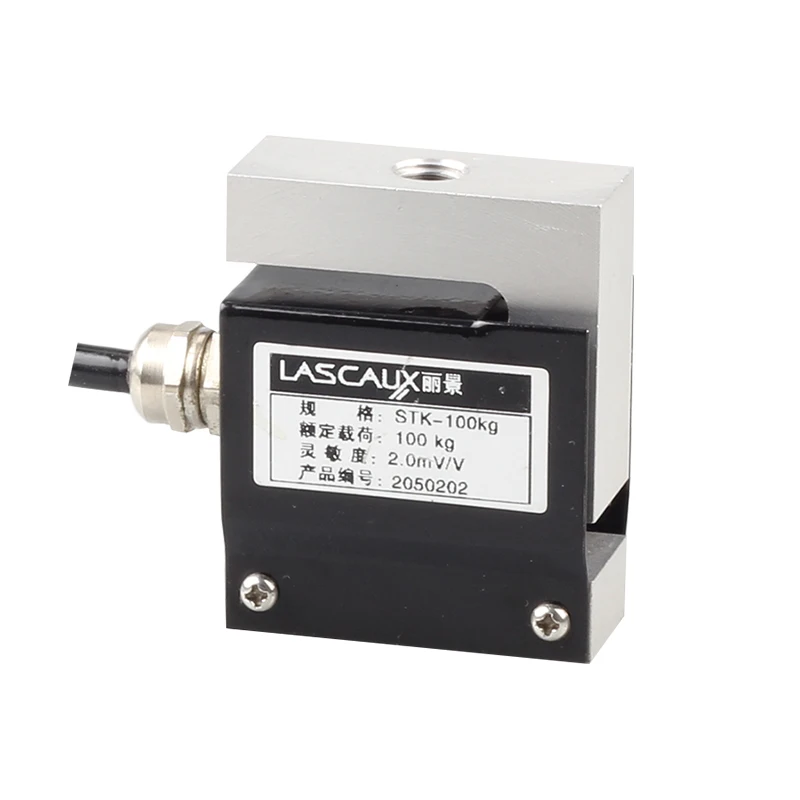

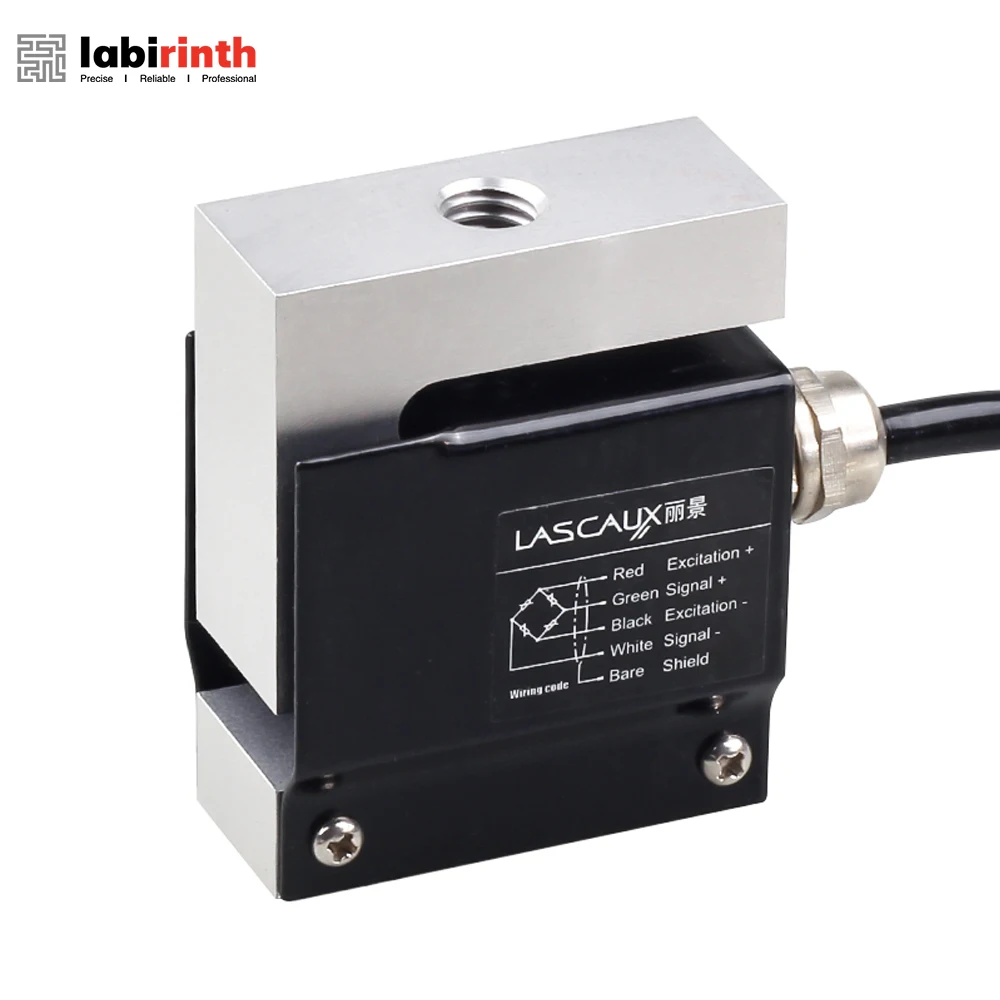

Lascaux Brand STK 10kg to 500kg Electronic Weighing Device Mini S type Tension Force Testing Sensor Load Cell Sensor
- Category: >>>
- Supplier: Lascaux Microelectronic Device (tianjin) Co. Ltd.
Share on (11000006590513):
Product Overview
Description

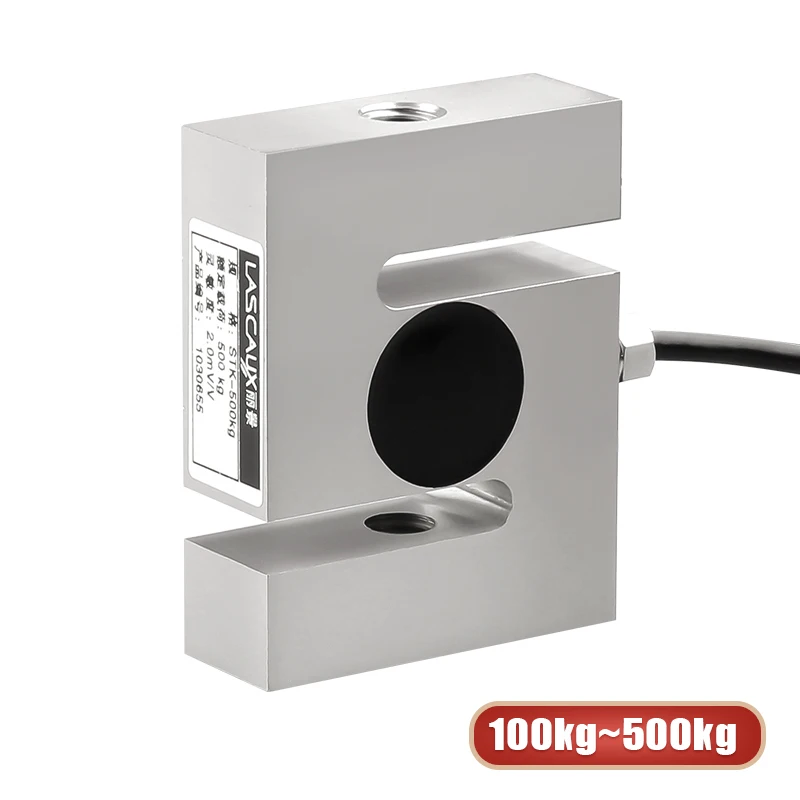

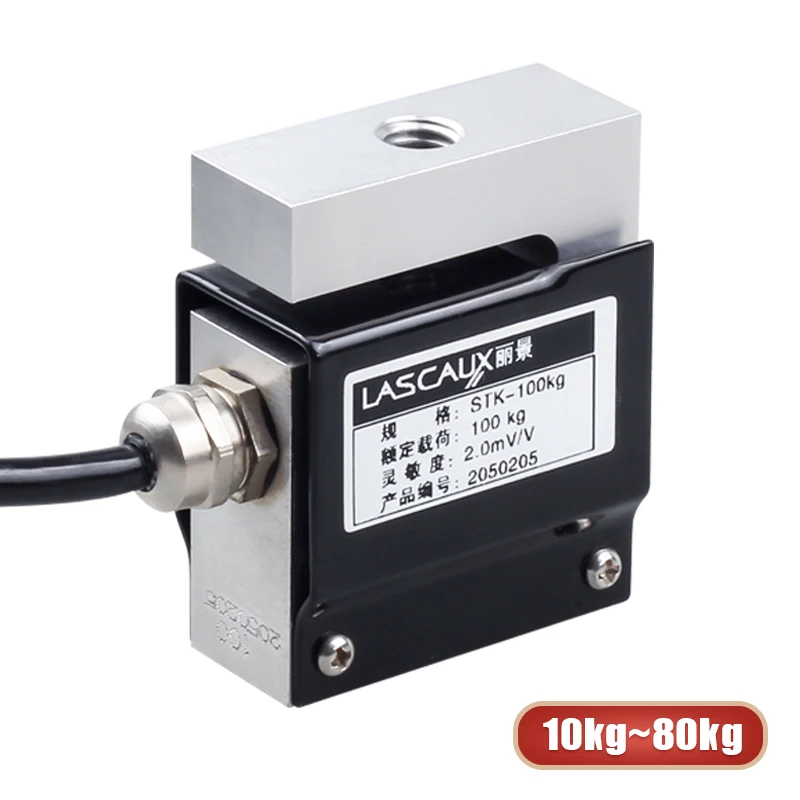

STK Load Cell
● Aluminum Alloy Material Structure
● Tension and Compression Dual-purpose, Two-way Force Measurement
● High Precision Weighing for a Wide Range of Applications
● Tension and Compression Dual-purpose, Two-way Force Measurement
● High Precision Weighing for a Wide Range of Applications
STK Load Cell
Description:
1.Capacities (kg):5kg~500kg
2.High-quality aluminum, nickel-plated surface
3.Aluminum material optional
4.Protection class: IP65
5.Two-way force measurement, both tension and compression
6.Compact structure, easy installation
7.High comprehensive precision and good long-term stability
Specifications: | ||||
Rated Load | kg | 10,20,50,80,100,200,300,500 | ||
Rated Output | mV/V | 2.0±0.0050 | ||
Zero Balance | %R.O. | ±1 | ||
Creep after 30 minutes | %R.O. | ±0.03 | ||
Comprehensive Error | %R.O. | ±0.03 | ||
Compensated Temp. Range | ℃ | -10~+40 | ||
Operating Temp. Range | ℃ | -20~+70 | ||
Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.03 | ||
Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.03 | ||
Recommended Excitation Voltage | VDC | 5-12 | ||
Input impedance | Ω | 380±10 | ||
Output impedance | Ω | 350±5 | ||
Insulation resistance | MΩ | ≥5000（50VDC） | ||
Safe Overload | %R.C. | 150 | ||
Ultimate Overload | %R.C. | 200 | ||
Material | Aluminum | |||
Degree of protection | IP65 | |||
The length of the cable | m | 3 | ||

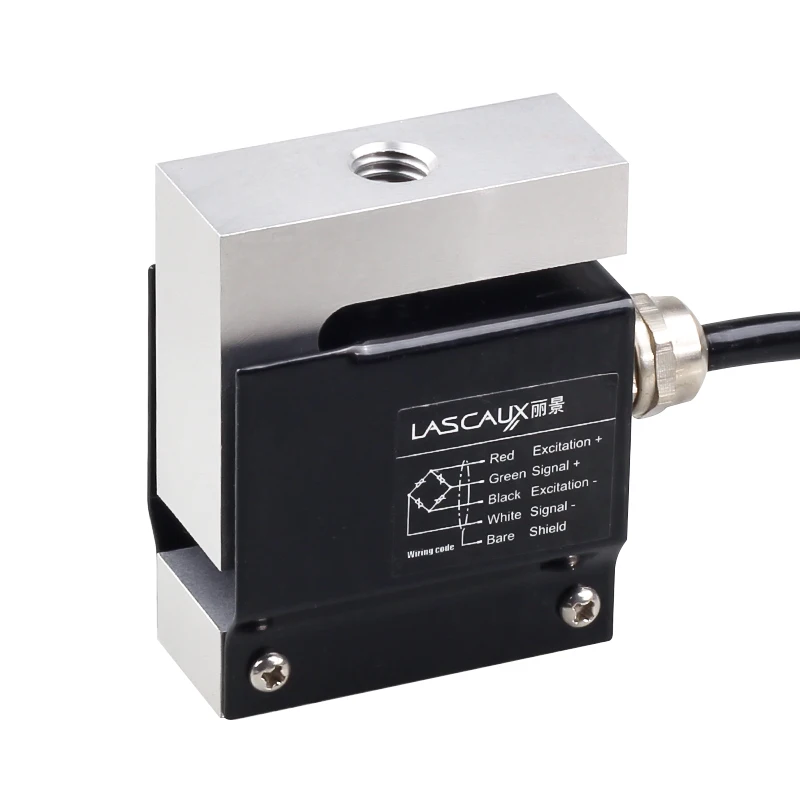

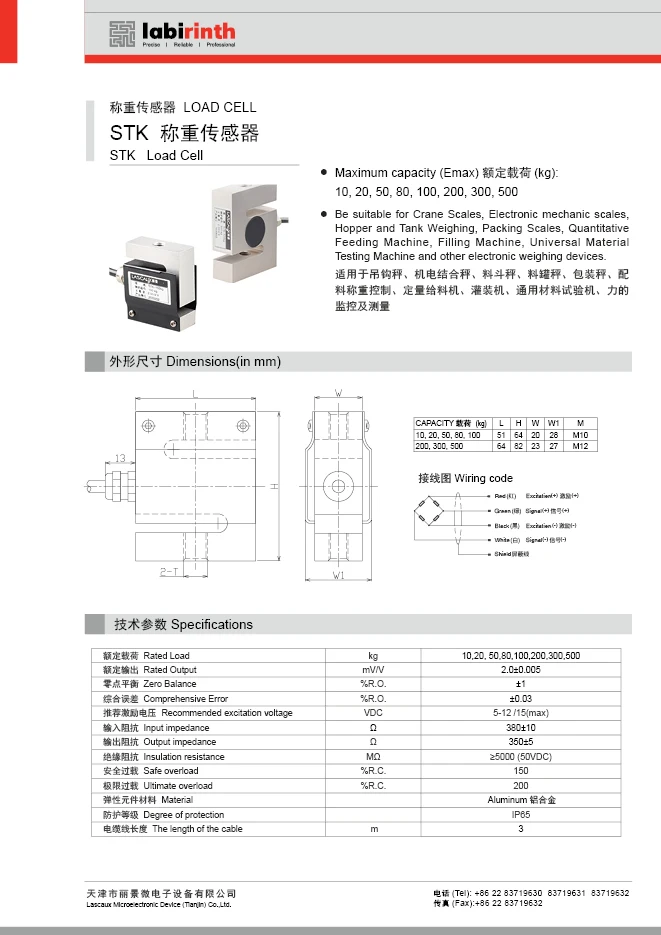

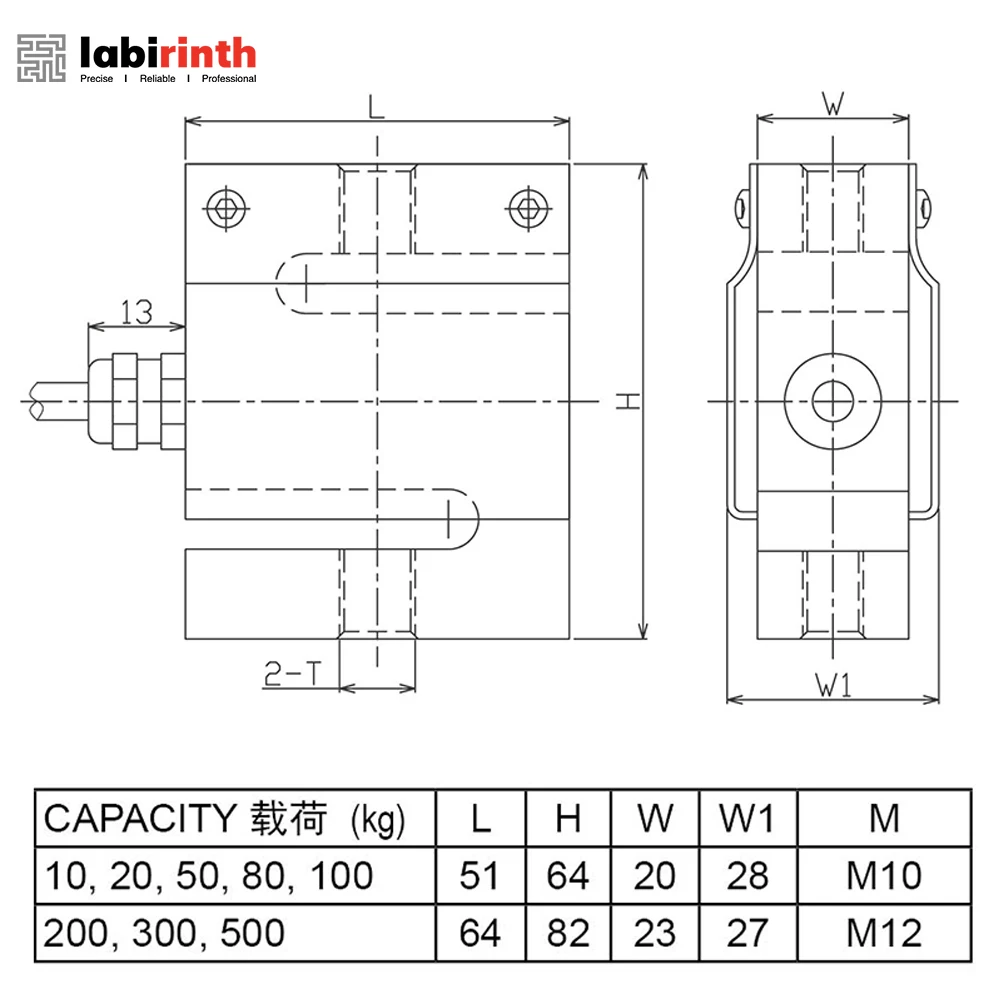

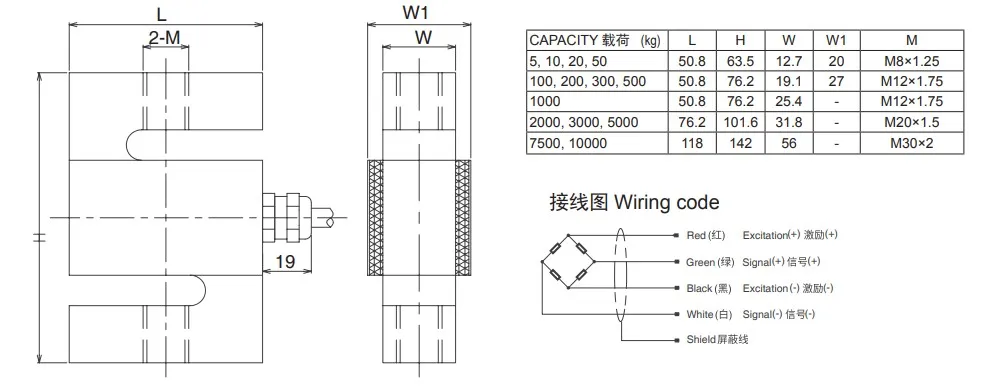

Dimension（in mm）& Capacity & Wiring Code： | ||||
Company Profile

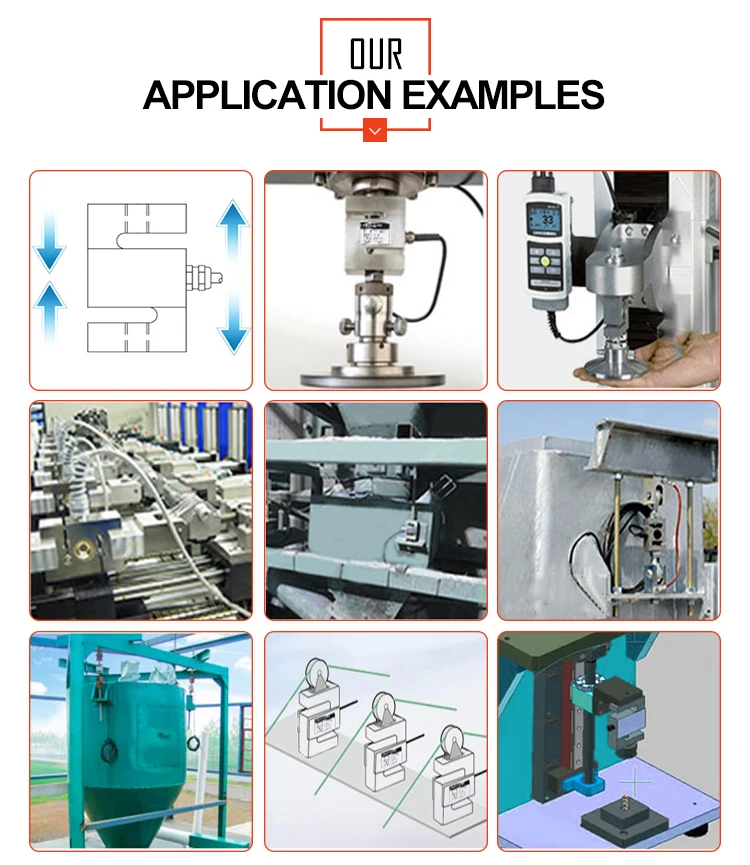

Applications:
Be suitable for electromechanical combination scale, quantitative feeder, hopper scale, tank scale belt scale, packaging scale, hook scale, forklift scale, crane scale filling machine, ingredient weighing control general material testing machine, force monitoring and measurement.
Be suitable for electromechanical combination scale, quantitative feeder, hopper scale, tank scale belt scale, packaging scale, hook scale, forklift scale, crane scale filling machine, ingredient weighing control general material testing machine, force monitoring and measurement.
Our Services:
Service standards: we are committed to provide a high quality and responsive service to all clients
The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping. Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 5 working days to reach from from our side to your side, which is very convenient for your business.
OEM ODM available
Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping. Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 5 working days to reach from from our side to your side, which is very convenient for your business.
OEM ODM available
Product Line
Certifications
Exhibition
Packing & Delivery
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are a professional and cost-effective manufacturer of load cells and accessories.
Q2: Do you have your own R&D team?
A2: Yes, we own professional team with numbers of senior expert R&D engineers. They can customize products as your requirements, your samples or technical drawings.
Q3: How about the quality?
A3: We have a complete process safety guarantee system, and multi-process inspection and testing.
Q4: How’s the package?
A4: Normally are cartons, but also we can pack it according to your requirements.
Q5: How’s the delivery time?
A5: Generally, it will take 25 to 40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6: Is there any after-sale service?
A6: After you receive our product, if you need, we will offer you the after-sale sevice by e-mail, TradeManager, telephone and QQ etc.
A1: We are a professional and cost-effective manufacturer of load cells and accessories.
Q2: Do you have your own R&D team?
A2: Yes, we own professional team with numbers of senior expert R&D engineers. They can customize products as your requirements, your samples or technical drawings.
Q3: How about the quality?
A3: We have a complete process safety guarantee system, and multi-process inspection and testing.
Q4: How’s the package?
A4: Normally are cartons, but also we can pack it according to your requirements.
Q5: How’s the delivery time?
A5: Generally, it will take 25 to 40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6: Is there any after-sale service?
A6: After you receive our product, if you need, we will offer you the after-sale sevice by e-mail, TradeManager, telephone and QQ etc.
