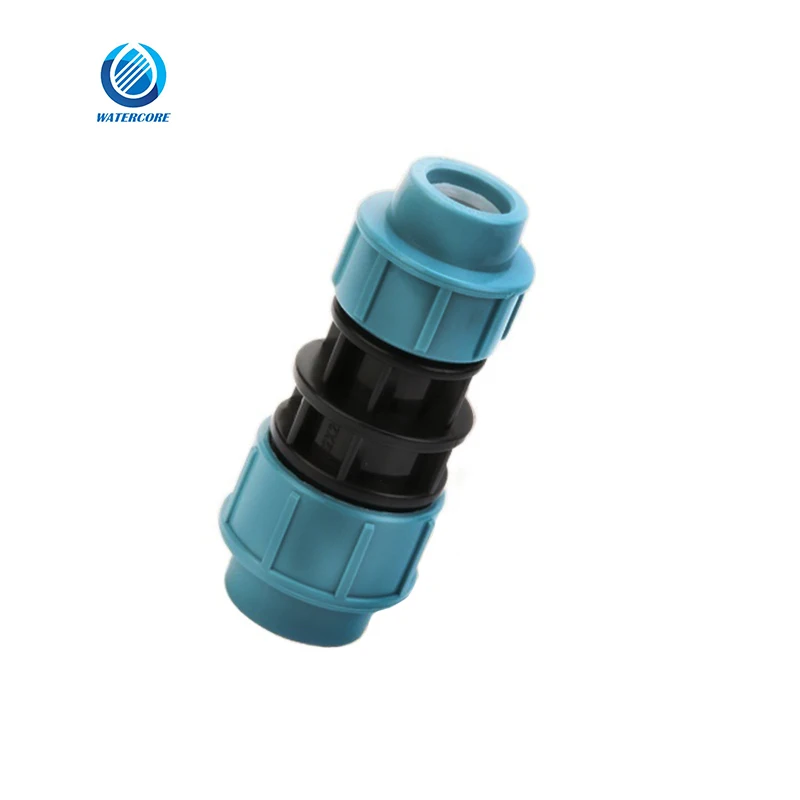

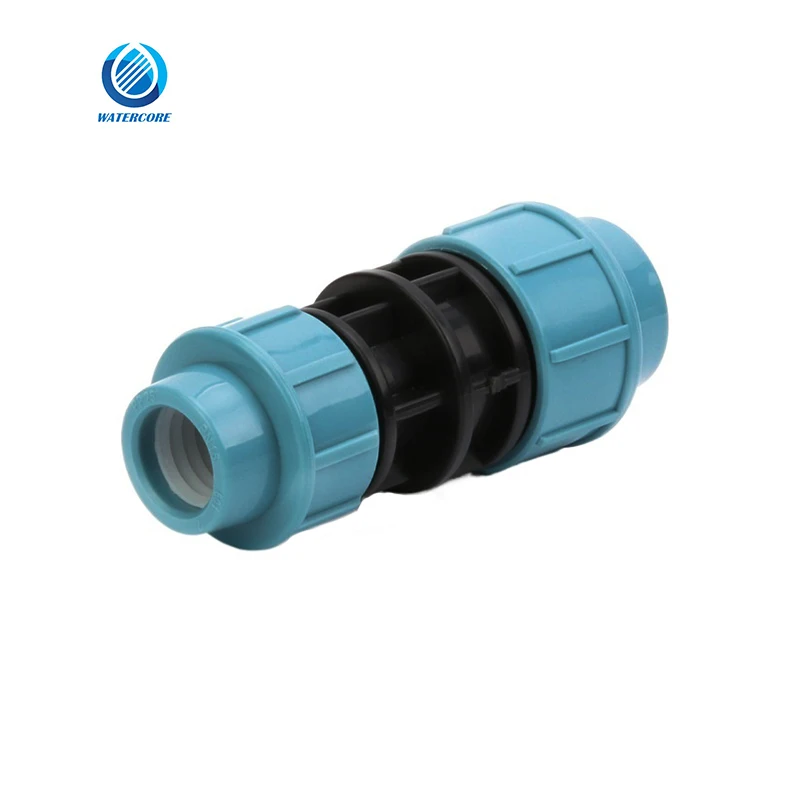

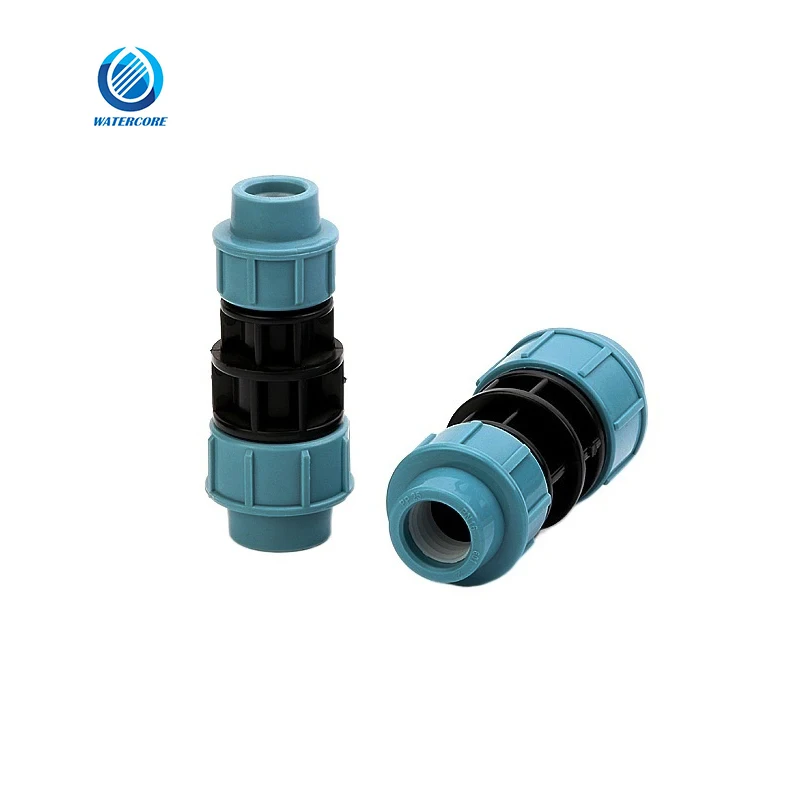

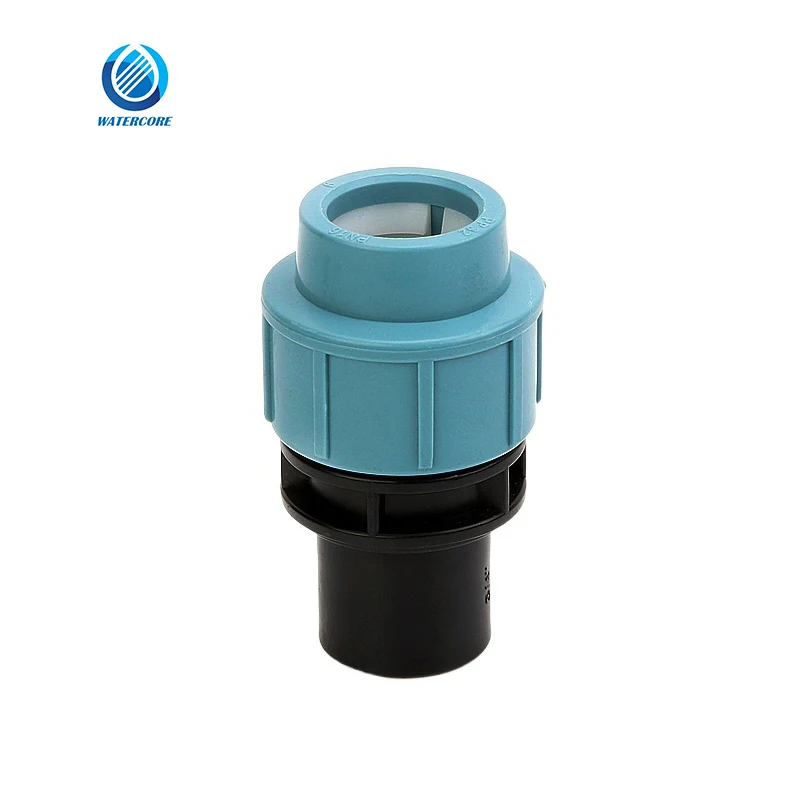

Factory Price PP Compression Fittings DN20 110 PP Reducing Coupling for PE Pipes Water Supply and Irrigation
- Category: >>>
- Supplier: Yangling Watercore Building Materials Co. Ltd.
Share on (11000006596466):
Product Overview
Description
Product Description
size(mm) | D*D1(mm) | DN | PN | D2(mm) | L(mm) | D3(mm) |
25*20 | 25*20 | 20 | 16 | 55 | 130 | 46 |
32*20 | 32*20 | 25 | 16 | 63 | 132 | 46 |
32*25 | 32*25 | 25 | 16 | 63 | 138 | 55 |
40*25 | 40*25 | 32 | 16 | 80 | 160 | 55 |
40*32 | 40*32 | 32 | 16 | 80 | 165 | 63 |
50*25 | 50*25 | 40 | 16 | 96 | 173 | 55 |
50*32 | 50*32 | 40 | 16 | 96 | 182 | 63 |
50*40 | 50*40 | 40 | 16 | 96 | 200 | 80 |
63*32 | 63*32 | 50 | 16 | 115 | 202 | 63 |
63*40 | 63*40 | 50 | 16 | 115 | 214 | 80 |
63*50 | 63*50 | 50 | 16 | 115 | 240 | 96 |
75*50 | 75*50 | 65 | 10 | 129 | 268 | 96 |
75*63 | 75*63 | 65 | 10 | 129 | 293 | 115 |
90*63 | 90*63 | 80 | 10 | 155 | 304 | 115 |
90*75 | 90*75 | 80 | 10 | 155 | 328 | 129 |
110*75 | 110*75 | 100 | 10 | 184 | 373 | 129 |
110*90 | 110*90 | 100 | 16 | 184 | 380 | 155 |

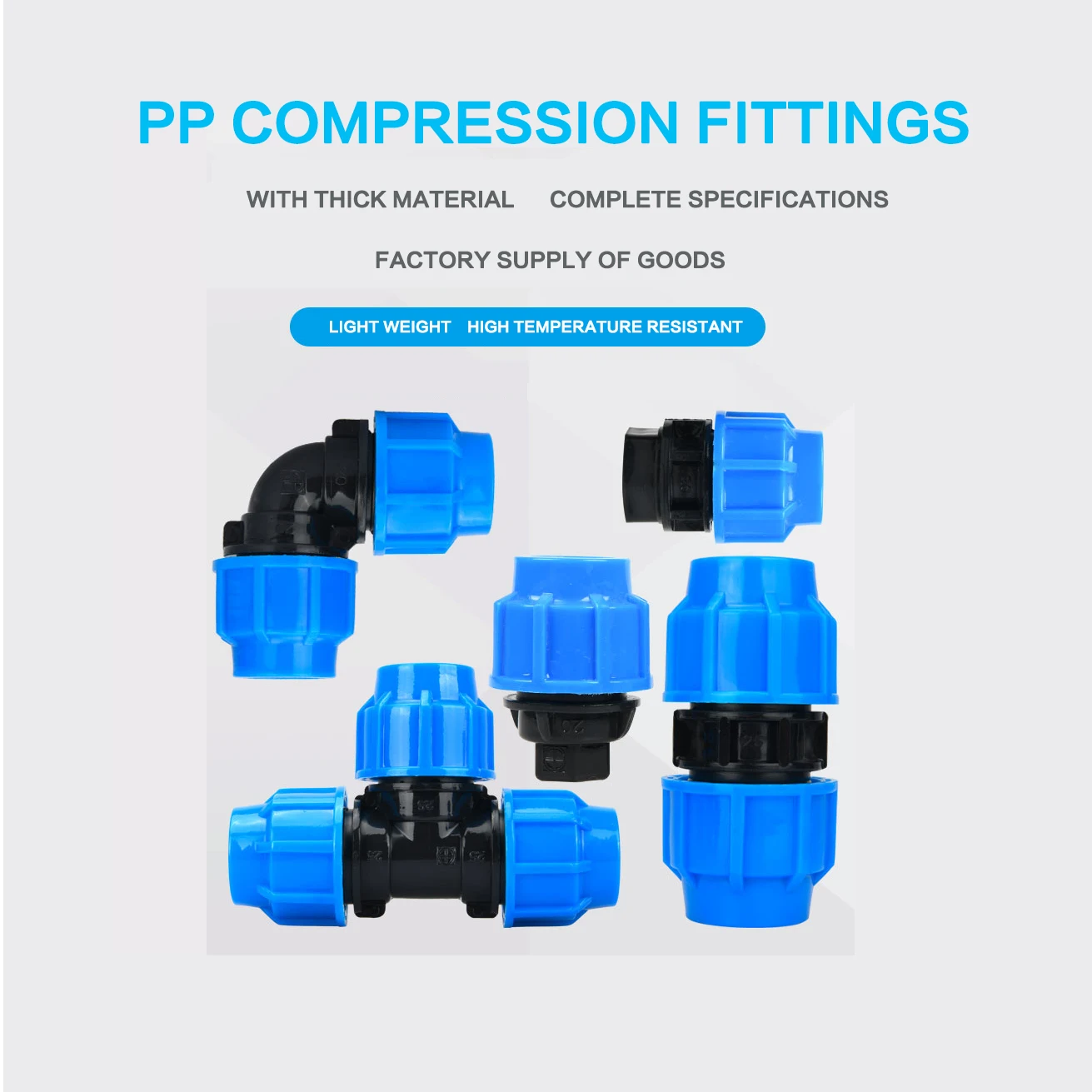

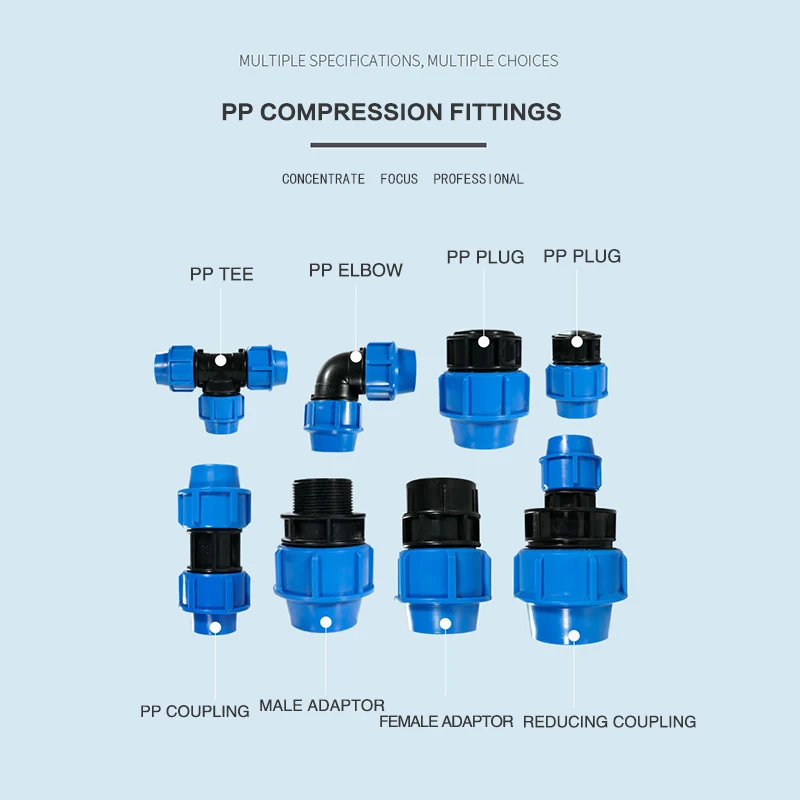

PP COMPRESSION FITTINGS
Features:
2) High temperature resistance.
3) Hot welding connection adopted, making pipes and fittings into whole, leakage effectively prevented.
4) Excellent heat insulation property from minimum thermal conductivity (only one hundredth of that of metal pipes).
5) Light weight (approximately one eighth of that of metal pipes), easy to handle and transport.
6) Smooth inner wall, reducing pressure loss and increasing flow speed.
7) Low noise, reduced by 40% compared to galvanized steel pipes.
8) Soft colors and excellent design, suitable for installation either exposed or hidden.
9) Wonderful ability in chemical corrosion resistance
10) Easy and fast installation, making cost minimized
1) Healthy and non-toxic, free of stain and scale.
2) High temperature resistance.
3) Hot welding connection adopted, making pipes and fittings into whole, leakage effectively prevented.
4) Excellent heat insulation property from minimum thermal conductivity (only one hundredth of that of metal pipes).
5) Light weight (approximately one eighth of that of metal pipes), easy to handle and transport.
6) Smooth inner wall, reducing pressure loss and increasing flow speed.
7) Low noise, reduced by 40% compared to galvanized steel pipes.
8) Soft colors and excellent design, suitable for installation either exposed or hidden.
9) Wonderful ability in chemical corrosion resistance
10) Easy and fast installation, making cost minimized
Specification
Description： | ||
Name of product： | pp compression fitting | |
MATERIAL： | PP | |
Color： | Dark Blue,Light Blue,Black,White,Green Cap;Black Body | |
Standard： | NPT/BSPT | |
Diameter： | 20/25/32/40/50/63/75/90/110 | |
Sample： | Free provided | |
Certificate： | ISO9001:2015, ISO,ROSH,CE, | |
Use： | PN10 used in irrigation systems，PN16 used in HDPE PIPE CONNECTION | |
Delivery： | 7-30days | |

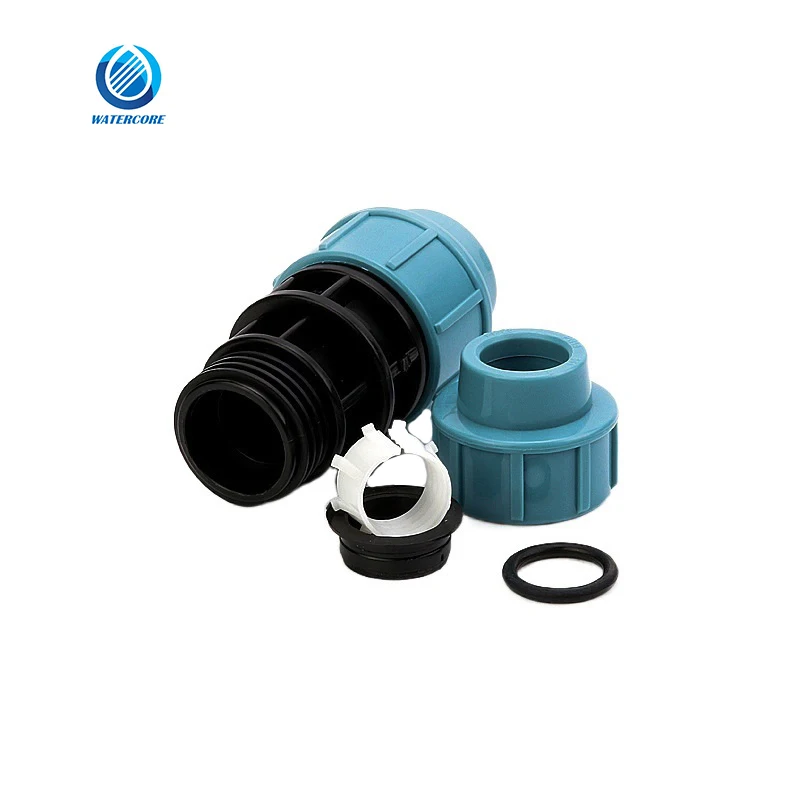

Part | Material | Colour |
Body(A) | Polypropylene block copolymer(PP-B) of exceptional mechanical properties even at high temperature. | black |
Nut(B) | Polyprolene with dye master of high stability to UV rays and solidity to heat(8 grade according to standard DIN 54004) | blue(RAL5005) |
Clinching ring(C) | Polyacetal resin(POM)with high mechanical resistance white and hardness | white |
Blocking bush(D) | Polypropylene | black |
O Ring gasket(E) | Special elastomeric acrylonitrile rubber(NBR) for alimentary use | black |
Reinforcing ring | AISI 430(UNI X8Cr17,W.nr 14828)Stainless steel for female threads for 1-1/4”to 4” |
Sanitary Prescriptions:
The Compression fittings line is suitable for the conveyance of poyable water and alimentary fluids according to the most
important national and international standards.
Working Pressures:
The Compression fittings allows the maximum working pressure (PN~PFA) of 16 bar(UNI 9562) at the temperature of 20°C.
Reference Standards:
Dimensions:UNI 9561
Working Pressure:UNI 9562,DIN 8076-3,ISO 14236,BRL-K03.
Tubi in Polietilene(PE)/Polyethylene(PE)Pipes:
UNI 7990,DIN 8074,UNI EN 12201
Threads:UNI ISO 7/1,UNI EN 10226-1.ANSI ASME B1-20.1
Flanges:DIN 2501-1,UNI EN 1452-3,ISO 7005-2
The Compression fittings line is suitable for the conveyance of poyable water and alimentary fluids according to the most
important national and international standards.
Working Pressures:
The Compression fittings allows the maximum working pressure (PN~PFA) of 16 bar(UNI 9562) at the temperature of 20°C.
Reference Standards:
Dimensions:UNI 9561
Working Pressure:UNI 9562,DIN 8076-3,ISO 14236,BRL-K03.
Tubi in Polietilene(PE)/Polyethylene(PE)Pipes:
UNI 7990,DIN 8074,UNI EN 12201
Threads:UNI ISO 7/1,UNI EN 10226-1.ANSI ASME B1-20.1
Flanges:DIN 2501-1,UNI EN 1452-3,ISO 7005-2

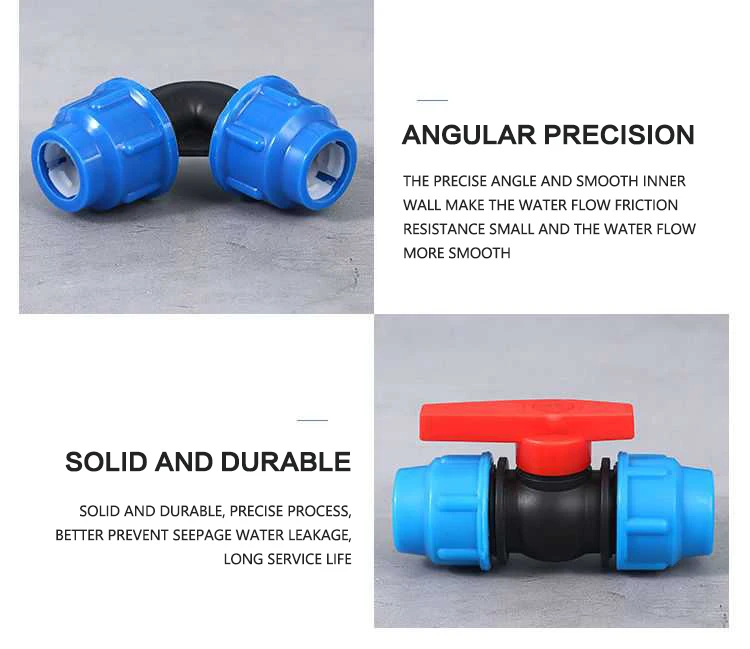

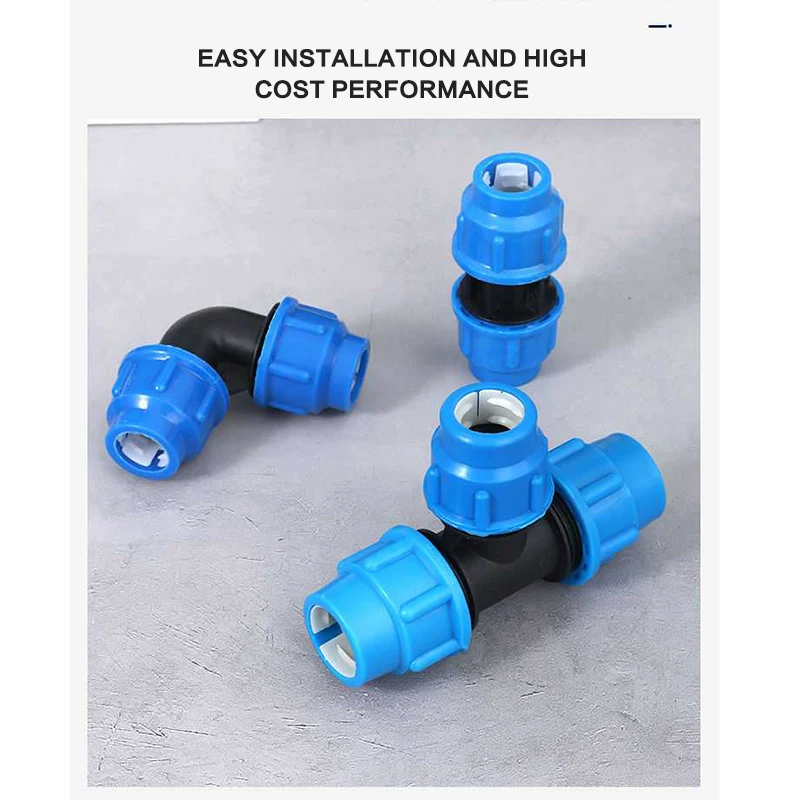

Product display
PP compression fittings line has been designed for the conveyance of fluids at high pressures, for water conveyance, for potable water distribution and applications in the thermo-hydraulic sector. This product line is accordance with the most severe international standards in terms of mechanical properties and alimentary compatibilities.
PP compression fittings allows the maximum working pressure(PN~PFA*) of 16 bar(UNI 9562) for diameters from 16mm to 63mm and PN10 bar for diameters from 75mm to 110mm.
PP compression fittings allows the maximum working pressure(PN~PFA*) of 16 bar(UNI 9562) for diameters from 16mm to 63mm and PN10 bar for diameters from 75mm to 110mm.

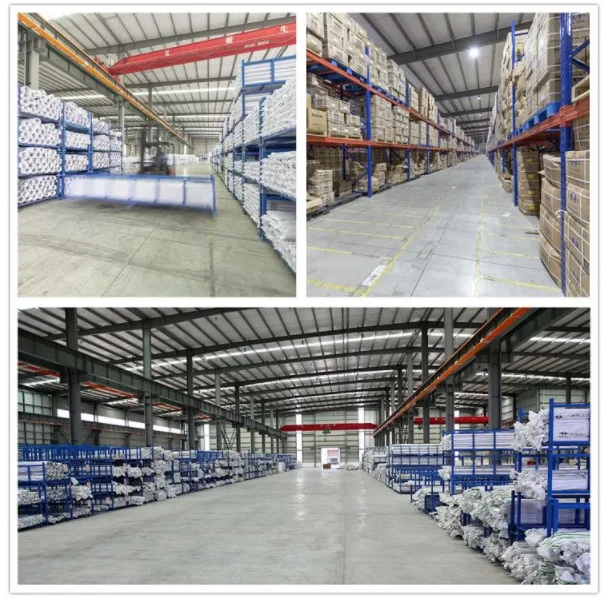

Factory Show
Company Profile
Company introduction
Yangling Watercore Building Materials Co., Ltd.was founded in 2017，which is a professional building materials supplier.
Based on more than 10 years of industry experience, we have been a new-style company which integrated large building materials resource and data，so we can provide our clients with professional and accurate services.
Our main products : PVC PIPE and FIFTTING, HDPE PIPE and FIFTTING, PPR PIPE and FIFTTING, CPVC PIPE and FIFTTING,and matched valves. Based on the pipeline, we also expand our business to related building materials, such as cable, steel pipe, ductile iron pipe, etc.
Our service standards： DIN ASTM BS AS / NZS SS NEMA TC ISO. And we have the related certifications of these standards.
Based on more than 10 years of industry experience, we have been a new-style company which integrated large building materials resource and data，so we can provide our clients with professional and accurate services.
Our main products : PVC PIPE and FIFTTING, HDPE PIPE and FIFTTING, PPR PIPE and FIFTTING, CPVC PIPE and FIFTTING,and matched valves. Based on the pipeline, we also expand our business to related building materials, such as cable, steel pipe, ductile iron pipe, etc.
Our service standards： DIN ASTM BS AS / NZS SS NEMA TC ISO. And we have the related certifications of these standards.
Our products are exported to Asia, Africa, the Middle East, Australia, America, etc.
Our factory is the expert-level factory in China.You are welcome to visit any time.
We are not only your suppliers,We are also your time saver,is your professional advisor.
Our factory is the expert-level factory in China.You are welcome to visit any time.
We are not only your suppliers,We are also your time saver,is your professional advisor.
Our Services
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder
Compression fittings extensive use of various water pipe connections, good connection performance, fast and direct, no leakage.
2. Professional manufacturer.
3. OEM is available.
4. High quality, standard designs, reasonable&competitive price, fast lead time.
5. Faster delivery: Sample will be prepared in 2-3days.
6. Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc.
7. You can also choose your own shipping forwarder
Compression fittings extensive use of various water pipe connections, good connection performance, fast and direct, no leakage.
1. Product bearing pressure is related to time and ambient temperature. At 20 ° C, the diameter is 20-63mm.
2. The product can carry a maximum pressure of 16 bar,and the diameter of 75-110mm can carry a maximum pressure of 10 bar.

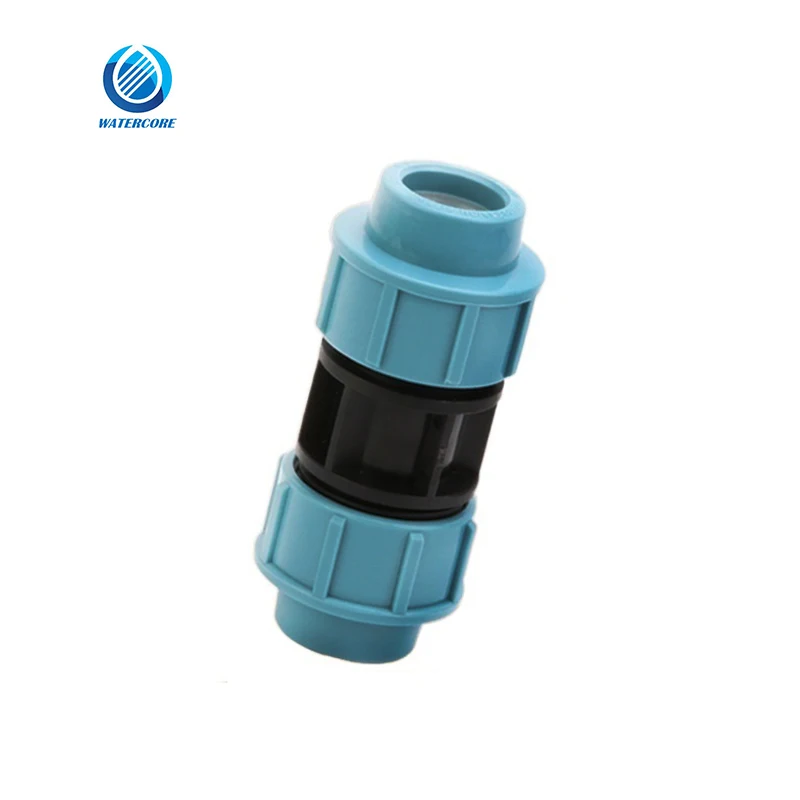

3. This fitting is designed to connect two lengths of Polyethylene (PE) pipe of the same diameter together, which can be done simply and quickly without need for glueing or solvent welding.
4. Our PP Compression Fittings range have a heterophasic black polypropylene body suitable at high temperatures, with a polyacetal resin clinching ring and a blue dyed PP nut offering suitability to UV rays and system heat. These fittings also use an acrylonitrile rubber or lip seal gasket, based on the different fitting diameters.

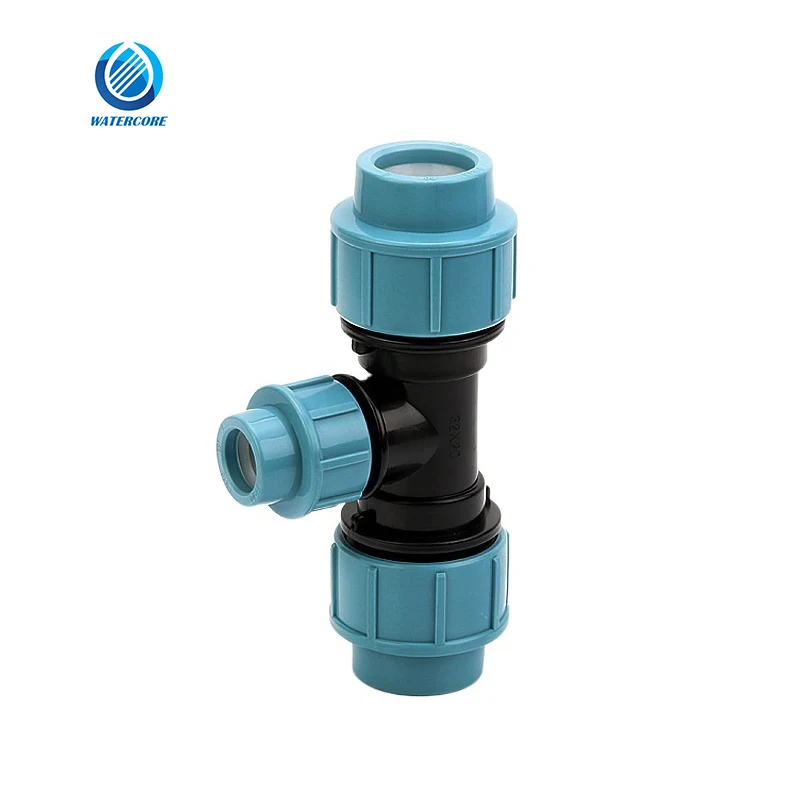

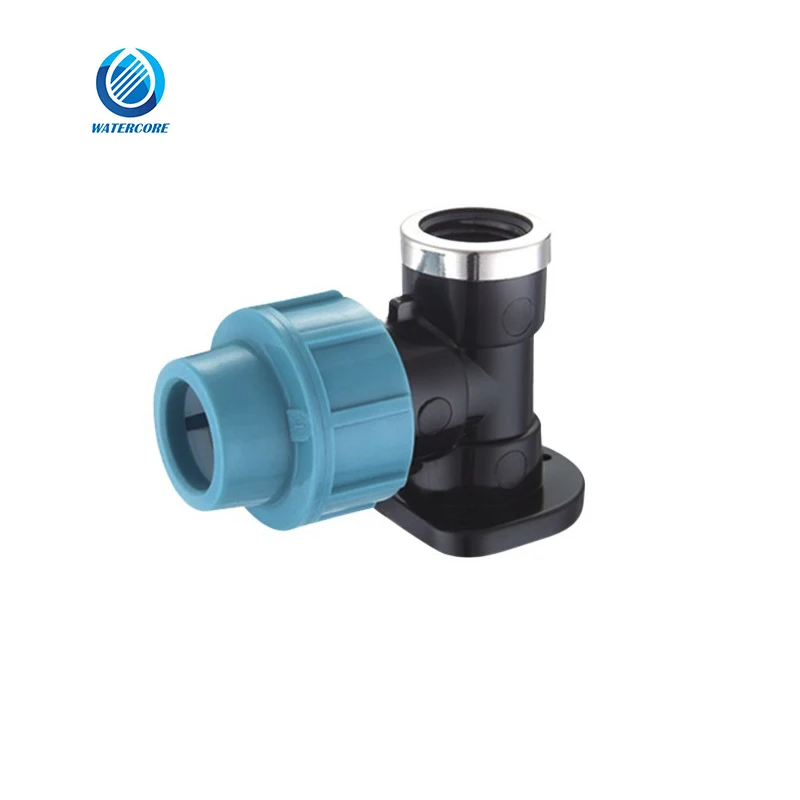

Hot Tags: Double clamp saddle,polypropylene fittings wrench,Acetalic resin fittings wrench,Female adaptor,Reducing coupling,Reducing tee,wall plate elbow fitting
