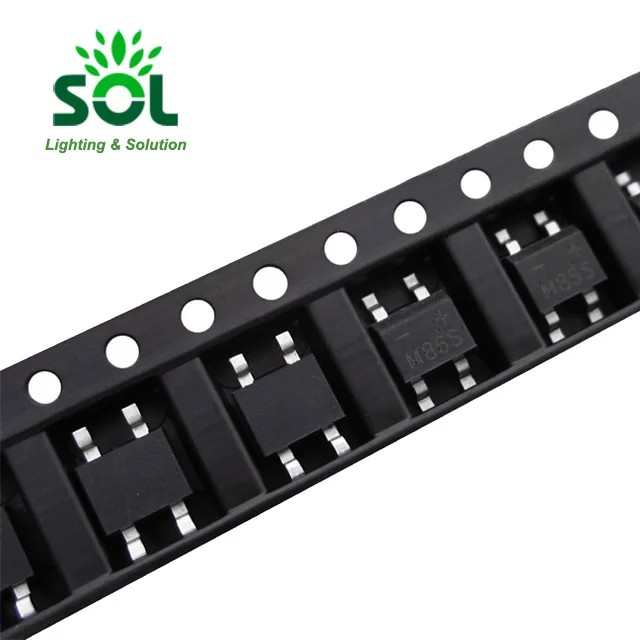

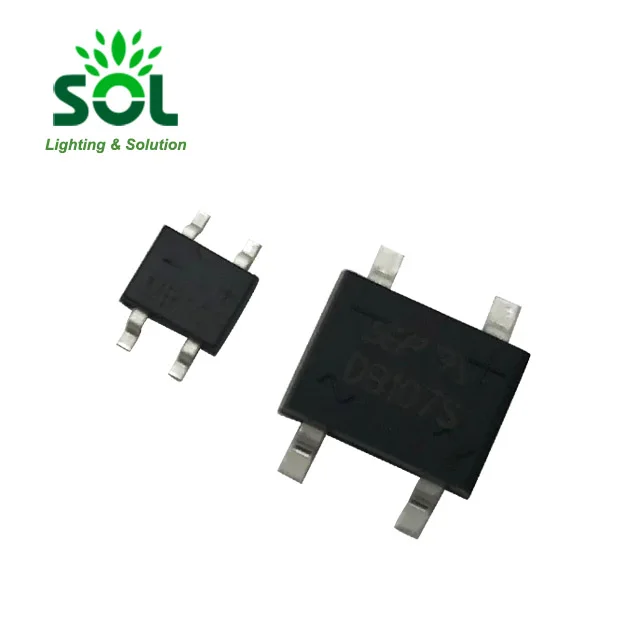

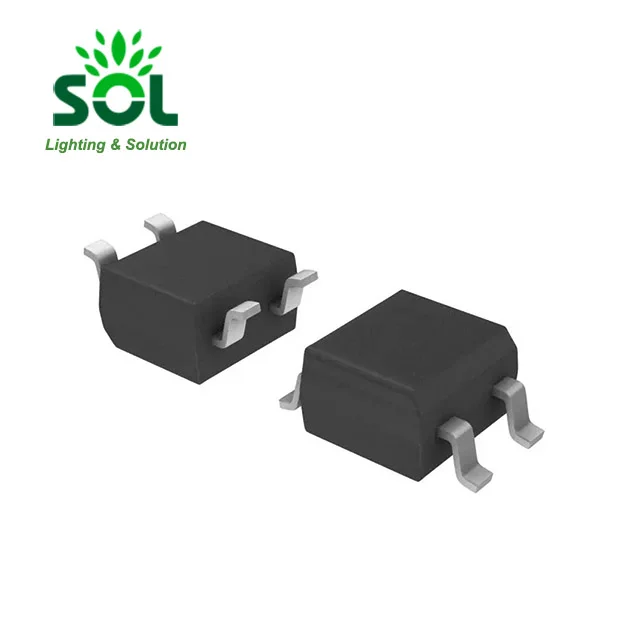

Пакет 400 В 1.0A SMD SOP4 диодный мостовой выпрямитель (5000 шт.) для светодиодного модуля

Product Overview

Description

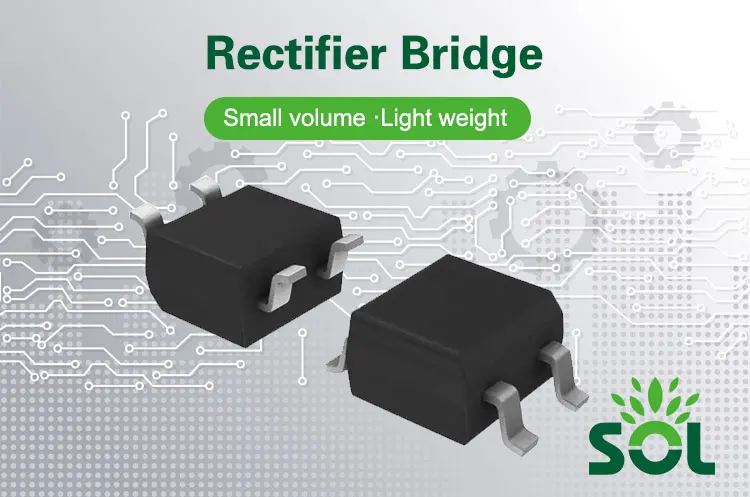

Bridge Rectifier SMD

----------------------------------------------------------------

400V Rectifier Bridge Pile of DESCRIPTION:

· Plastic package has underwriters laboratory flammability
· classification 94V-0
· Exceeds environmental standards of MIL-S-19500/228
· Lead free in comply with EU RoHS 2011/65/EU directives
· Glass passivated chip junction
· Lead tin plated copper
· Ideal for automatic placement
· High surge forward current capability
· Reliable low cost construction utilizing molded plastic technique

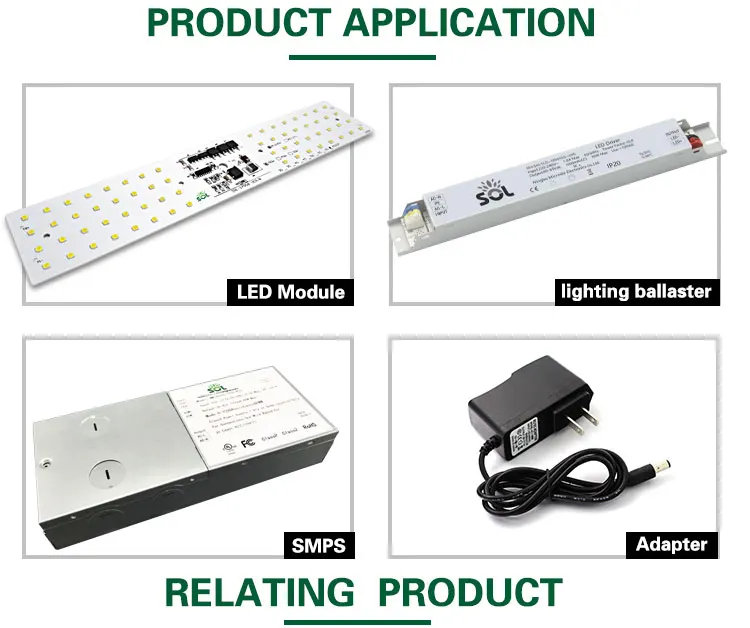

· General purpose use in AC/DC bridge full wave rectification, for SMPS, lighting ballaster, adapter, etc

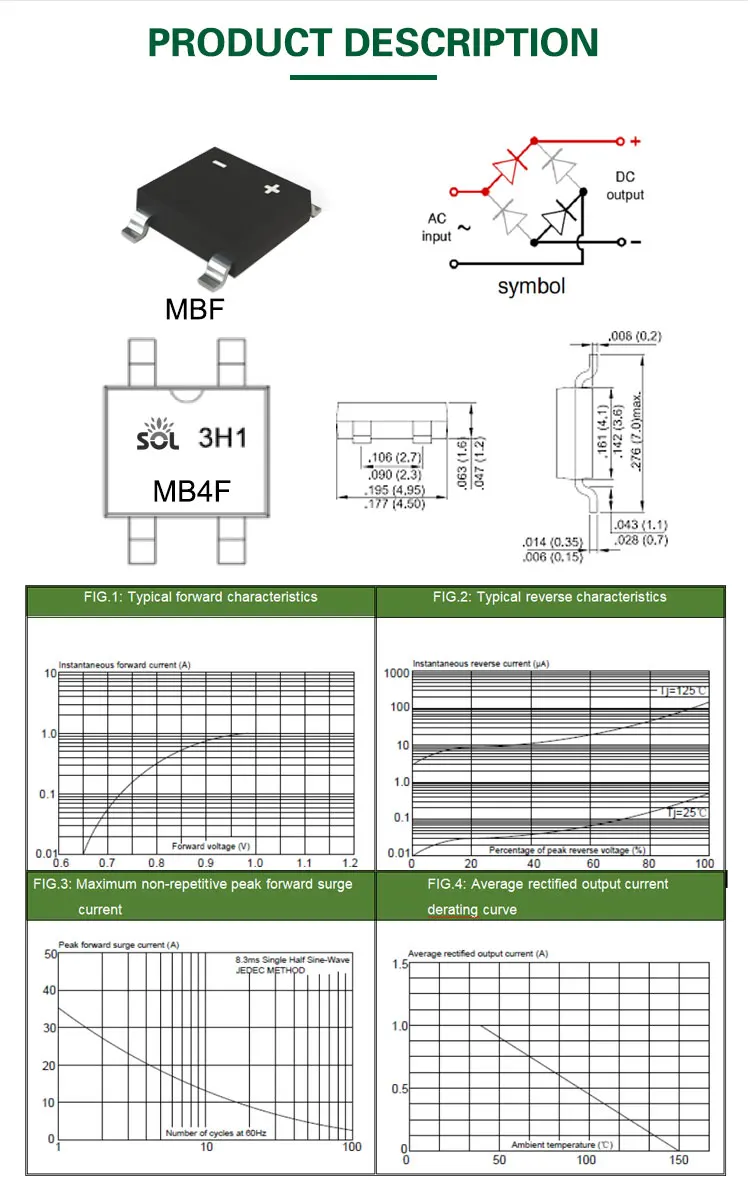

MECHANICAL DATA:

· Case: MBF molded plastic
· Terminals: Solder plated, solderable per MIL-STD-750, method 2026
· Polarity: Polarity symbol marking on body.
· Weight:0.075gram

MB10F Rectifier Bridge Characteristics:

Parameter		Symbol	MB2F	MB4F	MB6F	MB8F	MB10F	Unit
Maximum repetitive peak reverse voltage		VRRM	200	400	600	800	1000	V
Maximum non-repetitive peak reverse voltage		VRSM	220	440	660	880	1100	V
Maximum RMS voltage		VRSM	140	280	420	560	700	V
Maximum DC blocking voltage		VDC	200	400	600	800	110	V
Average rectified output current at TA=40℃		IO	1.0					A
Peak forward surge current: 8.3ms single half sine-wave superimposed on rated load(JEDEC method)		IFSM	35					A
Maximum forward voltage per diode @IF=1.0A		VF	1.1					V
Maximum DC reverse current at rated DC blocking voltage per diode	Tj=25℃	IR	5					µA
	Tj=125℃		500					µA
Typical junction capacitance VR=4.0V, f=1MHz		CJ	25					pF
Operating junction and storage temperature range		TJ,TSTG	-60 to +150					℃



THERMAL RESISTANCES:

Symbol	Parameter	MB2F	MB4F	MB6F	MB8F	MB10F	Unit
Rth(j-a)	Junction to ambient	60					℃/W
Rth(j-L)	Junction to lead	16					℃/W



Q1.Can I get your samples first?

A1: Yes. Samples order is welcome, however we will charge samples cost, which will be return in your mass order.

Q2: Do you have the ability to do independent research and development?

A2: yes,we have research and development capabilities.We also collect regularly each customer feedback, to improve products and make new product launches.

Q3: What is the lead time for production?

A3: 3-5 days for samples, 12-15 days for mass order.

Q4: How many capacitors are there?

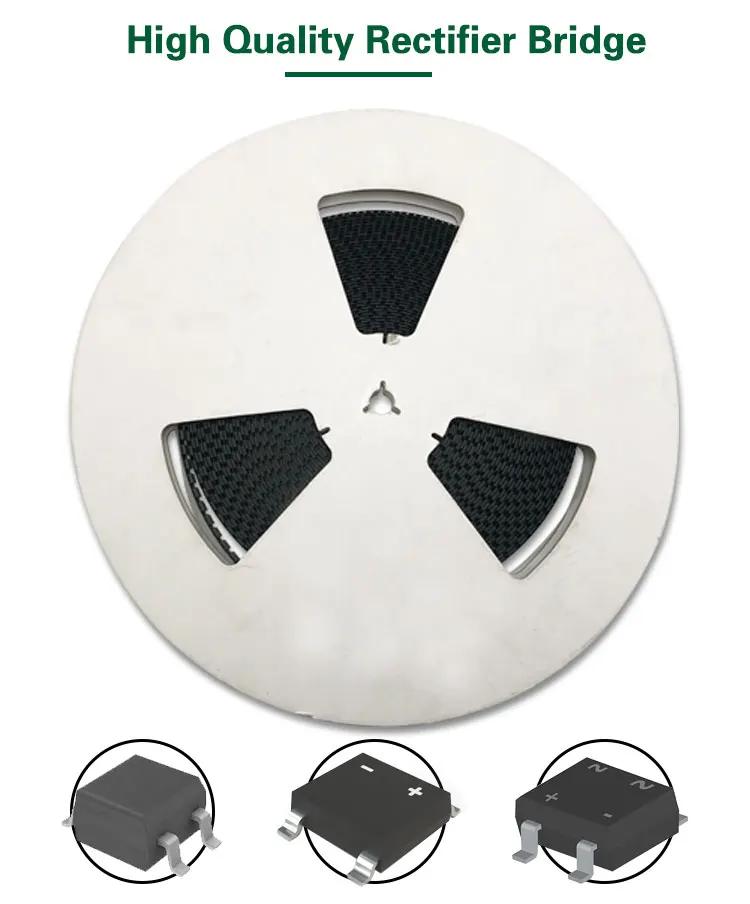

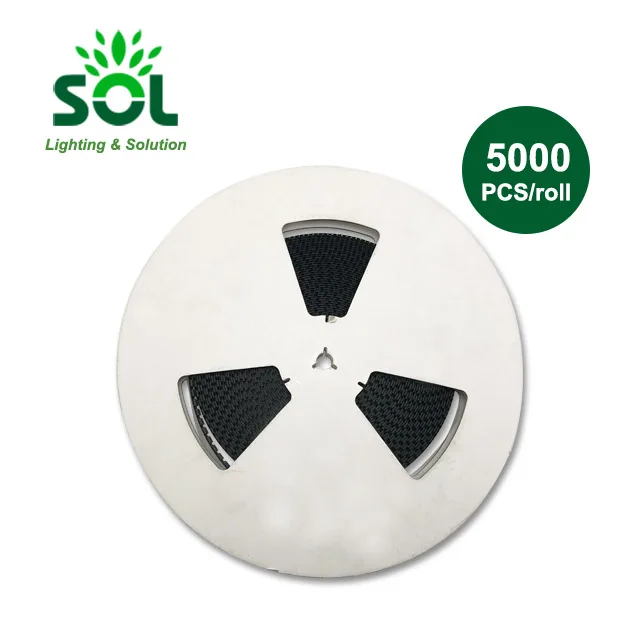

A4:5000pcs/roll
