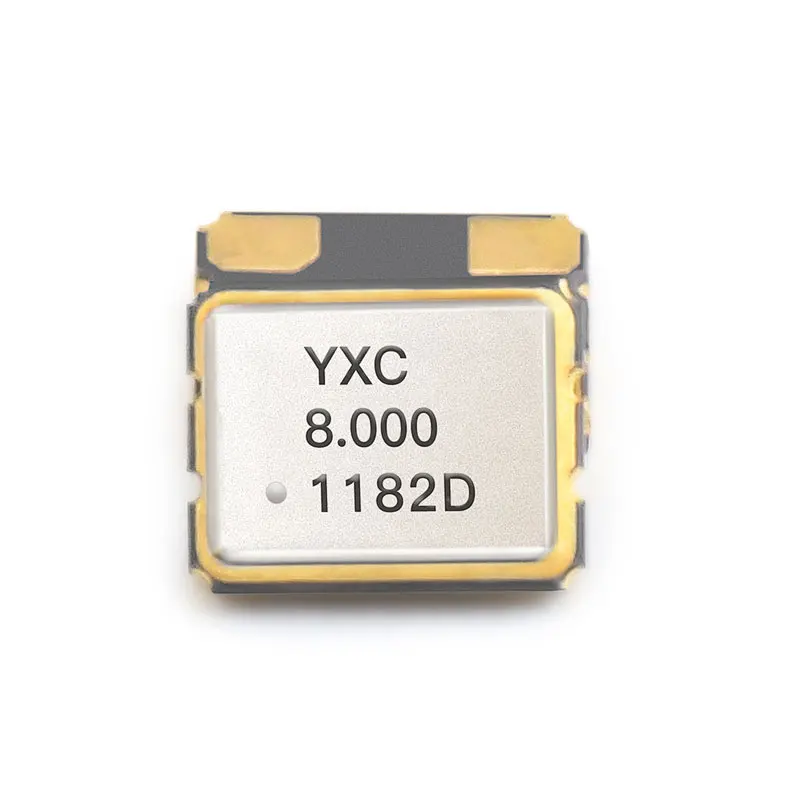

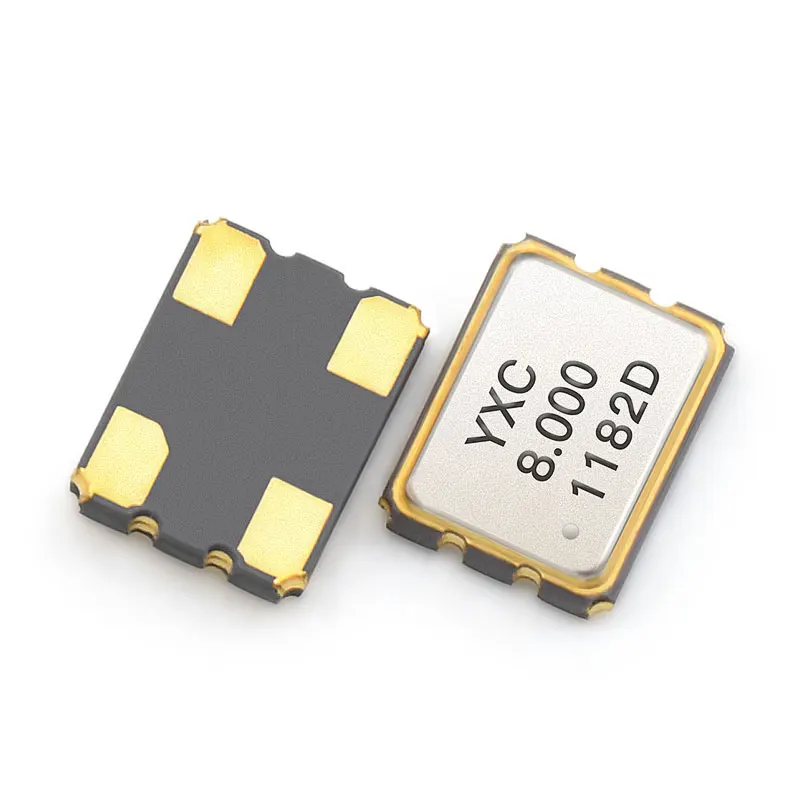

Q MEMS SMD3225 8.000 MHz 3.3V 20PPM 8 MHz Quartz Crystal Oscillator 8MHz
- Category: >>>
- Supplier: Yqm Electronics Intl Limited
Share on (11000006603124):
Product Overview
Description
Specifications

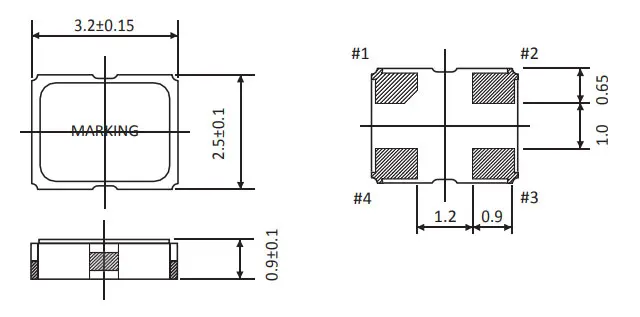

External Dimensions
Electrical Specifications
Parameter | 1.8V | 2.5V | 3.3V | ||
Frequency Range | 1MHz to 125MHz | 1MHz to 200MHz | 1MHz to 200MHz | ||
Supply Voltage Variation (Vdd)10% | 1.62 V to 1.98 V | 2.25 V to 2.75 V | 2.97 V to 3.63 V | ||
Standby Current | 400μA | ||||
Frequency Tolerance | ± 20 ppm, ± 25 ppm, ± 50 ppm, or specify | ||||
Output Load | 15pF | ||||
Operating Temperature Range | - 40 ~ + 85 ℃, or specify | ||||
Storage Temperature Range | -55 ~ +150 ℃ | ||||
Voltage Vol ( Max. ) / Vol ( Min. ) | VOH = 90%Vdd / VOL = 10%Vdd | ||||
Duty Cycle | 45~ 55% | ||||
Period Jitter (@12K-20MHz) | 1.8V=1.5ps 2.5V=1.1ps 3.3V=1ps | ||||
Start-up Time | 7ms Max. | ||||
Frequency Aging ( at 25 ℃ ) | ± 3 ppm / year Max | ||||
REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.
