Automatic nitrogen potato chips corn puffed snacks popcorn snack packaging machine with 14 heads multihead weigher
- Category: >>>
- Supplier: Guangzhou Xinlongtai Machinery Co. Ltd
Share on (11000006607059):
Product Overview
Description
Specification
Use range | It’s suitable to pack the fragile material , such as : puffy food , crispy rice , Potato Chips , Snacks , candy , pistachio , sugar, apple slices , dumpling , chocolate , pet food , small wares etc . |
Range of measuring | 2000ml(most) |
Packing speed | 10-50bags/min |
Weighing accuracy | ±1-3g |
Weighing error | 0.1g-1g |
Hopper | 14pcs x1.6L weighing buckets |
Languages | English, Polish, France, Spanish, Hungary, Germany, Finland… |
The maximum width of packing film | 530mm |
Thickness of film | 0.04-0.08mm |
Air consumption | 0.6Mpa300L/min |
Bag making mode | Pillow-type bag, standing bag, punching device |
Bag size | (L) 80-350mm (W)80-250mm |
Product Description

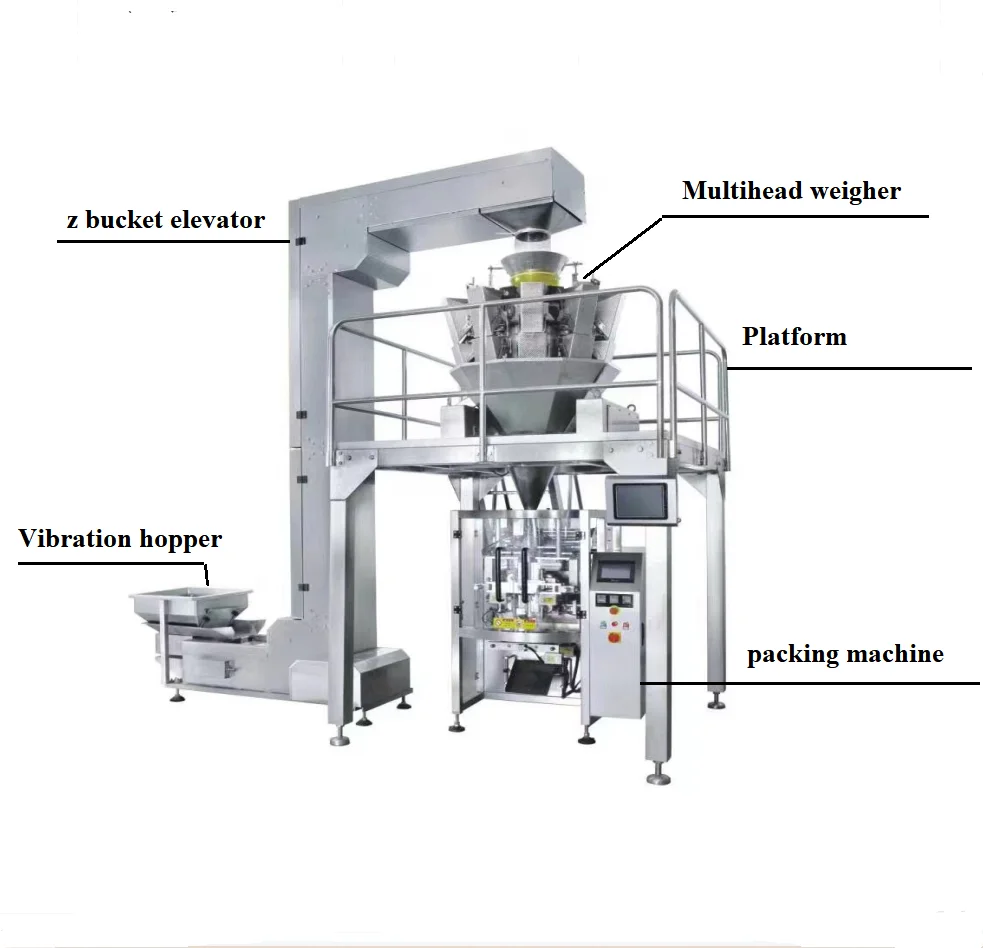

Z Bucket elevator:
Standard lifting height 3.8m, discharging height 3.1m
Vibration hopper 70L
304SUS frame and PP/ABS plastic buckets
Max speed 90 buckets/min
Working capacity: 5-7CBM/H
Working platform:
support the weigher machine
304SUS frame, 3mm aluminum table
110X110X2MM legs
54cm feet step ladder
110mm railway

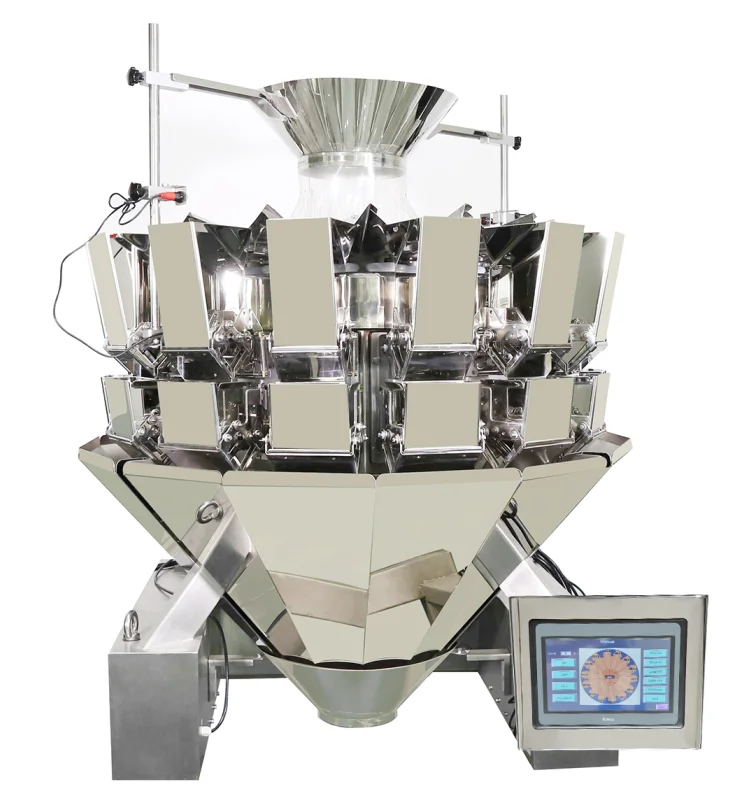

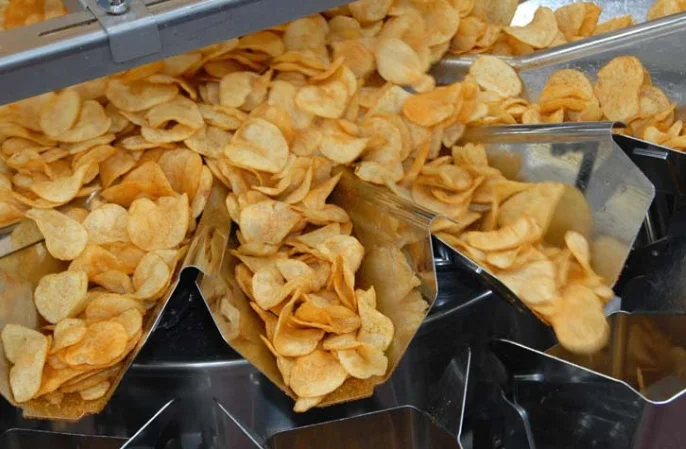

XLT-14DS multihead combination weigher
this model suit for weighing the dry products, such as rice, hard candy, sugar, beans, potato chips, mixed nuts, chocolate, dried fruits, sunflower seeds, popcorn, fruit nuts, biscuits, snack, small fruits, small metal or plastic parts combonents.
10.1 inch color touch screen.
14pcs 2.5L smooth single door weighing buckets.
Max speed 120bag/min.
Weighing error: 0.1-3g.
Weighing range/dump: 5-3000g
CE certificate and IP 65 waterproof .
Each vibration feeder can be individial control.
Can store up to 50 different products information, easy to pick out to use next time.

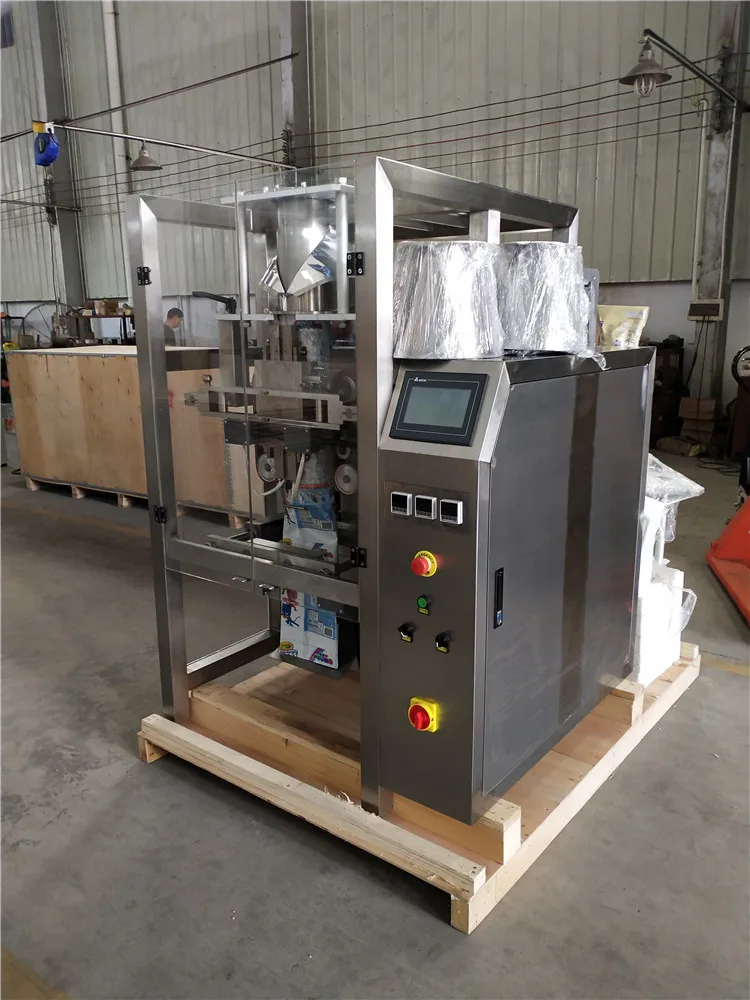

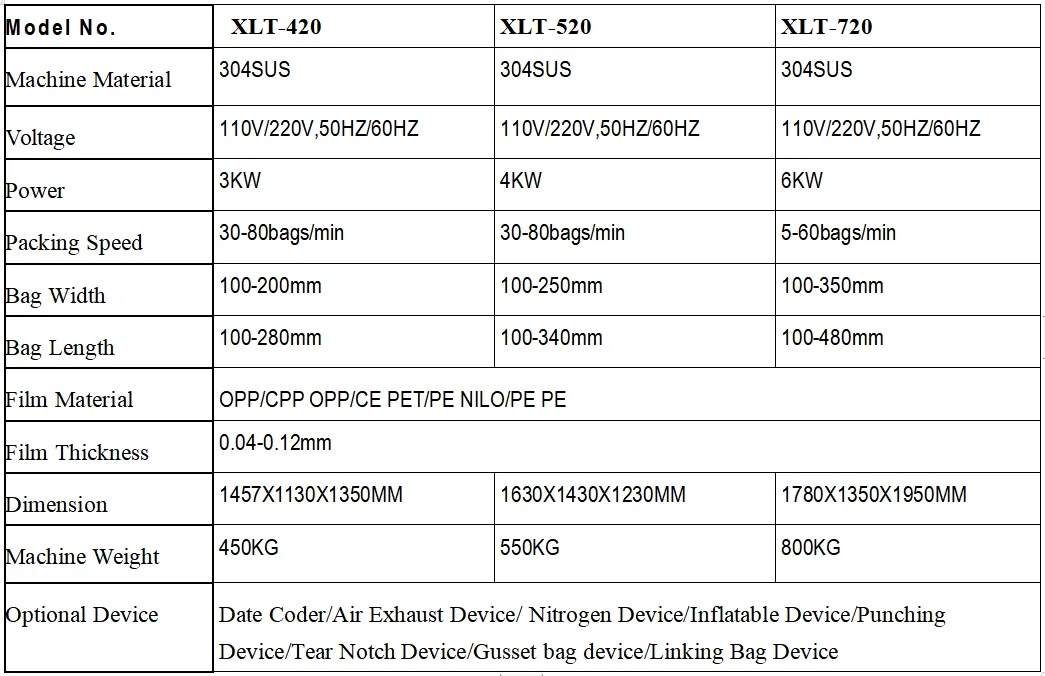

XLT-520 Vertical packing machine:
1. Imported PLC controlled system

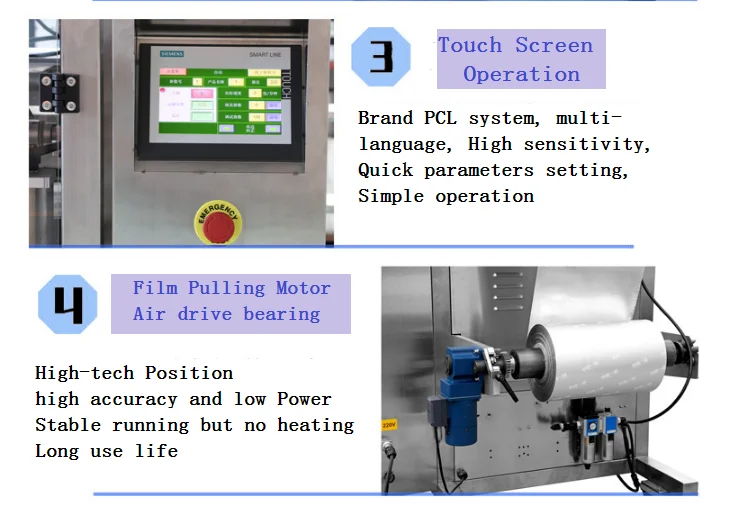

2. Chinese/English touch screen operation system
3. Clearly showing the working condition and operation indication.
4. High accuracy serve-motor to drive film
2. Chinese/English touch screen operation system
3. Clearly showing the working condition and operation indication.
4. High accuracy serve-motor to drive film

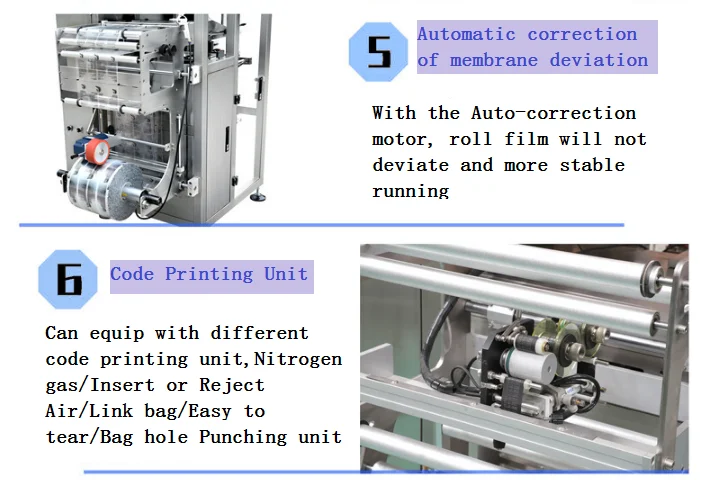

5. Photo-electric position tracking system, high accuracy.
6. Digital number type temperature control system

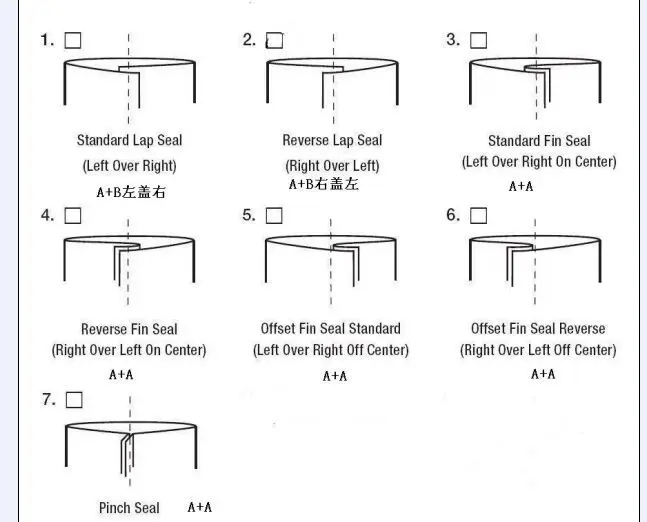

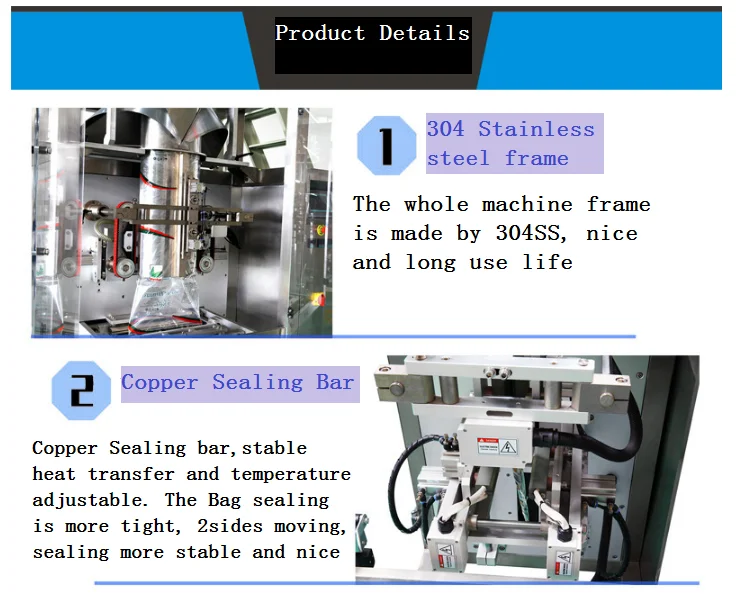

7. With tear type sealing part to assure the good and nice sealing.
8. Automatic malfunction alarm function: low temperature,no film, no ink belt, no material, serve malfunction, no color mark signal.
9. When open the glass door, the machine will immediately alarm or stop.
9. When open the glass door, the machine will immediately alarm or stop.
10. This machine if equipped with the measuring equipment,it can do: measuring, dosing, sealing bag, date printing.
Double belt pulling system:
Double belt to pull the film, so that the bag will be seal in more nice and film will stable to be pulled at both sides.
Back side look:
Easy to load the film and there is a motor to control the roll film
Side look:
Can be open at the side, so the maintenance will be easy too.

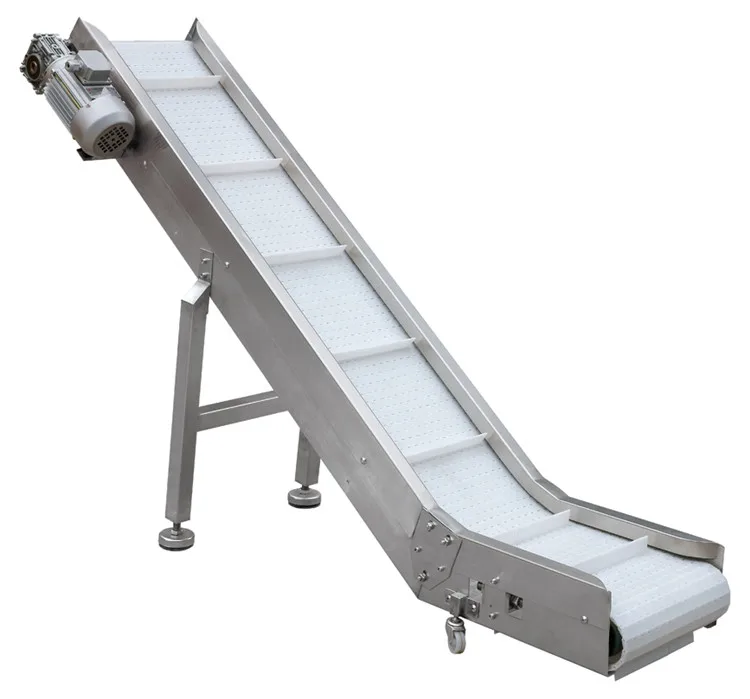

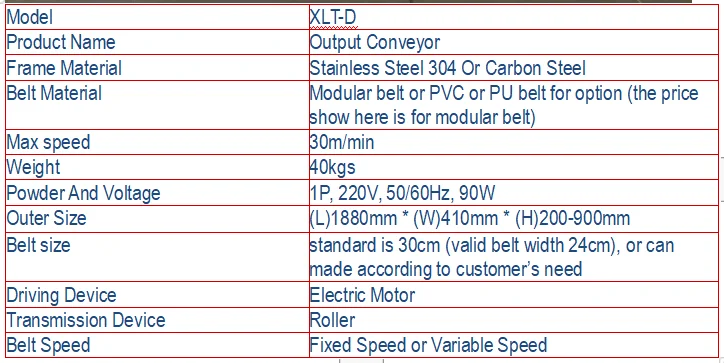

Take away conveyor for finished bags
The discharge conveyor is used to send the finished bags products up to the rotary table or metal detector or check weigher.

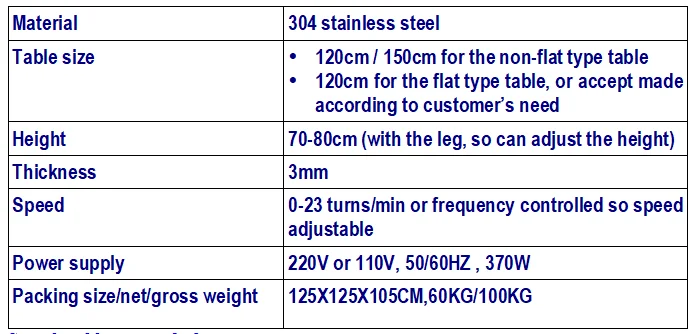

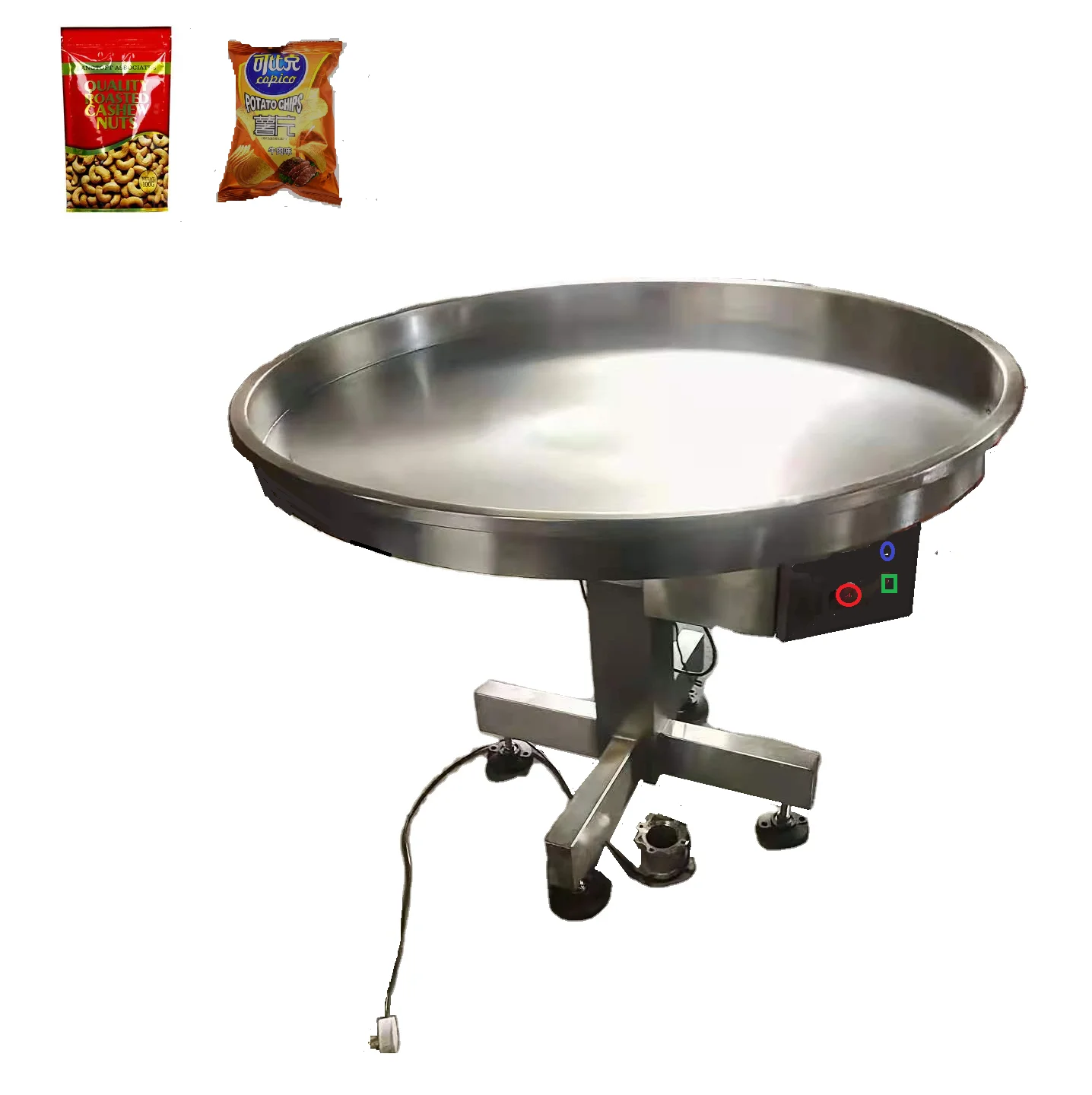

Rotary collecting table for bags
Rotary collecting table used to rotate the finished bags, so that workers can take them and put them in carton boxes or other containers.

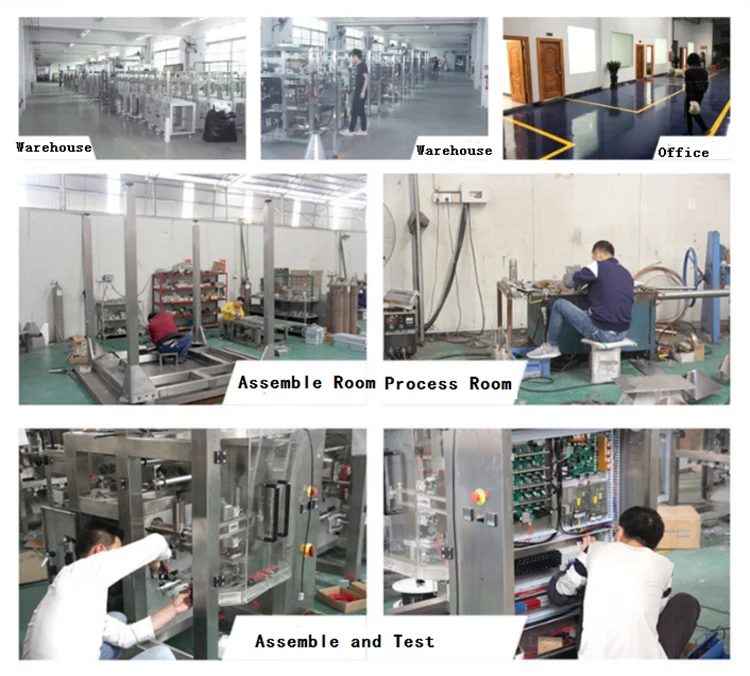

Company Profile
GuangZhou XinLongTai Machinery Co., Ltd is located in Pearl River Triangle. It is the most energetic and developing economic area in China.
Our company is a high-tech enterprise specializing in the design, manufacture, sale and service of food packaging machines and material conveyors.
Our company is a high-tech enterprise specializing in the design, manufacture, sale and service of food packaging machines and material conveyors.
We have sold them to many countries before: ITALY, UK, ROMANIA, POLAND, CZECH, HUNGARY, USA, MEXICO, ARGENTINA, AUSTRALIA, NEW ZEALAND, THAILAND, JAPAN and so on.
Our products are: z bucket elevator, inclined belt conveyor, bowl conveyor, multihead weigher, platform, vertical packing machine, discharge conveyor, screw powder conveyor, auger filler, rotary packing table, metal detector and check weigher...
During this period, we have gained rich experience in packaging machinery industry and have developed full-flown technic of several ranges. So far, we have developed scores of type of packing machinery series products and mature technology. These products are applicable for food, medication, chemistry, feed, toy, ironware and other industries. Our products sell well in domestic and exported Southeast Asia, South America, East Europe and the Middle East.
We are not only offer the product with good quality but flexible packaging solution. Meanwhile, We have ability to produce kind various standard packaging machine as OEM manufacturer and provide professional services.
Warmly welcome friends from all around the world to visit, inspect, and join for our bright future.
During this period, we have gained rich experience in packaging machinery industry and have developed full-flown technic of several ranges. So far, we have developed scores of type of packing machinery series products and mature technology. These products are applicable for food, medication, chemistry, feed, toy, ironware and other industries. Our products sell well in domestic and exported Southeast Asia, South America, East Europe and the Middle East.
We are not only offer the product with good quality but flexible packaging solution. Meanwhile, We have ability to produce kind various standard packaging machine as OEM manufacturer and provide professional services.
Warmly welcome friends from all around the world to visit, inspect, and join for our bright future.
Why choose us:
1. We have good team, the sales, the designer, the technical people, the after sales people.
2. Our electric technical people know the machines very well, have been in the area over 10 years.
3. Our sales people have over 18 years foreign sales, so the export experience is well, can help you do the import in good
3. Our sales people have over 18 years foreign sales, so the export experience is well, can help you do the import in good
and happy way.
4. Our size drawing people also work in this area over 8 years. We can help you do the size drawing when you buy the
4. Our size drawing people also work in this area over 8 years. We can help you do the size drawing when you buy the
machines.
5. Most of our workers can do quick response for your questions.
5. Most of our workers can do quick response for your questions.
FAQ
1. What’s the payment terms:
Normally 100% by T/T in advance; for big order can be 30% prepayment and balance before shipment. Sometimes we accept L/C. You can place order on Alibaba and pay here or contact us for our bank account.
2.What’s the delivery time:
That depends, if we have them in stock, normally after receiving payment we will arrange the earliest shipment for you, within 7 days. If production is busy and no stock, that will depends on order quantity. Better to chat with us on Alibaba before you pay.
3. Warrantee:
All the machines we warrantee them for 12 months.
4.After sales service:
We have experienced people who can help you on line by wechat or email or whatsapp.
5.Packing:
All our machines are packed by new and strong wood similar cases, suitable for long sea transportation.
Normally 100% by T/T in advance; for big order can be 30% prepayment and balance before shipment. Sometimes we accept L/C. You can place order on Alibaba and pay here or contact us for our bank account.
2.What’s the delivery time:
That depends, if we have them in stock, normally after receiving payment we will arrange the earliest shipment for you, within 7 days. If production is busy and no stock, that will depends on order quantity. Better to chat with us on Alibaba before you pay.
3. Warrantee:
All the machines we warrantee them for 12 months.
4.After sales service:
We have experienced people who can help you on line by wechat or email or whatsapp.
5.Packing:
All our machines are packed by new and strong wood similar cases, suitable for long sea transportation.
6.Training and maintenance:
You can send people come to our factory for free training, we have service people who knows the machines very well who already for the machines over 10 years.
