Product Overview
Description

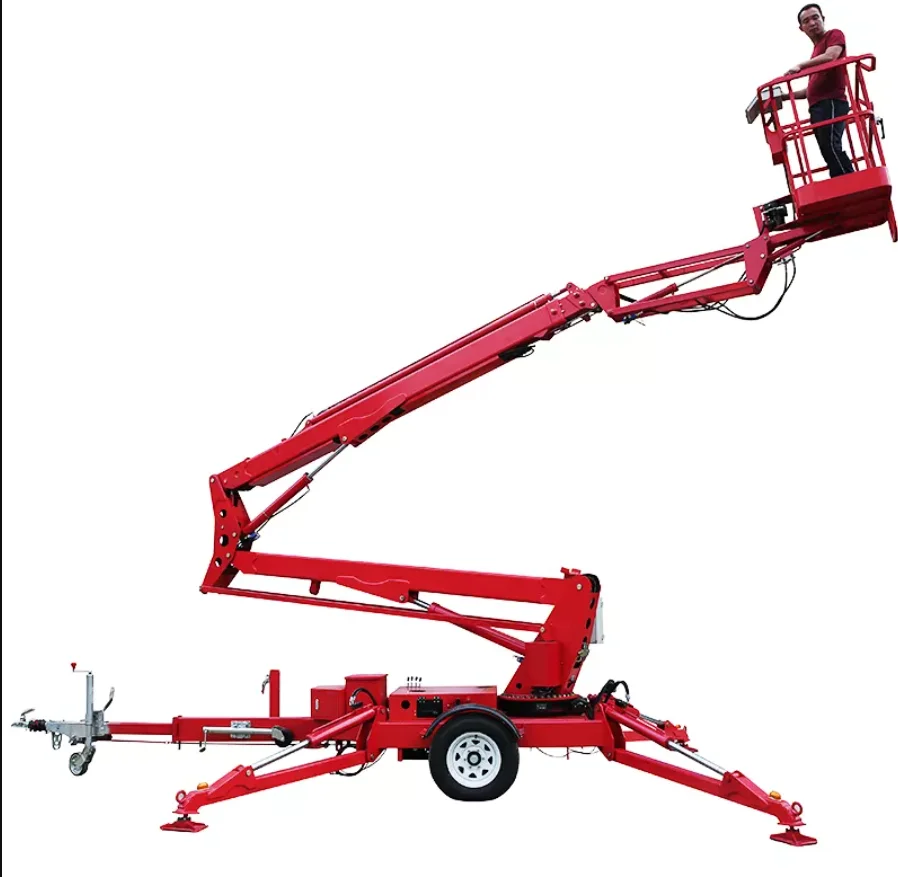

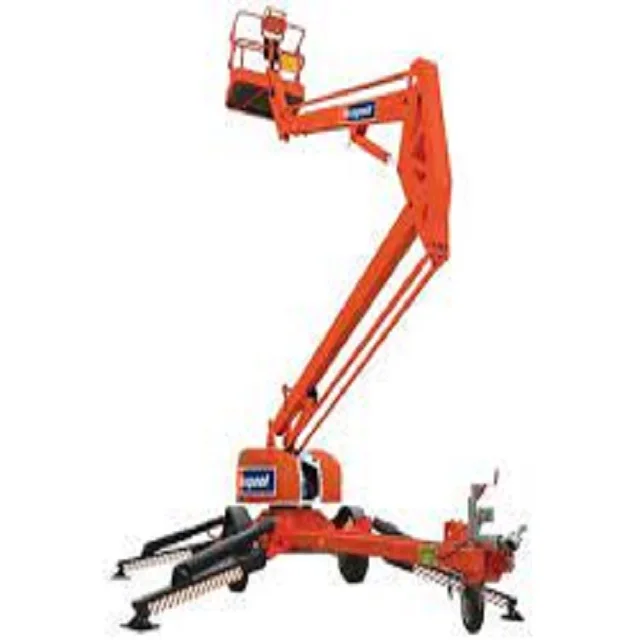

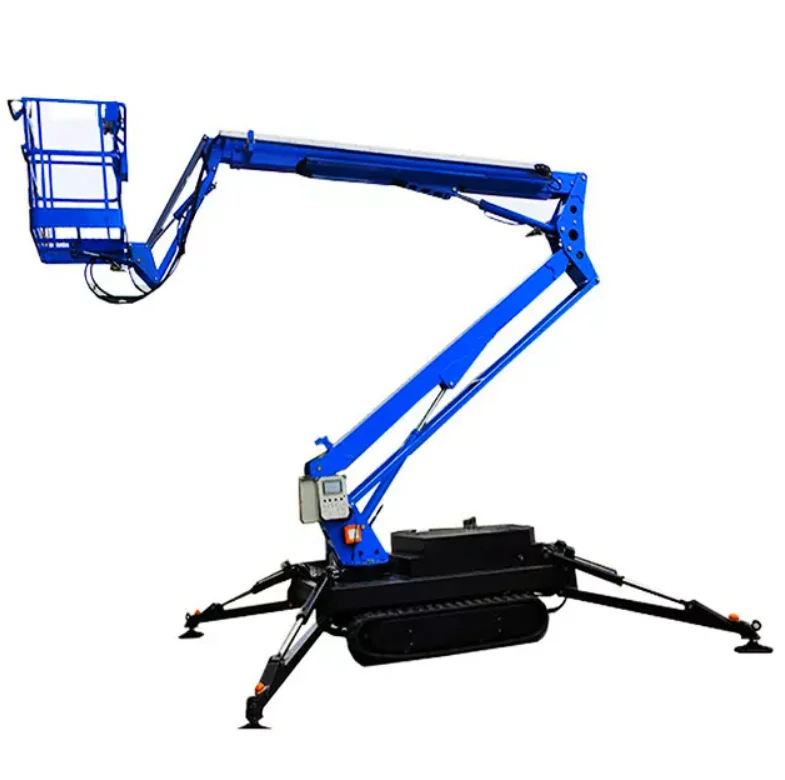

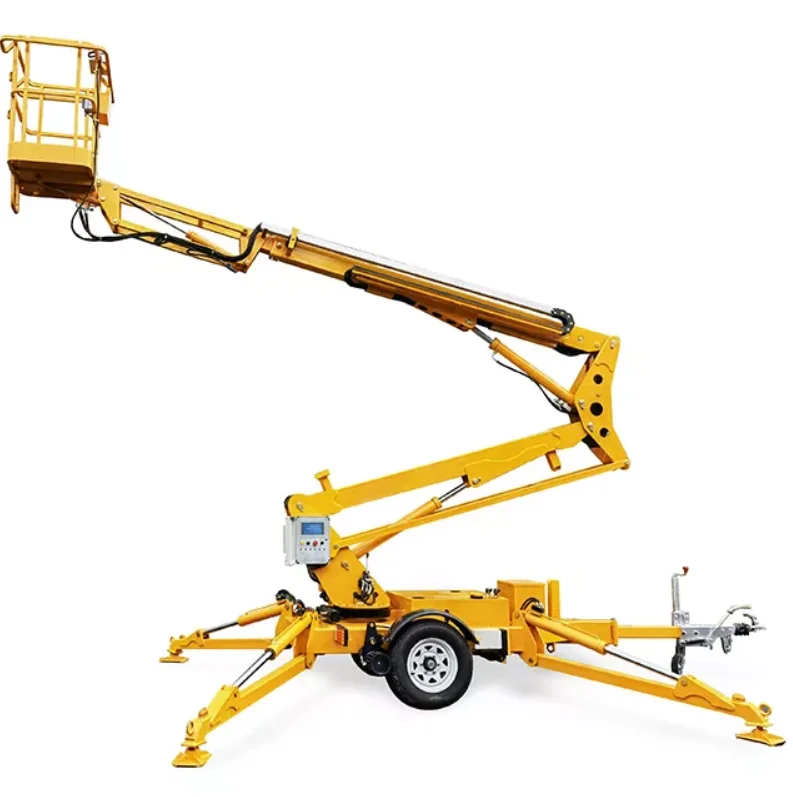

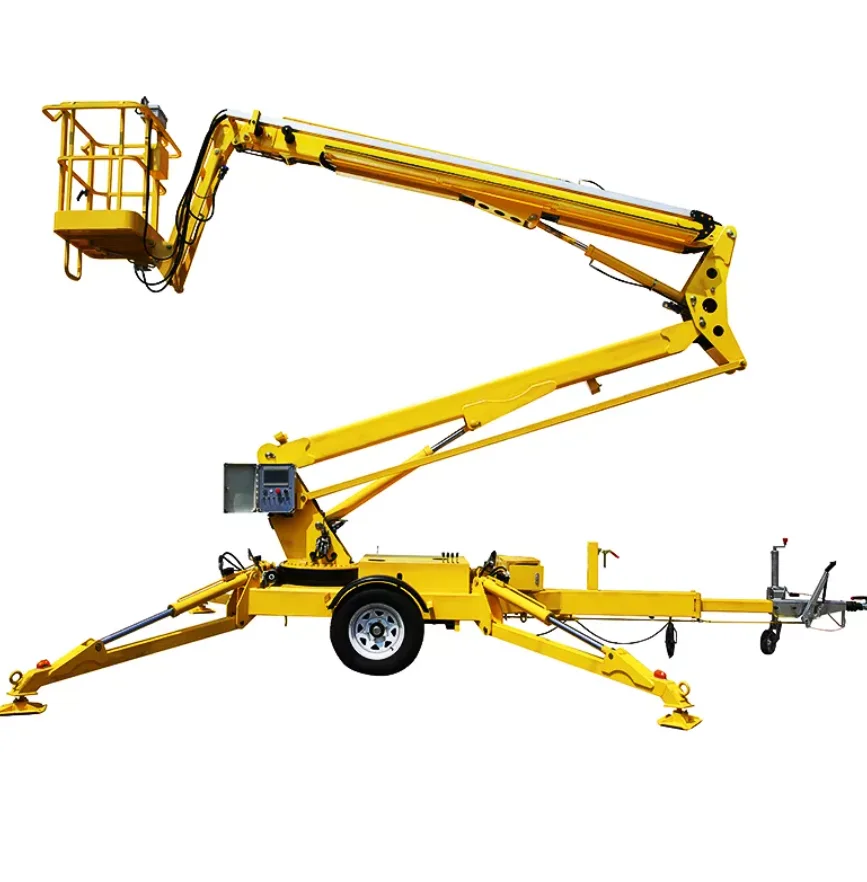

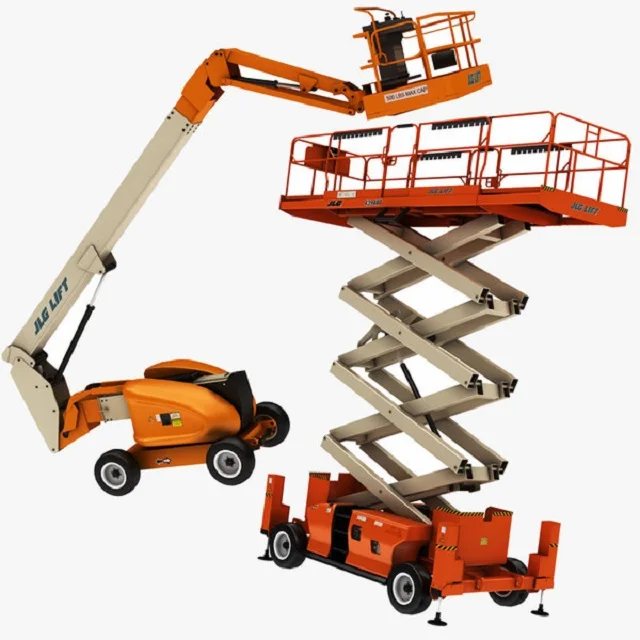

6m to 20m Towable Trailer Mounted Mini Boom Lift
- OEM & ODM Service -
Towable Articulated boom lift is one of the most ideal aerial lift platform for both indoors and outdoors maintenance work. It can rotate 360 degree in the air and platform height is from 10m to 20m. Articulated boom lift is driven by Diesel,Gas,AC electricity,DC Battery or Hybrid Power.It is widely used in neighborhood unit, road light maintenance, factories high place maintenance, construction site and so on.
Model Type | TBL-10A Articulated | TBL-12A Articulated | TBL-14A Telescopic | TBL-16A Telescopic |
Lifting height | 10M | 12M | 14M | 16M |
Working height | 12M | 14M | 16M | 18M |
Load capacity | 200KG | |||
Platform size | 0.9*0.7M | |||
Working radius | 5M | 6.5M | 10.5M | |
Net Weight | 1855KG | 2050KG | 2500KG | 2800KG |
Overall Size( L*W*H) | 6.65*1.7*2.1M | 7.75*1.7*2.1M | 6.55*1.66*2.2M | 6.7*1.65*2.2M |
Supporting Legs Stride Distance (Horizontal) | 3.0 M | 3.6 M | 3.6 M | 3.9 M |
Supporting Legs Stride Distance (Vertical) | 4.7 M | 4.7 M | 4.7 M | 4.9 M |
Wind Resistance Level | 5 | |||
20’/40’ Container Loading Quantity | 20’/1set 40’/2sets | 20’/1set 40’/2sets | 20’/1set 40’/2sets | 20’/1set 40’/2set |
