5 Years Warranty Ip65 Led Driver output 36v Power Supply 320w 320watt customizable Constant Voltage 5 in 1 dimmable Led Driver
- Category: >>>
- Supplier: Shenzhenshi Zhenhuan Electronic Co. Ltd.
Share on (11000006615235):
Product Overview
Description
Products Description
5 Years Warranty Ip65 Led Driver output 36v Power Supply 320w 320watt customizable Constant Voltage 5 in 1 dimmable Led Driver

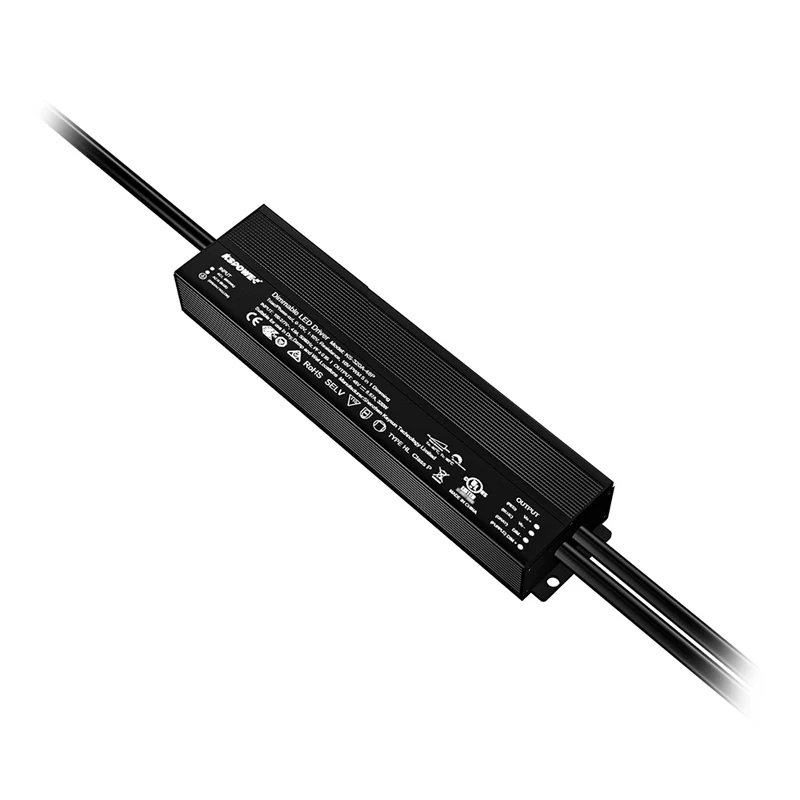

KSHP-320W is a versatile 320W 5-in-1 universal dimming driver that accepts 100-277VAC input voltage and provides 24V 36V 48V constant voltage output. KSHP-320W delivers flicker free dimming to 0% on all dinning systems including 0-10V, 1-10V, PWM, Triac/ Phase-cut ,Resistance, MLV, ELV and Incandescent. The high efficiency of the driver and sophisticated overload protection enables the electronics to run cooler and significantly improve reliability while extending product life.

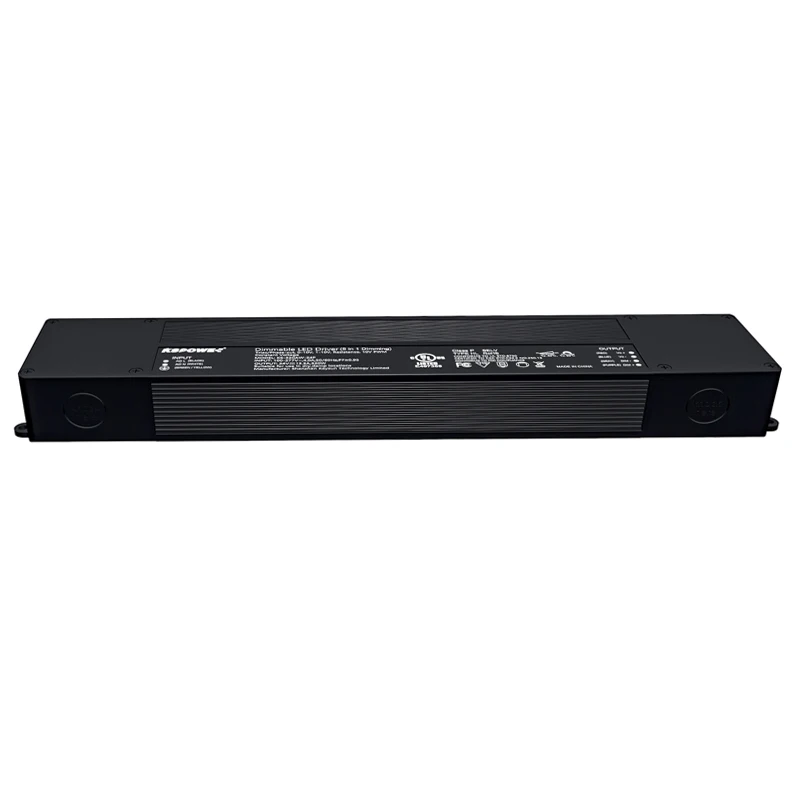

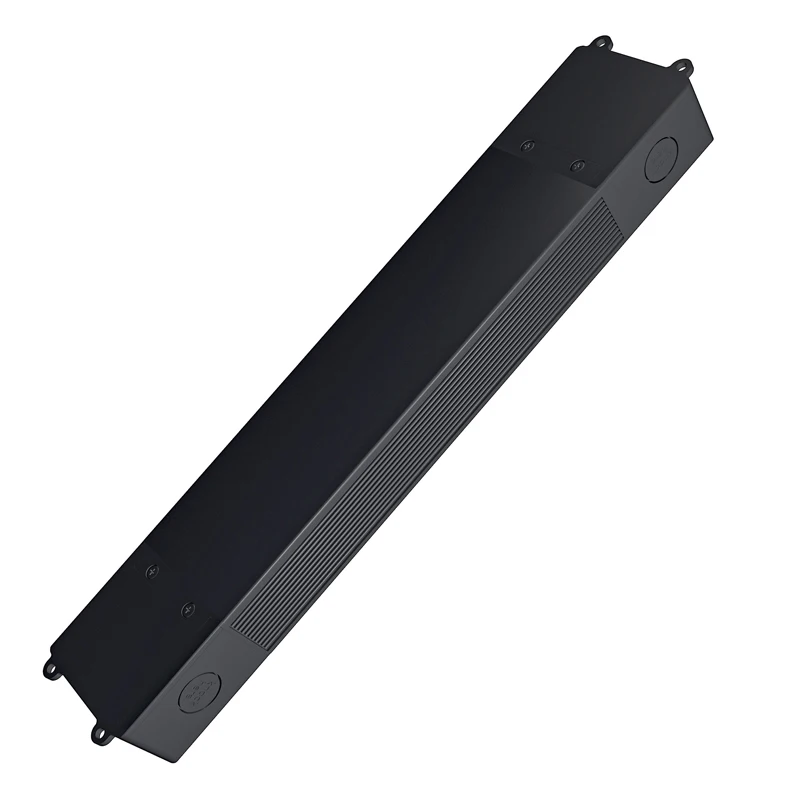

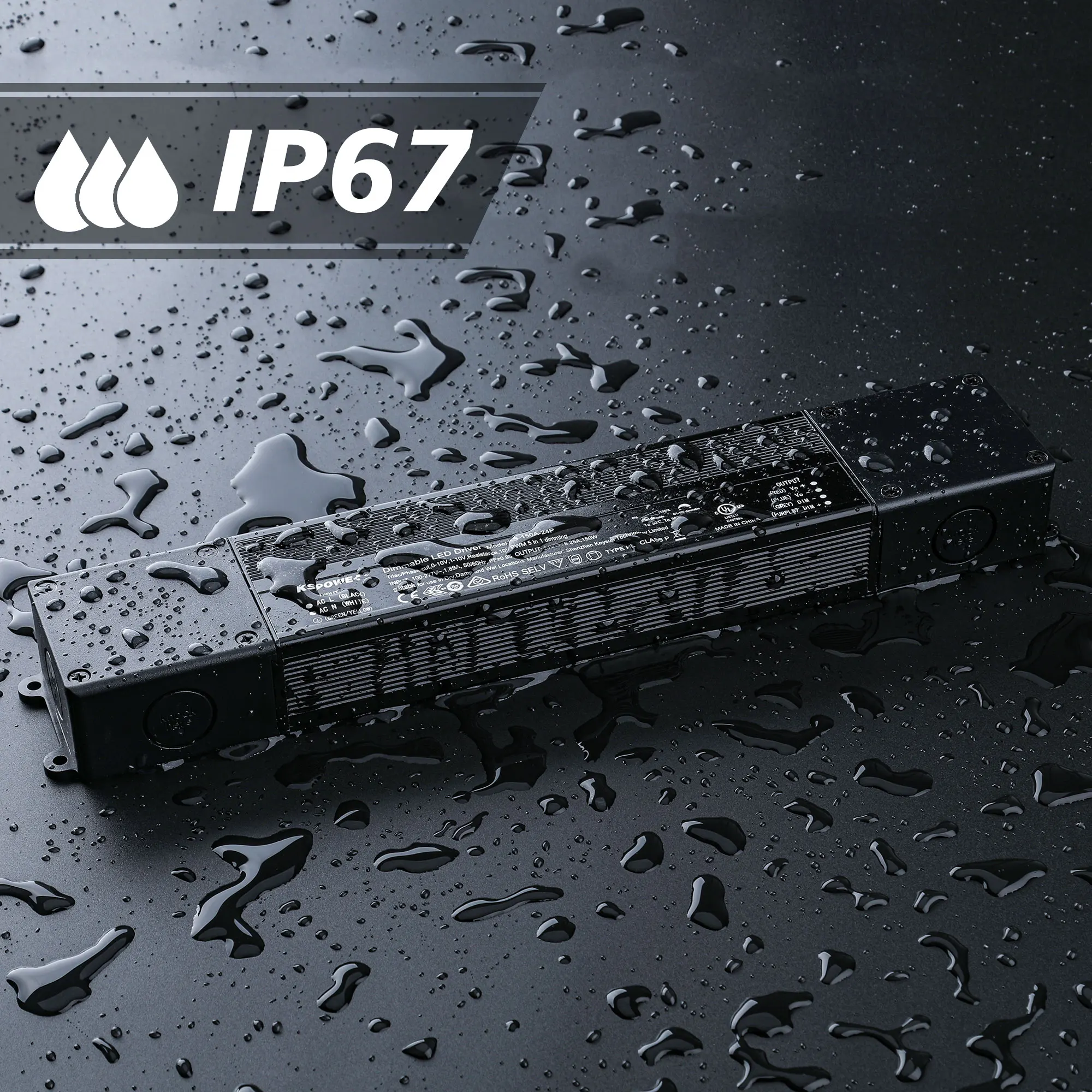

The compact metal case is dry/damp location listed and IP67 rated, making it suitable for a wide range of indoor/outdoor architectural, commercial, industrial, and residential lighting applications. KSHP-320W is available with or without integrated junction boxes on both the input and output side that have two knock outs each.
Features:
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 24Volt/36Volt/48Volt
* Driver Type: Class 2 Class P
* Enclosure:LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
* Dimming: Triac/ Phase-cut, PWM, 0/1-10V or MLV / ELV Resistance Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note：Any custom label/package/case is acceptable, provide OEM and ODM service
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 24Volt/36Volt/48Volt
* Driver Type: Class 2 Class P
* Enclosure:LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
* Dimming: Triac/ Phase-cut, PWM, 0/1-10V or MLV / ELV Resistance Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note：Any custom label/package/case is acceptable, provide OEM and ODM service
Input Voltage | 100~277V AC 47~63Hz | ||||||
Power Factor | PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load | ||||||
NO. | KSHP-320W24 | KSHP-320W36 | KSHP-320W48 | ||||
Output Voltage | 24V | 36V | 48V | ||||
Rated Current | 13.3A | 8.88A | 6.66A | ||||
Rated Power | 320W | ||||||
Ripple & Noise (max.) | 250mVp-p | ||||||
Dimension(L*W*H) | Dimension(L*W*H) | ||||||

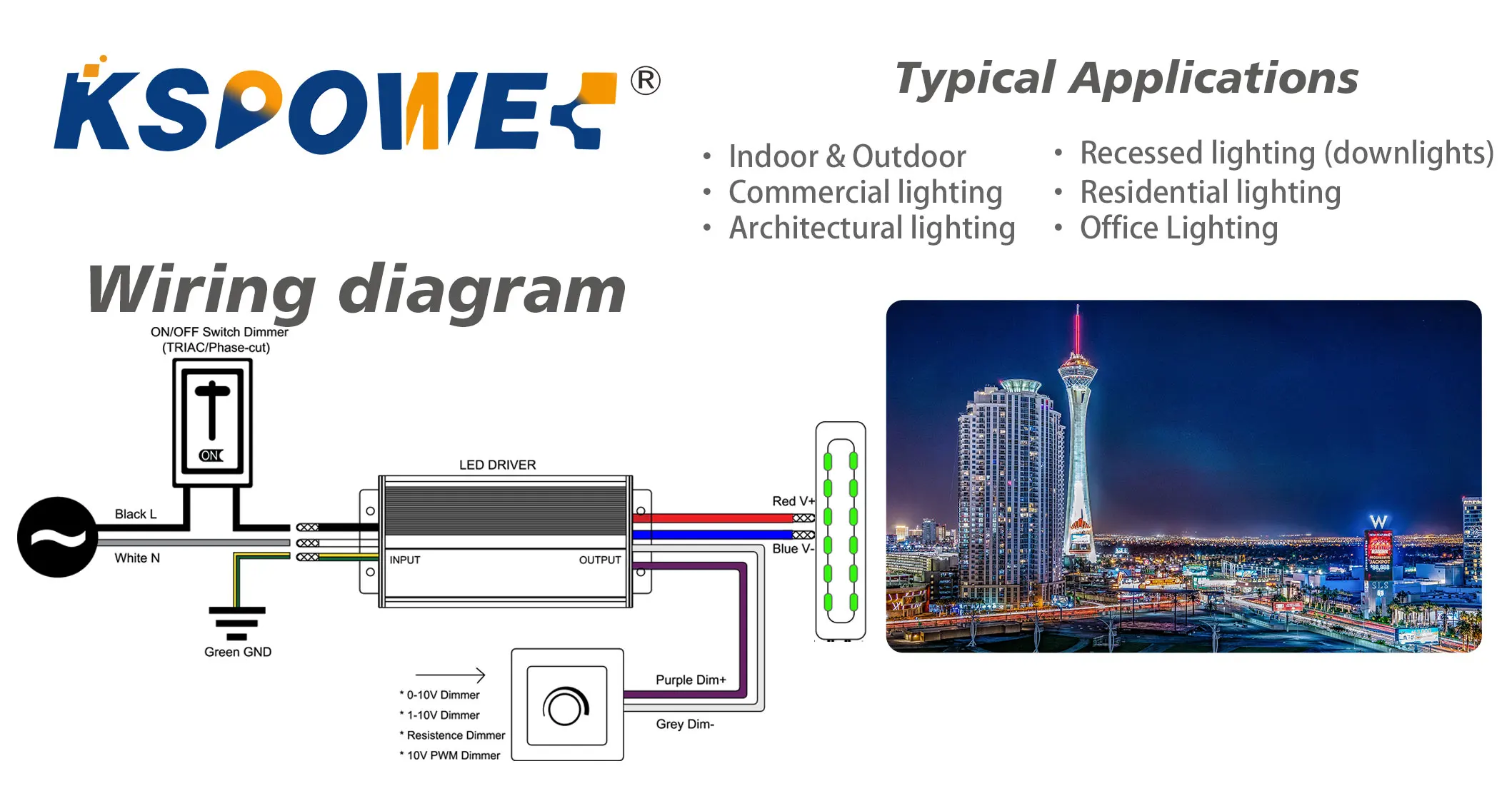

Dimming Connect Drawing

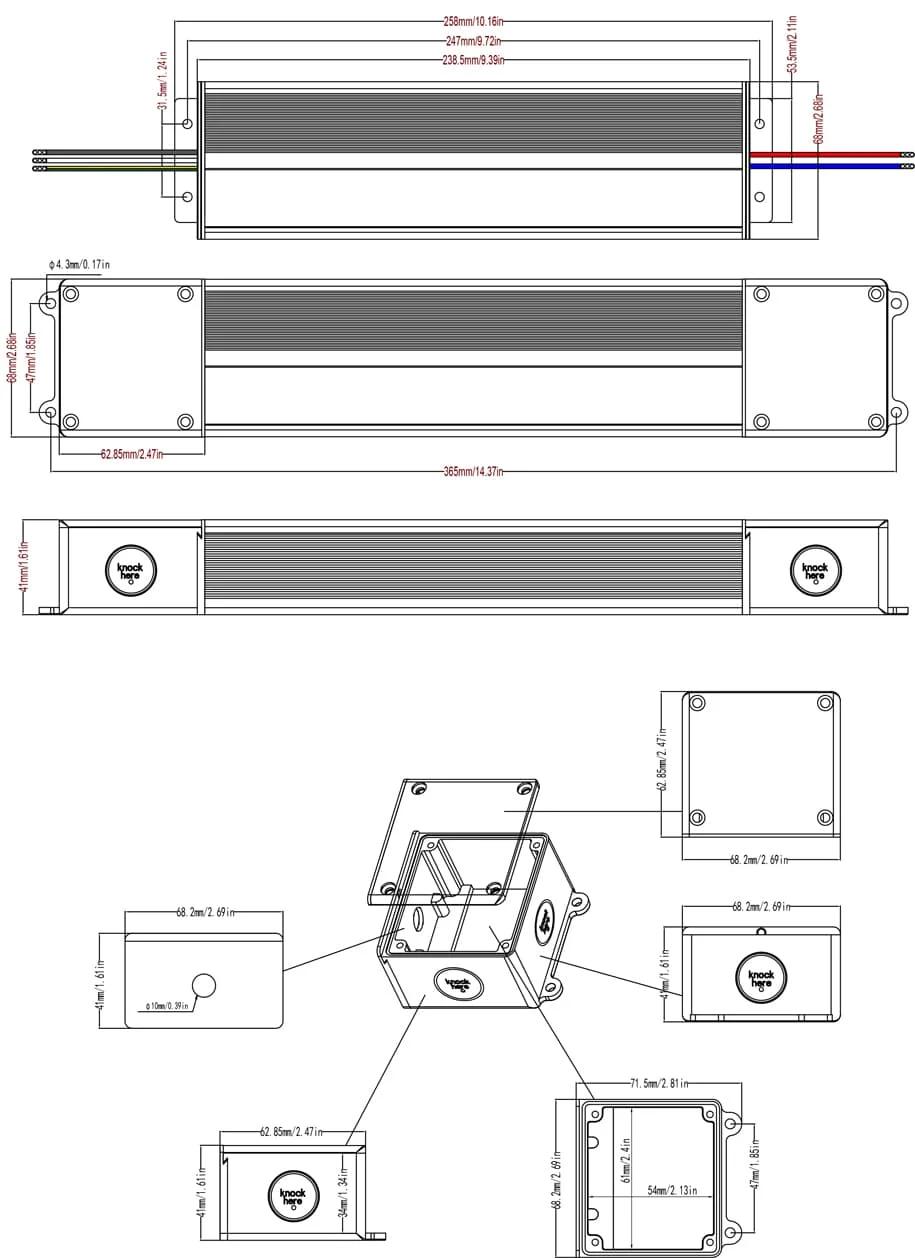

Dimension Drawing
Company Profile
Working Room
Exhibition
Certifications
Applications
Product packaging
1.Sample is available.
2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.
Package | Piece/Carton(pcs) | Piece Weight(KG) |
OEM package | 50 | 0.26 |
Dimension/Brown Box(mm) | Dimension/Carton(mm) | Gross Weight/Carton(KG) |
155*85*35 | 455*370*175 | 14 |
