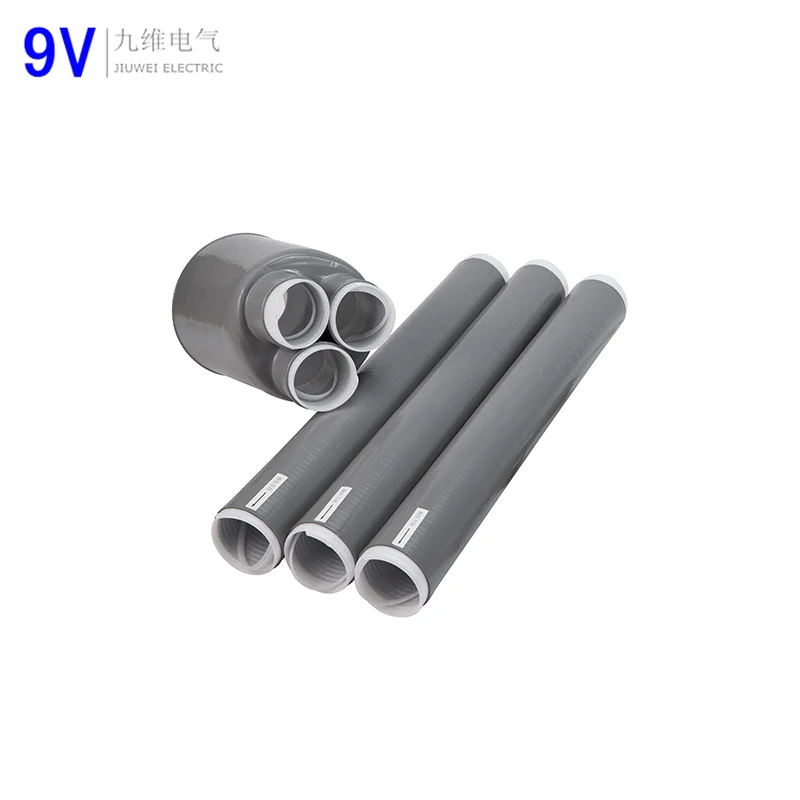

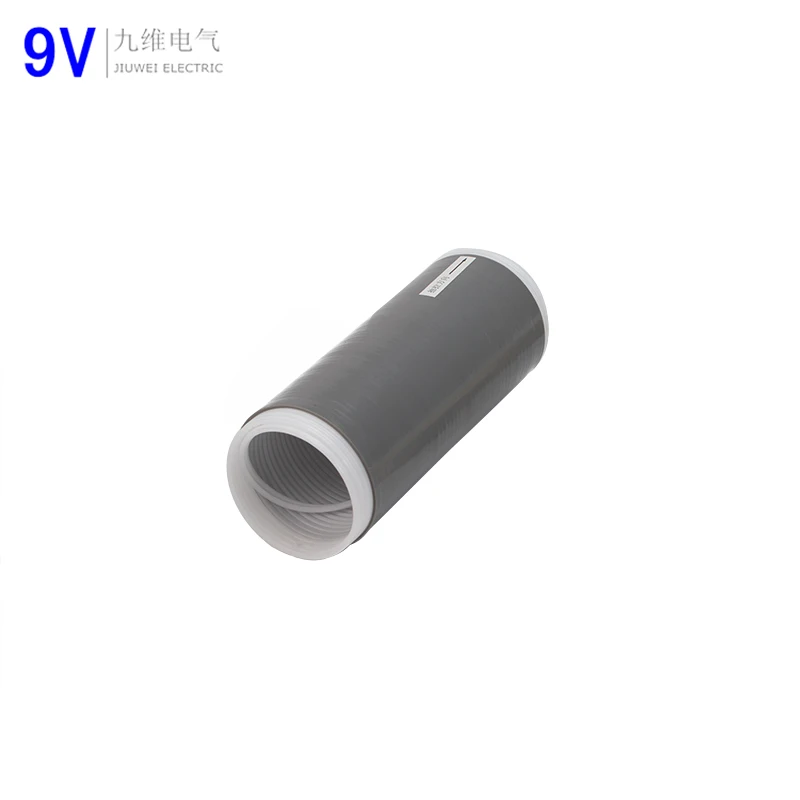

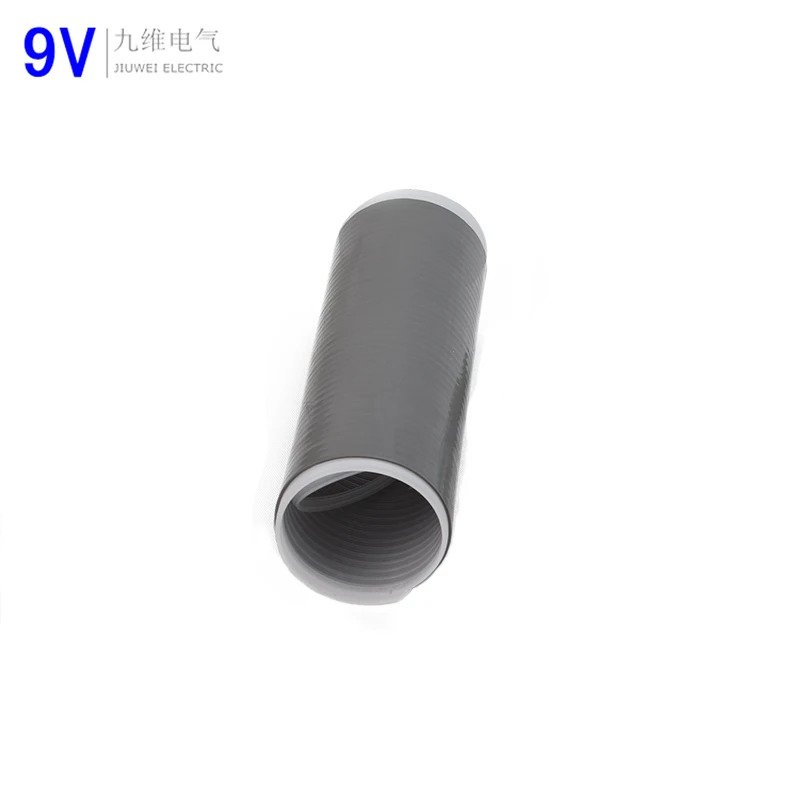

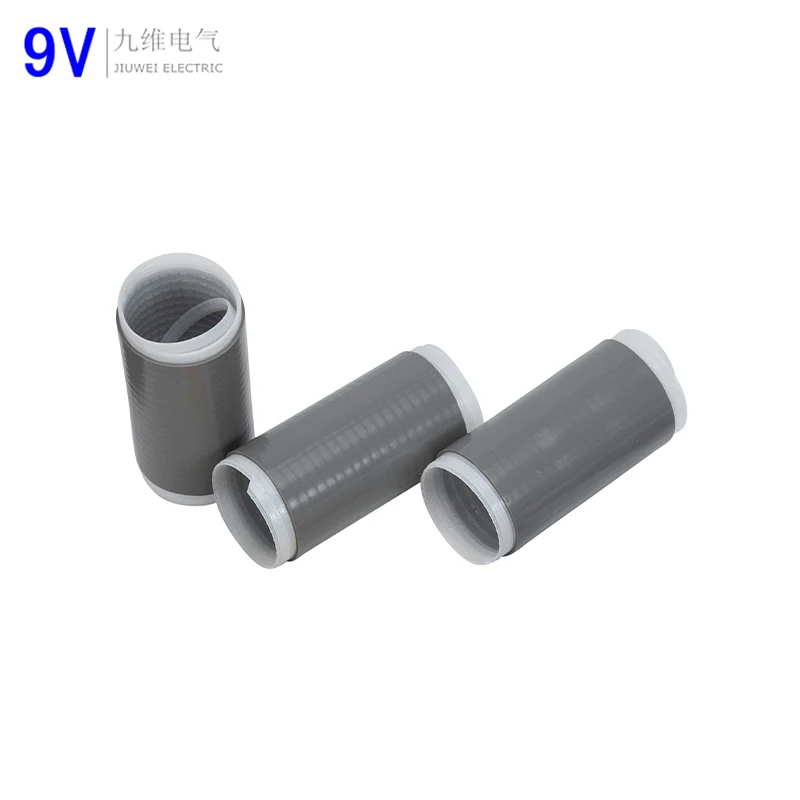

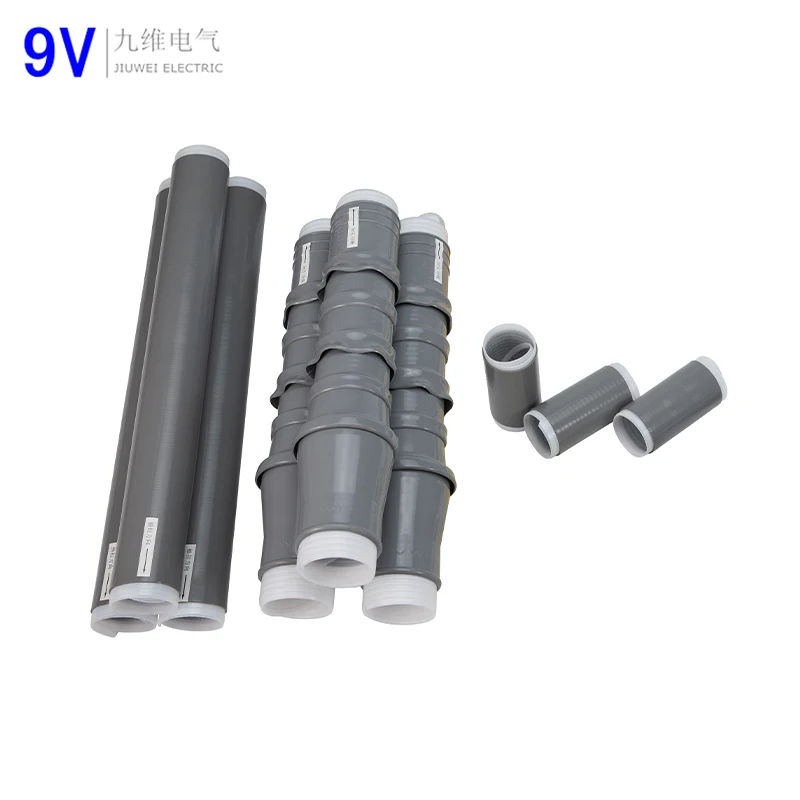

Hot Sale Silicone Rubber Tubing Excellent Cable Accessories Epdm Cold Shrinking Tubing
- Category: >>>
- Supplier: Suzhou Jiuwei Electric Made Co. Ltd.
Share on (11000006619101):
Product Overview
Description
Item No. | Minimum Outer Diameter of Applicable Joint | Maximum Outer Diameter of Applicable Joint | Diameter after expansion | Wall Thickness After Full Shrinkage | Length After Full Shrinkage | |||||
VDN-01 | 7.8mm | 14.3mm | φ18 | 3.5mm | ≥152mm | |||||
VDN-02 | 10.1mm | 20.9mm | φ25 | 3.5mm | ≥203mm | |||||
VDN-03 | 13.9mm | 30.1mm | φ35 | 4mm | ≥229mm | |||||
VDN-04 | 13,9mm | 30.1mm | φ35 | 4mm | ≥279mm | |||||
VDN-05 | 16.8mm | 35.1mm | φ40 | 4mm | ≥152mm | |||||
VDN-06 | 16.8mm | 35.1mm | φ40 | 4mm | ≥305mm | |||||
VDN-07 | 16.8mm | 35.1mm | φ40 | 4mm | ≥406mm | |||||
VDN-08 | 24mm | 49.3mm | φ53 | 4mm | ≥152mm | |||||
VDN-09 | 24mm | 49.3mm | φ53 | 4mm | ≥305mm | |||||
VDN-10 | 24mm | 49.3mm | φ53 | 4mm | ≥457mm | |||||
VDN-11 | 32.2mm | 67.8mm | φ75 | 4mm | ≥152mm | |||||
VDN-12 | 32.2mm | 67.8mm | φ75 | 4mm | ≥229mm | |||||
VDN-13 | 32.2mm | 67.8mm | φ75 | 4mm | ≥305mm | |||||
VDN-14 | 32.2mm | 67.8mm | φ75 | 4mm | ≥457mm | |||||
VDN-15 | 42.6mm | 93.7mm | φ105 | 4mm | ≥229mm | |||||
VDN-16 | 42.6mm | 93.7mm | φ105 | 4mm | ≥457mm | |||||
PS: Special specifications can be customized. | ||||||||||
No. | Test Project | Test Method | Unit | Standard | Test Result | ||
1 | Hardness (Shore A) | ISO 7619-1:2010 | Shore A | 45±5 | Pass | ||
2 | Pull Strength | GB/T 528-2009 | Mpa | ≥8 | Pass | ||
3 | Elongation at Break | GB/T 528-2009 | % | ≥680 | Pass | ||
4 | Tear Strength | GB/T 529-2008 | kN/mm | ≥35(Right angle knife≥20) | Pass | ||
5 | Operating Temperature | High and low temperature cycle test aging box | -40℃-150℃ | After shrinking, the tube passed 5 cycles without cracking and performed well | Pass | ||
6 | Volume Resistivity | GB/T 2439-2001 | Ω · cm | ≥1x1013 | Pass | ||
7 | Dielectric constant (50Hz) | GB/T 1693-2007 | ∥ | ≤8.0 | Pass | ||
8 | Breakdown Strength | GB/T 1695-2005 | kV/mm | ≥18kV/mm | Pass | ||
9 | Pro-environment | Compliant with EU RoHS | The test is qualified, see the attached report | ||||
1.About Sample.
Less than 50USD, we won't charge you the samples fee, just offer your express number or pay for the express fee.
Within 2-3days normally, special products ( custom-made ) maybe 7 days.
2.About Delivery.
Time of delivery is 15-20 days based on your Qty, Special products maybe 20-25days.
If the products in stock, ship will be quickly.
3.About Payment.
First time, T/T 30% in advance and balance paid off before shipment.
And if we cooperate for a long time, We can make the contract of quarter settlement or half-year settlement.
4.About Service.
Technical support. If need technical personnel on-site guidance, You just need pay for the traveling allowance.
If the products have quality problems, we will replacement double Qty for you with your next order. But if the problem is caused
by yourself, we won't be responsible for that.
5.About Customization.
Some styles can produce by your samples or technical drawings.
Less than 50USD, we won't charge you the samples fee, just offer your express number or pay for the express fee.
Within 2-3days normally, special products ( custom-made ) maybe 7 days.
2.About Delivery.
Time of delivery is 15-20 days based on your Qty, Special products maybe 20-25days.
If the products in stock, ship will be quickly.
3.About Payment.
First time, T/T 30% in advance and balance paid off before shipment.
And if we cooperate for a long time, We can make the contract of quarter settlement or half-year settlement.
4.About Service.
Technical support. If need technical personnel on-site guidance, You just need pay for the traveling allowance.
If the products have quality problems, we will replacement double Qty for you with your next order. But if the problem is caused
by yourself, we won't be responsible for that.
5.About Customization.
Some styles can produce by your samples or technical drawings.
