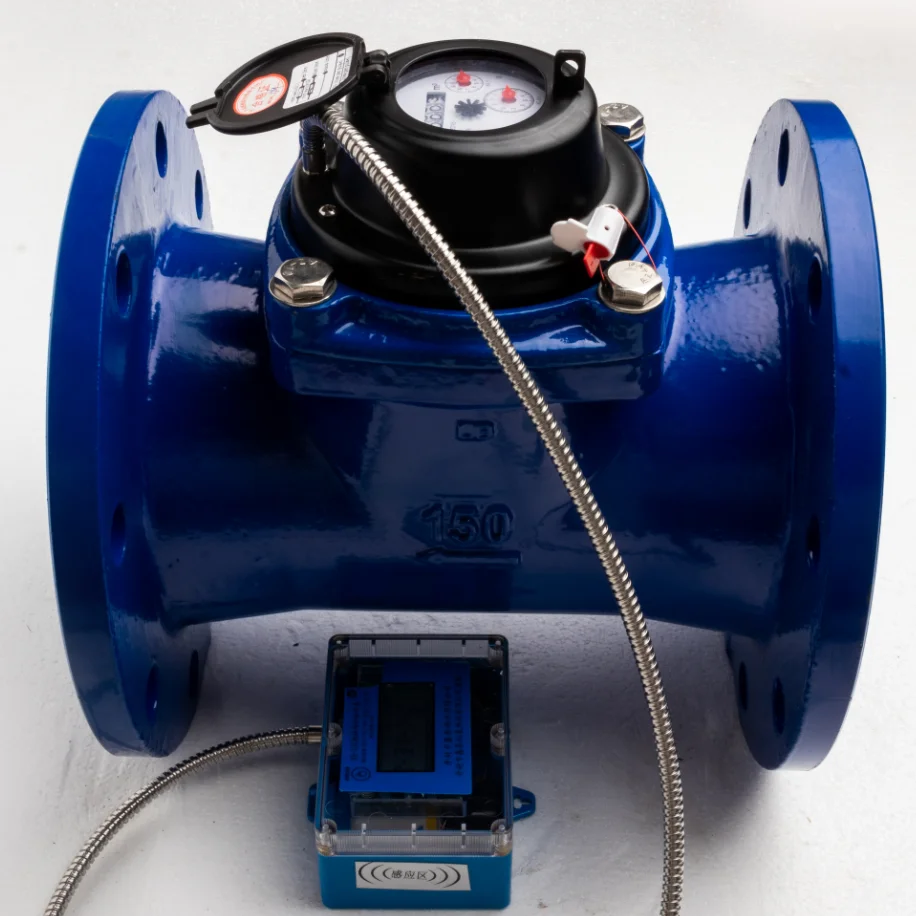

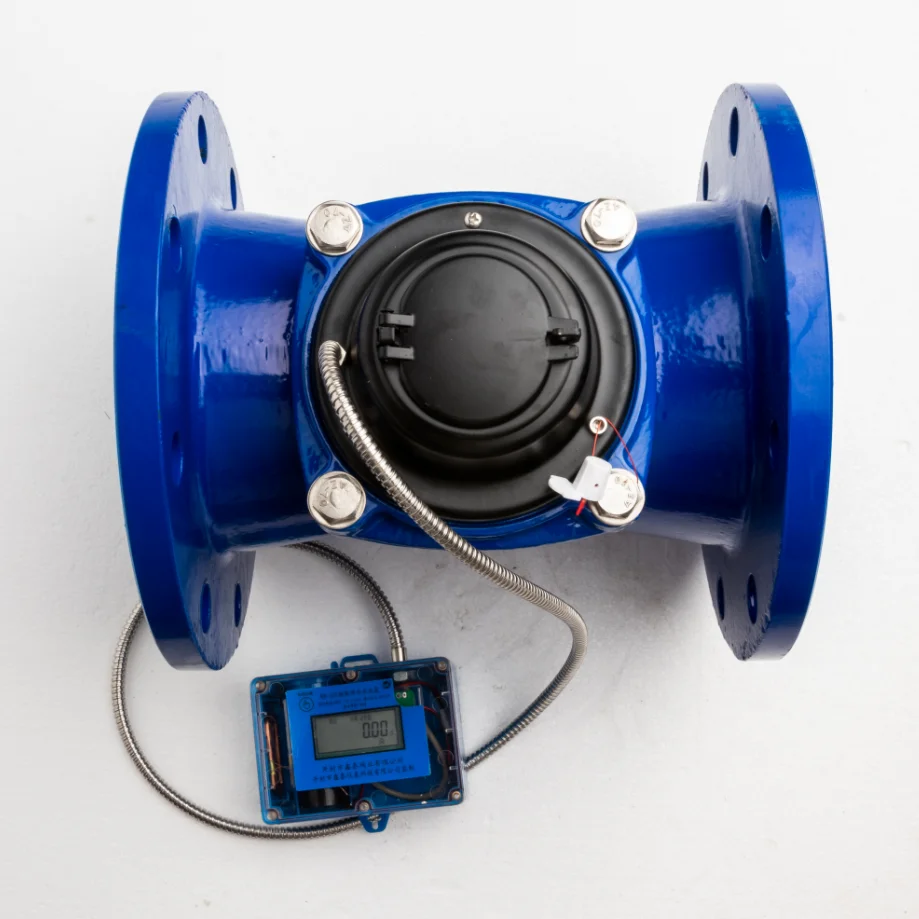

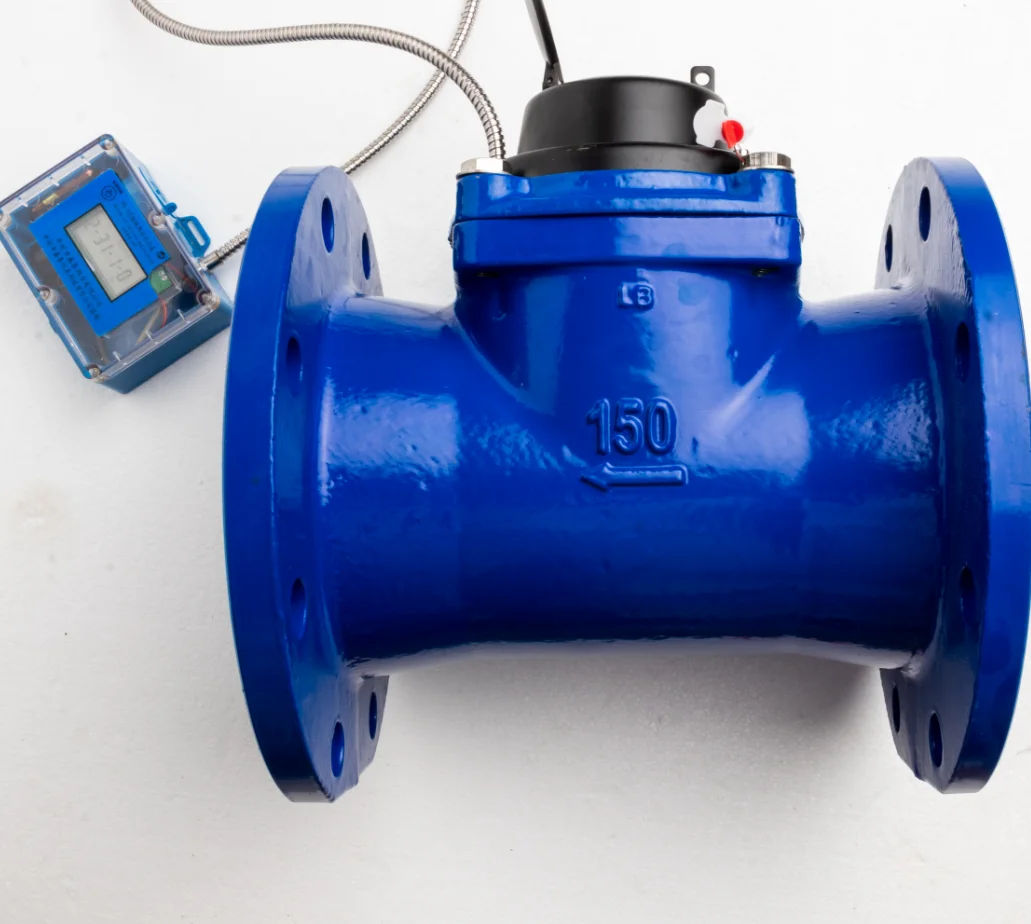

large caliber wet type remote valved smart photoelectric direct read IC card electronic water meter
- Category: >>>
- Supplier: Kaifeng,Xintai,Valve,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Dimension
Model | Nominal Caliber | Length mm | Height mm | Connect Flange | ||||
Flange Outer Φ D1 | Thread Hole Center Circle ΦD2 | Connect Thread | ||||||
LXLC-50/ZD | 2" | 200 | 214 | 165 | 125 | 4-M16 | ||
LXLC-65/ZD | 2.5" | 200 | 224 | 185 | 145 | 4-M16 | ||
LXLC-80/ZD | 3" | 225 | 279 | 200 | 160 | 4-M16 | ||
LXLC-100/ZD | 4" | 250 | 289 | 220 | 180 | 4-M16 | ||
LXLC-125/ZD | 5" | 250 | 299 | 250 | 210 | 4-M16 | ||
LXLC-150/ZD | 6" | 300 | 319 | 285 | 240 | 4-M16 | ||
8" | 350 | 346 | 340 | 295 | 8-M20(1.0MPA) | |||
12-M20(1.0MPA) | ||||||||
10" | 450 | 434 | 395 | 350 | 12-M20(1.0MPA) | |||
405 | 355 | 12-M24(1.0MPA) | ||||||
12" | 500 | 459 | 445 | 400 | 12-M20(1.0MPA) | |||
460 | 419 | 12-M24(1.0MPA) | ||||||
Specification
Model | Nominal Caliber | Range Ratio | Overload Flow Q4 m³/h | Common Flow Q3 m³/h | Demarcation Flow Q2 m³/h | Min Flow Q1 m³/h | Min Read m³ | Max Read m³ |
LXLC-50/ZD | 2“ | R50/ R80 | 31.25 | 25 | 0.8 | 0.5 | 0.0005 | 999.999 |
LXLC-65/ZD | 2.5” | 50 | 40 | 1.28 | 0.8 | 0.0005 | ||
LXLC-80/ZD | 3‘ | 78.75 | 63 | 2 | 1.26 | 0.002 | ||
LXLC-100/ZD | 4“ | 125 | 100 | 3.2 | 2 | 0.002 | ||
LXLC-125/ZD | 5” | 200 | 160 | 5.12 | 3.2 | 0.002 | ||
LXLC-150/ZD | 6“ | 312.5 | 250 | 8 | 5 | 0.002 | ||
LXLC-200/ZD | 8” | 500 | 400 | 12.8 | 8 | 0.002 | ||
LXLC-250/ZD | 10“ | 787.5 | 630 | 20.16 | 12.6 | 0.02 | ||
LXLC-300/ZD | 12” | 1250 | 1000 | 32 | 20 | 0.02 |
♦Features
1.Directly read word wheel data, basically achieve "zero" error copy
2. Low power consumption, power supply only when reading
3 .Electronic unit completely sealed in the counter, no erosion from external water
4. Advanced data coding and verification, high communication reliability.
5. Using bus mode, easy installation, less maintenance, cost saving
6. Meet EMC, ESD, EMI and other electronic products EMC design requirements
1.Directly read word wheel data, basically achieve "zero" error copy
2. Low power consumption, power supply only when reading
3 .Electronic unit completely sealed in the counter, no erosion from external water
4. Advanced data coding and verification, high communication reliability.
5. Using bus mode, easy installation, less maintenance, cost saving
6. Meet EMC, ESD, EMI and other electronic products EMC design requirements
7. Use fault diagnosis and shutdown technology to
ensure the whole network safety
8. Networking with upper computer system, can remote automatic meter reading, and manual centralized meter reading
♦ Applicable standard： GB/T778. ISO 4064
♦ working condition
•Temperature class：T30/T50 •Pressure class：MAP16/MAP10
• Pressure loss class：∆ P63 •Install environment ：B
•Electromagnetic environment：E1
♦Max permissible tolerence
a. Q1≤ Q ≤ Q3 :±5%
b. Q2≤ Q ≤ Q4: ±2% （hot water meter±3%）
ensure the whole network safety
8. Networking with upper computer system, can remote automatic meter reading, and manual centralized meter reading
♦ Applicable standard： GB/T778. ISO 4064
♦ working condition
•Temperature class：T30/T50 •Pressure class：MAP16/MAP10
• Pressure loss class：∆ P63 •Install environment ：B
•Electromagnetic environment：E1
♦Max permissible tolerence
a. Q1≤ Q ≤ Q3 :±5%
b. Q2≤ Q ≤ Q4: ±2% （hot water meter±3%）
Company Profile
Certifications
Packing & Delivery

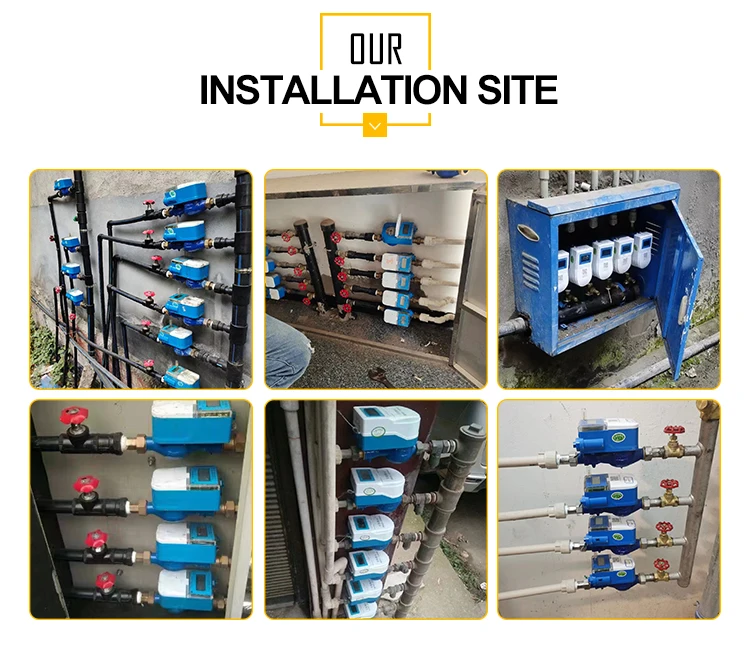

Installation Site
FAQ
Q1: Can I get free samples?
A: Yes, we can provide you with free samples, but you have to bear the delivery costs
Q2: Can your company print our brand logo on your products?
A: With the customer's permission, our factory can print the customer logo on the product. However, the customer needs to provide us with a logo authorization so that we can print the customer logo on the product.
Q3: What are your quality control procedures?
A: We adhere to strict quality control procedures, from product design to the end of the production process, using the most advanced quality control equipment, so that all processes are always in the best state of control.
Q4: Can I request a change in packaging and shipping?
A: Yes, we can change the packing and shipping method according to your requirements, but the cost and difference incurred in the meantime will be your responsibility.
Q5: What are your payment terms?
A: T/T, L/C, Alibaba Trade guarantee is available to provide full protection for your orders.
Q6: What is the standard lead time for each order?
A: It depends on the number of orders you need to purchase. Normally, we complete the order within 15 days.
A: Yes, we can provide you with free samples, but you have to bear the delivery costs
Q2: Can your company print our brand logo on your products?
A: With the customer's permission, our factory can print the customer logo on the product. However, the customer needs to provide us with a logo authorization so that we can print the customer logo on the product.
Q3: What are your quality control procedures?
A: We adhere to strict quality control procedures, from product design to the end of the production process, using the most advanced quality control equipment, so that all processes are always in the best state of control.
Q4: Can I request a change in packaging and shipping?
A: Yes, we can change the packing and shipping method according to your requirements, but the cost and difference incurred in the meantime will be your responsibility.
Q5: What are your payment terms?
A: T/T, L/C, Alibaba Trade guarantee is available to provide full protection for your orders.
Q6: What is the standard lead time for each order?
A: It depends on the number of orders you need to purchase. Normally, we complete the order within 15 days.
