Factory Supply Medical Stainless Steel Medical Safety Stainless Steel Blood Collection Lancet Needle making machine
- Category: >>>
- Supplier: Dongguan Yingling Intelligent Technology Co. Ltd.
Share on (11000006691316):
Product Overview
Description
Machine Description

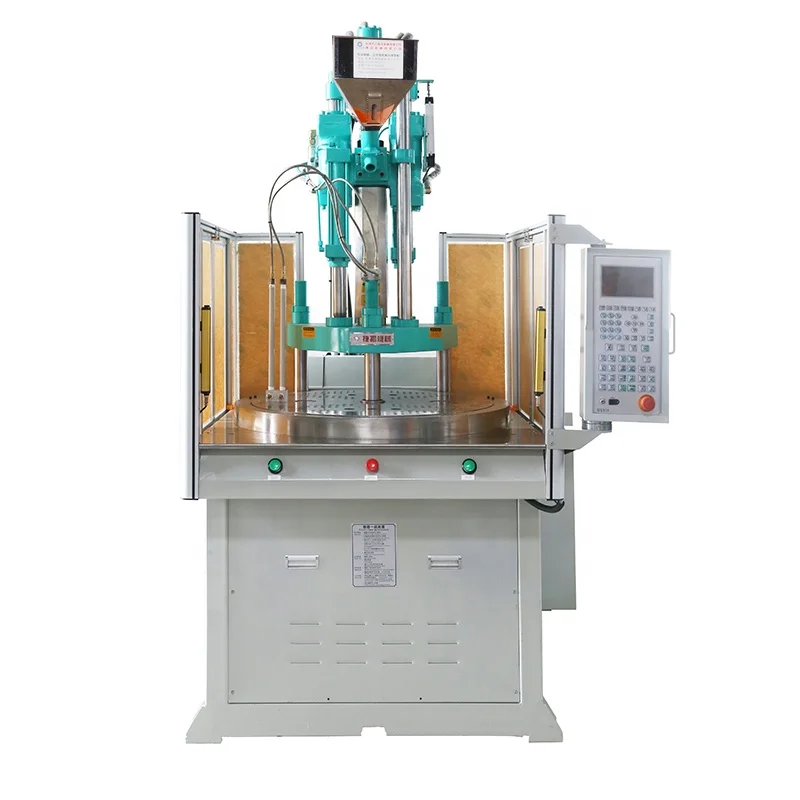

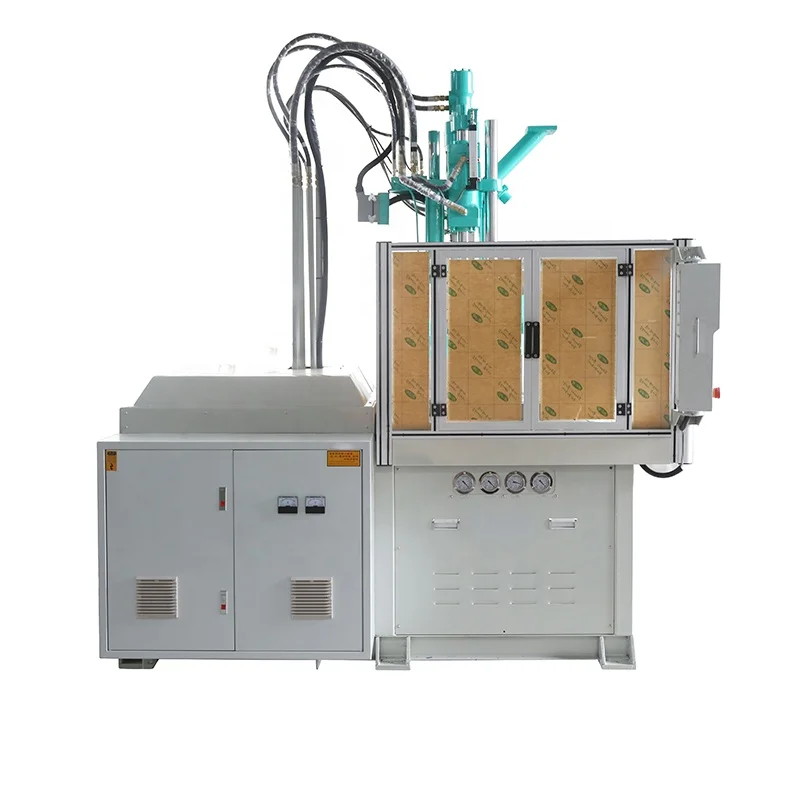

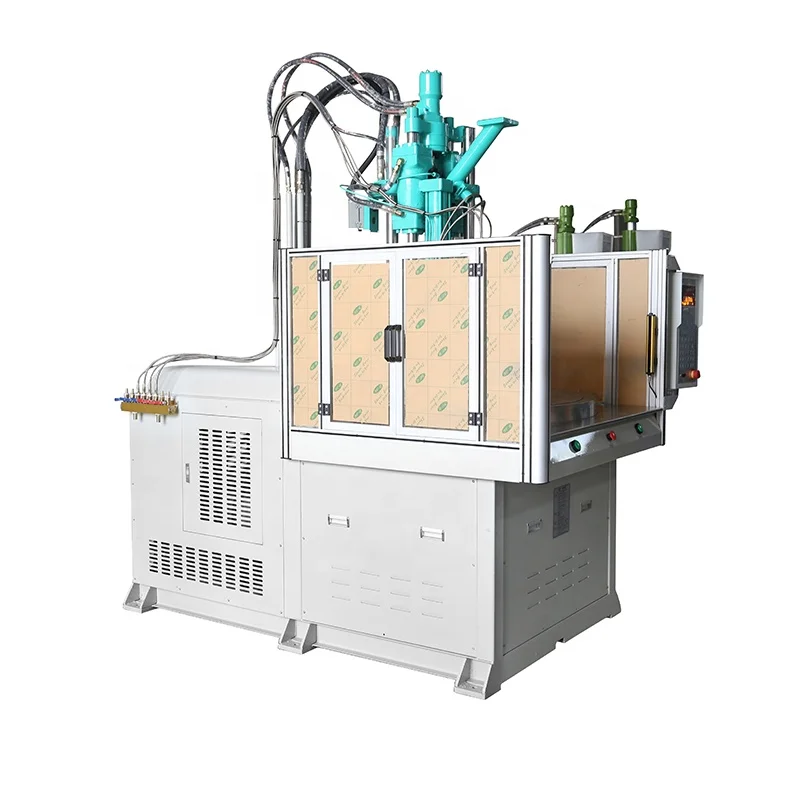

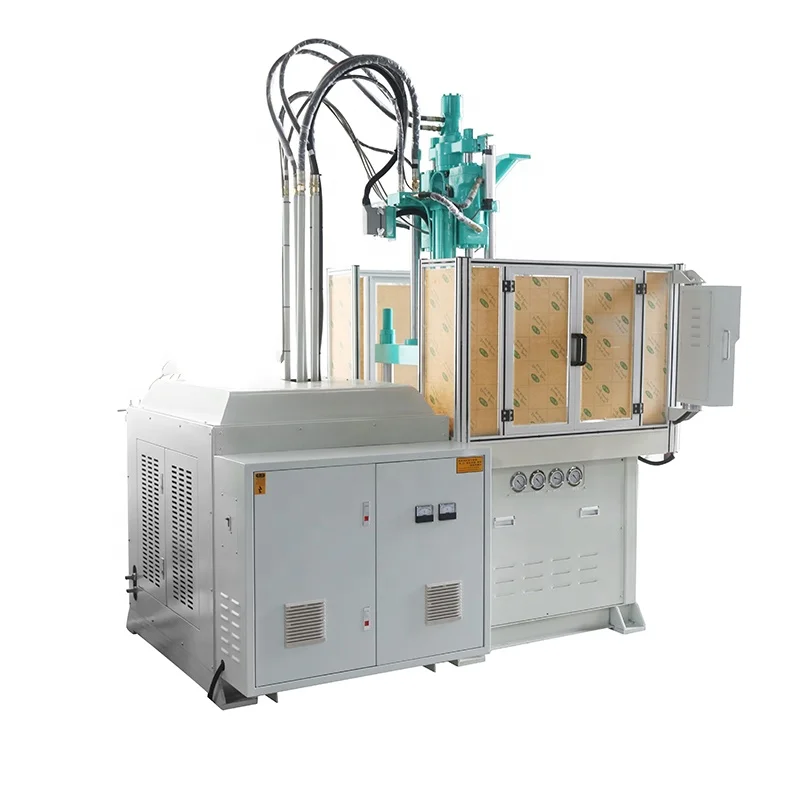

Factory Supply Medical Stainless Steel Medical Safety Stainless Steel Blood Collection Lancet Needle making machine
—————————Main Features——————————
1.Straight screw ejected assembly.
2.Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable
for various plastic to confectioned.
3.Low-die fixed top active mode makes inserted objects excellent positioned features and the
machine has liftout attachment for finished goods.
4.Low-pressure closed die assembly can protect the safety of die.
5.Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6.Can be installed a single mold or double shuttle table.
7.English/Arabic/Spanish LCD and so on about ten language display, which can memorize 999
groups of mold data.
——————————Specification——————————
| MODEL | UNIT | JY-550ST-R | |||
| Injection Unit | Screw Diameter | mm | 32 | 35 | 42 |
| Injection Pressure | kg/cm2 | 1870 | 1418 | 960 | |
| Max.Shot Weight(PS) | g | 102 | 123 | 176 | |
| Injection Rate | mm | 140 | |||
| Clamping Unit | Clamping Force | Tons | 55 | ||
| Disk Station | pc | 2~3 | |||
| Max.Open Distance | mm | 450x400 | |||
| Min.Mold Height | mm | 250/200 | |||
| Opening Stroke | mm | 200 | |||
| Enjection Force | Tons | 1.5 | |||
| Enjection Stroke | mm | 135 | |||
| Power Unit | Max.Hydaulic Pressure | kg/cm2 | 140 | ||
| Pump Motor Power | KW/HP | 7.5/10HP | |||
| Total Weight | KW | 12 | |||
| Other | Machine Weight | Tons | 3.3 | ||
| Machine Dimensions(LxWxH) | m | 1.65x1.9x2.7 | |||
| Shipping Weight | Tons | 3.4 | |||
| Shipping Measurements(LxWxH) | m | 1.8x2.05x2.8 | |||
Machine Applications
Our mahchines are widely apply to produce various terminal blocks,household appliances,
consumer electronics, power tools, automotive dashboards, medical devices, open containers,

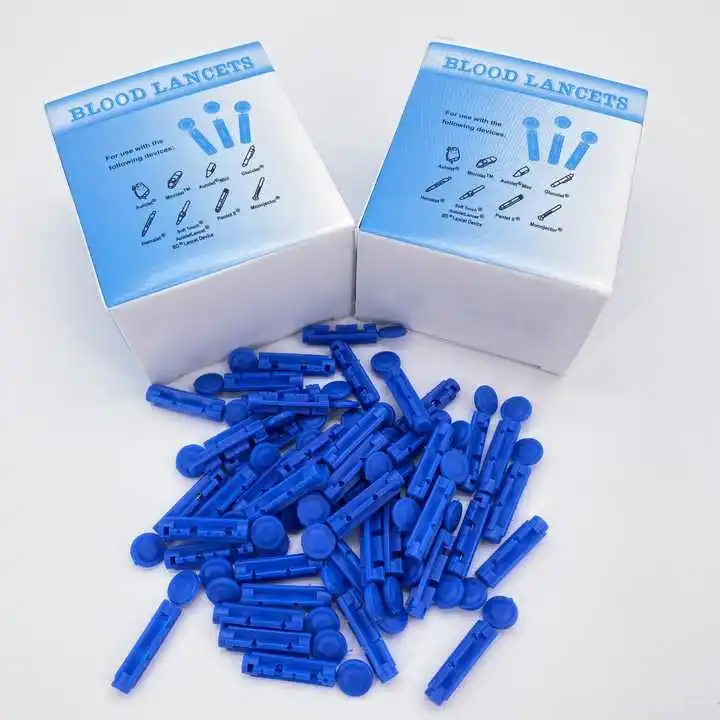

connectors, cables,auto parts, Plug ,Lancet Needle etc.
——————Details Images————————
Our Company
Why Choose Us
——————Our Certificate————————
——————Our Services————————
1. 24 hours services,answers to any questions will be replied sooner.
2. Direct factory services,exclusive and unique solution can be provided to you by our
professional engineers and staffs teams.
3. Materials suppliers offered ,the contact ways to different kinds of the materials and
equipments of your products can be supported here,you can contact them by yourself .
4. After-sales services,engineers available to service machinery overseas;besides,the
5. The full and specific set of the subject will be offered for you by free after we get touch
with you.
6. Special feedback,2.5% discount money of your machine will be sent back if we sucessfully
deal with the new customers introduced by your side.
Packaging&Delivery
1.Packaging
1.Standard Packing: Plastic film wrap on the machine & plywood case pack outside.
2.Special packing:according to your requirements.
2.Delivery
1.Delivery days:30 days after confirming order,detail delivery date should be decided
according to production season and order quantity.
