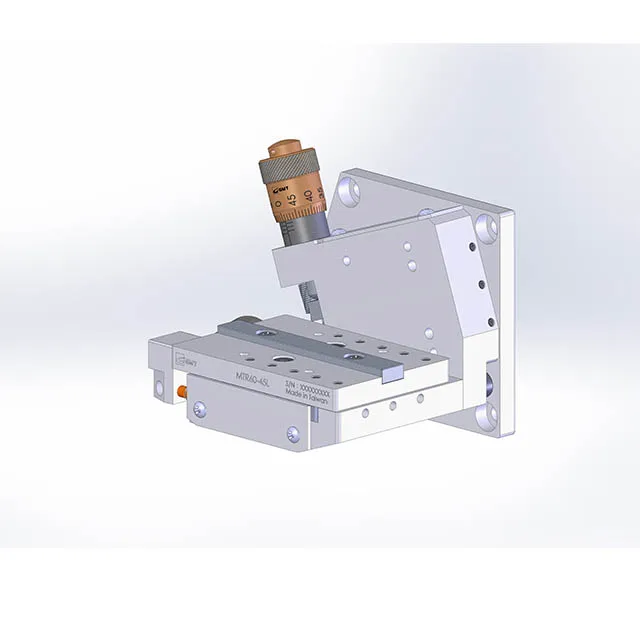

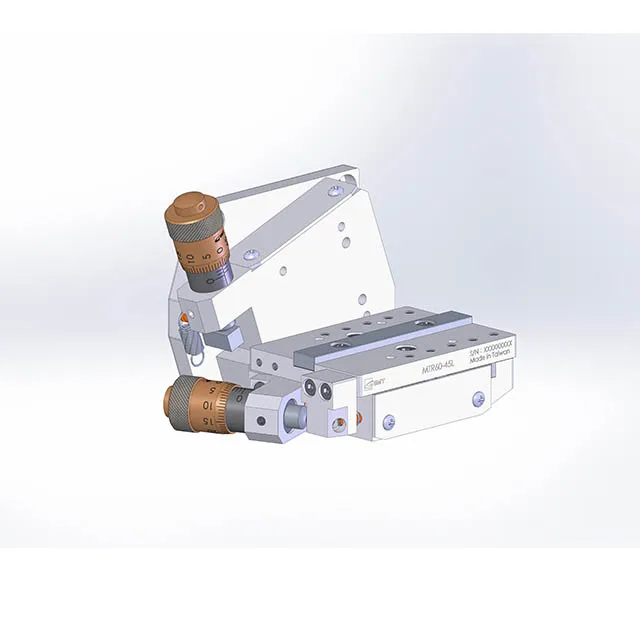

In stock with tilt module theta x axis and theta y axis manual stage
- Category: >>>
- Supplier: GMT GLOBAL INC.
Share on (11000006696039):
Product Overview
Description
Product Description
Outline
♦ Mini-Stage is applied for high precision or mid and heavy loading of various production machinery, testing device, precise positioning and quantitative movement.
♦ There are many types of mini-stages with single axis (X-axis); dual axes (XY-axis); Z-axis; θ axis; α axis...can be collocated as needed.
♦ Mini-Stage is applied for high precision or mid and heavy loading of various production machinery, testing device, precise positioning and quantitative movement.
♦ There are many types of mini-stages with single axis (X-axis); dual axes (XY-axis); Z-axis; θ axis; α axis...can be collocated as needed.
Characteristics
♦ Can be customized according to the requirements of precise fine tuning; positioning; quantitative movement and able to proceed mass feed of fine tuning.
♦ Coordinated customer's precise machinery of instrument and fixed in suitable position.
♦ Can be customized according to the requirements of precise fine tuning; positioning; quantitative movement and able to proceed mass feed of fine tuning.
♦ Coordinated customer's precise machinery of instrument and fixed in suitable position.
♦ Feeding mode diversification such as coarse moving handle / micrometer head; feed screw, rack and pinion with scale and able to manage movement rate.
♦ The sets of mini stages, XY-axis, XYZ-axis, XZ-axis, and multi-axis modules are able to effectively reduce assembling process because of adjusting their vertical angle before shipping.
Standard Selection
♦ GMT presents clearly with each kind of mini stages in accordance with different types of moving axis, minimum reading and loading capacity.
♦ Please coordinate with adjusting methods and refer below information to select the most suitable stages.
♦ Please refer to the feeding method provided to select the most suitable stages.
♦ The sets of mini stages, XY-axis, XYZ-axis, XZ-axis, and multi-axis modules are able to effectively reduce assembling process because of adjusting their vertical angle before shipping.
Standard Selection
♦ GMT presents clearly with each kind of mini stages in accordance with different types of moving axis, minimum reading and loading capacity.
♦ Please coordinate with adjusting methods and refer below information to select the most suitable stages.
♦ Please refer to the feeding method provided to select the most suitable stages.
Axes Definition
Regarding definitions of moving and rotating axis, GMT defines as the diagram below.
X-axis, Y-axis are in parallel direction; Z-axis in vertical direction; Rotating around X, Y, Z-axes are called α-axis, β-axis, θ-axis individually.
Specification
Model No. | MTR60-45L | ||
Axis | θx | θy | |
Travel Stroke Rough Tuning | ± 3 ° | ± 3 ° | |
Travel Stroke Fine Tuning | ± 3 ° | ± 3 ° | |
Accuracy Rough Tuning | ≒ 29.3" / Vernier | ≒ 27.8" / Vernier | |
Accuracy Fine Tuning | ≒ 29.3" / Vernier | ≒ 27.8" / Vernier | |
No product service of refunds, returns or exchanges.
All pictures are only for reference, please base on spec chart for further information.
