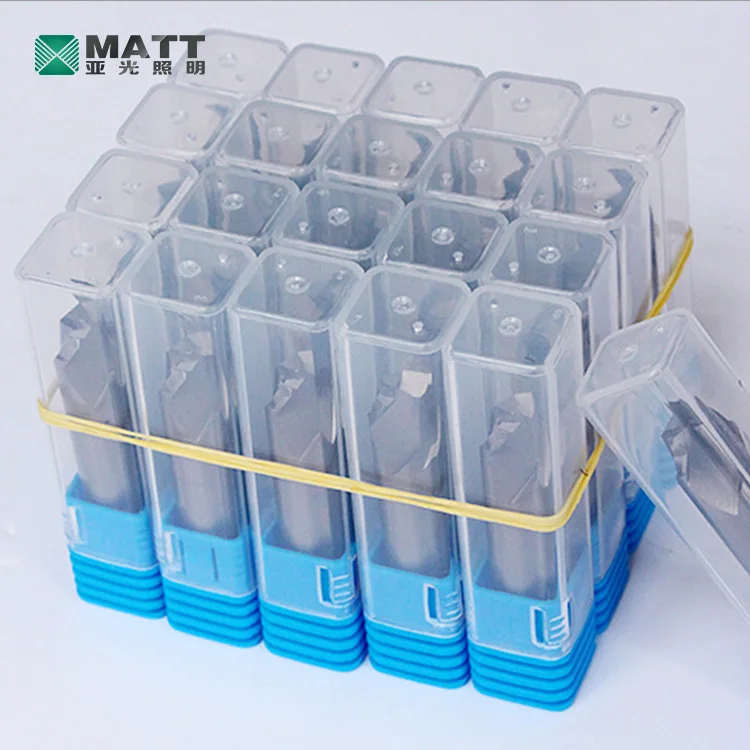

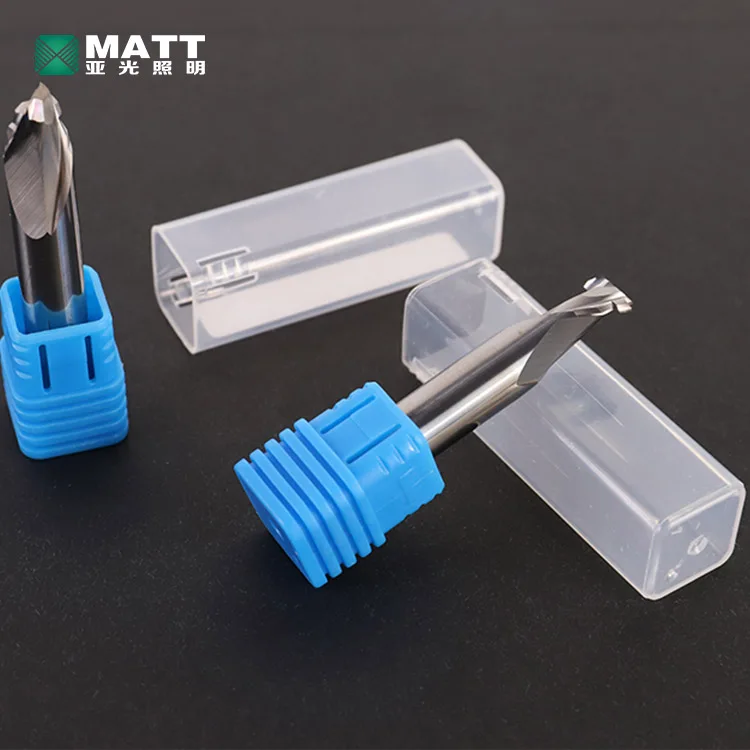

2nd generation separate neon bendable separate flexible silicone tool milling cutter for neon signs
- Category: >>>
- Supplier: Guangzhou Matt Electrical Lighting Co. Ltd.
Share on (11000006743977):
Product Overview
Description
Now we have 2nd generation solution for led neon sign making!
Which can let you make neon sign easily.
Have you ever met following issues when making led neon signs?
Cutting length limit
The strips have a 1cm or 2.5cm cut limit.It is not easy to make complicated or small size of designs.And the carving files
No perfect connections
The interface doesn't look perfect because of the limitations of the wires and the need for glue to hold it together
End caps needed
Each independent part of the flex tube needs to stick on the end cap,otherwise the light leakage will affect the overall effect.
S Shape LED Strip
Voltage | DC5V | DC12V | DC24V |
Package | 10m/roll | 10m/roll | 10m/roll |
Led quantity | 120LEDs/m | 120LEDs/m | 120LEDs/m |
Cut length | 2.5cm | 2.5cm/1cm | 5cm |
Power | 8W/M | 8W/M | 8W/M |
PCB width | 6.7mm | 6.7mm | 6.7mm |
Color | 14 colors | 14colors | 14colors |

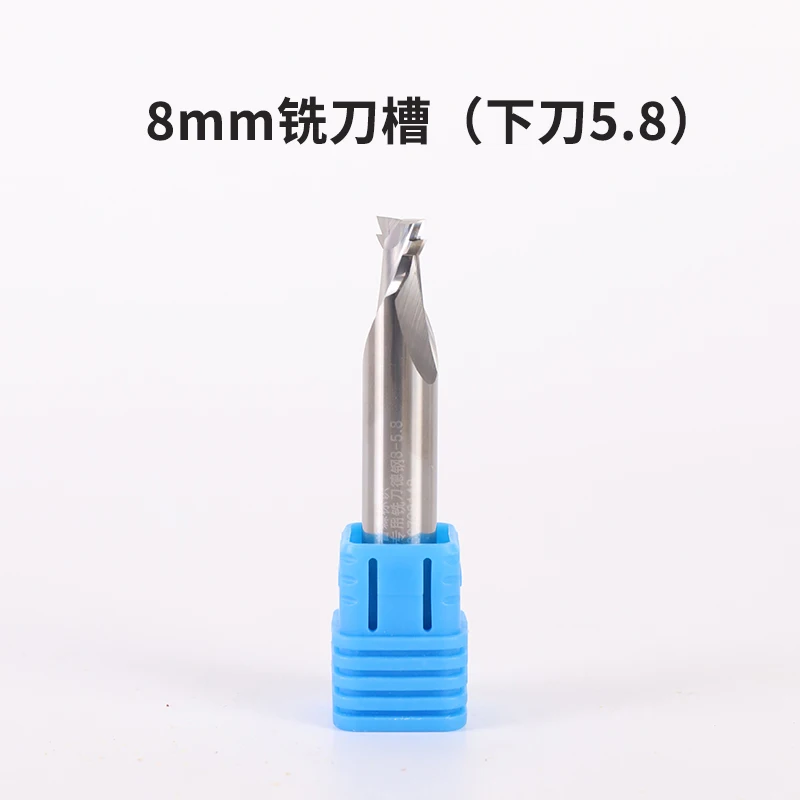

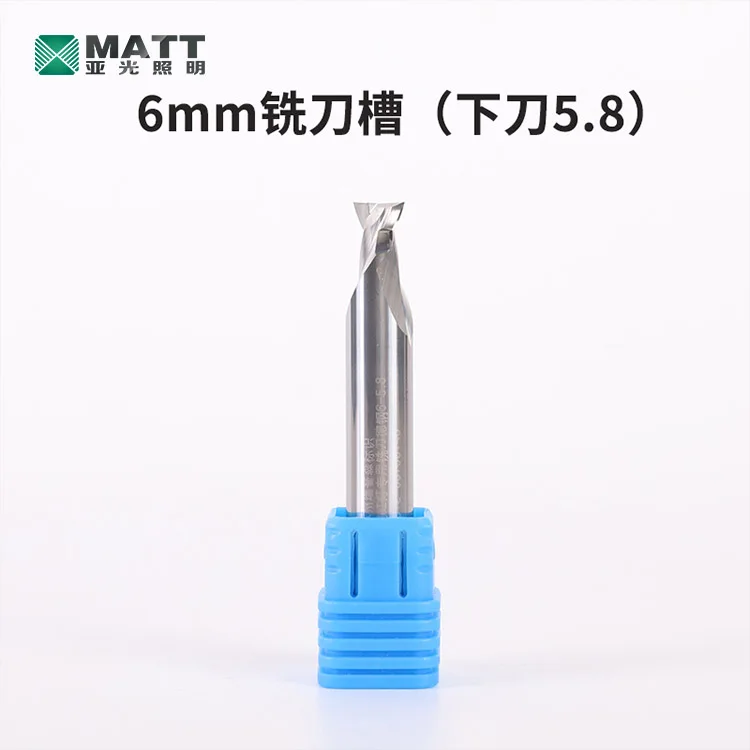

Size | Applicable silicone tubes size | Shank Diameter | Carving depth | Applicable acrylic thickness |
6*4.2mm | 6mm tubes | 6mm/10mm | 4.2mm | 5mm |
6*5.8mm | 6mm tubes | 6mm/10mm | 5.8mm | 7mm |

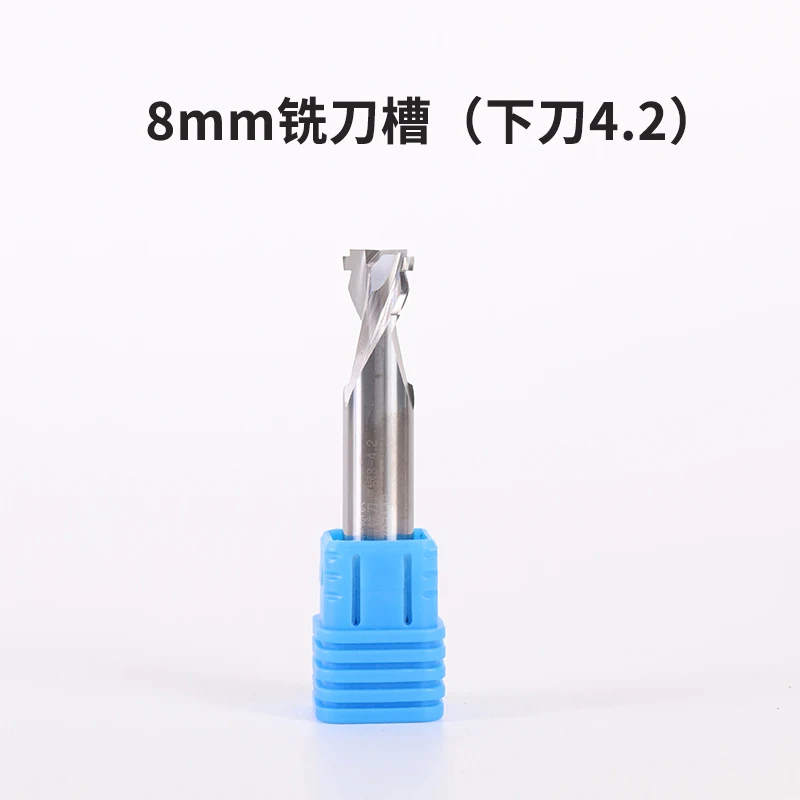

8*4.2mm | 8mm tubes | 6mm/10mm | 4.2mm | 5mm |
8*5.8mm | 8mm tubes | 6mm/10mm | 5.8mm | 7mm |

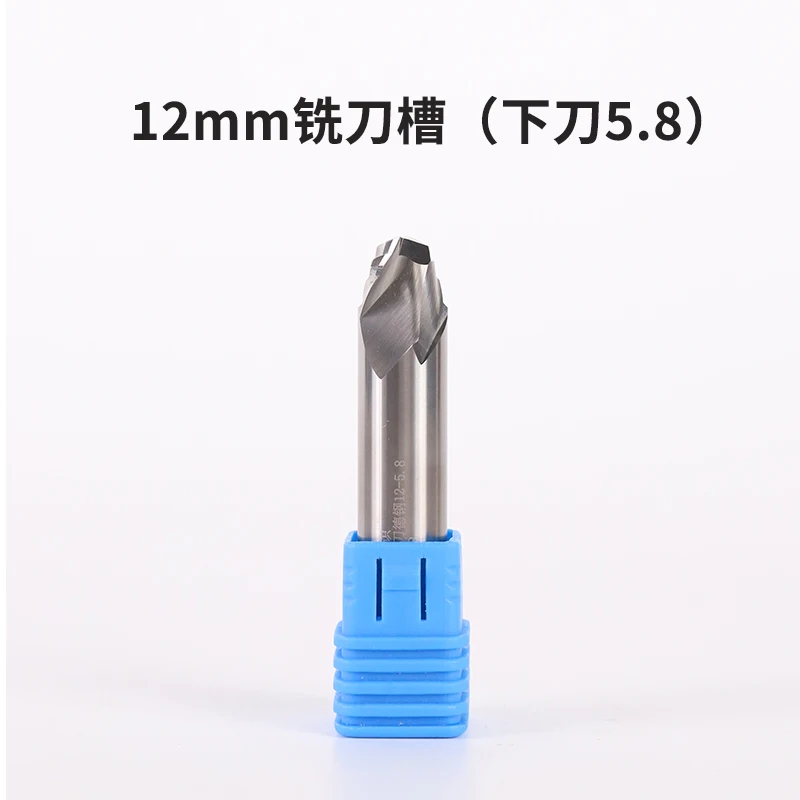

12*5.8mm | 12mm tubes | 6mm/10mm | 5.8mm | 5mm |
SIX Steps to DIY Your Own Neon sign with separately Neon Flex strip tube with S shape LED Strip
Step 1-Acrylic carving
Carving acrylic backboard with our milling cutterCarving depth 4.2mm for over 5mm acrylic;
Carving depth 5.8mm for over 7mm acrylic;
Carving depth 5.8mm for over 7mm acrylic;
Step 2-Lay led strips
Colored led strips with colored silicone tubes;Colored led strips with white silicone tubes;
Both can work
Both can work
Step 3-Connection wires
Ensure that the solder joints are round and have no spurs, and blow out foreign objects on the PCB board to avoid the risk of short circuits;
Step 4-install silicone tubes
Cut silicone tubes with our hand tools;Silicone tubes can be locked into acrylic without any glue process；
Step 5-Neon sign Aging
Aging time： 12-24 hours；When aging, check whether the led strip has dark spots, and leave all problems in the factory to solve;
Step 6-install neon sign
Common installation methods are hoisting and wall installation. For outdoor use, you need to add a waterproof process;
Products Description
VR

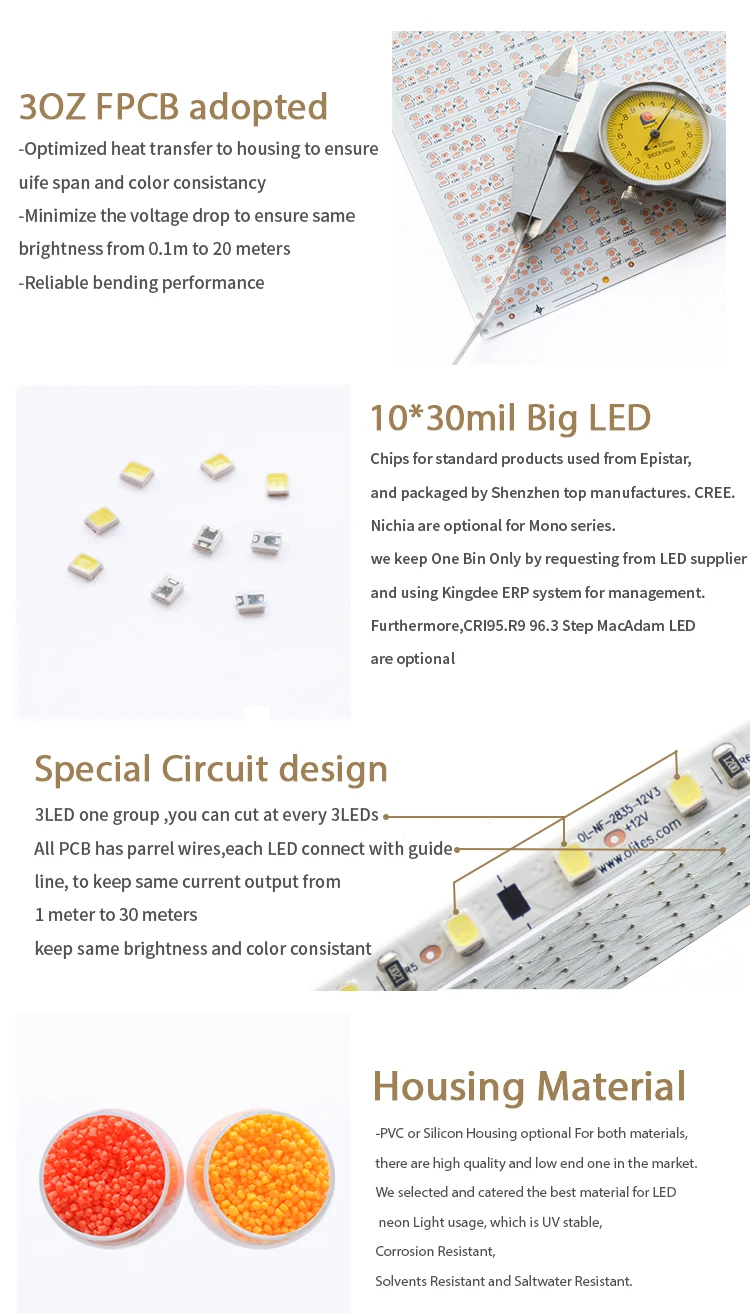

Our Advantages
Do you face these Problem ?
1.Difficulty in welding.Very Hard to soldering wire on PCB.
2.Increase cost.LED near the bonding Pad is easy to die.
3.Time consuming.Make neon sign waste too many time to treatment the silicone neon light.
Now it is time to say NO to them.

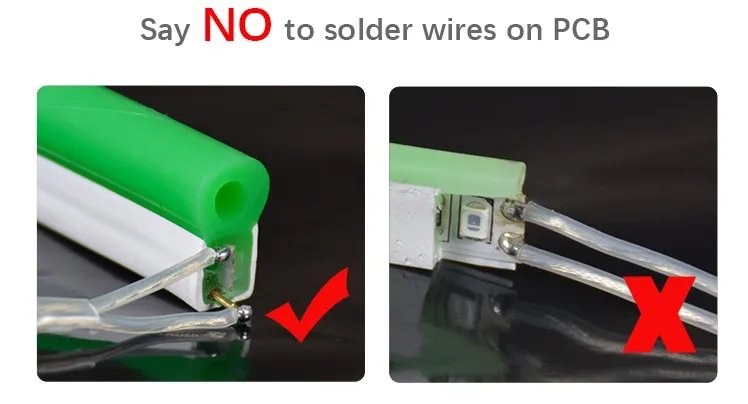

Use Matt Neon Light,you don't need to soldering wires on bonding Pad.
We have special pin make neon light turn on.
Contact Us

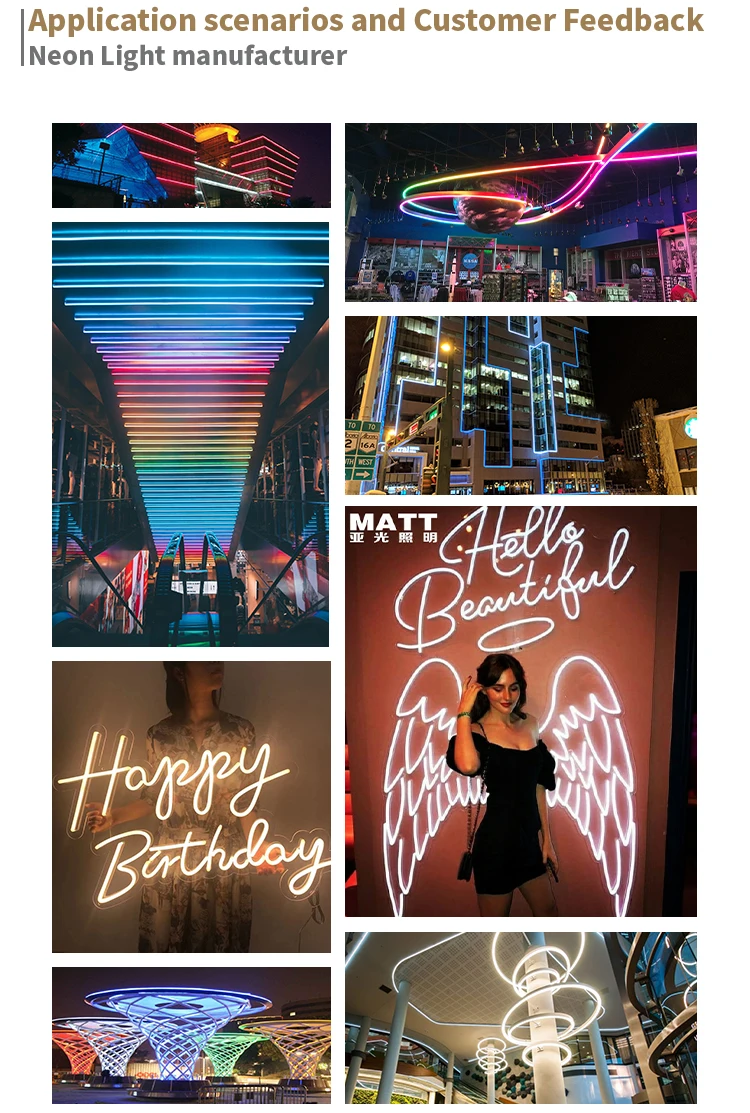

Application & Customer Feedback
Product Category

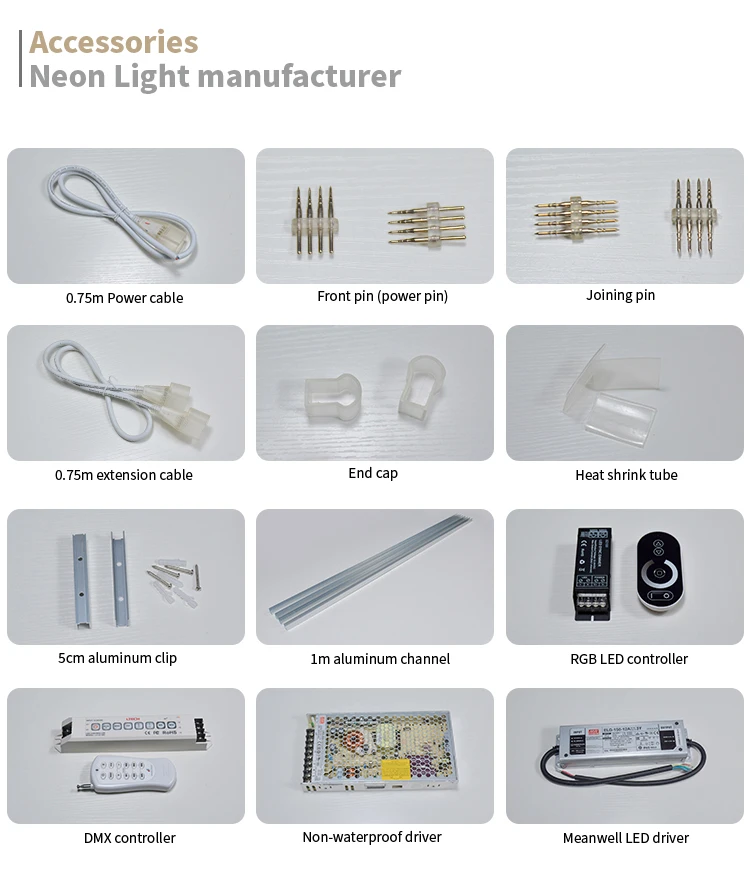

Accessories

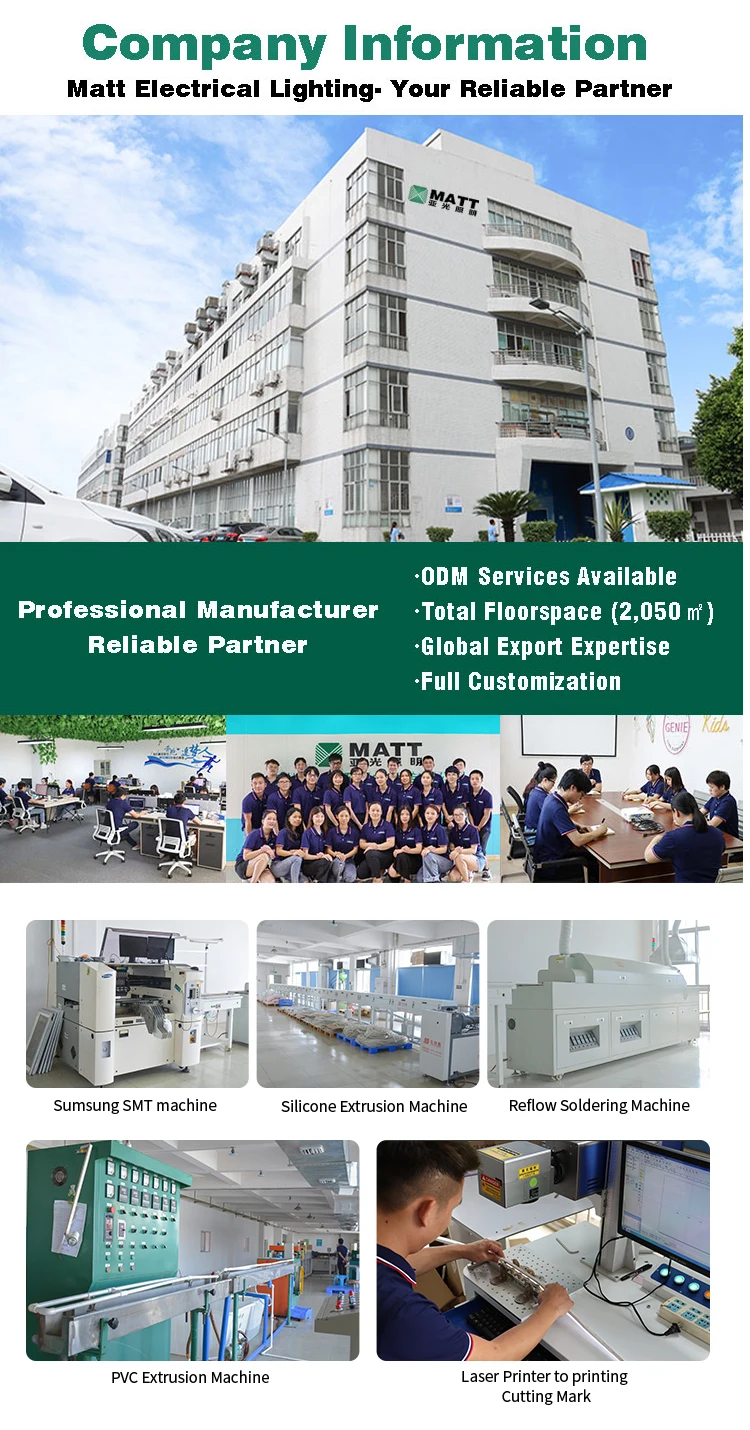

Company Profile
Packaging & Shipping
FAQ
Q1: Are you a factory?
A:Yes,we are a professional factory focus on LED Neon Flex and LED Neon sign Since 2010.
A:Yes,we are a professional factory focus on LED Neon Flex and LED Neon sign Since 2010.
Q2:What is your MOQ?
A:We don't have MOQ requirement,sample order is welcomed.
Q3:What certificate do you have?
A:We have ,CE,ROHS for LED Neon Flex,CE,ROHS,SAA for LED Driver.
A:We have ,CE,ROHS for LED Neon Flex,CE,ROHS,SAA for LED Driver.
Q4:What is your lead time for sample order?
A:3-7 working days.
A:3-7 working days.
Q5:What is your payment term?
A:We accept T/T,Western Union,Paypal, etc.
Q6:What is your lead time for bulk order?
A:7-25 working days for different order quantity.
Q7: Do you provide OEM or ODM services?
A: Yes, we have more than 10years rich experiences in this production industry,
A: Yes, we have more than 10years rich experiences in this production industry,
we often cooperate with some famous foreign companies.
Q8:How to deliver the cargo?
A:<100kgs,Via DHL,FedEx,TNT,UPS for trial orders by Door to door service.
>100kgs ship by air for smaller order.
>1CBM ship by sea for large order.
>100kgs ship by air for smaller order.
>1CBM ship by sea for large order.
