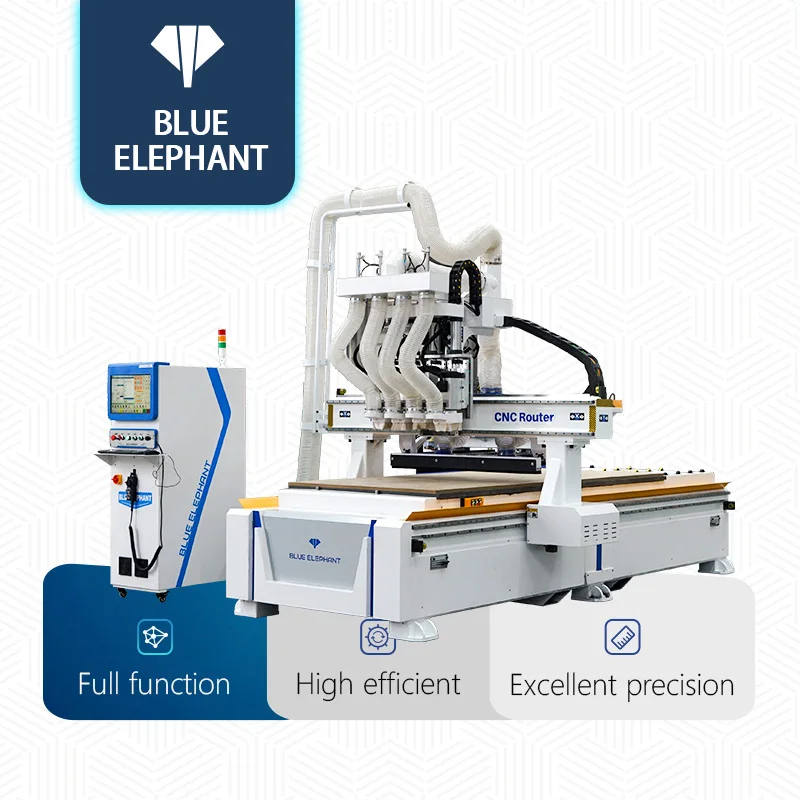

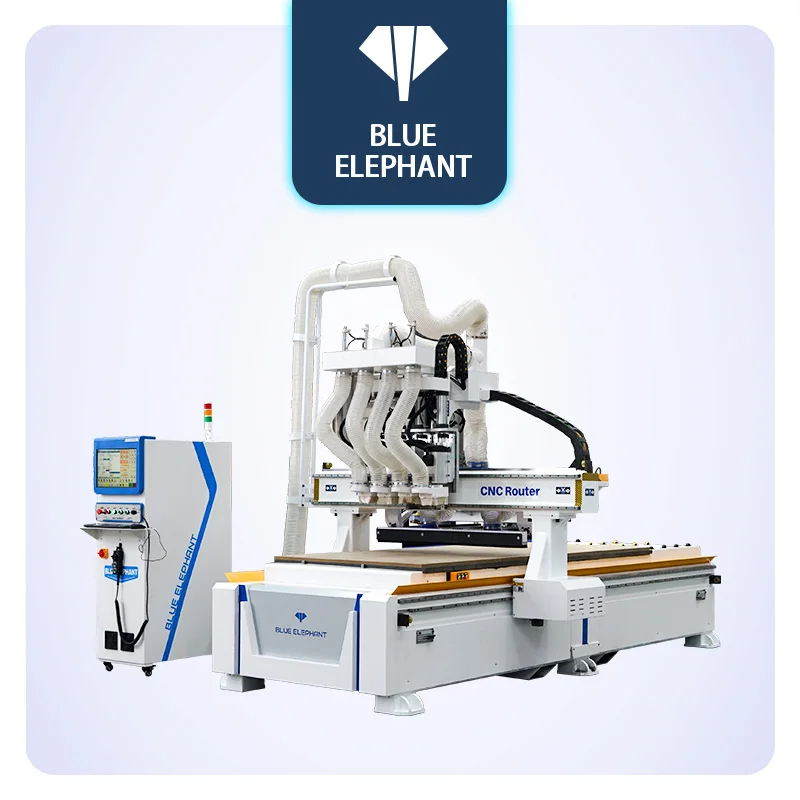

Wholesale New Products blue elephant 1325 woodworking c n c machine with 4 four spindles for plywood for sale in Chile
- Category: >>>
- Supplier: Jinan,Blue,Elephant,Cnc,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
1. The normal frame is not easily deformed to ensure stability during high-speed operation, and it has the features of low inertia and no distortion.
2. Assembled with Taiwan linear square guide rail and doubt-nuts anti-gap rod ball screw, it can ensure high accuracy, low noise, and long life service.
3. Adopting two 4.5KW air cooling spindles and 2 6KW air cooling spindles. 6KW spindles for cutting boards, while 4.5kw spindles for CNC engraving or drilling.
4. Small rack gap and high precision.
Technical Parameters
Model | ELECNC1325-4S |
X,Y axis travel | 1300x2500mm, option:1500*3000mm;2000*3000mm;2000*4000mm,etc |
Z axis travel | 200mm, option:300mm,400mm,500mm,600mm,etc |
Spindle type | 4.5kw HQD air cooling spindle×2set, 18000RPM 6kw HQD air cooling spindle×2set, 18000RPM |
Inverter type | 7.5kw Taiwan DELTA |

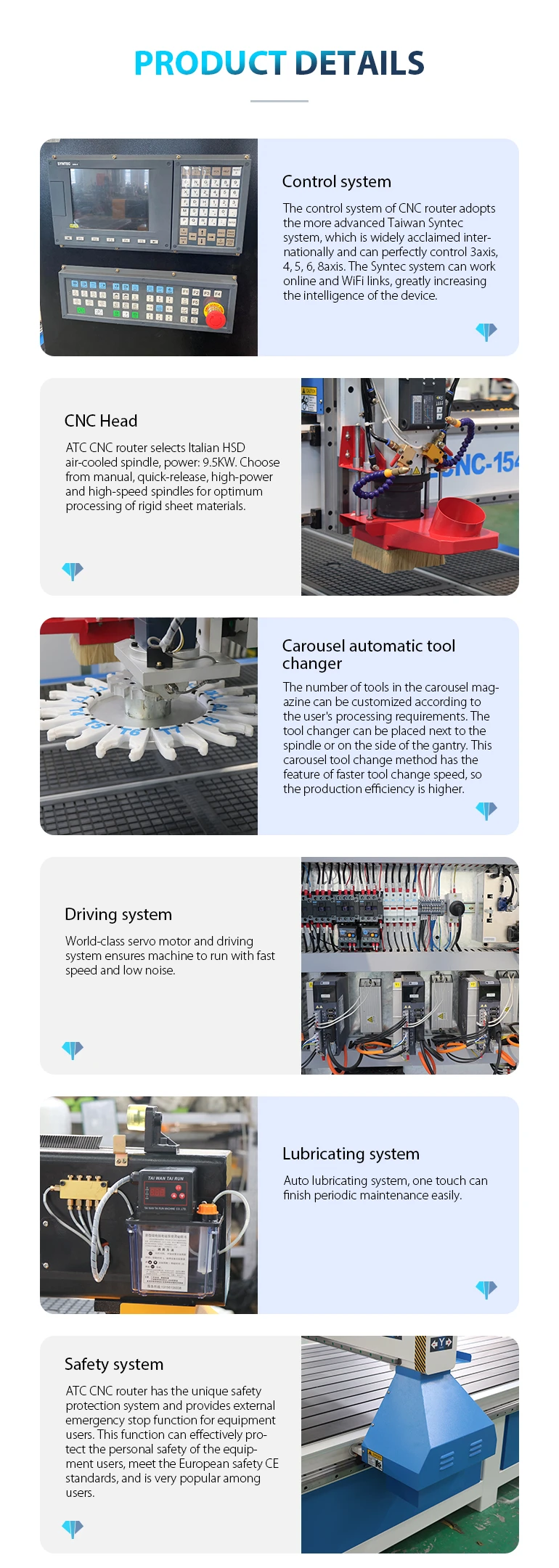

Control system | Taiwan LNC 2200 controller, with screen, mouse, keyboard, handwheel |
Driving system | 850W Leadshine servo motors and drivers |
Reducer | Japanese SHIMPO reducer |
Machine structure | Heavy duty body more thicker and stronger |
Work table | Vacuum work table |
Positioning cylinder | X axis 2pcs; Y axis 3pcs |
Linear guide | Taiwan Linear guide 25# |
Transmission | X, Y axis: Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
Lubrication system | Automatic lubrication system |
Tool calibration | Automatic tool sensor calibration |
Cables | Germany Igus cables with CE,cUL certificate |
Compatible software | Artcam,Alphcam,Type 3, Ucancam, Aspire, etc |
Command language | G Code |
Traveling speed | 40m/min |
Working speed | 0-25m/min |
Re-positioning accuracy | ±0.05mm |
Working accuracy | ±0.05mm |
Sample & Application
Recommend Products

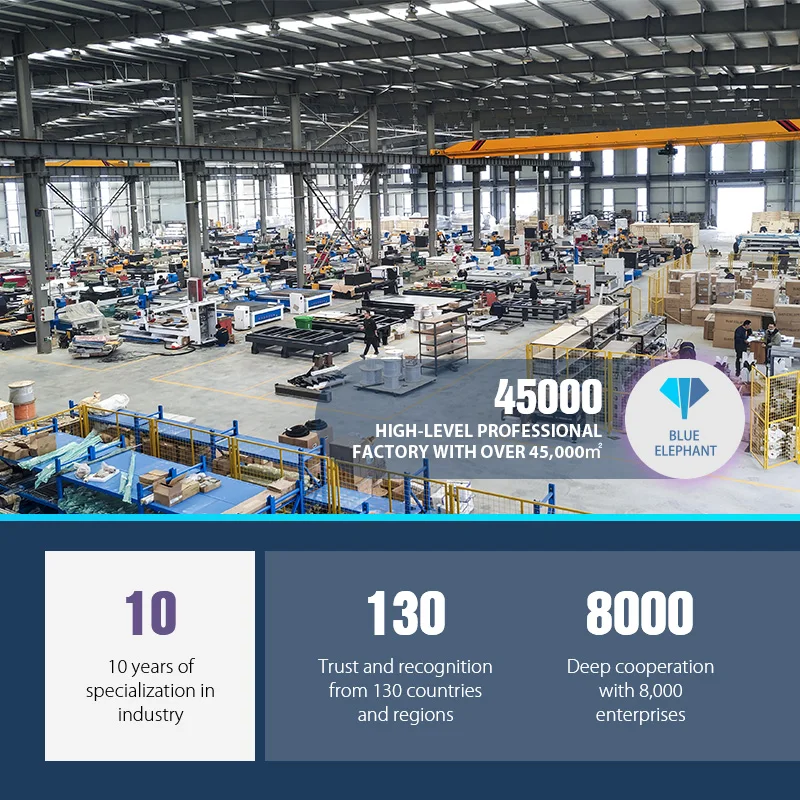

Company Information
