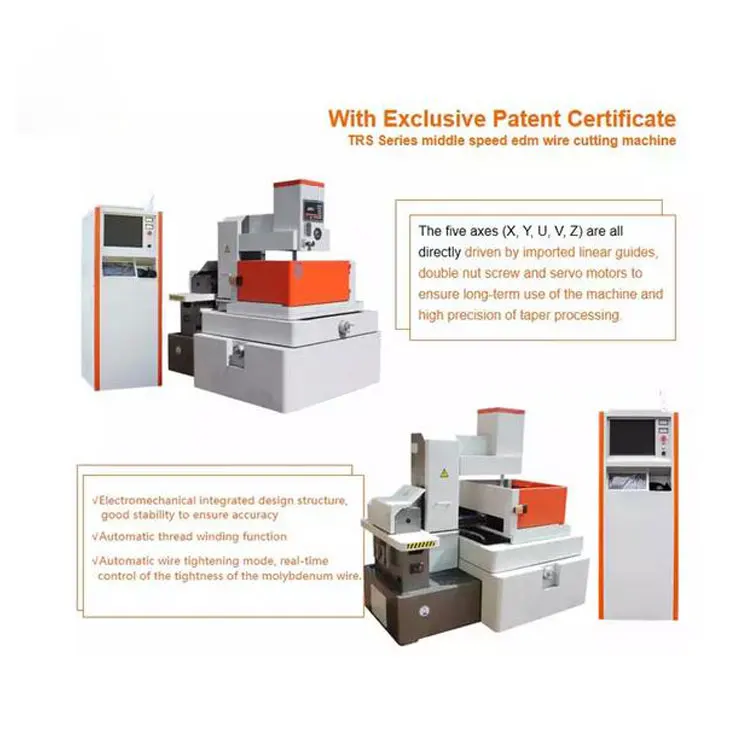

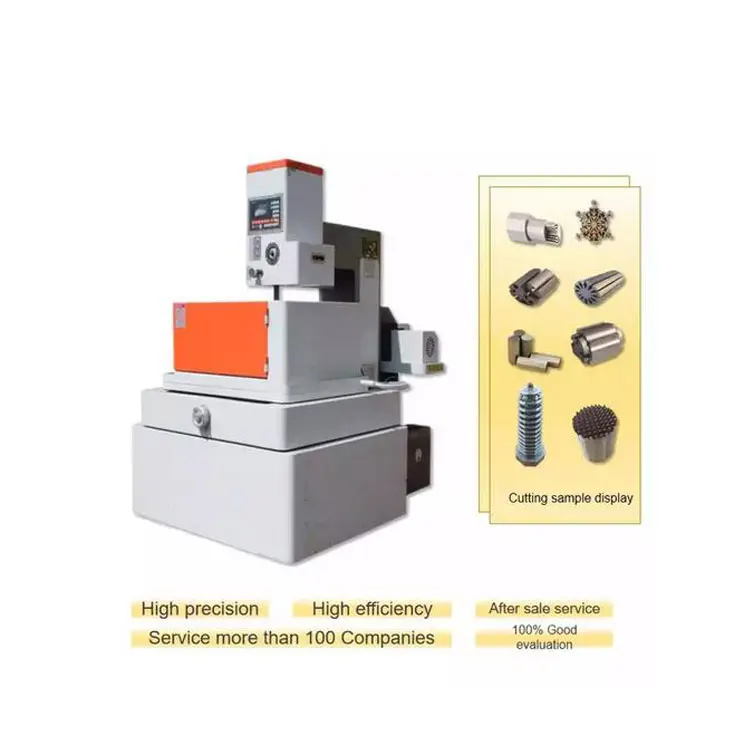

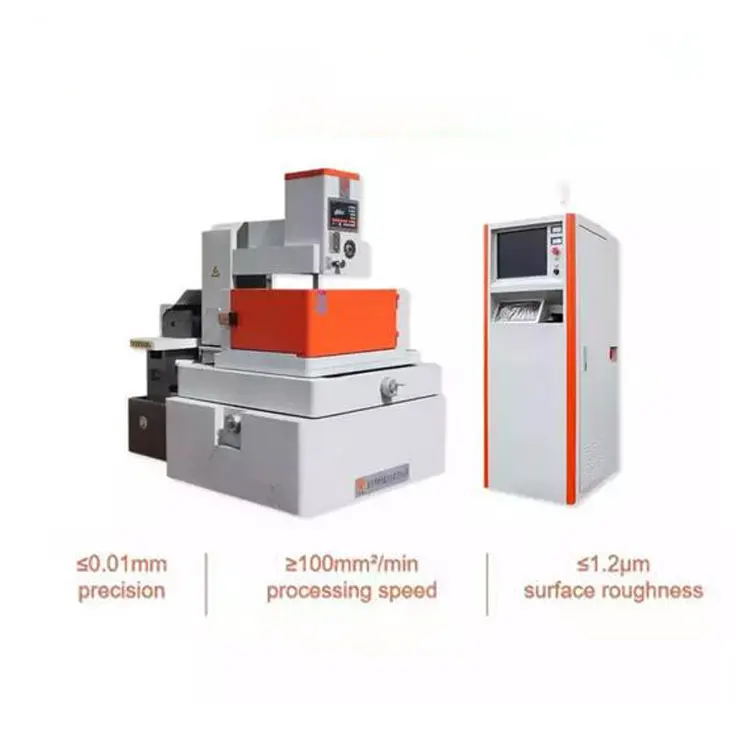

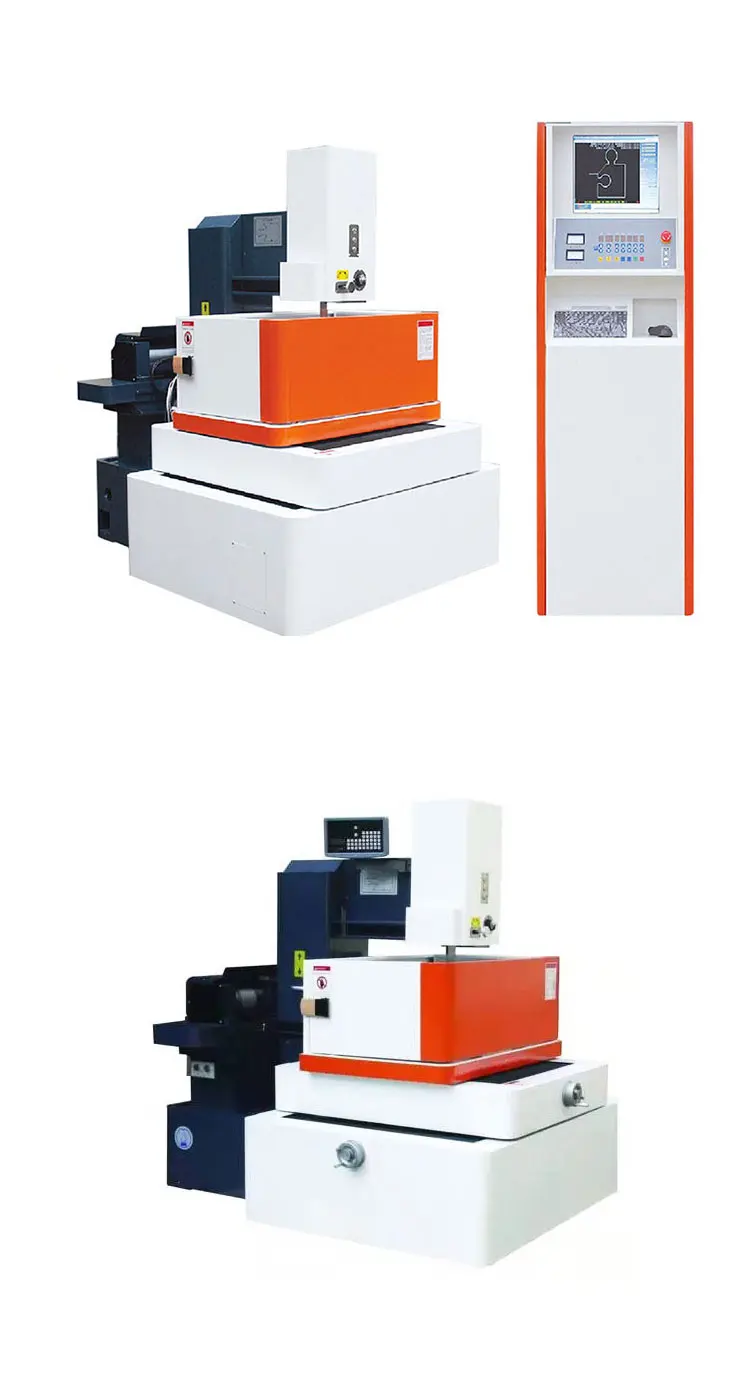

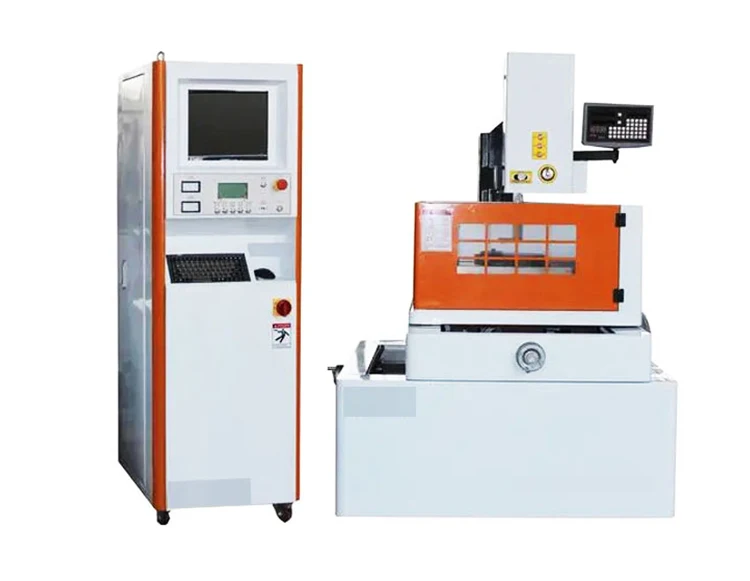

Medium precision EDM wire cutting machine designed CNC edm wire automatic cutting machine
- Category: >>>
- Supplier: Jiangsu Sanlin Technology Equipment Co. Ltd.
Share on (11000006766617):
Product Overview
Description
Products Description
Product model | SRS32 | SRS40 | SRS50 | SRS63 |
Worktable stroke (mm) | 320*400 | 400*500 | 500*630 | 630*800 |
Cutting thickness (mm) | 380 | 300 | 400 | 500 |
Machining taper (mm) | 6°~12°/80 | 6°~12°/80 | 6°~12°/80 | 6°~12°/80 |
Bearing weight (KG) | 300 | 450 | 700 | 1000 |
Machine weight (KG) | 2000 | 2300 | 2900 | 3600 |
Overall dimensions of the machine (mm) | 1650*1200*1900 | 1740*1330*2200 | 2000*1680*2200 | 2250*1800*2250 |
Cutting speed (mm ²/ min） | ≥120 | ≥120 | ≥120 | ≥120 |
Roughness of machined surface (um) | ≤1.2 | ≤1.2 | ≤1.2 | ≤1.2 |
Processing accuracy (mm) | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 |
JIANGSU SANLIN SCIENCE AND TECHNOLOGY EQUIPMENT CO.. LTD
Jiangsu Sanlin Science and Technology Equipment Co, Ltd is a high-tech enterprise integrating the production,R&D and sales of numerical control mechanical equipment. Since its establishment, the company has alwaysadhered to the corporate values of "achieving employees, developing enterprises, serving customers and repayingsociety "and has been committed to the mechanical equipment industry for decades.
The companys main products include vertical machining centers , high-speed machines , gantry machining centersdrilling and tapping centers , carving and milling machines , gantry carving and milling machines , medium wire cuttingmachines , fast wire cutting machines , small hole machines , sanding machines , etc . The companys products arewidely used in the manufacturing fields of key industries such as automobile , aerospace , national defense andmilitary industry , medical food machinery , rail transit , hardware mold , etc . The companys products are sold all overthe country and dozens of countries in Southeast Asia , Europe , America , Africa , etc . In line with the principle ofcustomer first , there are after-sales service points in all key regions of the country and overseas , which providetechnical training for users free of charge
