3030 2W 6V high power Dual White LED
- Category: >>>
- Supplier: SUPER BRITE LTD.
Share on (11000006779794):
Product Overview
Description
Specification

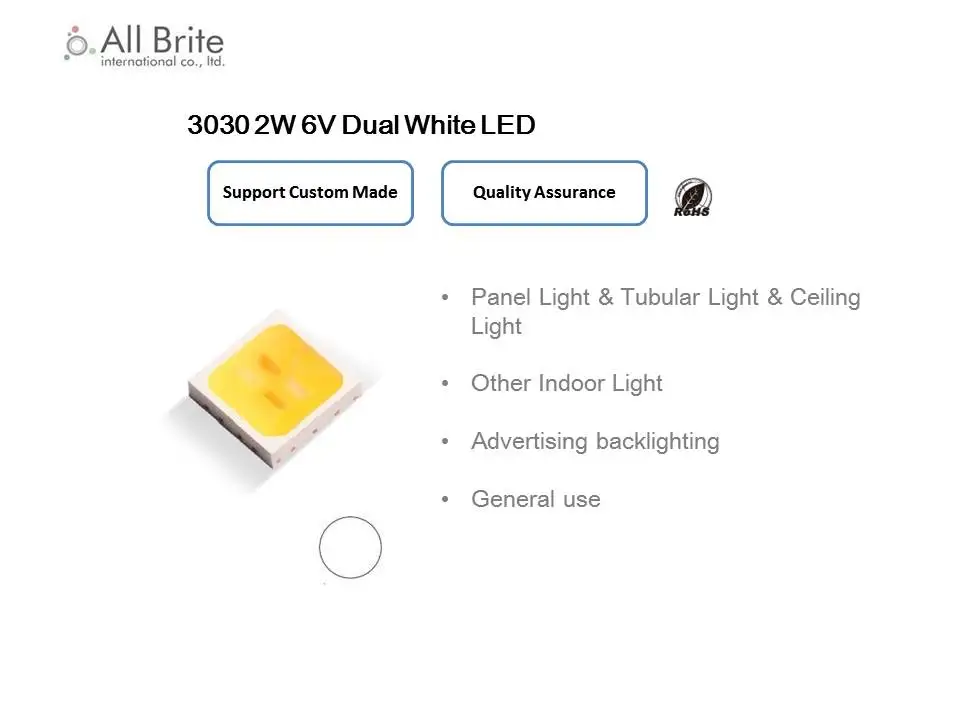

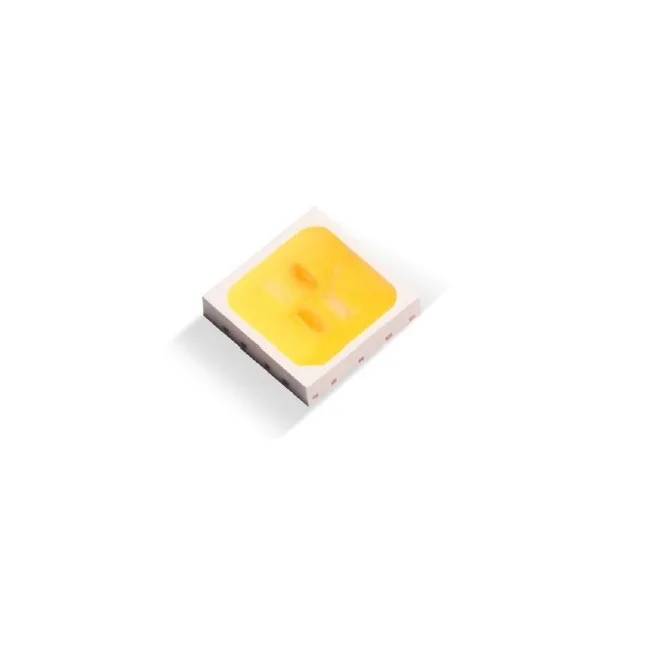

3030 2W 6V Dual White LED
AF3030DU-16VECWWW3055
Product Description
Package Outline
Features
• Package: 3.0*3.0*0.6mm (Top view white LED)
• Extremely wide viewing angle• Soldering methods: All SMT assembly methods
• Moisture sensitivity level: Level 3

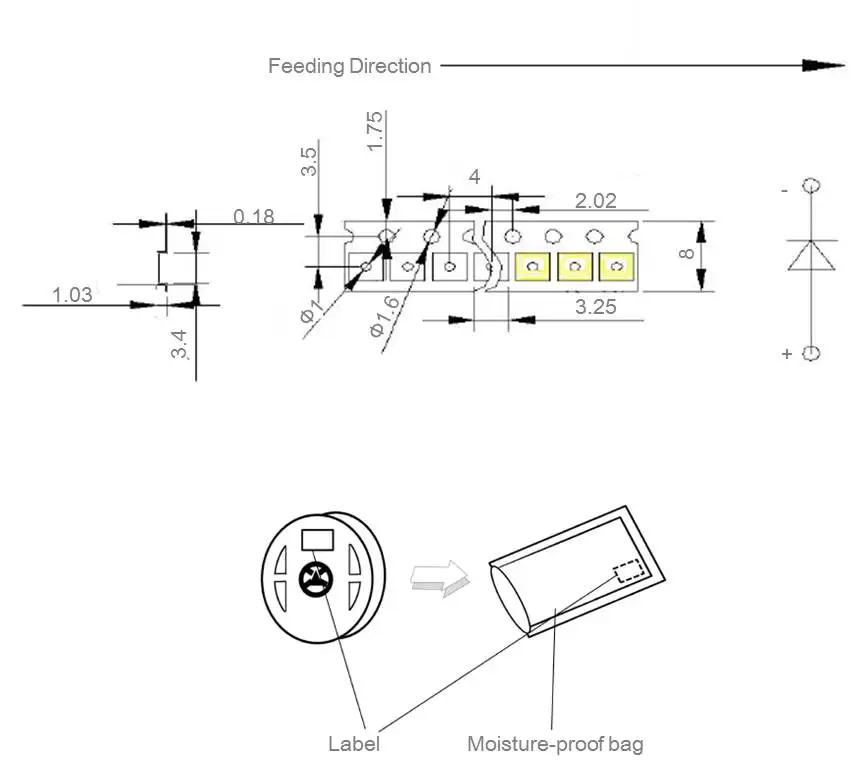

• Loaded quantity: 5000 pcs/reel
Absolute Maximum Ratings (Ta=25℃)
Item | Symbol | Rating | Unit | |
Power Dissipation | PD | 2112 | mW | |
Forward Current | IF | 160 | mA | |
Junction Temperature | Tj | 125 | ℃ | |
ESD Resistance（HBM） | ESD | 2000 | V | |
Soldering Temperature | Tsol | Reflow soldering (260℃ for 10seconds) Hand soldering (300℃ for 3 seconds) | ||
Operating Temperature Range | Topr | -40 ~ +105 | ℃ | |
Storage Temperature Range | Tstg | -40 ~ +105 | ℃ | |

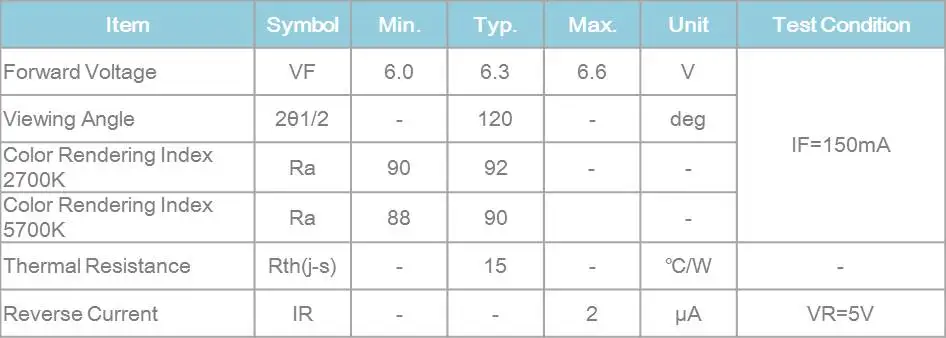

Electro-Optical Characteristics (Ta=25℃)

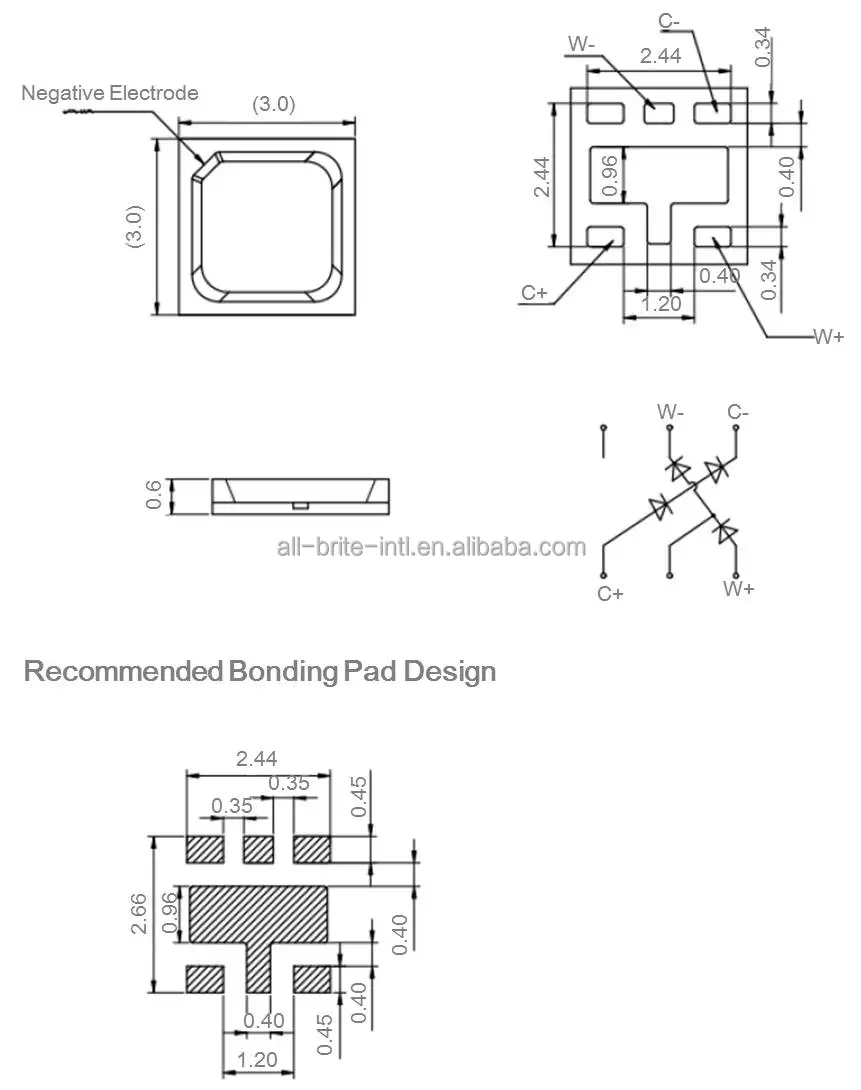

Package Information (unit: mm)
