Tissue Facial paper tissue production line jumbo roll facial tissue paper embossing packing making machine line
- Category: >>>
- Supplier: Foshan Nanhai Meijing Machinery Manufacture Co. Ltd.
Share on (11000006792205):
Product Overview
Description
Tissue Facial paper tissue production line jumbo roll facial tissue paper embossing packing making machine line

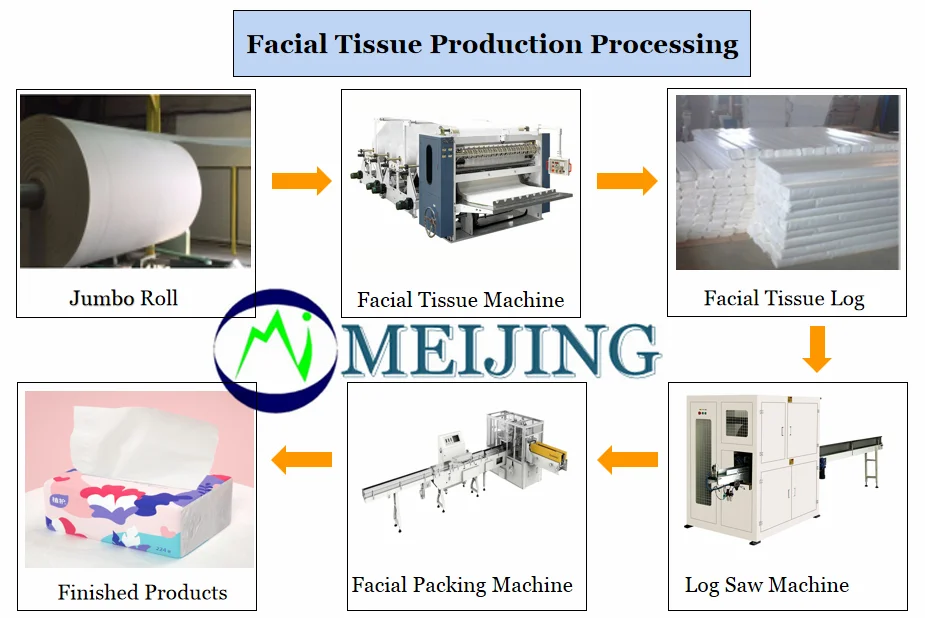

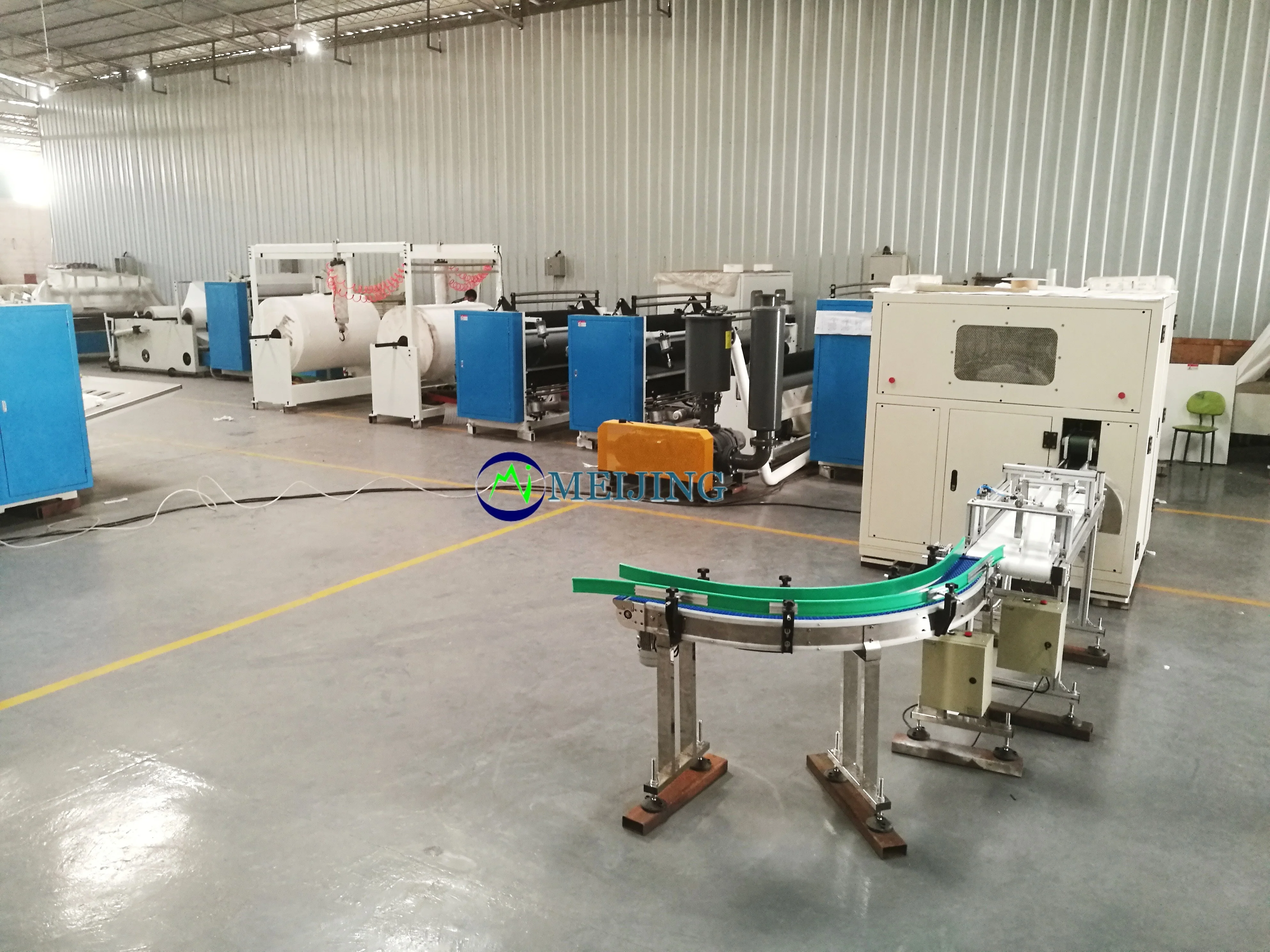

How to start a small facial tissue or cotton towel production? which machine shall need?
1. one set facial tissue folding machine
2. one set facial tissue cutting machine
3. one set facial tissue packing machine
There are different type machines, full auto type or semi auto type, very welcome your consulting to work on some different production solutions for your reference according to your market popular products.
1. one set facial tissue folding machine
2. one set facial tissue cutting machine
3. one set facial tissue packing machine
There are different type machines, full auto type or semi auto type, very welcome your consulting to work on some different production solutions for your reference according to your market popular products.

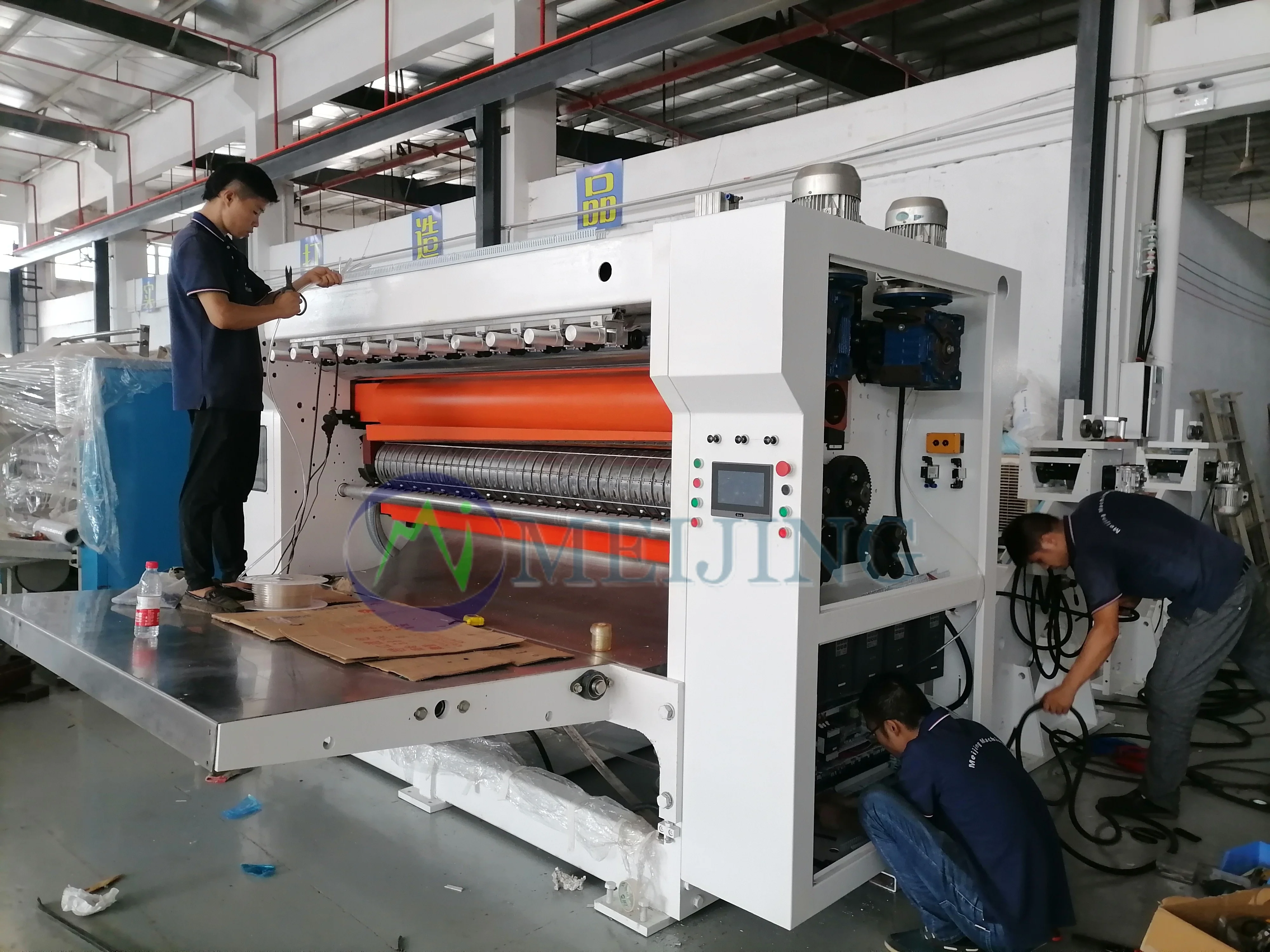

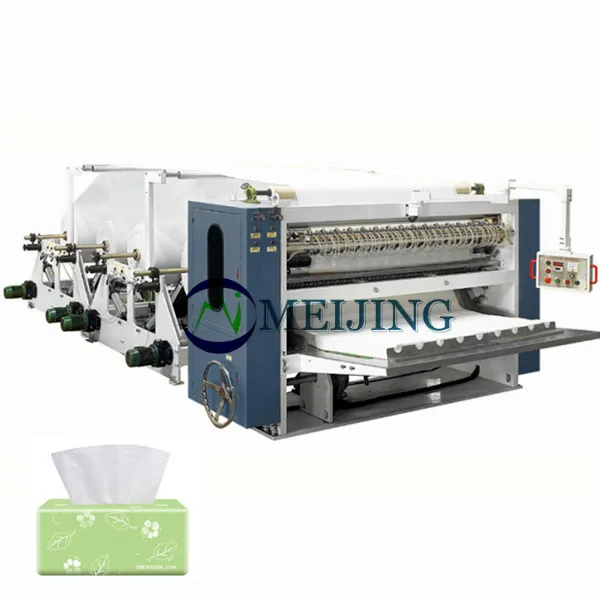

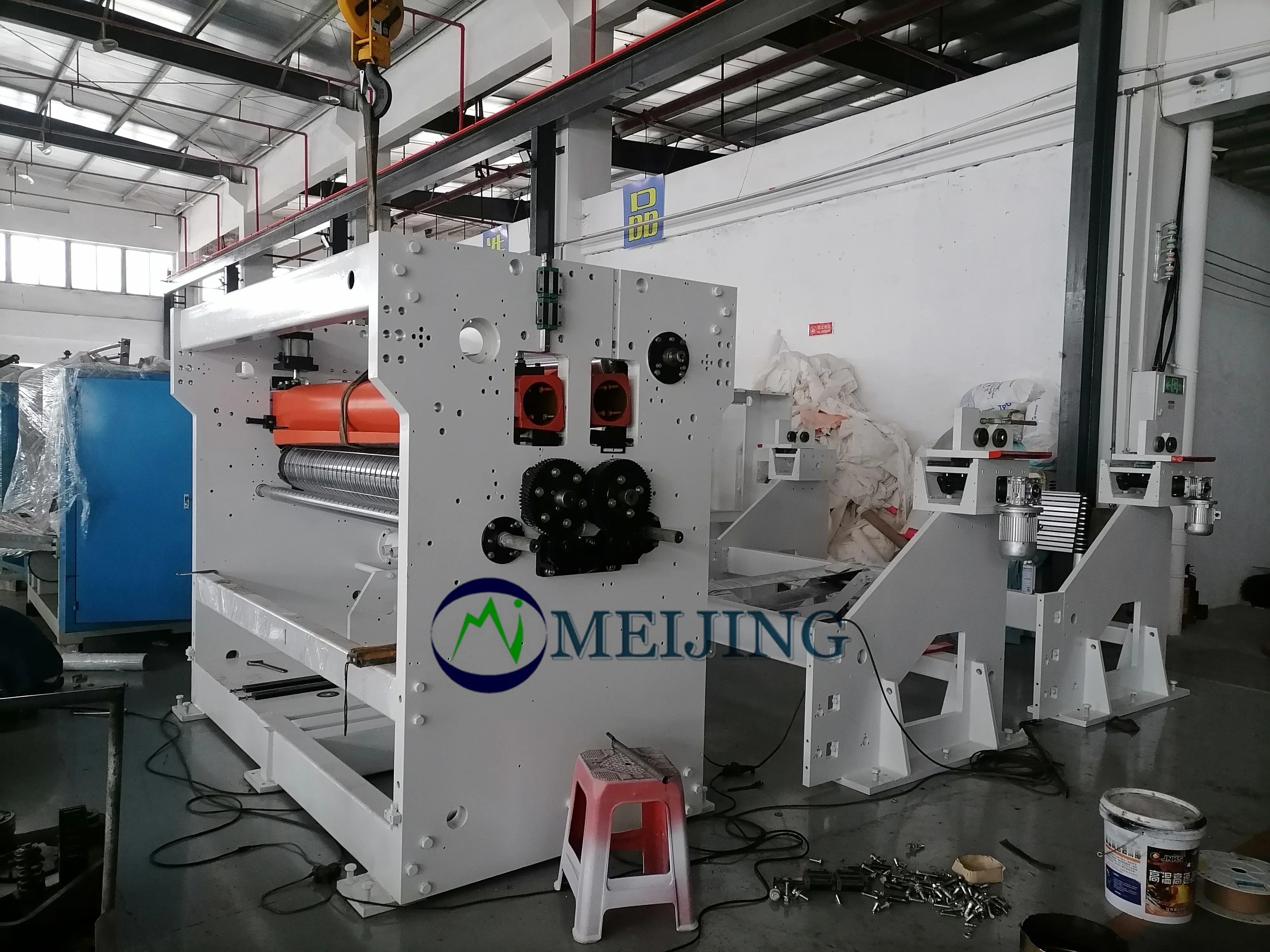

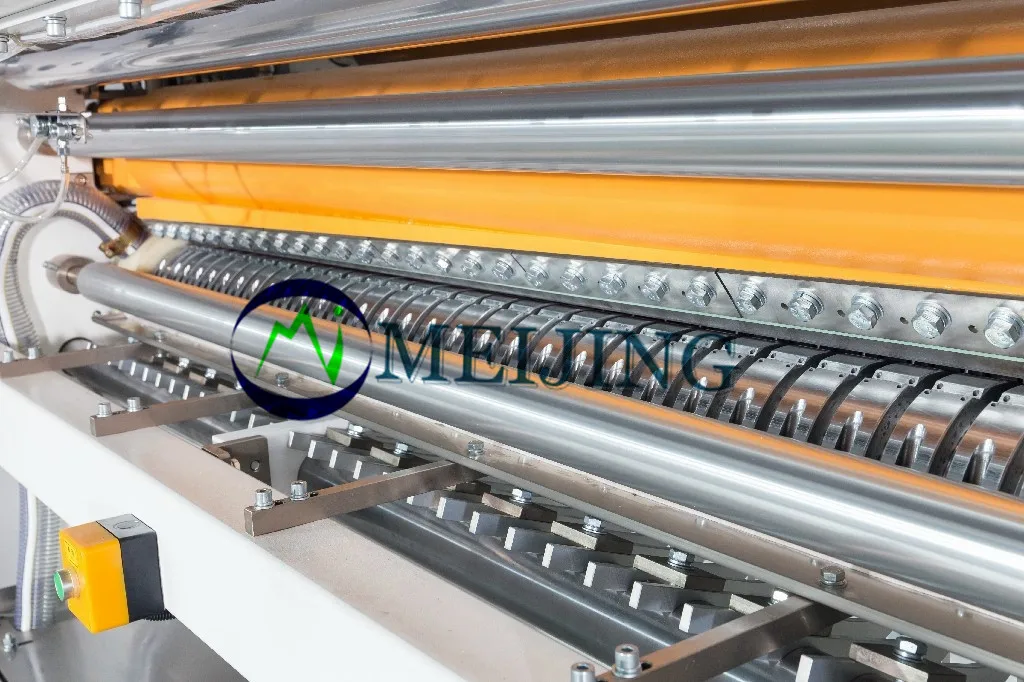

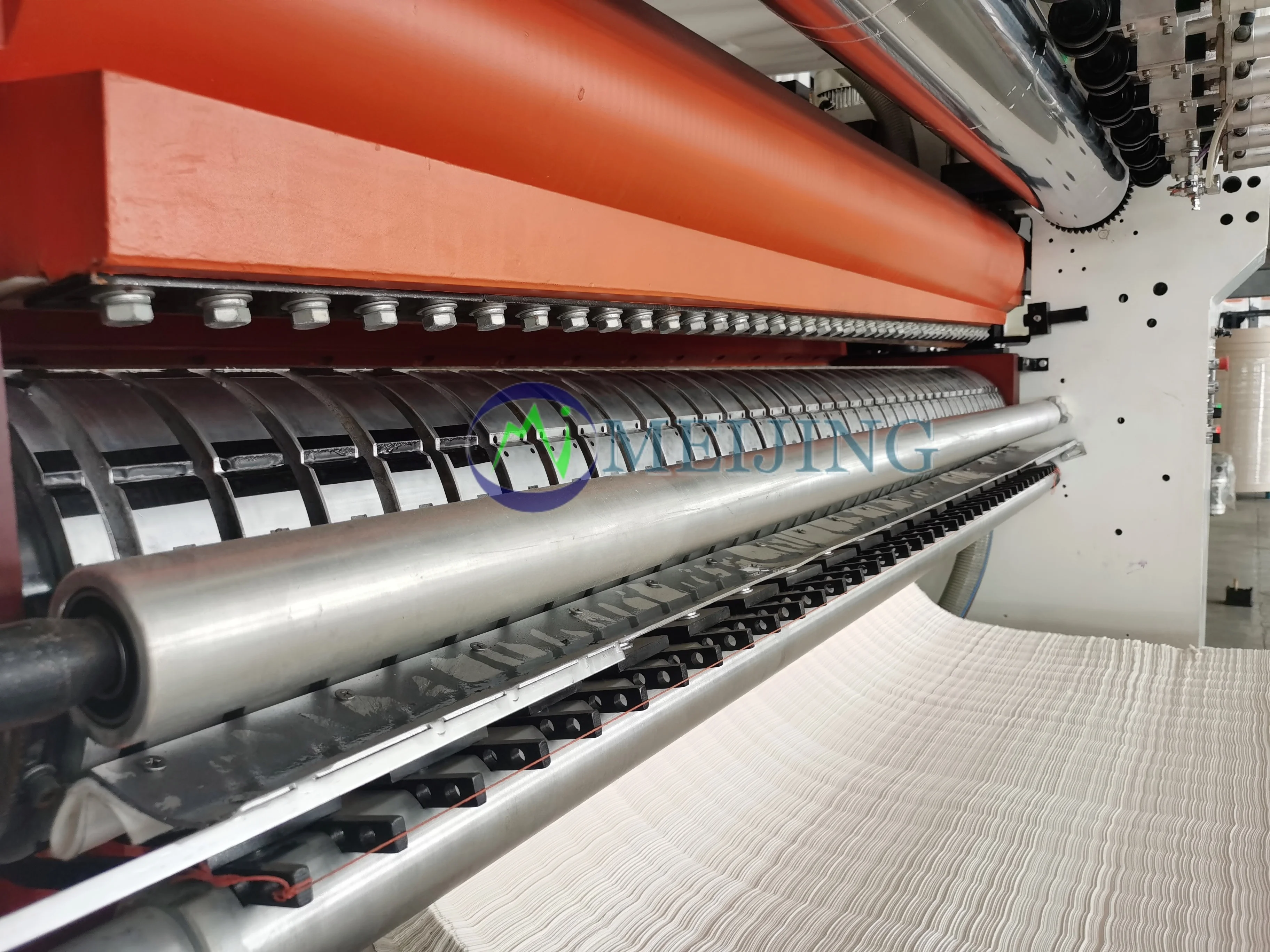

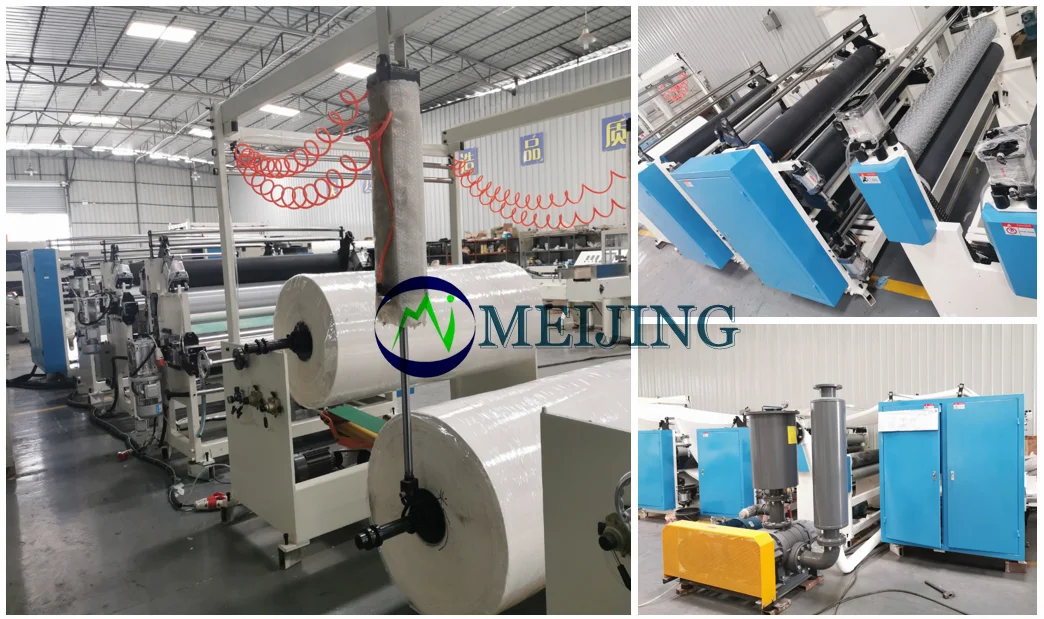

Full Auto Facial Tissue Folding Machine
1. Siemens PLC control & touch screen.
2. Driving by independent motor & for each station.
3. Adjust paper tension on touch screen.
4. Adopts vacuum suction & automatic fold counting function,advantages with high speed, neatly folding.
5.Stepless speed regulation unwinding, adapt to the high and low tension of the base paper
6. With jogging button and Emergency button on machine
7.The machine will stop when the paper broken to avoid waste caused by no paper or paper broken
2. Driving by independent motor & for each station.
3. Adjust paper tension on touch screen.
4. Adopts vacuum suction & automatic fold counting function,advantages with high speed, neatly folding.
5.Stepless speed regulation unwinding, adapt to the high and low tension of the base paper
6. With jogging button and Emergency button on machine
7.The machine will stop when the paper broken to avoid waste caused by no paper or paper broken
Machine Model | FS-6/200 Facial Tissue Folding Machine |
Jumbo Roll Width | 1300mm for 6 lane machine |
Jumbo Roll Dia | 1300mm |
Finished Products | 200 * (100-230)mm, the width can be adjust on the machine |
Jumbo Roll Stands | 2 |
Program Control | PLC, Siemens Brand |
Parameter Setting | Touching Screen, Siemens Brand |
Machine Speed | 6000-7000 sheets/min for 6 lane machine |

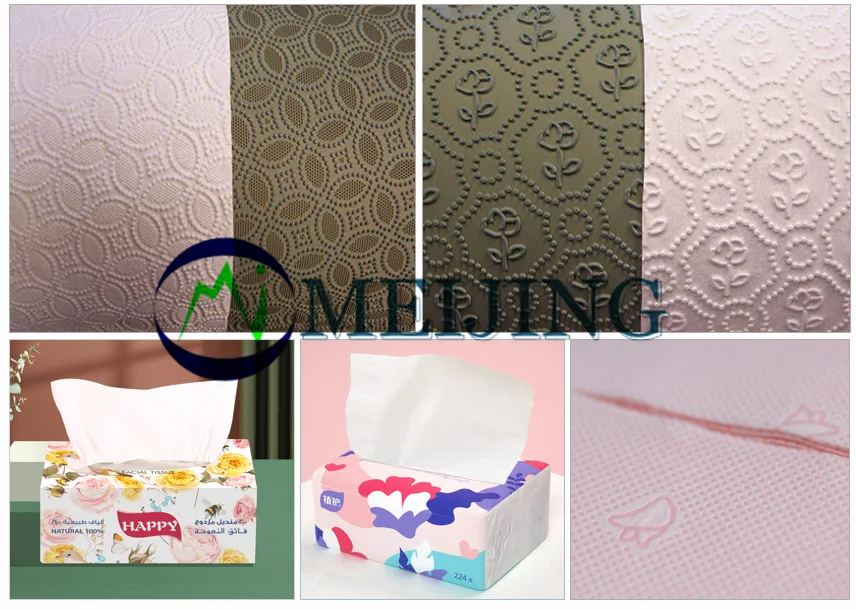

Embossing device | Steel to steel, or steel to rubber |
Counting | auto electronic counting |
vacuum pump | LONGTECH roots vacuum pump (TAIWAN) |
Power supply | 7.5-25kw, 380V, 50Hz |
Machine structure | Full wallboard type |
Certification | European standard CE, TUV, |

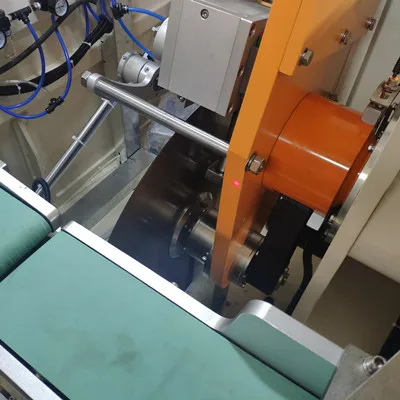

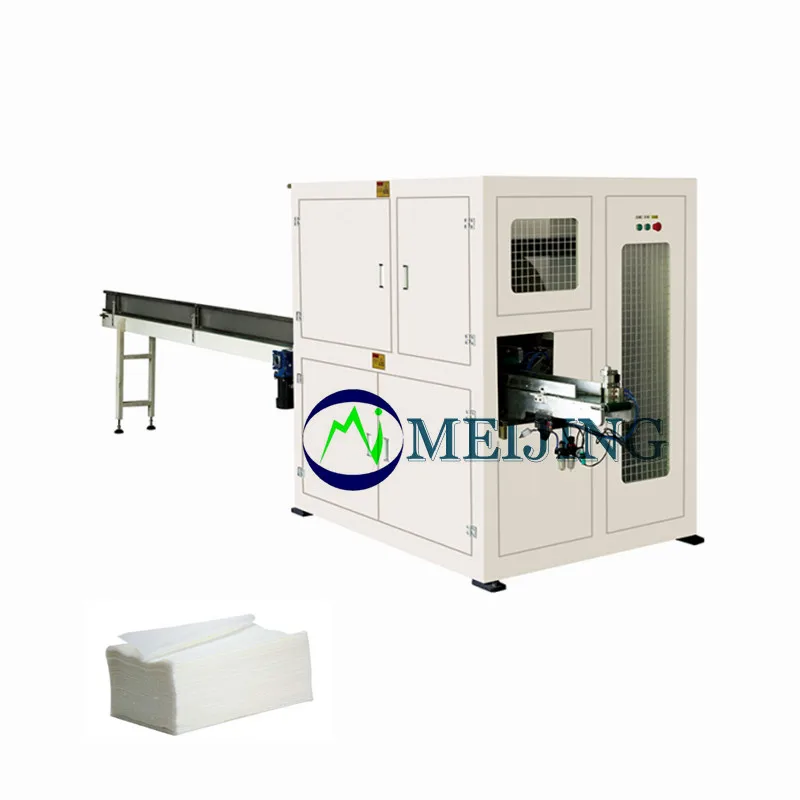

Full Auto Facial Tissue Cutting Machine
1. The machine will cut the facial tissue.
2. Adopt frequency control, PLC , servo tracking control to realize automatic control system.
3.The cutting size is adjustable freely
4. The servo system can guarantee the cutting size is more precocious
5. Equipped with Automatic photocell inspection system, the blade will stop cutting when no paper log coming;
6. Equipped with blade sharpening frequency,
7. The machine will connect with facial tissue folding machine and packing machine to be production line.
2. Adopt frequency control, PLC , servo tracking control to realize automatic control system.
3.The cutting size is adjustable freely
4. The servo system can guarantee the cutting size is more precocious
5. Equipped with Automatic photocell inspection system, the blade will stop cutting when no paper log coming;
6. Equipped with blade sharpening frequency,
7. The machine will connect with facial tissue folding machine and packing machine to be production line.
Machine Model | DH-M120-II Full Automatic Facial Tissue Log Saw Machine |
Cutting Size | （90-250）*（60-120）*（60-120）mm |
Max Log length | 2100mm |
Driving system | Servo motor drive feeding belt |
Cutting system | Rotating circular knife |
Cutting Speed | 100-120 cuts/min |
Cutting Channel | One or two |
Grinding | Pneumatic grinding, parameter can be set on the control panel |
Cooling system | steady compressed air blowing for cooling |
Driving | Independent servo motor drive, |
Power supply | 9kw, 380V, 50Hz |
Certification | European standard CE, TUV, |

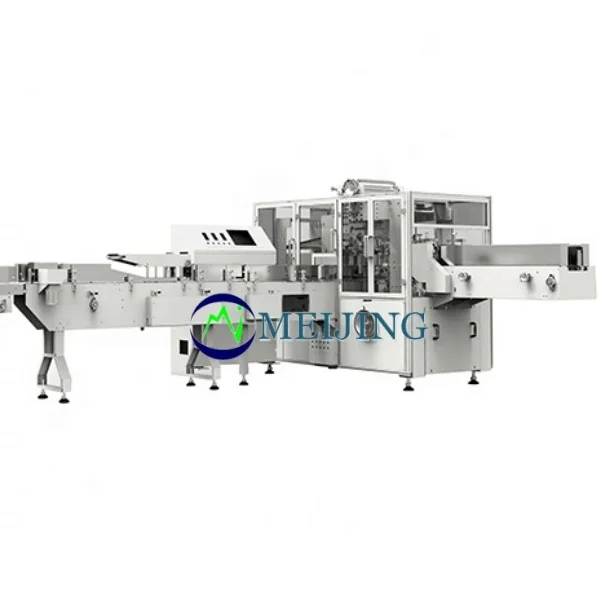

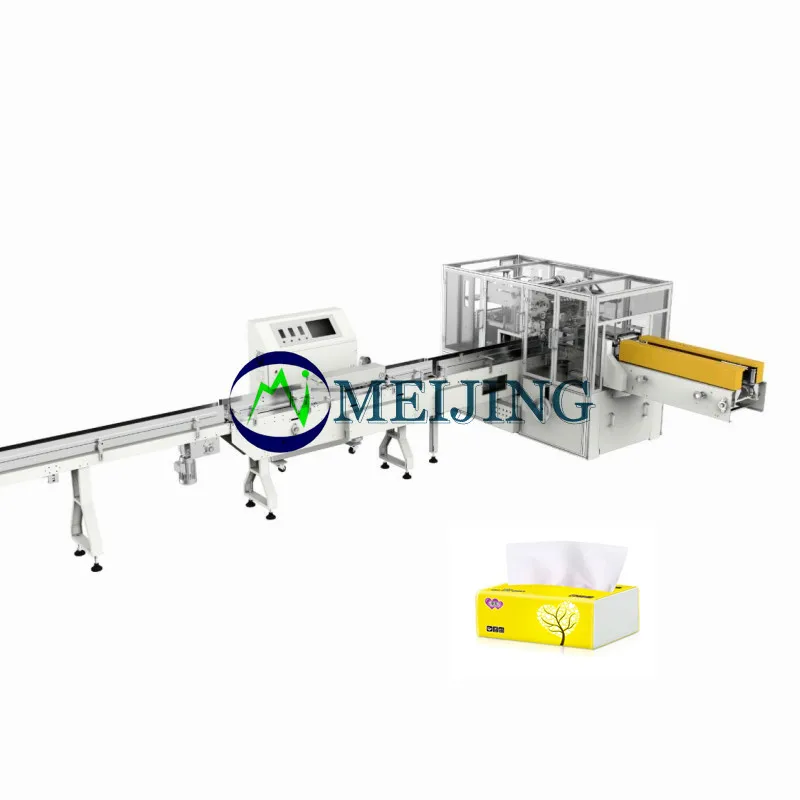

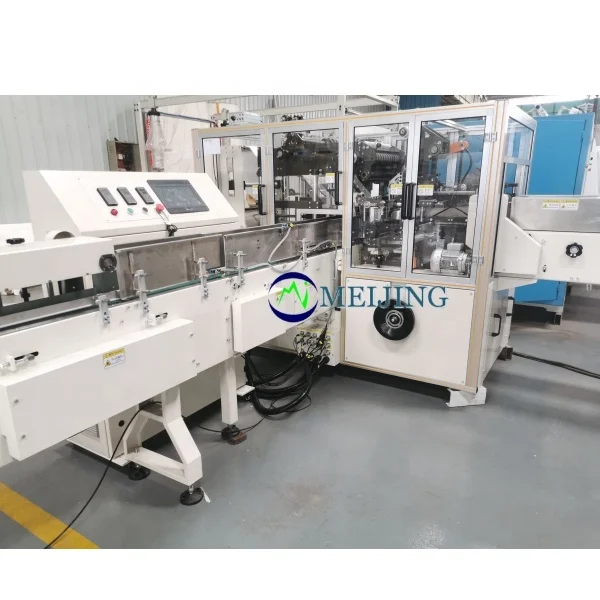

Full Automatic Facial Tissue Packing Machine
1. Adopt packing method by wrapping, folding and sealing with compact structure and high product appeal.
2. Adopts advanced PLC computer program, human-machine interface operation.
3. Automatic tailing, automatic push function,cutting and sealing
4. Emergency stop/pause control function,safe power off, pressure protection.
6. Sealing and cutting device adopts temperature control design, good sealing effect, no broken bag.
2. Adopts advanced PLC computer program, human-machine interface operation.
3. Automatic tailing, automatic push function,cutting and sealing
4. Emergency stop/pause control function,safe power off, pressure protection.
6. Sealing and cutting device adopts temperature control design, good sealing effect, no broken bag.
Machine Model | ZB302 Full Automatic Facial Tissue Packing Machine |
Packing Size | L: 100-210mm |
Jumbo Roll Dia | W: 90-150mm |
Finished Products | H:30-150mm |
Packing Speed | 100-120 bags/min |
Program Control | PLC, |
Parameter Setting | Touching Screen |
Air supply | 0.5-0.7 MPa |
Packing film | CPP,PE,OPP/CPP,PT/PE,KOP/CP Film,ect. |
Film rolls max diameter | 450mm |
Film rolls inner core dia | 75-78mm |
Power supply | 8kw, 380V, 50Hz |
Machine weight | 3000kg |
Certification | European standard CE, TUV, |
Q:Can engineer come to our country? My staff can't operate the machine
-- We have skillful and experience technician train and teach the workers to operate the paper machine,we have very very details installation video and guide training online too.
Q:How to purchase accessories or wearing parts matching the paper towel machine?Can you sell it to us？
--Before shipping, we will prepare some wearing parts to avoid the need for replacement in the future about 2 years, after it,when you need we will send you at basic cost in time.
Q: How can i choose the machine model?
-- please send us inquiry and tell us your production demands ideas, like capacity, jumbo roll information, workers, workshop etc, we will make details analysis for your reference and to work on suitable production line for you.
Q: How long we can receive the machines?
--According to different model type, usually the delivery time is about 50-70 days. We manufacturing the popular model in store, it will more fast delivery.
Q:How to purchase accessories or wearing parts matching the paper towel machine?Can you sell it to us？
--Before shipping, we will prepare some wearing parts to avoid the need for replacement in the future about 2 years, after it,when you need we will send you at basic cost in time.
Q: How can i choose the machine model?
-- please send us inquiry and tell us your production demands ideas, like capacity, jumbo roll information, workers, workshop etc, we will make details analysis for your reference and to work on suitable production line for you.
Q: How long we can receive the machines?
--According to different model type, usually the delivery time is about 50-70 days. We manufacturing the popular model in store, it will more fast delivery.
