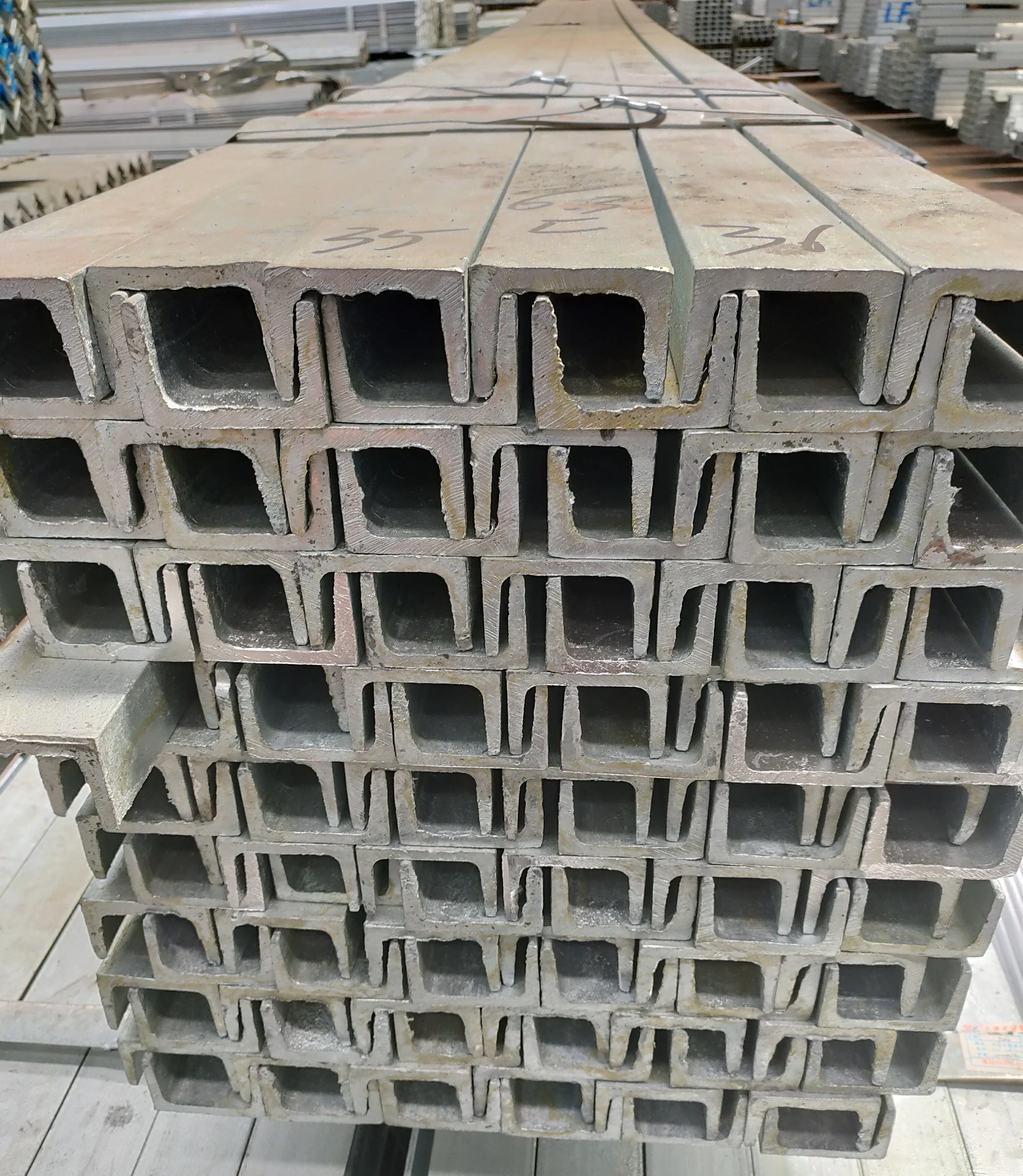

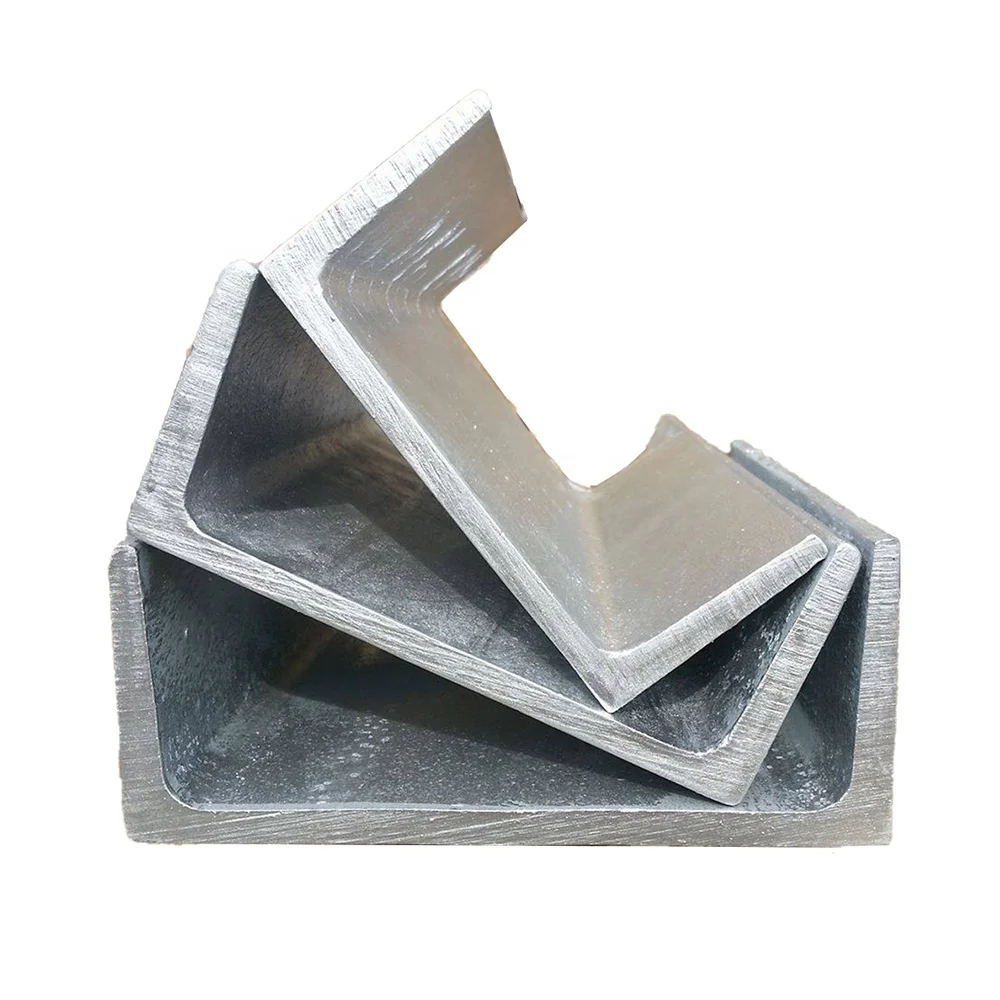

Best Price 300x87x9.5mm China Channel And U Beam Steel For Building Structure
Best Price 300x87x9.5mm China Channel And U Beam Steel For Building Structure
Best Price 300x87x9.5mm China Channel And U Beam Steel For Building Structure
Best Price 300x87x9.5mm China Channel And U Beam Steel For Building Structure
Best Price 300x87x9.5mm China Channel And U Beam Steel For Building Structure
Best Price 300x87x9.5mm China Channel And U Beam Steel For Building Structure
Best Price 300x87x9.5mm China Channel And U Beam Steel For Building Structure

Best Price 300x87x9.5mm China Channel And U Beam Steel For Building Structure

Share on (11000006794185):


Price:$435.00 - $480.00

Quantity:


Product Overview

Description

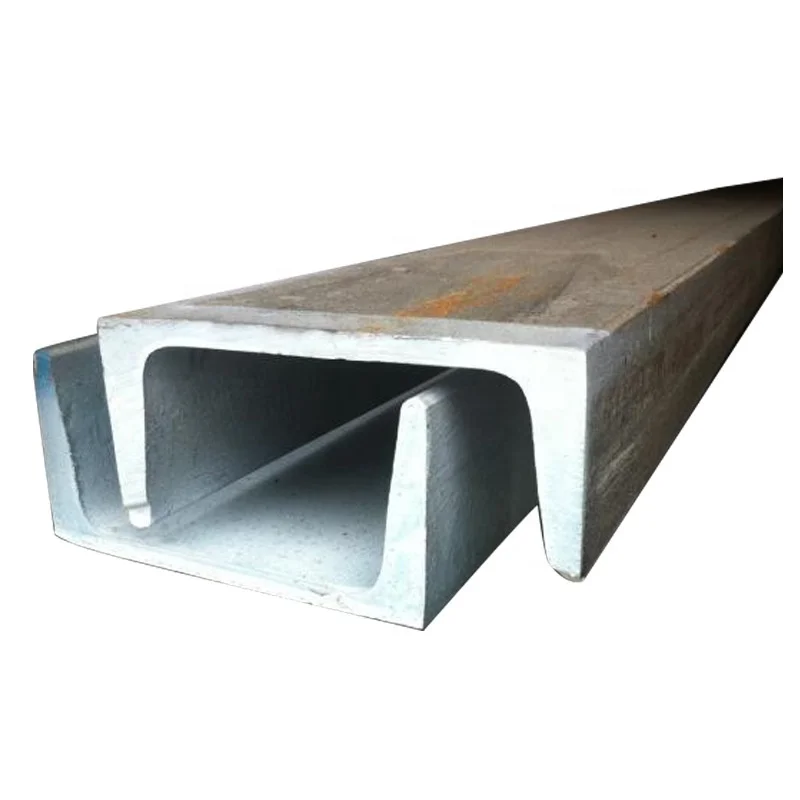

Products Description


Product name
C Channel beam
Place of Origin
China
Length
6-12m
Height
50mm-400mm or customized
Thickness
4.5-12.5mm or customized
MOQ
1 Ton
Sample
Avaliable
Material
Q195-Q420 Series,SS400-SS540 Series,S235JR-S355JR Series,ST Series,
A36-A992 Series,Gr50 Series
Certificate
ISO, SGS ,CE or other third party inspection acceptable.
Standard
ASTM,JIS,DIN EN10025,GB
Shape
C shape U shape
Edge
Mill Edge/Slit Edge
Payment Term
TT/LC
Application
1.Industrial structure of the steel structure bearing bracket.
2.Underground engineering steel pile and retaining structure.
3.Petrochemical and electric power and other industrial equipment structure
4.Large span steel bridge components
5.Ships, machinery manufacturing frame structure
6.The train, automobile, tractor beam bracket
7.Port of conveyor belt, high speed damper bracket


Channel steel is a carbon structural steel for construction and machinery. It is a section steel with complex sections, and its cross-sectional shape is groove-shaped. Channel steel is mainly used in building structures, curtain wall engineering, mechanical equipment and vehicle manufacturing. In use, it is required to have good welding, riveting performance and comprehensive mechanical properties.

The raw material billet for producing channel steel is carbon structural steel or low alloy steel billet with carbon content not exceeding 0.25%. The finished channel steel is delivered in the state of hot forming, normalizing or hot rolling.

Its specifications are expressed in millimeters of waist height (h) * leg width (b) * waist thickness (d), such as 100*48*5.3, which means that the waist height is 100 mm, the leg width is 48 mm, and the waist thickness is 5.3 mm. Steel, or 10# channel steel. For channel steel with the same waist height, if there are several different leg widths and waist thicknesses, a b c must be added on the right side of the model to distinguish them, such as 25#a 25#b 25#c, etc.








Classification:

Channel steel is divided into ordinary channel steel and light channel steel. The specifications of hot-rolled ordinary channel steel are 5-40#. The specifications of the hot-rolled flexible channel steel supplied by agreement between the supplier and the buyer are 6.5-30#. Channel steel is mainly used in building structures, vehicle manufacturing, other industrial structures and fixed cabinets, etc. Channel steel is often used in conjunction with I-beams.

Channel steel can be divided into four types according to the shape: cold-formed equal-edge channel steel, cold-formed unequal-edge channel steel, cold-formed inner-curled channel steel, and cold-formed outer-curled channel steel.


Dimensions and weight specifications of hot-rolled ordinary channel steel
SPEC
Height(mm)
Width(mm)
Thickness(mm)
Theoretical weight(kg)
5
50
37
4.5
5.438
6.3
63
40
4.8
6.634
8
80
43
5
8.045
10
100
48
5.3
10.007
12.6
126
53
5.5
12.318
14#a
140
58
6
14.535
14#b
140
60
8
16.733
16#a
160
63
6.5
17.24
16#b
160
65
8.5
19.754
18#a
180
68
7
20.174
18#b
180
70
9
23
20#a
200
73
7
22.637
20#b
200
75
9
25.777
22#a
220
77
7
24.999
22#b
220
79
9
28.453
25#a
250
78
7
27.41
25#b
250
80
9
31.335
25#c
250
82
11
35.26
28#a
280
82
7.5
31.427
28#b
280
84
9.5
35.823
28#c
280
86
11.5
40.219
32#a
320
88
8
38.083
32#b
320
90
10
43.107
32#c
320
92
12
48.131
36#a
360
96
9
47.814
36#b
360
98
11
53.466
36#c
360
100
13
59.118
40#a
400
100
10
58.928
40#b
400
102
12.5
65.208
40#c
400
104
14.5
71.488


Dimensions and weight of hot-rolled light channel steel
SPEC
Height(mm)
Width(mm)
Thickness(mm)
Theoretical weight(kg)
5
50
32
4.4
4.84
6.5
65
36
4.4
5.9
8
80
40
4.5
7.05
10
100
46
4.5
8.59
12
120
52
4.8
10.4
14a
140
62
4.9
13.3
14
140
58
4.9
12.3
16
160
64
5
14.2
16a
160
68
5
15.3
18
180
70
5.1
16.3
18a
180
74
5.1
17.4
20
200
76
5.2
18.4
20a
200
80
5.2
19.8
22
220
82
5.4
21
22a
220
87
5.4
22.6
24
240
90
5.6
24
24a
240
95
5.6
25.8
27
270
95
6
27.7
30
300
100
6.5
31.8
33
330
105
7
36.5
36
360
110
7.5
41.9
40
400
115
8
48.3


Company Profile




Quality Control






1.SGS and ISO9001 Audited company.
2.Industry experience over 20 years.
3.Management Systems-Internal Software
4.Finished Product Inventory-More Than 500 Tons.
5.Raw Material inventory -Over 800 Mertic Tons.
6.Shipment of goods -More than 30 countries worldwide.
7.We have the most convenient transport and prompt delivery.
8.We offer competitive price with best service.
9.We have high technical production line with top quality products.
10.We have win high reputation based on best quality products.


You may also like




Certifications

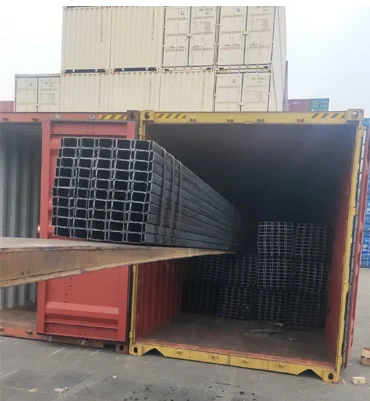

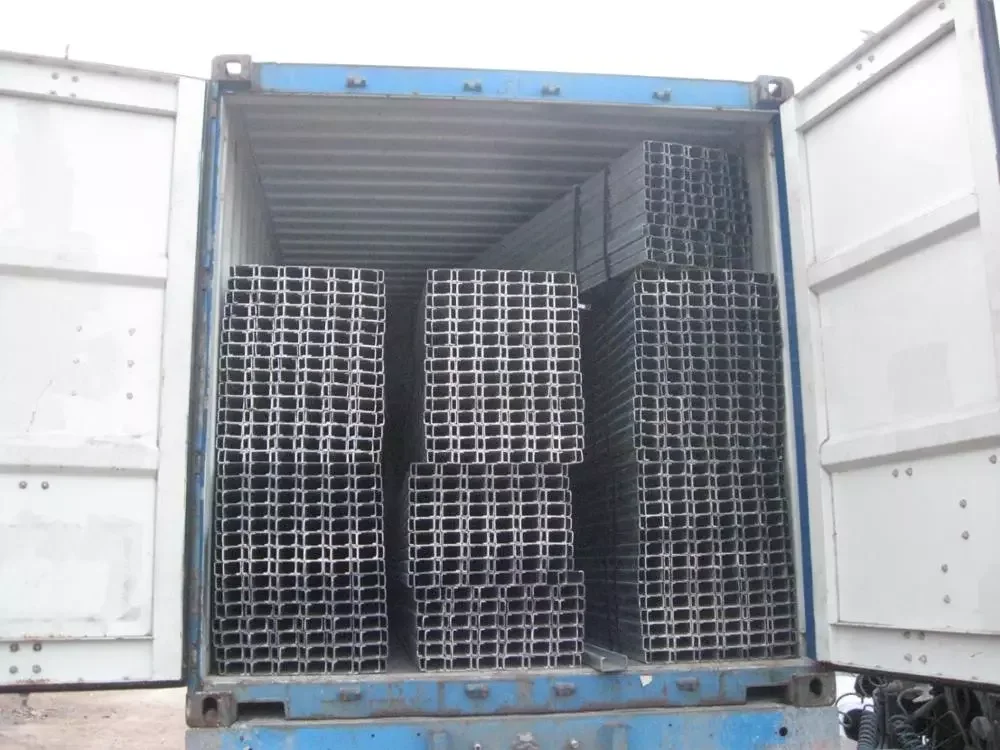

Packing & Shipping








Standard expore sea-worthy packing (with waterproof paper, metal belt pack sheet, then put them in wooden pallet, then put in container) or customized.

Grate care is taken to avoid any damage which might otherwise be caused during storage or transportation. In additon, clear labels are tagged on the outside of the packages for easy identification of the product I.D. and quality information.


Application




Channel steel is mainly used in building structures, curtain wall engineering, mechanical equipment and vehicle manufacturing.


FAQ


Q: Where is your company ?
A: Our company located in TianJin of China.

Q: How long is your delivery time?
A: Generally is 10-15 workingdays of goods in stock, or 20-30 days if goods are not in stock, it is according to quantitiy.

Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge.but the customers have to pay the sample courier cost.

Q: What is your terms of payment?
A: We supports L/C,T/T ,Paypal payments. We'll show you the photos of the products and packages before you pay the
balance.

Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit
