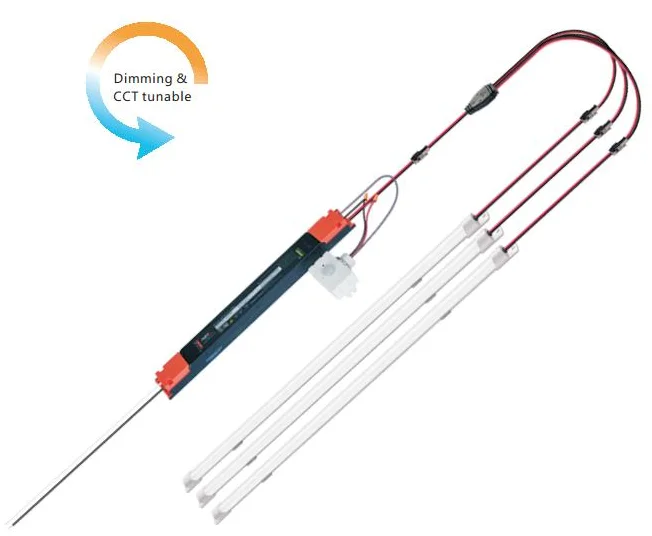

ETL DLC Premium 0 10v Dimmable Fast Install Magnets Install Led Troffer Retrofit Kit Strip
- Category: >>>
- Supplier: Tiosl Technology (Shenzhen) Co. Ltd.
Share on (11000006799179):
Product Overview
Description

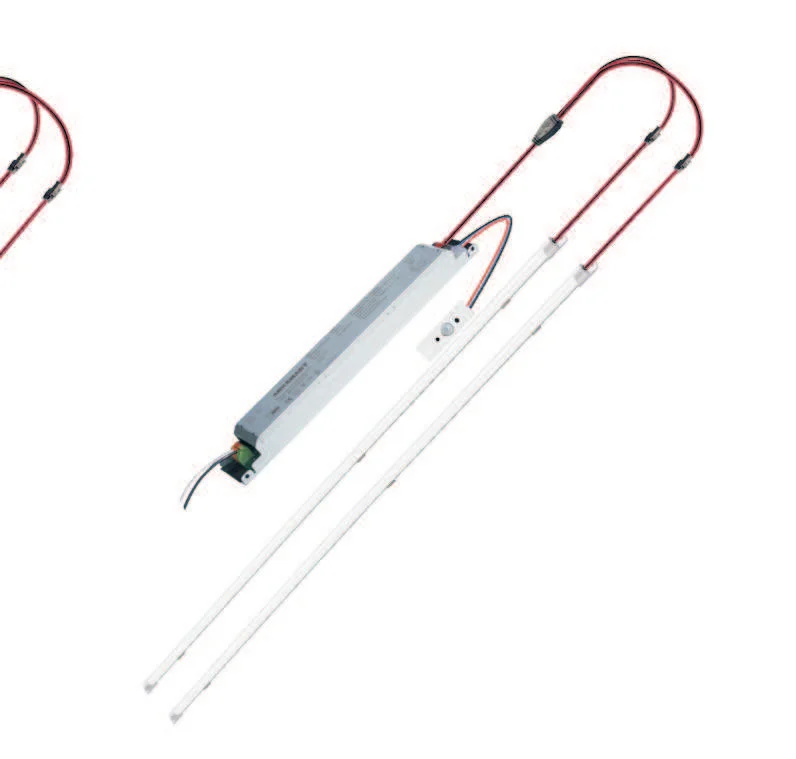

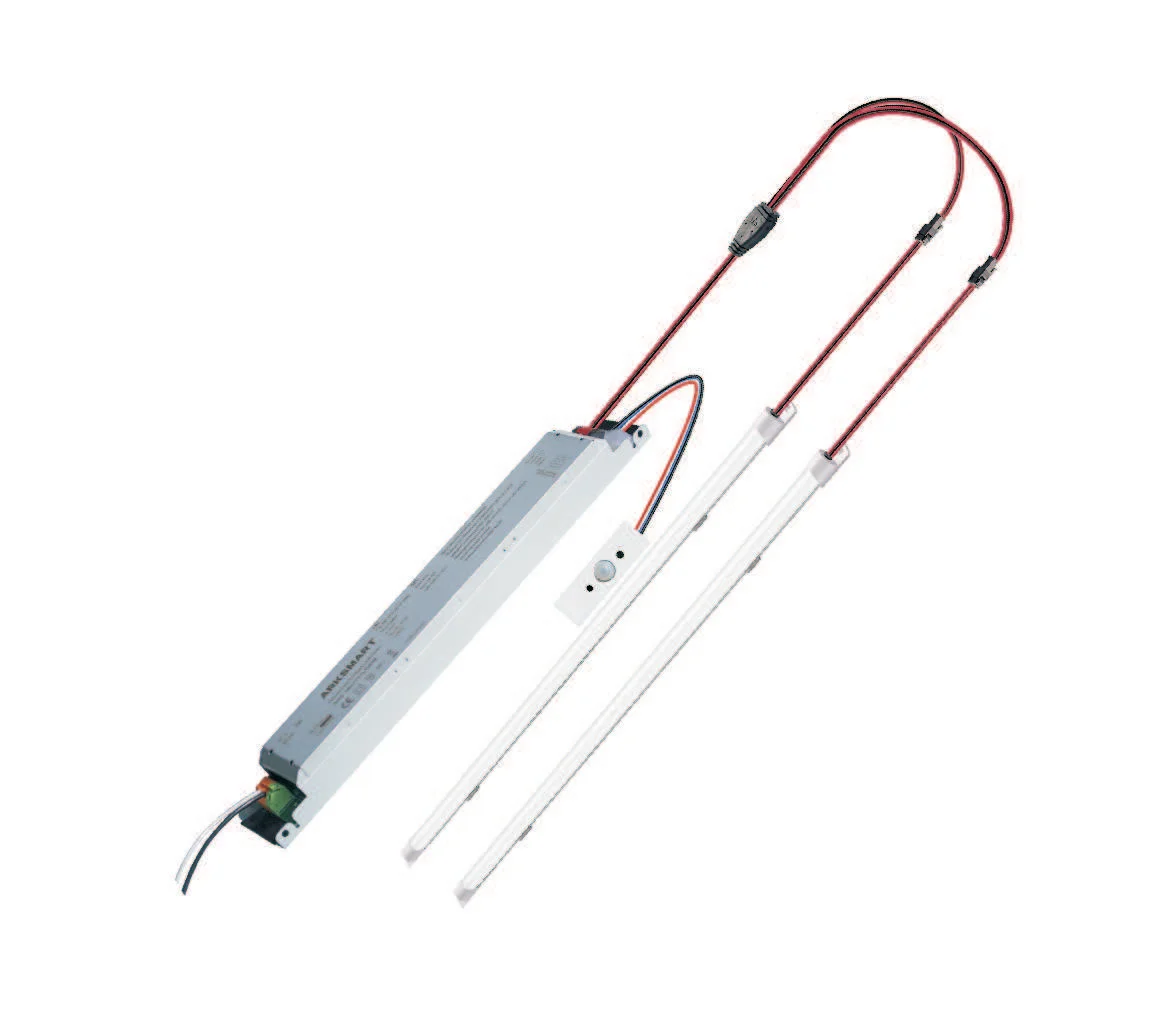

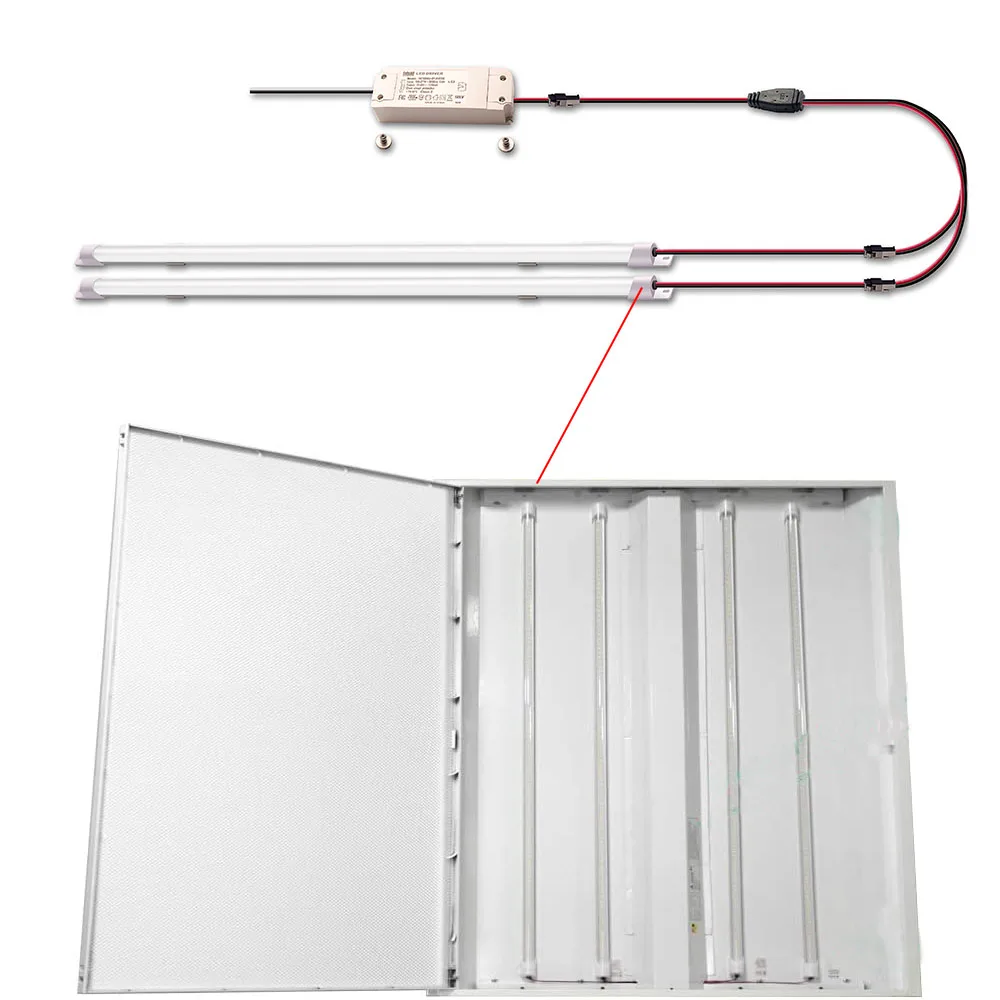

led magnetic linear retrofit kits for 2x4 luminaries 2pcs 4ft strip (18w) with an exteranl driver 36w in total
FEATURES:
- Input at AC100-277V
- 140lm/w with cover
- External driver from 36w

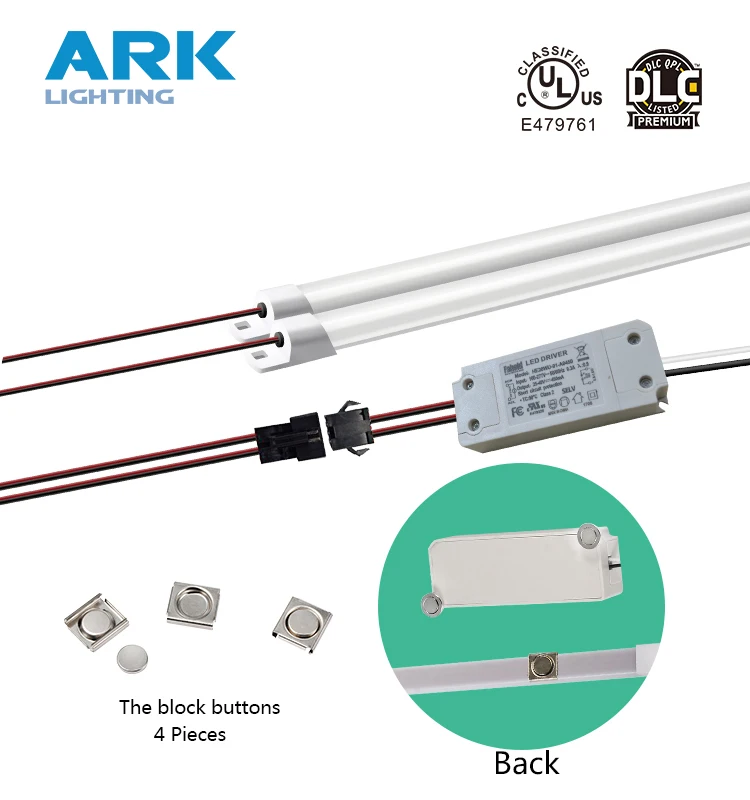

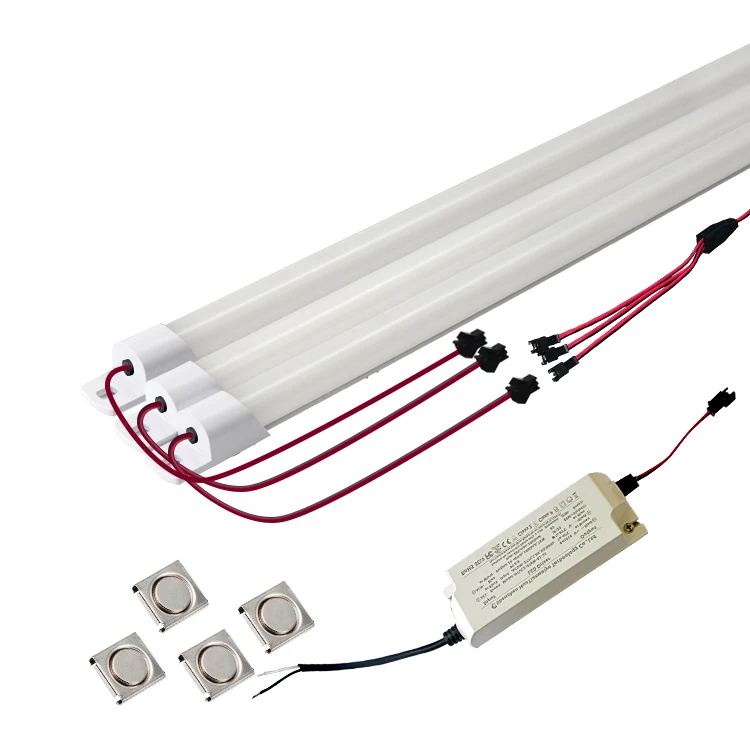

- permanent-magnet and installation hole on both end
- Small size, saving shipping cost.
- Quick connect in 3 mins with magnetic.
- Five years warranty
Configuration:

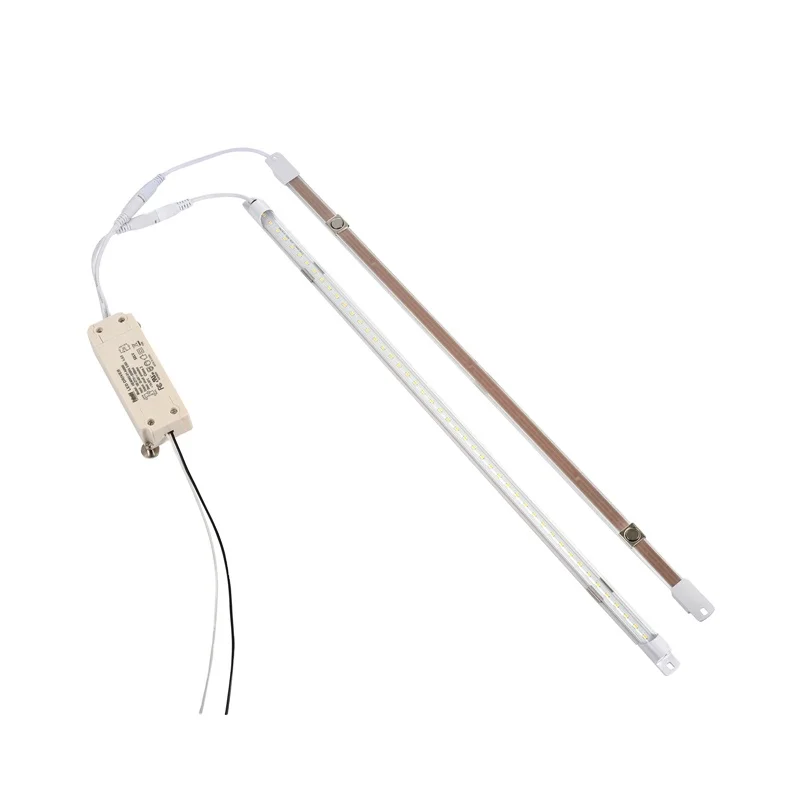

Model | Size | Power | Luminous | Dimmable | CRI | CRI |
ARK/DT/8YXXD106(15D) | 2FT | 8W | 1200LM±10% | 0-10v Dimming | 80+ | 3000K 4000K 5000K 6000K |
ARK/DT/16YXXD206(15D) | 2FT | 16W | 2400LM±10% | 0-10v Dimming | ||
ARK/DT/24YXXD306(15D) | 2FT | 24W | 3600LM±10% | 0-10v Dimming | ||
ARK/DT/32YXXD406(15D) | 2FT | 32W | 4800LM±10% | 0-10v Dimming | ||
ARK/DT/8YXXD106(15N) | 2FT | 8W | 1200LM±10% | NON | ||
ARK/DT/16YXXD206(15N) | 2FT | 16W | 2400LM±10% | NON | ||
ARK/DT/24YXXD306(15N) | 2FT | 24W | 3600LM±10% | NON | ||
ARK/DT/32YXXD406(15N) | 2FT | 32W | 3600LM±10% | NON | ||
Model | Size | Power | Luminous | Dimmable | CRI | CRI |
ARK/DT/18YXXD112(15D) | 4FT | 18W | 2700LM±10% | 0-10v Dimming | 80+ | 3000K 4000K 5000K 6000K |
ARK/DT/36YXXD212(15D) | 4FT | 36W | 5400LM±10% | 0-10v Dimming | ||
ARK/DT/54YXXD312(15D) | 4FT | 54W | 8100LM±10% | 0-10v Dimming | ||
ARK/DT/72YXXD412(15D) | 4FT | 72W | 10800LM±10% | 0-10v Dimming | ||
ARK/DT/18YXXD112(15N) | 4FT | 18W | 2700LM±10% | NON | ||
ARK/DT/36YXXD212(15N) | 4FT | 36W | 5400LM±10% | NON | ||
ARK/DT/54YXXD312(15N) | 4FT | 54W | 8100LM±10% | NON | ||
ARK/DT/72YXXD412(15N) | 4FT | 72W | 10800LM±10% | NON | ||
