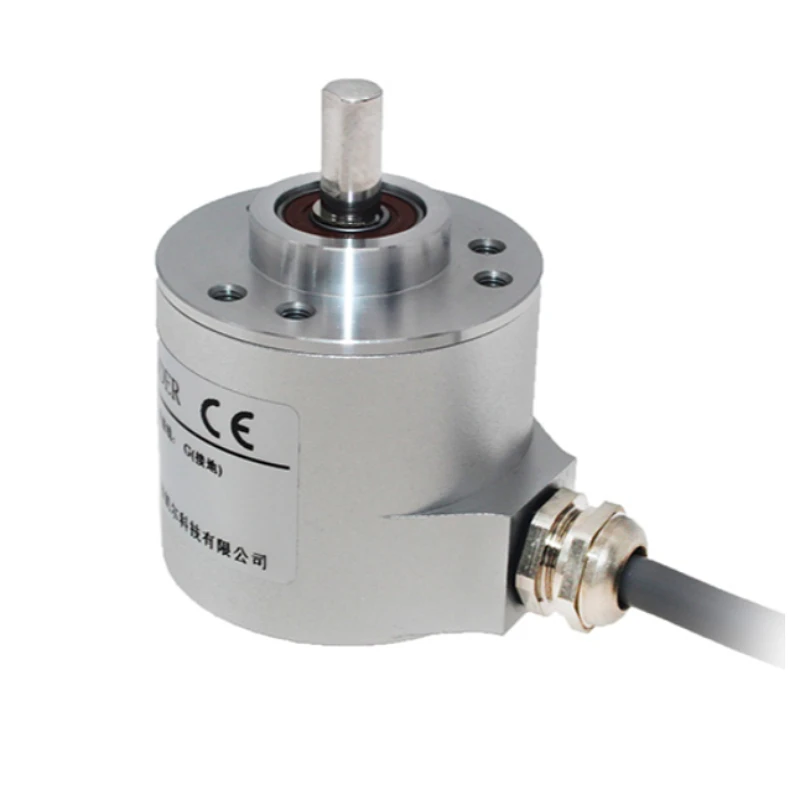

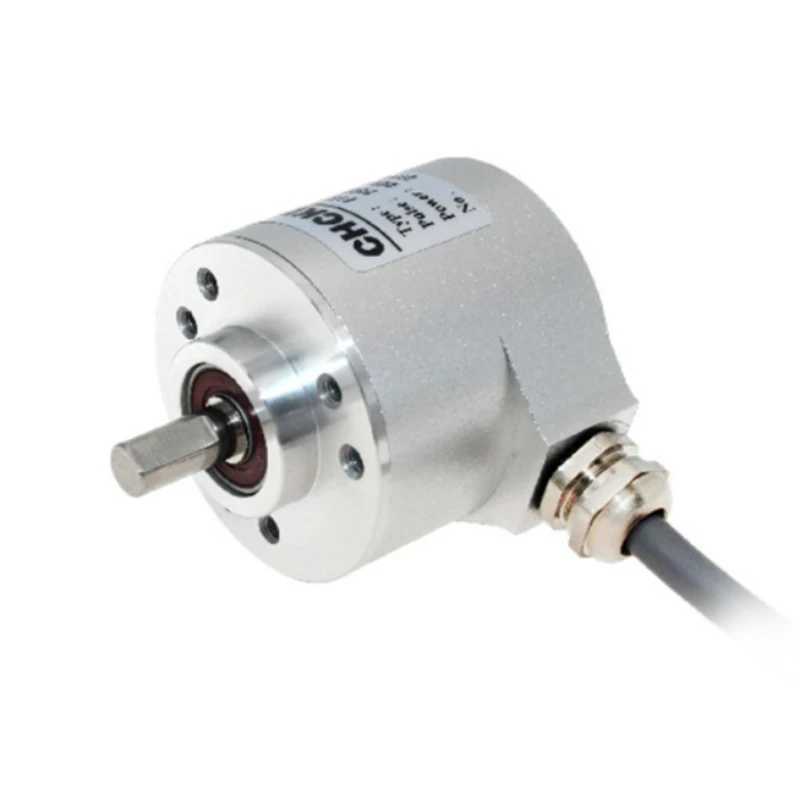

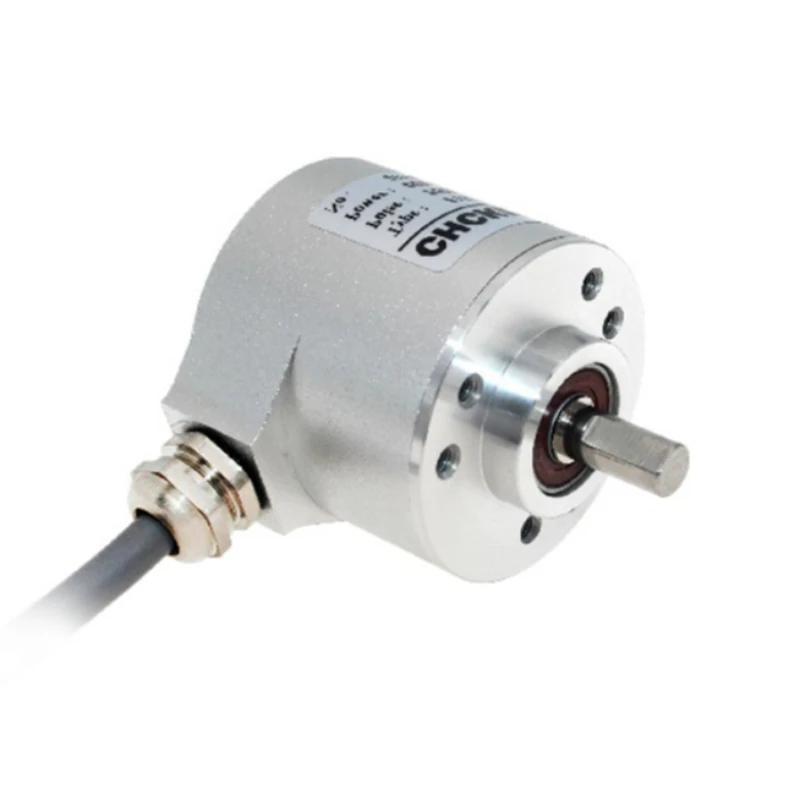

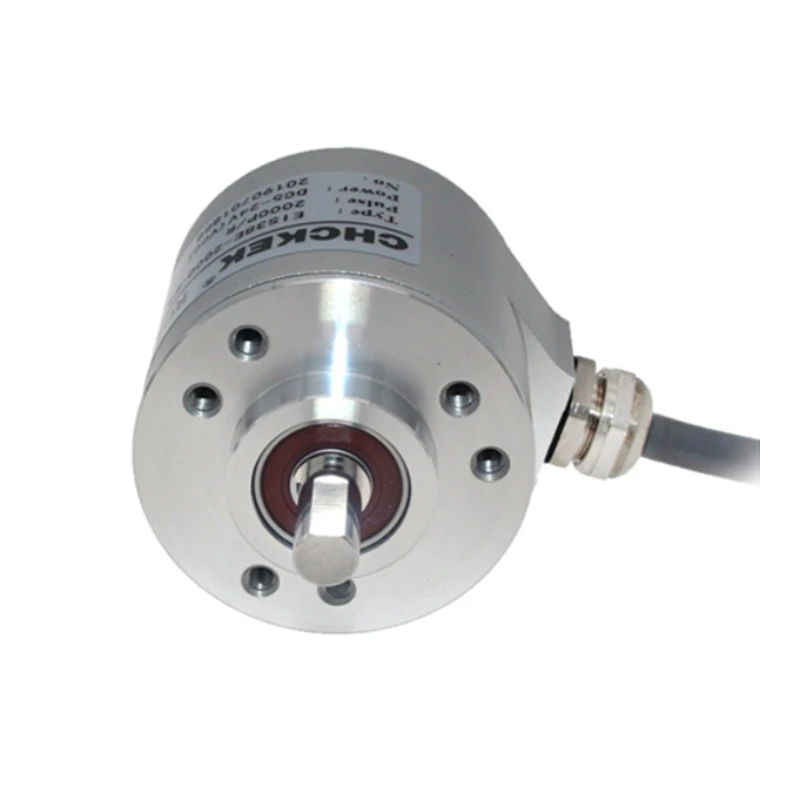

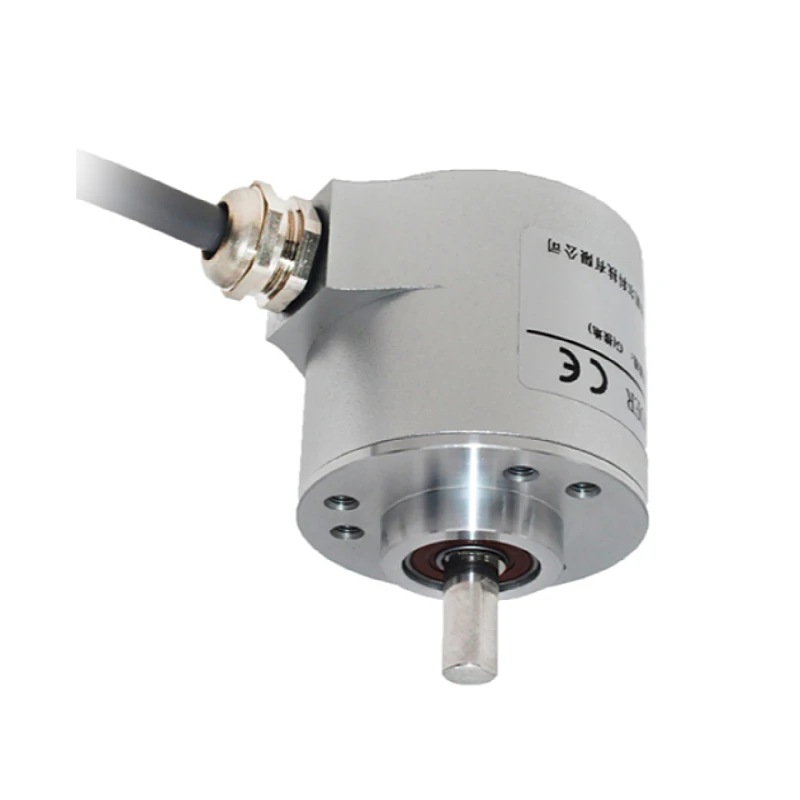

2500 Incremental Rotary Packaging Industry Level Ppr Anti Interference 8Mm Solid Type Puls 38Mm Encoder
- Category: >>>
- Supplier: Nanjing Resonance Intelligent Technology Co. Ltd.
Share on (11000006869844):
Product Overview
Description
Products Description
The absolute rotary encoder detects the rotation angle by outputting a binary code, and the detected angle is an absolute angle. Since each position is absolutely unique, there is no need to use batteries and the position information is maintained even when the power is turned off. In addition to the high detection accuracy, the biggest advantage of this encoder is its easy installation and long service life.
Widely used in textile machinery, stone machinery, wood machinery, packaging machinery, CNC machine tools, motors, construction machinery, elevator door control, industrial automation, etc.
Widely used in textile machinery, stone machinery, wood machinery, packaging machinery, CNC machine tools, motors, construction machinery, elevator door control, industrial automation, etc.
We have a variety of resolutions and output interfaces, welcome to choose!

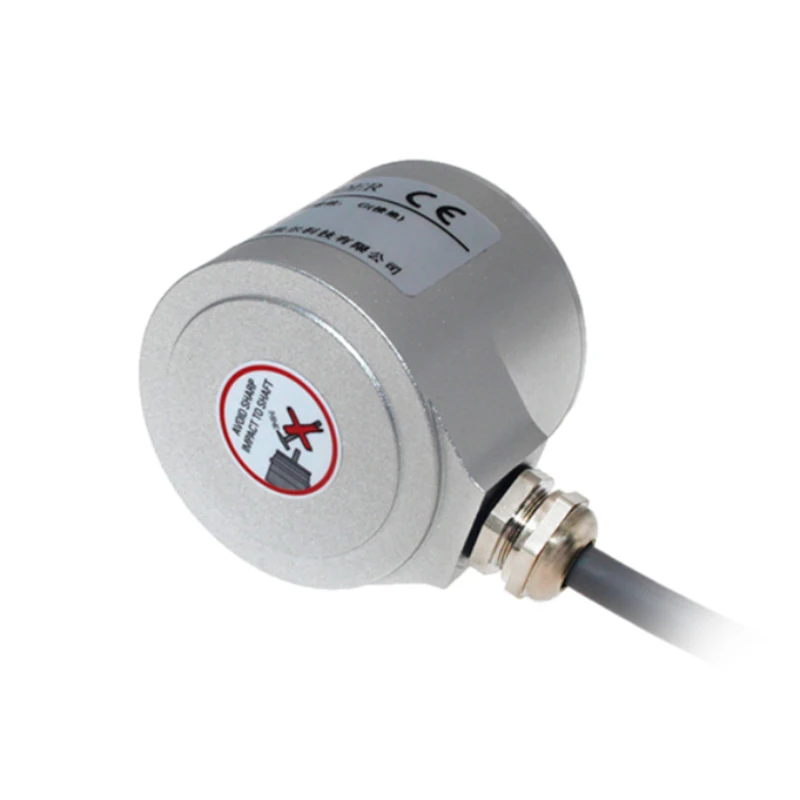

Product number：EIS38E solid encode
Output pulse | ≤5000PPR |
Induction principle | photoelectric type |
Supply voltage | 5VDC± 5%/8-30 V DC±5% |
Current consumption | ≤125mA |
Response frequency | 0-100kHz |
Output mode | NPN open collector/voltage output/complementary output/drive output |
Shaft diameter | ∅6mm,∅8mm |
Protection class | IP54 |
Max. speed | 5000RPM |
Maximum axle load | 20N Axial, 40N Radial |
Starting torque | <0.005n.m |
Anti-shock | 49m/s2 (2G) |
Impact resistance | 980m/s2 (100G) |
Working temperature | -20℃~+75℃ |
Storage temperature | -30℃~+85℃ |
Weight Approx. | about 75G (Without line) |
Product advantages
● Induction principle magnetoelectricity and photoelectricity are optional
● Outer diameter Φ38mm
● Semi-hollow shaft Φ6, Φ8mm
● Maximum resolution of 17 bits (131072) in a single turn, electronic multi-turn is optional
●Working voltage DC5V/DC10-30V
● Protection class IP54
● Various international communication protocols are available
● Reverse polarity protection, surge protection, ESD protection
● Outer diameter Φ38mm
● Semi-hollow shaft Φ6, Φ8mm
● Maximum resolution of 17 bits (131072) in a single turn, electronic multi-turn is optional
●Working voltage DC5V/DC10-30V
● Protection class IP54
● Various international communication protocols are available
● Reverse polarity protection, surge protection, ESD protection

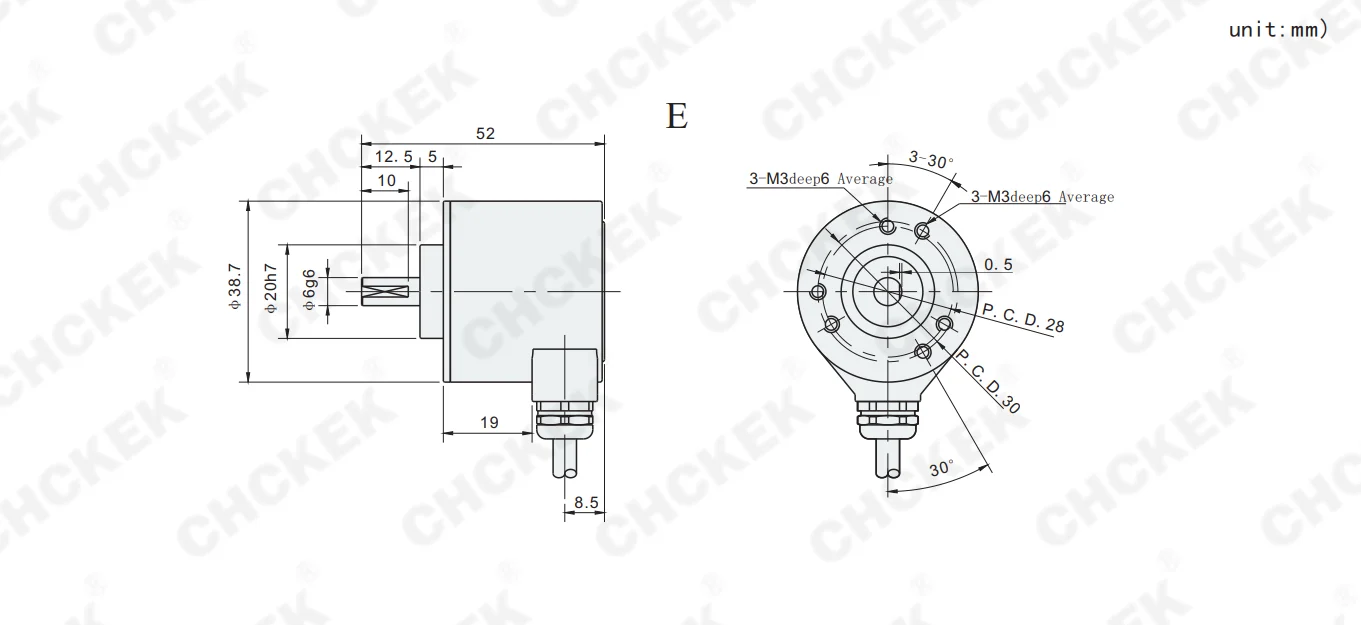

Mechanical drawings

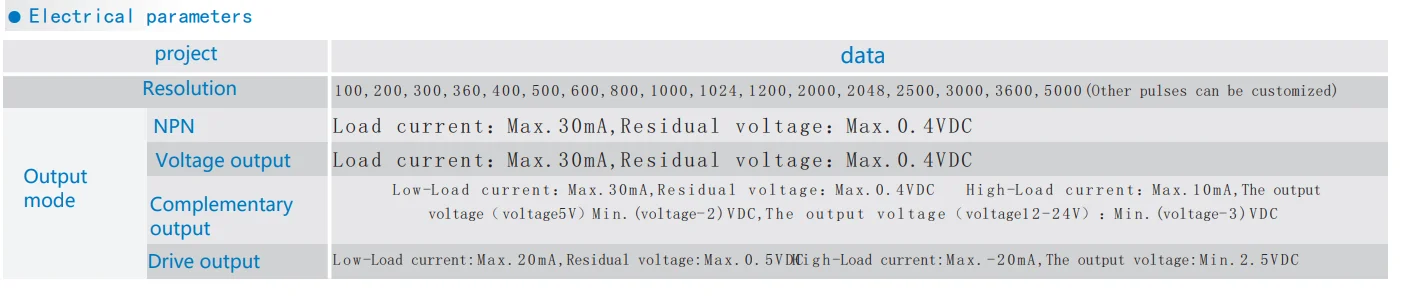

Technical parameters
Wiring Method
Wiring Table
Wire Color | Red | black | yellow | green | white | Orchid |
RS485 | VCC | GND | TXD+ | TXD- | ||
RS422 | VCC | GND | TXD+ | TXD- | RXD+ | RXD- |
SSI | VCC | GND | DATA+ | DATA- | CLR+ | CLR- |
CAN | VCC | GND | CANH | CANL |

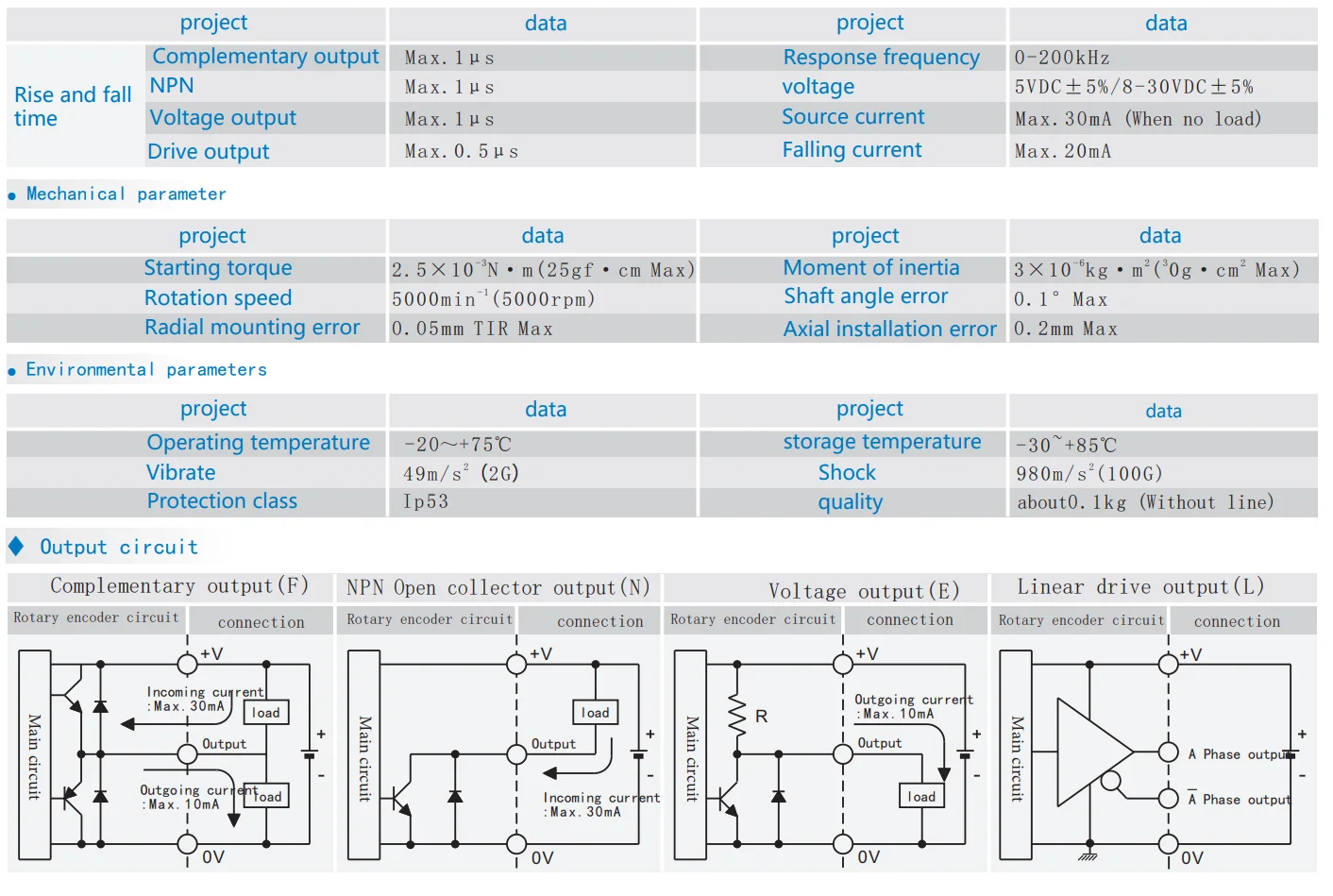

Output interface schematic
Communication Timing Diagram
SSI Timing
