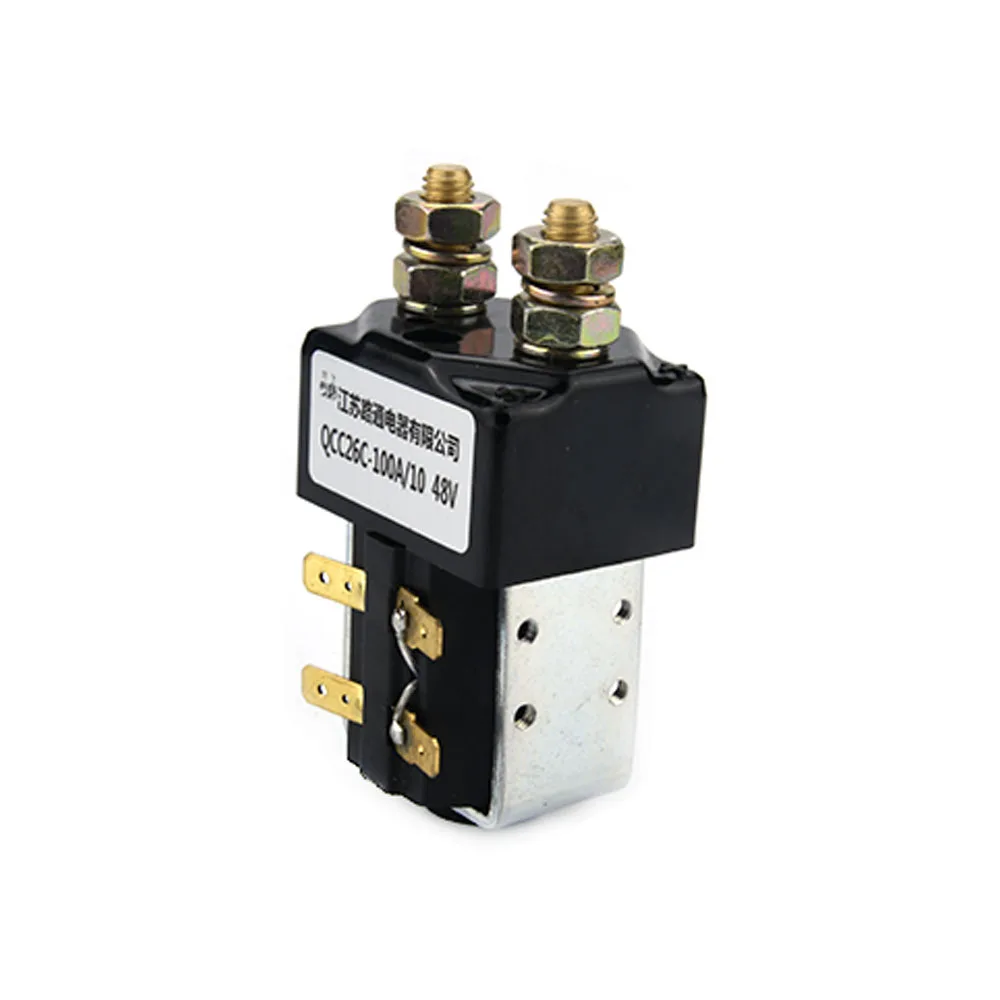

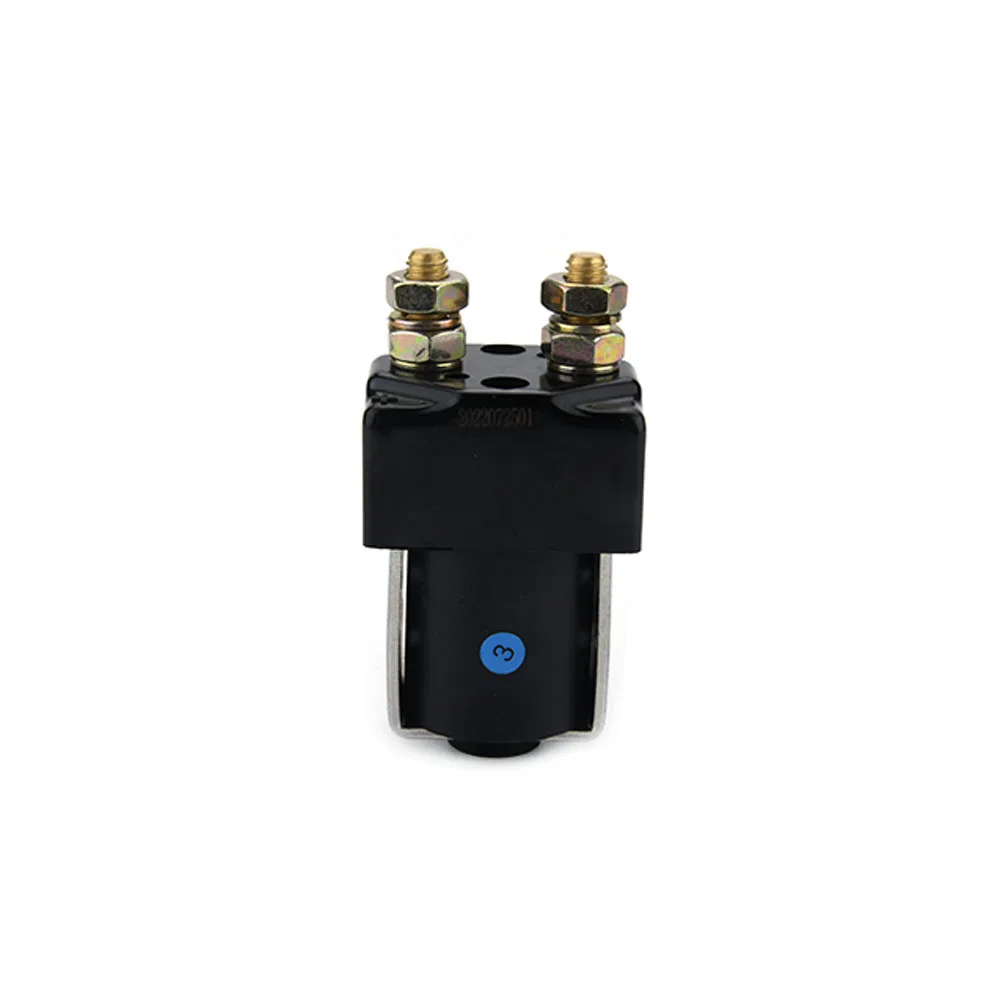

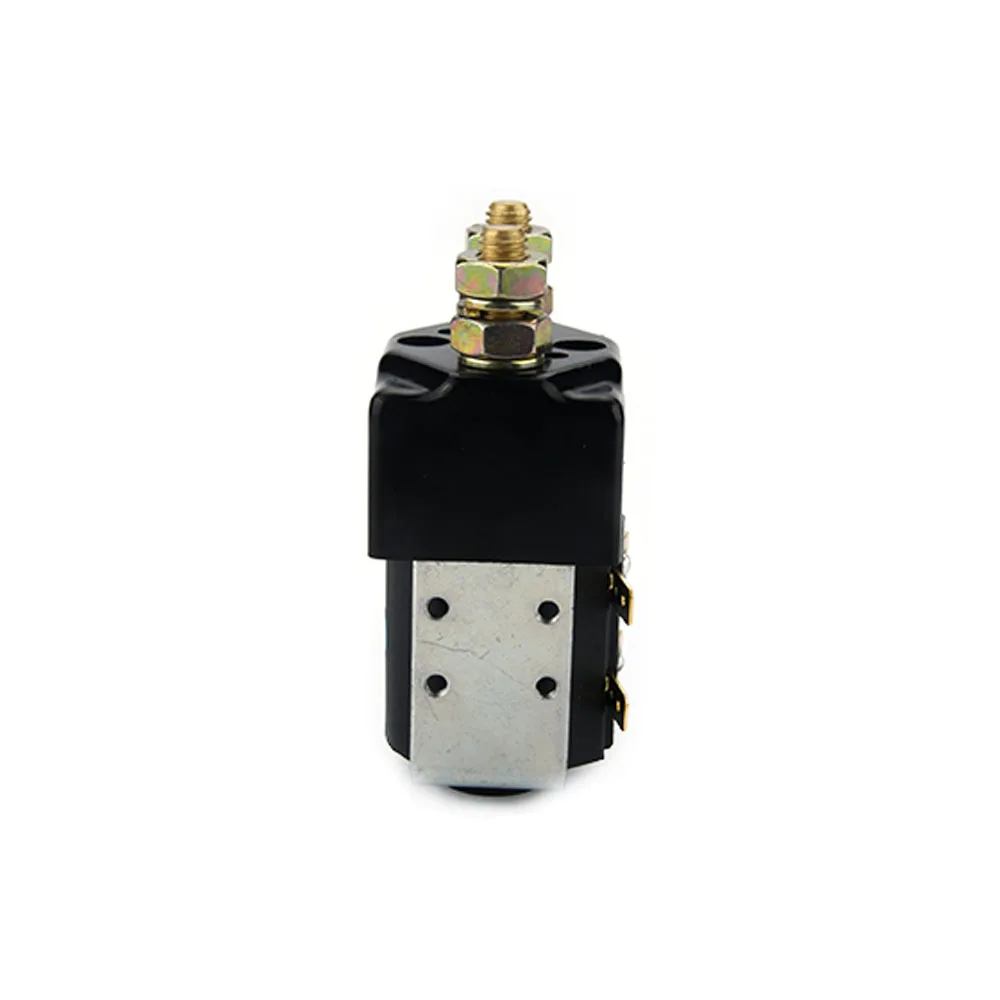

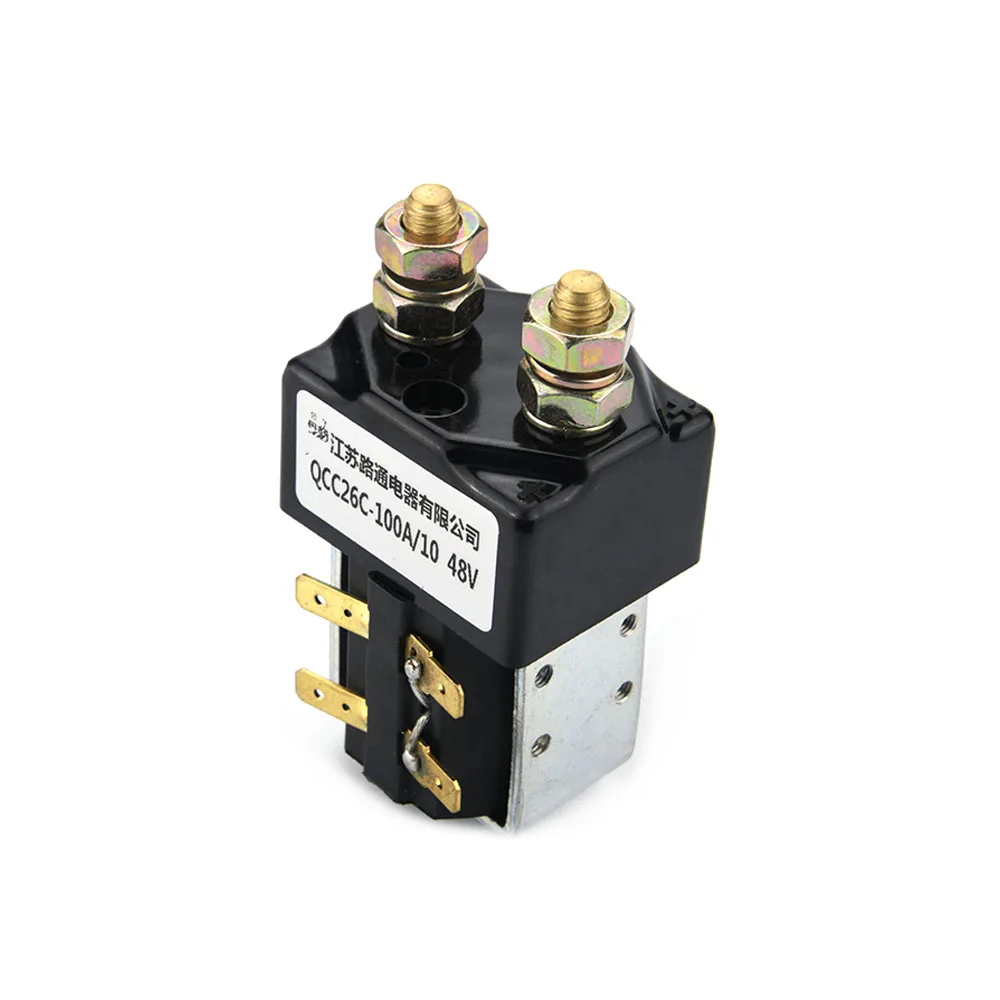

Lutong Customizable 12V 24V 36V 48V 72V 100a Dc Contactor
- Category: >>>
- Supplier: Jiangsu Lutong Electric Co. Ltd.
Share on (11000006906255):
Product Overview
Description

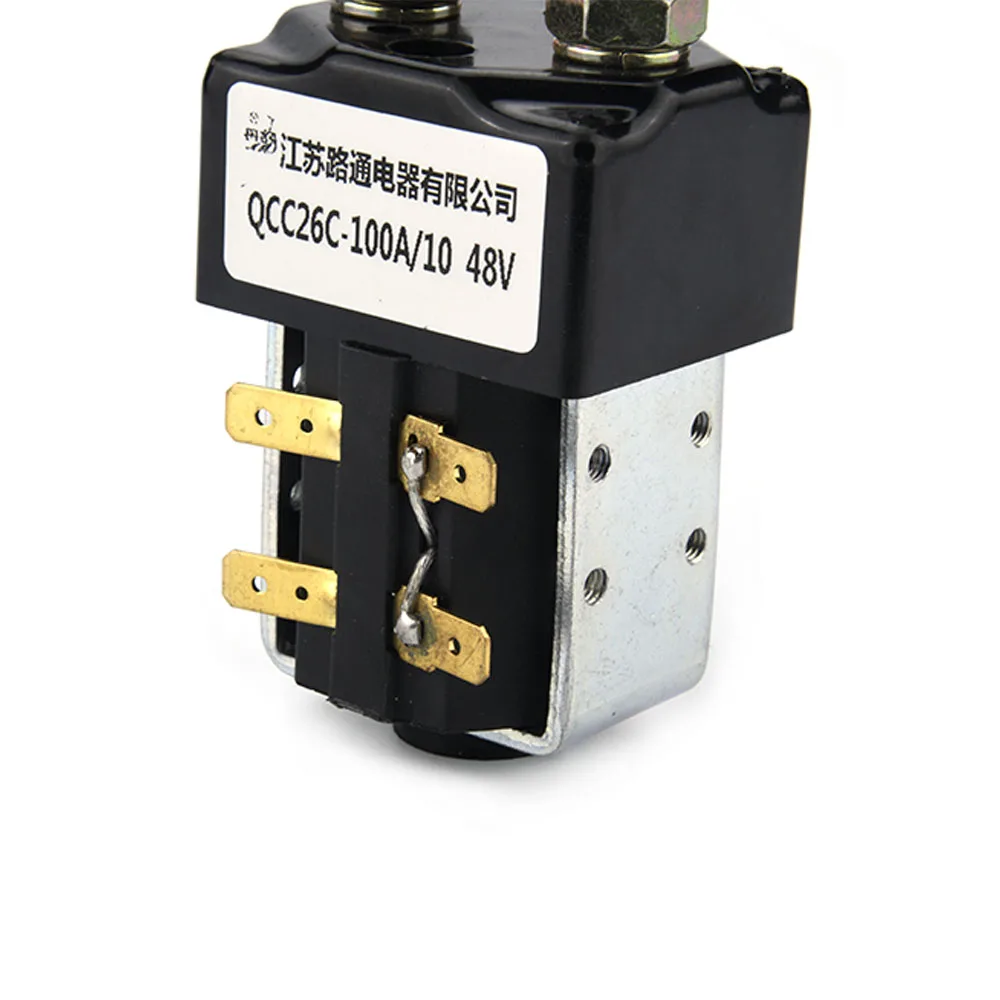

Parameters | QCC26C-100A/10 | ||||||||
Coil rated voltage (DC) | 12 | 24 | 36 | 48 | 72 | ||||
Main contact current rated voltage (DC) | < 48V Without magnetic blow-out | Inductive load 48 Resistive load 60 | |||||||
>48V With magnetic blow-out and polarity | Inductive load 96 Resistiveload 120 | ||||||||
Main contact circuit rated load current (A) | 100A | ||||||||
Coilrated current (A) | 1 | 0.6 | 0.5 | 0.48 | 0.19 | ||||
Cold action voltage (V) | close ≥60% | release ≥5%-30% | |||||||
Max.action time(ms) | close 40 | release 40 | |||||||
Weight (kg) | 0.4 | ||||||||

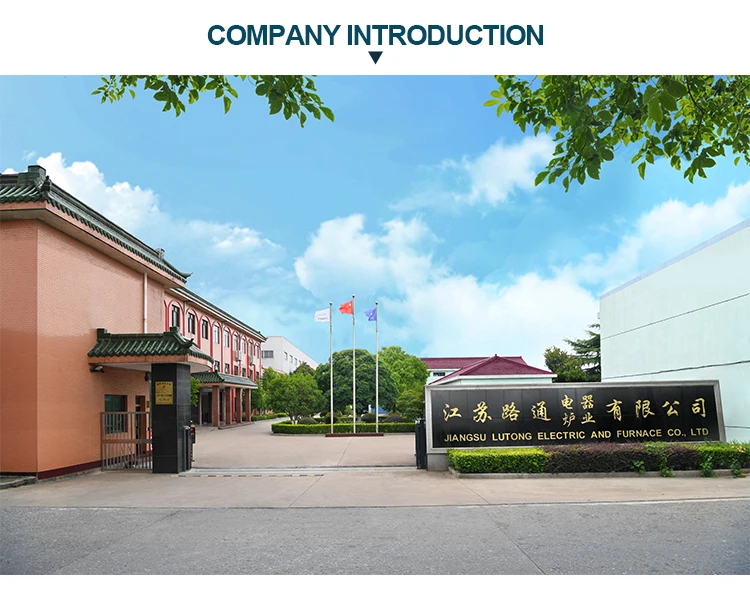

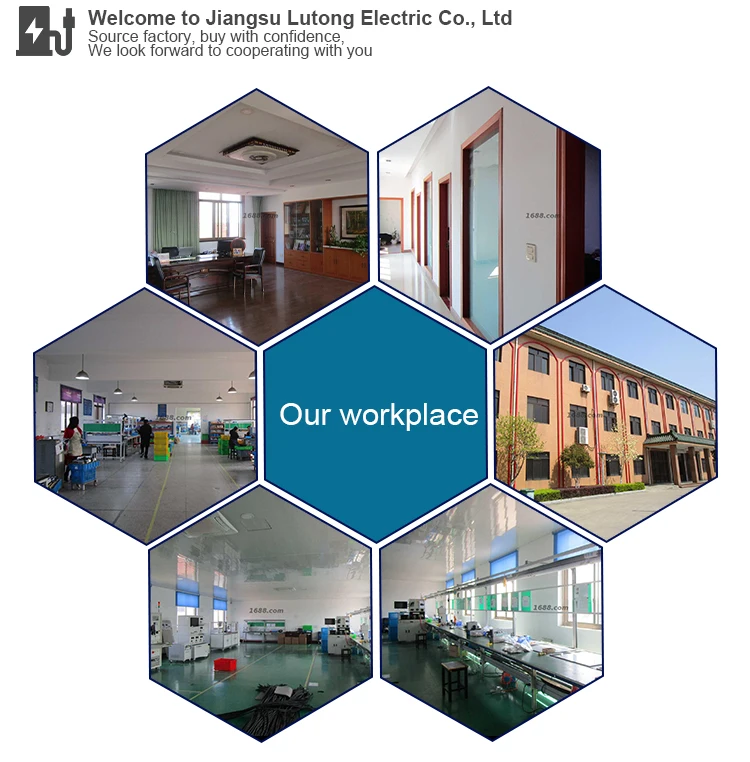

Founded in 1989, Jiangsu Lutong Electric Co., Ltd is in Danyang, a beautiful water town in Jiangsu Province.
The company is committed to the technical research, development, and manufacturing of new energy electric vehicles, charging pileand battery connection system.Lutong have mature and completed industrial chain, from product and molding design and manufacturing, machining, assembly line integration and capabilities of online testing; production line: AC/DC charging plug, AC/DC charging socket, Mode2/3 charging cable assembly.Our company has established the enterprise quality management system in strict accordance with ISO9001 and have IATF 16949 certification. In the strategic environment of energy security, energy saving, low carbon and environment protection, Lutong actively practice science and technological innovation, and the scientific development concept of green environmental protection. The company is committed to providing safe, reliable, low-carbon and environmentally friendly products and services to create a sustainable and harmonious society.
