Single Pole Ac Voltage Relay Differential High Voltage Protection Relay For Pump Controller
- Category: >>>
- Supplier: Chongqing Blue Jay Technology Co. Ltd.
Share on (11000006951671):
Product Overview
Description
Product Description
GEYA Single Phase Monitoring Relay is a device intended for effective voltage automatic control and such equipment as home appliances and other devices in the home and office protection. It is designed for the protection of single-phase load unallowable voltage variations in the mains. They have a wide range of adjustments, including power on time delay for protection on refrigerating, compressor, and air conditioning equipment.
GEYA Single Phase Voltage Monitoring Relay provides for automatic load energizing after voltage parameters recovery within predetermines time relay. The relays are compact in size and weight. They can be utilized both as independent switching devices and as controls for other switching devices, like magnetic starters.
GEYA Single Phase Monitoring Relay performs the function of protection against voltage drops. It is designed to de-energize an industrial appliance single phase in case of inadmissible voltage variations in the mains with subsequent automatic re-energizing after the circuit parameters recovery. Loads are connected to the relay either directly via relay terminals or through a magnetic starter, depending on the wattage.
GEYA Single Phase Voltage Monitoring Relay provides for automatic load energizing after voltage parameters recovery within predetermines time relay. The relays are compact in size and weight. They can be utilized both as independent switching devices and as controls for other switching devices, like magnetic starters.
GEYA Single Phase Monitoring Relay performs the function of protection against voltage drops. It is designed to de-energize an industrial appliance single phase in case of inadmissible voltage variations in the mains with subsequent automatic re-energizing after the circuit parameters recovery. Loads are connected to the relay either directly via relay terminals or through a magnetic starter, depending on the wattage.

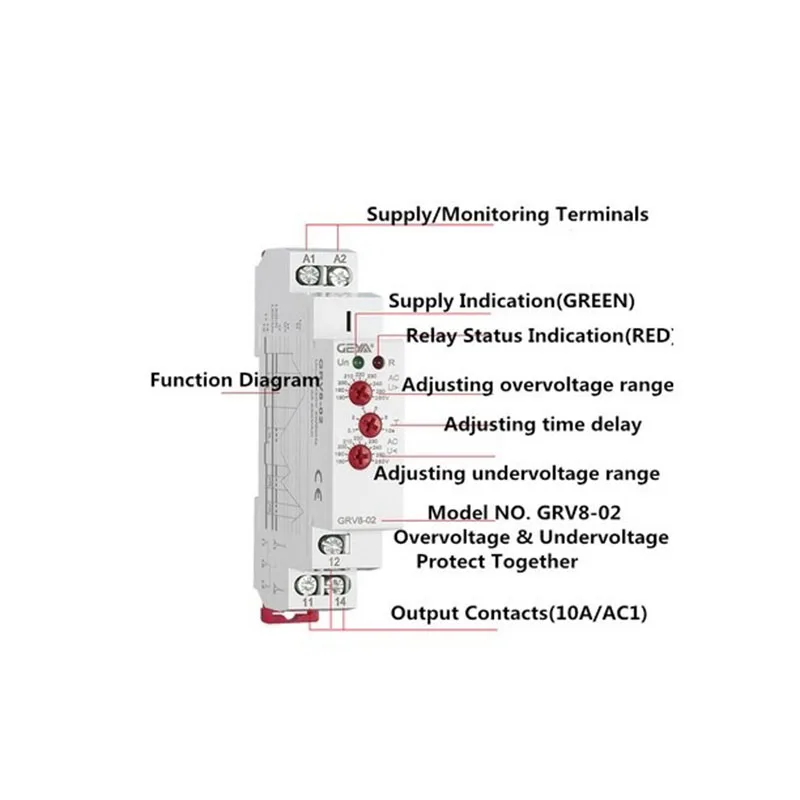

Features
* Controls its own supply voltage (True RMS measurement)
* User may select operation mode through knob.
* Voltage measurement accuracy<1%.
* Relay status is indicated by LED.
* 1-MODULE, DIN rail mounting.
* User may select operation mode through knob.
* Voltage measurement accuracy<1%.
* Relay status is indicated by LED.
* 1-MODULE, DIN rail mounting.
Specification
Model | GRV8-02 |
Function | Monitoring voltage |
Supply terminals | A1-A2 |
Rated supply voltage | DC12V, AC/DC24V-48V, AC/DC110V-240V, AC220V |
Rated supply frequency | 45Hz-65Hz |
Hysteresis | 5%~20% 3%fixed |
Supply indication | green LED |
Time delay | Adjustable 0.1s~10s, 10% |
Measurement error | ≤1% |
Run up delay at power up | 0.5s time delay |
Knob setting accuracy | 10% of scale value |
Reset time | 1000ms |
Temperature coefficient | 0.05%/℃,at=20℃(0.05%℉, at=68℉) |
Output | 1xSPDT |
Current rating | 10A/AC1 |
Switching voltage | 250VAC/ 24VDC |
Min. breaking capacity DC | 500mV |
Output indication | Red LED |
Mechanical life | 1x107 |
Electrical life(AC1) | 1x105 |
Operating temperature | -20℃~55℃ (-4℉~131℉) |
Storage temperature | -35℃~75℃ (-22℉~158℉) |
Mounting/DIN rail | Din rail EN/IEC 60715 |
Protection degree | IP40 for front panel |
IP 20 terminals | |
Overvoltage category | Ⅲ |
Pollution degree | 2 |
Max. cable size (mm2) | Solid wire max 1x2.5 or 2x1.5 |
With sleeve max.1x2.5(AWG 12) | |
Tightening torque | 0.8Nm |

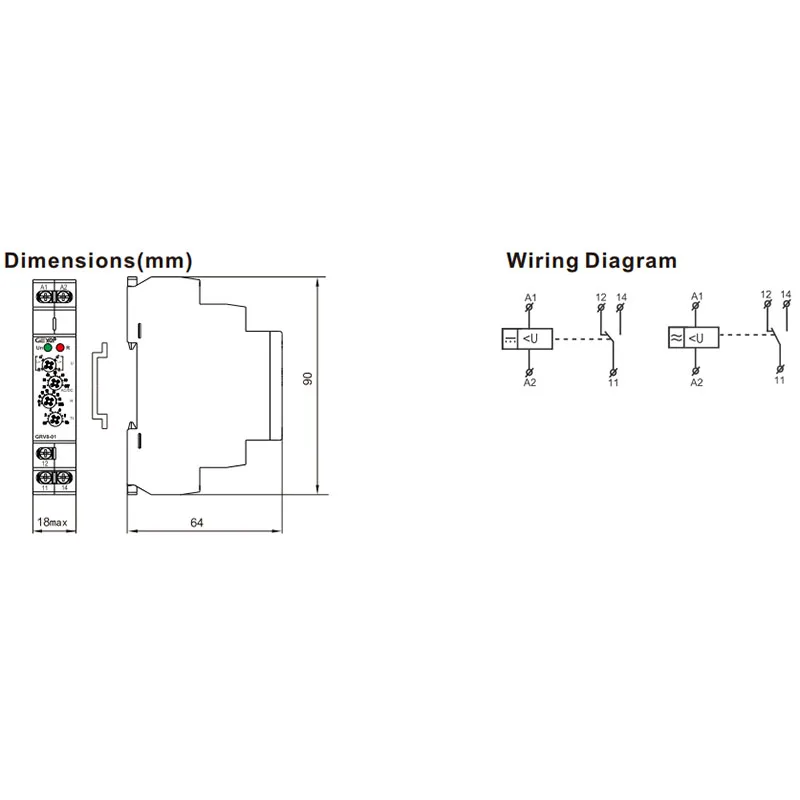

Dimensions | 90 x 18 x 64mm |
Weight | 59g |
Standard | EN 60255-1, IEC60947-5-1 |
Note: If you have any puzzles or requests about this product (including model number, data sheet or any other aspects), please contact us immediately.
Application
* Protect electrical equipment and motors from over-voltage and under-voltage.
* Normal/emergency power supply switching.
* Normal/emergency power supply switching.
