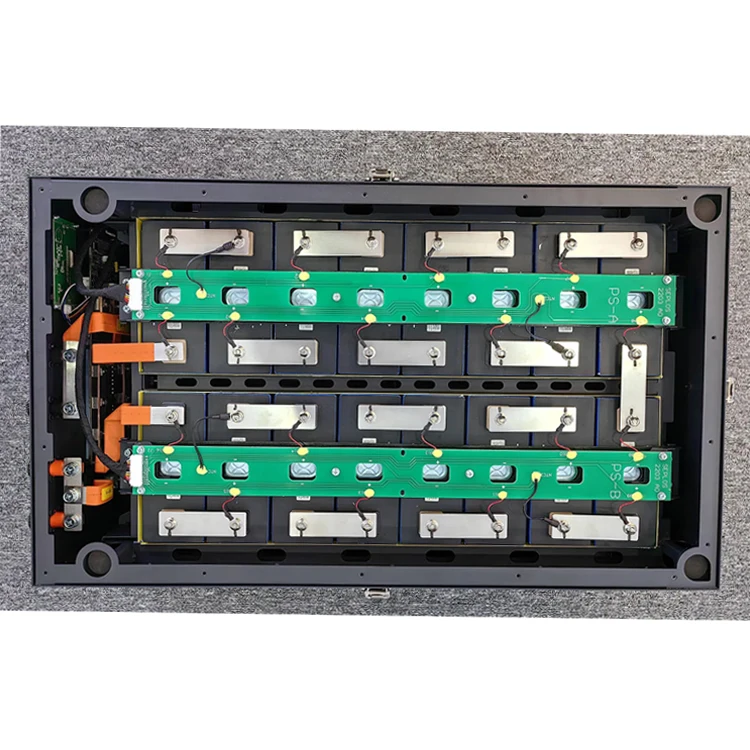

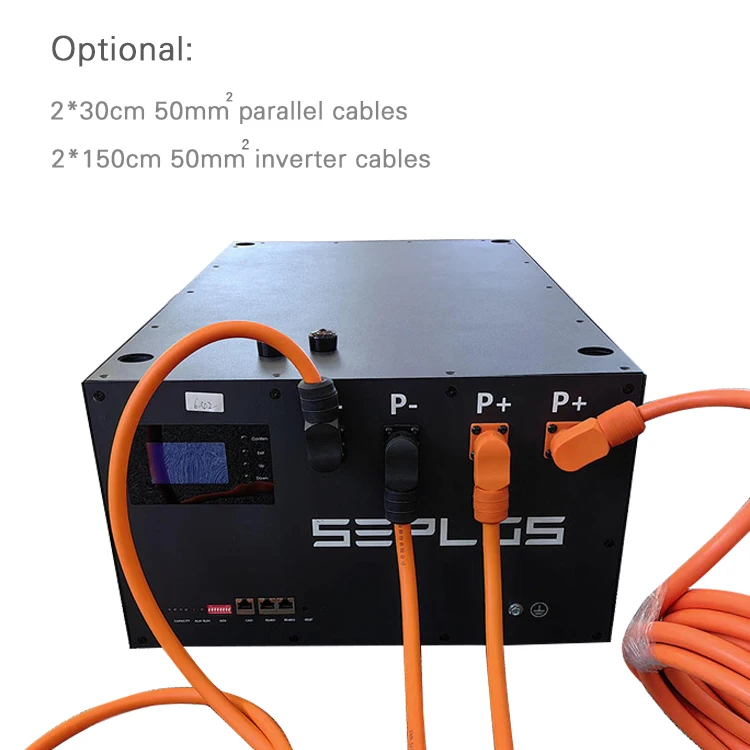

SEPLOS MASON 48v 280/302/310Ah V3 Version diy box for solar energy system lithium seplos mason diy unit 310 seplos diy kit
- Category: >>>
- Supplier: Shenzhen Xingzhijie Electronic Co. Ltd.
Share on (11000006956525):
Product Overview
Description
Product Description
Product name | SEPLOS MASON 48v 280/302/310Ah diy unit for solar energy system lithium seplos mason diy unit 310 seplos diy kit | |
Basic Paramenters | MASON-280 | |
Nominal Voltage(V) | 51.2V | |
Nominal Capacity(Ah) | 280Ah @0.5C discharge current 25±2℃ | |
Nominal Power(wh) | 14.3kwh | |
Dimension(mm) | 750*440*251mm | |
Weight (kg) | DIY BOX=28.5KG,DIY BOX with cells=112±5kg | |
Discharg Cut-off Voltage(V) | 41.6v | |
Charge Voltage(V) | 57.6v | |
Continuously Charge/Discharge Current(A) | 140A@25±2℃(Recommended) | |
Max Standard charge/discharge Current | 200A@25±2℃ | |
Working Temperature | 0-50℃(Charge) | |
(-10——50℃)Discharge | ||
(-20——55℃)Storage | ||
SOC Range | 5%-100% | |
Recommended SOC Range | 15%-95% | |
Humidity | 10%-85% | |
IP level | IP 20 | |
Certificates | CE, ROHS, MSDS, UN38.3 | |
Our BMS is compatible with Growatt, Goodwe, Sofar, SMA, Victron, DEYE, Luxpower, Sermatec, Renac, TBB Power, Solis, Foxess, and IMEON inverters. Support max. 16 connected in parallel | ||
1.Q:What are the advantages of your company?

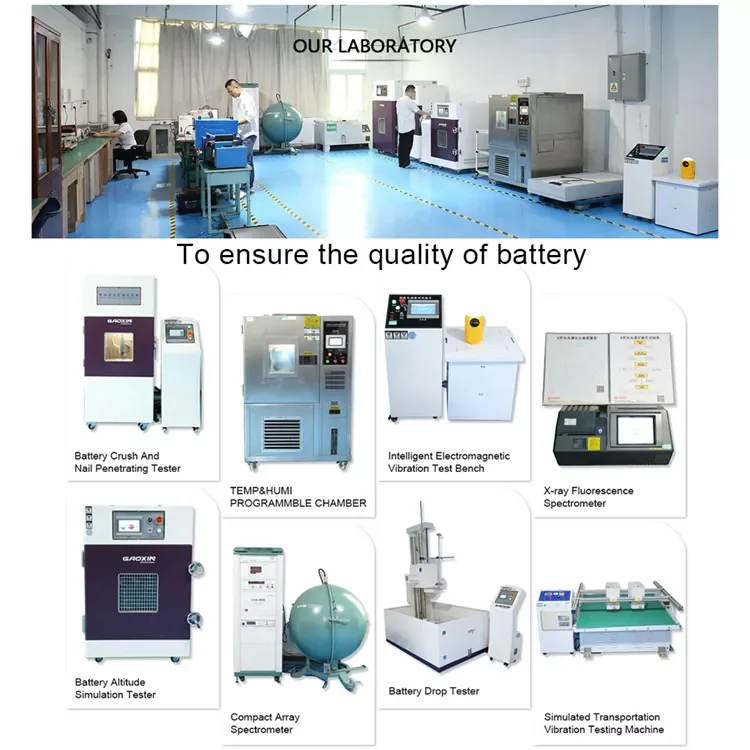

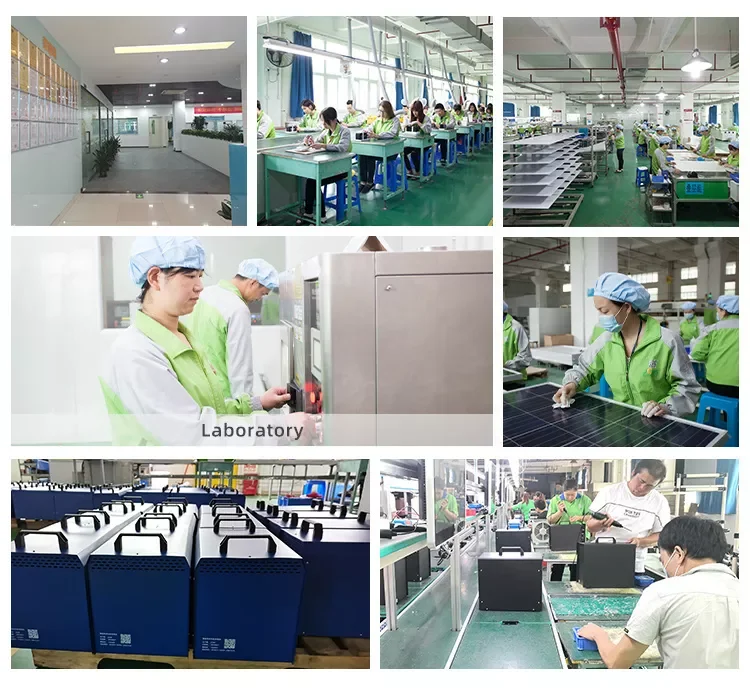

A:Strong R & D team, independent R & D and production of main parts, to control product quality very strictly.
2.Q:Can you supply OEM &ODM service ?
A:Yes,we have R&D team and need MOQ.
3.Q:What kind of certificates your products have acquired ?
A:Most of our solar products have acquired CE, FCC, UL and PSE certificates, which is able to satisfy most country’s importing requirements.
4.Q. What about the lead time?
A:Sample needs 5-10 days, mass production time needs 25-45days.
5.Q:How do you ship the goods since they are high capacity battery ?
A:We have long-term cooperated forwarders who are professional at battery shipment.
6.Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
7.Q:Can your machines carry refrigerators, coffee makers, and electric kettles?
A:Please read the product manual carefully for details. As long as the Noninductive load not over our rated load.
8.Q:Does your portable power station have UPS function?
A:The portable power station has no UPS function, while the home systems has UPS function.
9. Q:Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
10.How long is the warranty of your products? How to guarantee the after-sale services?
A:We guarantee most of our products for one year,the solar panel for 5 years. We will prepare 3‰ to 5‰ accessories for easy damage parts. We will help you solve all the technology problems through email,phone,video...
