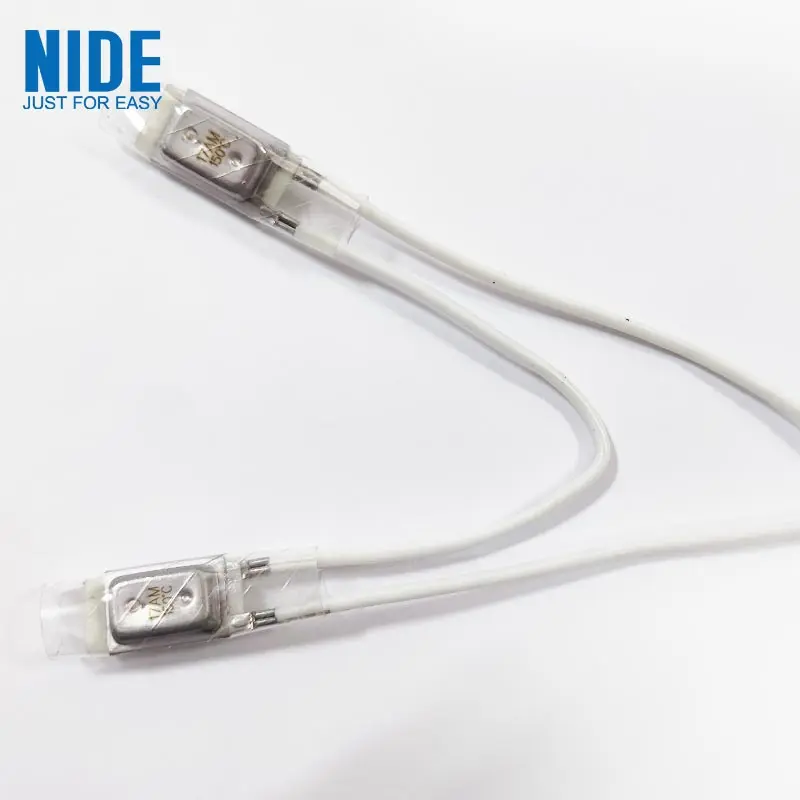

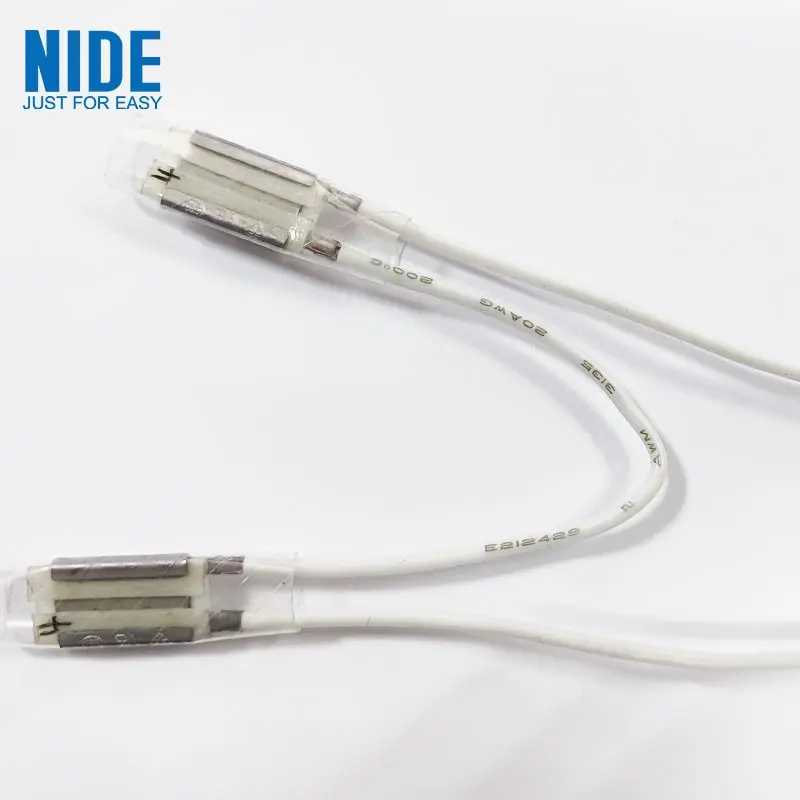

17AM Bimetal Series Thermal Protector 3 WiresTemperature Control Switch

The 17AM three wires Thermal protector is 10A, 135±15 Degree on, 150±5 Degree off, max.500V.

17AM thermal protector prevents overheating in a variety of household,industrial and commercial products. We can produce various lead wires to meet customer application needs for overall length, wire type, wire size, terminated connection and stripped length requirements. It is a miniature, snap-acting, thermally operated device that is a proven performer in protection technology.

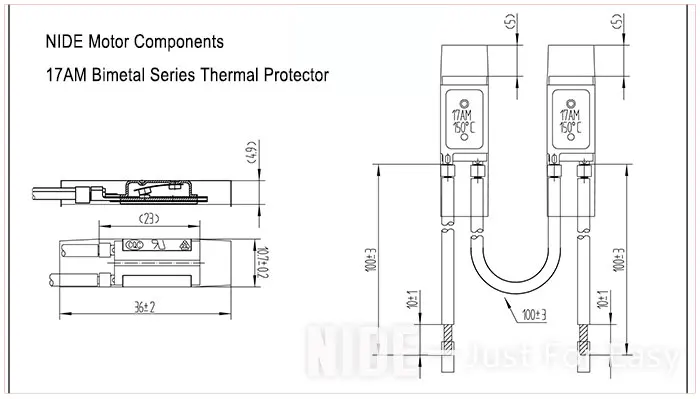

Bimetal Series Thermal Protector Data

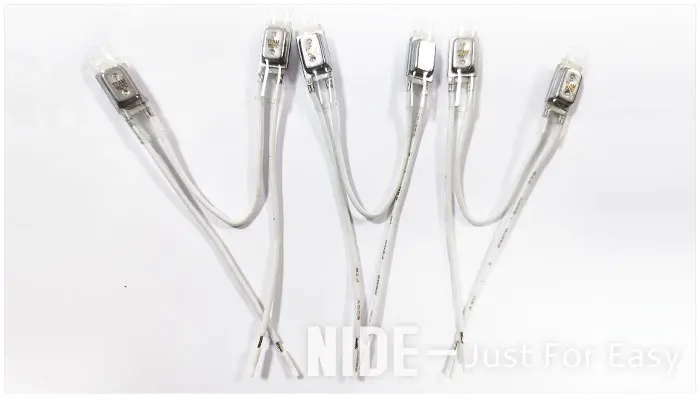

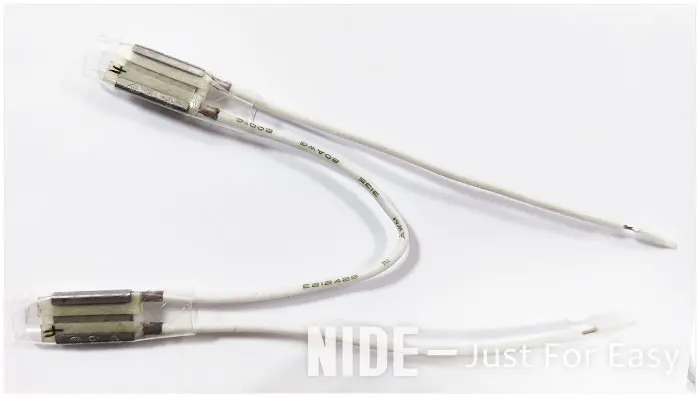

Bimetal Series Thermal Protector Picture

5 Notes:

5.1 The heating rate of action temperature detection should be controlled to 1 °C/1min;

5.2 The protector shell shall not withstand strong impact and pressure during use.

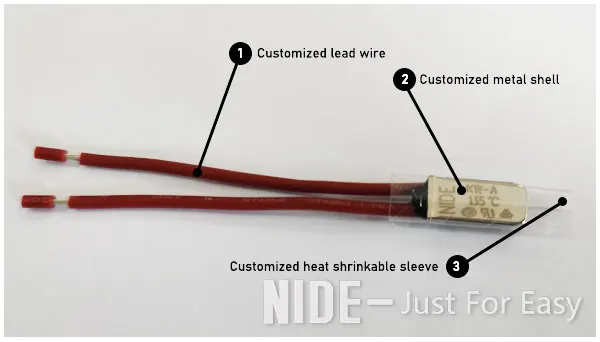

Customized Thermal Protector :

1. Customized lead wire: Customized wire material, length and color according to customer needs

2. Customized metal shell: Customize different material shells according to customer needs, including plastic shells, iron shells, stainless steel shells, and other metal shells.

3. Customized heat shrinkable sleeve: Customize different high temperature resistant polyester heat shrinkable sleeves according to customer needs

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
