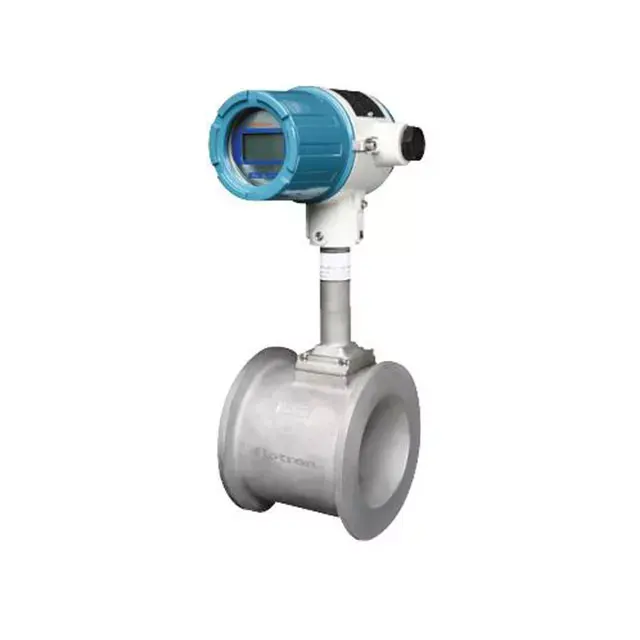

Vortex Flowmeter

  Introduction
Vortex flowmeter has a sensor that incorporates a piezo-electric element. Meter has a trigonal prism (delta body) that is perpendicular to flow direction of fluid. It has a karman’s vortex that is
proportioned to the velocity of fluid in the downstream of the trigonal prism (delta body). The piezo
electric element sensor picks up the karman’s vortex, and the number of karman’s vortex is
transformed to flowrate.
The meter is equipped with intelligent functions, including various compensation computation
functions, readings of ranges and various co-efficients, setting, charging, self-diagnosis, and loop check. It also has a communication function that utilizes a smart communication unit and a general purpose Window PC.

Features
1. Measures the flowrate of steam, gas, and low viscosity fluid with high accuracy.
2. It measures flow range and high temperature range.
3. The piezo electric element is completely blocked fluid, so durability is high.
4. It has no moving parts, resulting in a low percentage of operational problems.
5. It is suitable for energy saving meters with very low pressure drop.
6. Applies 2-wires transmission system for cost reduction and system simplification.
7. Data setting, changing, self-diagnosis, and loop check are easily performed with  communication system.
8. Maintenance operations such as range and parameter setting and calibration can be performed.

Spec
LCD DISPLAY
Size : 15A(1/2B) to 300A(12B)
Flow Range : 0.3 ~ 2500 m^3/h
Power : 12~35V DC
Accuracy : ±1.0%

 Shipping from : Republic of Korea
