Bi spectrum thermal and optical infrared thermal imaging camera smoking & fire point detection security thermal imaging camera
- Category: >>>
- Supplier: Shenzhen VeeZoom Technology Corporation
Share on (11000007096761):
Product Overview
Description

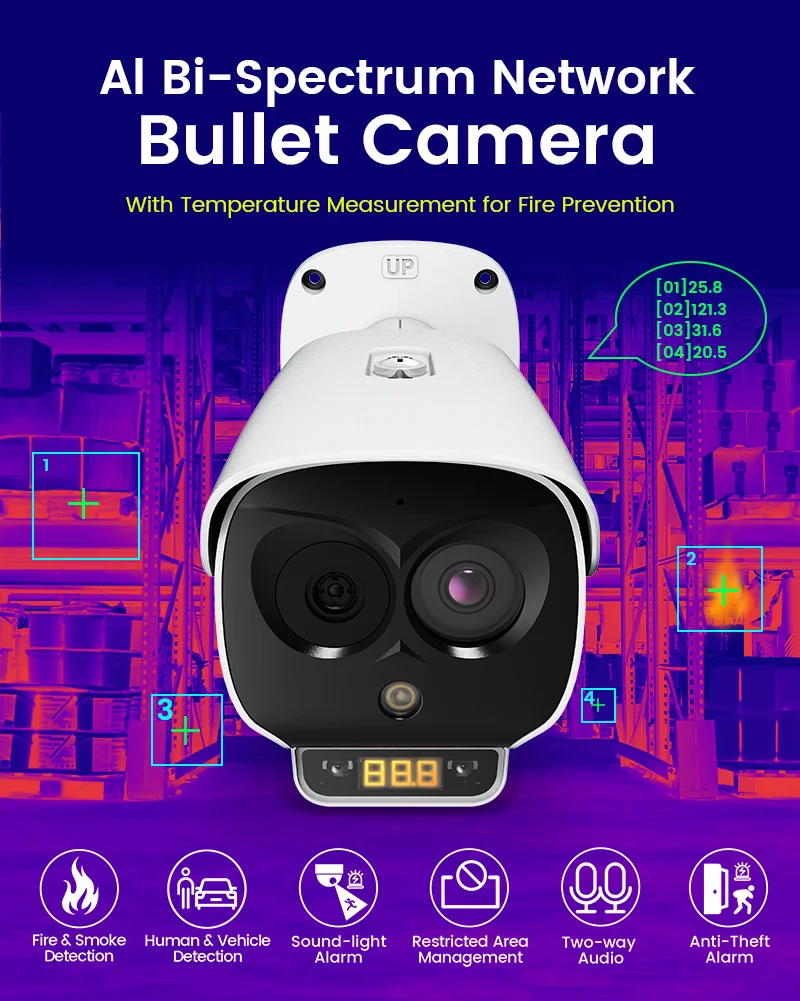

Bi-spectrum thermal and optical infrared thermal imaging camera smoking & fire point detection security thermal imaging camera
Outstanding Features：
> Powered by deep learning technology
> Intelligence Analysis: Smoker detection, Smoke and Flame detection, Fire Point detection

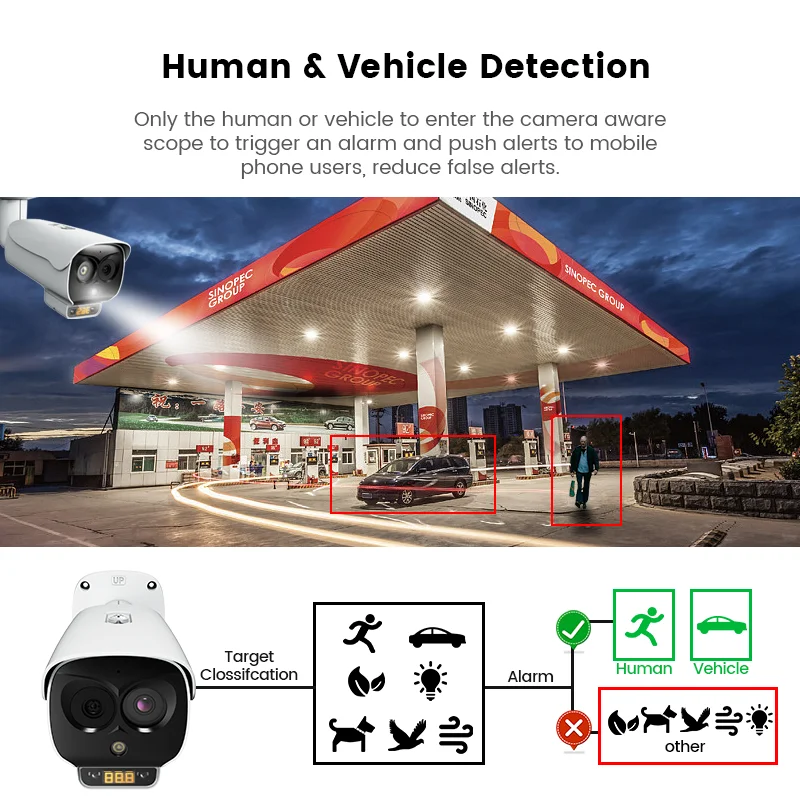

> Advanced Function: Temperature measurement, human detection and vehicle detection
> Smart sound-light alarm, support white light flashing and horn warning
> Thermal Lens: F1.0, 7 mm/8 mm/10 mm fixed lens optional
> Intelligence Analysis: Smoker detection, Smoke and Flame detection, Fire Point detection
> Advanced Function: Temperature measurement, human detection and vehicle detection
> Smart sound-light alarm, support white light flashing and horn warning
> Thermal Lens: F1.0, 7 mm/8 mm/10 mm fixed lens optional
> Visible Lens: 8 mm fixed lens
> Support 3 temperature measurement rule types (Spot, Line, Area)
> Uncooled VOx Micro bolometer with 256×192 resolution
> Support thermal + optical Bi-spectrum
> Image processing technology: DVE, 3D DNR, Defog, WDR
> Smart IR distance up to 55m
> Support I/O alarm, RS485, Micro SD card, up to 256G
> DC12V/DC24V, PoE power supply
> Support 3 temperature measurement rule types (Spot, Line, Area)
> Uncooled VOx Micro bolometer with 256×192 resolution
> Support thermal + optical Bi-spectrum
> Image processing technology: DVE, 3D DNR, Defog, WDR
> Smart IR distance up to 55m
> Support I/O alarm, RS485, Micro SD card, up to 256G
> DC12V/DC24V, PoE power supply
Product Description
Specification
Thermal Camera | |
Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
Resolution | 256×192, Image can be scaled up to 704×576 |
Pixel Pitch | 12um |
Spectral Range | 8~14um |
Thermal Sensitivity (NETD) | < 50mK |
Lens Type | Fixed, F1.0 |
Focal Length | 7 mm /8mm /10mm |
Focus Control | Free focus |
Visible Camera | |
Image Sensor | 1/2.7" CMOS |
Effective Resolution | 2880(H)×1620(V) |
Shutter Speed | 1/5 ~ 1/20,000s |
Wide Dynamic Range | True WDR 120dB |
Min. Illumination | Color: 0.001Lux @(F1.2, AGC ON) B/W: 0.003Lux @(F1.2, AGC ON) |
S/N Ratio | More than 55dB |
Focal Length | 8mm |
Angle of View | H: 40°, V: 20° |
Illuminator | |
IR Distance | Up to 55m |
White Light | Strobe light |
Video and Audio | |
Main Stream | Visible: 2880×1620, 2560×1440, 2304×1296, 1920×1080, 1280×720 @25/30fps Thermal: D1 (704×576) @25/30fps |
Sub Stream | Visible: D1, VGA, 640×360, CIF, QVGA @25/30fps Thermal: CIF, 256×192 @25/30fps |
Bit Rate Control | CBR/VBR |
Bit Rate | Main Stream: Visible: 100Kbps~12Mbps, Thermal: 100Kbps~6Mbps, Sub Stream: Visible: 10Kbps~6Mbps, Thermal: 10Kbps~1.5Mbps, |
Region of Interest | Off / On (8 Zone, Rectangle) |
Smart Encode | Support |
Audio Compression | G.711: 8kbps, RAW_PCM: 16kbps |
Image | |
Image Setting | Brightness, Sharpness, Contrast, Saturation |
Mirror | Support |
Pseudo-color Setting | White-hot/Black-hot/Rainbow/Ironbow etc. up to 17 modes (Thermal) |
DVE Image Enhance | Support (Thermal) |
Noise Reduction | 2D/3D DNR |
Privacy Masking | Support |
Motion Detection | Support |
Smart Function | |
Smart Function | Temperature measurement, human detection and vehicle detection |
Advanced Intelligence Analysis | Smoker detection, Smoke and Flame detection, fire point detection |
Intelligent Analysis | Intrusion, Single line crossing, Double line crossing, Loitering, Wrong way, Enter area, Leave area (these 7 function support accurate detection of people/vehicles) , People counting |
Sound-light Alarm | Support white light flashing and horn warning |
Temperature Measurement | 3 temperature measurement rule types, 20 rules in total, 1 full screen, 19 others (points, areas, line). |
Temperature Alarm | Over temperature alarm, Temperature difference alarm |
Accuracy | ±2℃ / ±2% |
Response Time | ≤ 30ms |
Temperature Measurement Range | -20°C ~ 150°C (-4°F ~ 302°F) |
Network | |
Protocols | IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP ,802.1x |
Interoperability | ONVIF |
Max. User Access | 10 Users |
Web Viewer | |
Web Language | English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian |
Interface | |
Network Interface | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
Audio Interface | 1ch input, 1ch output |
Built-in Speaker | Support |
Alarm Interface | 2ch input, 2ch output |
RS485 | Support |
Reset Button | Support |
SD Card Slot | Support, up to 256GB |
General | |
Power Supply | DC12V/DC24V/POE (IEEE 802.3af) |
Power Consumption | Max 12W |
Working Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
Storage Conditions | 0 ~ 90% RH |
Certifications | CE /FCC |

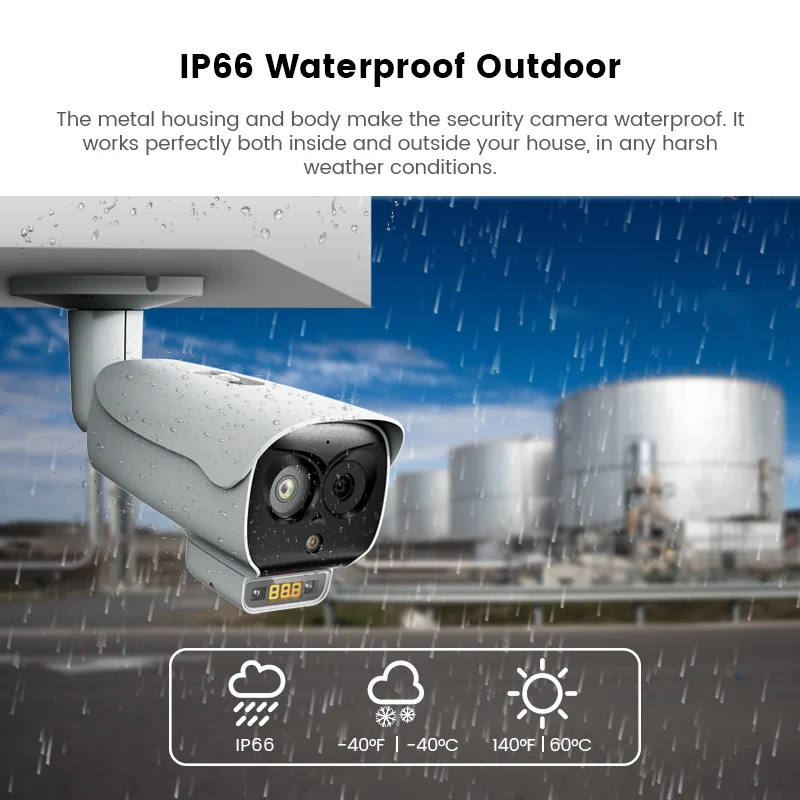

Ingress Protection | IP66 |
Casing | Metal |
