15kw Electric Air Compressor Compresor de aire de tornillo 20 hp
- Category: >>>
- Supplier: Dehaha Compressor Jiangsu Co. Ltd.
Share on (11000007150753):
Product Overview
Description
Product Description

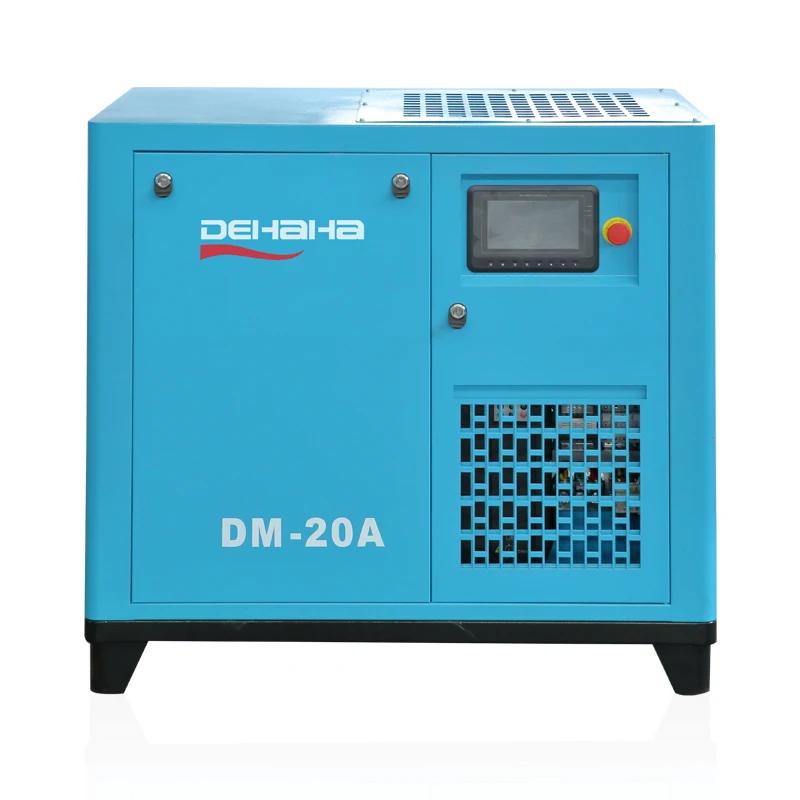

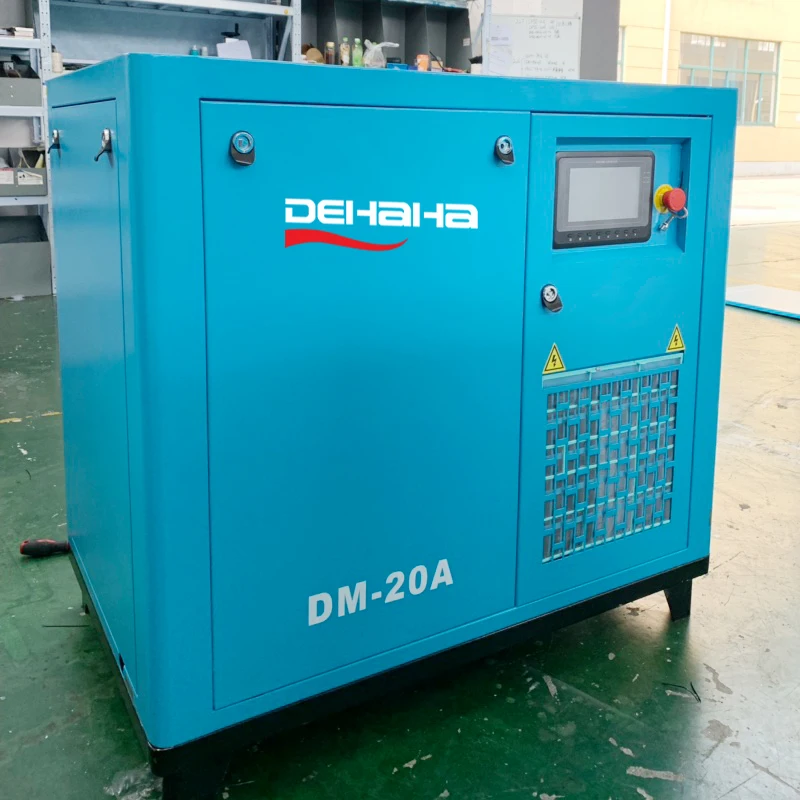

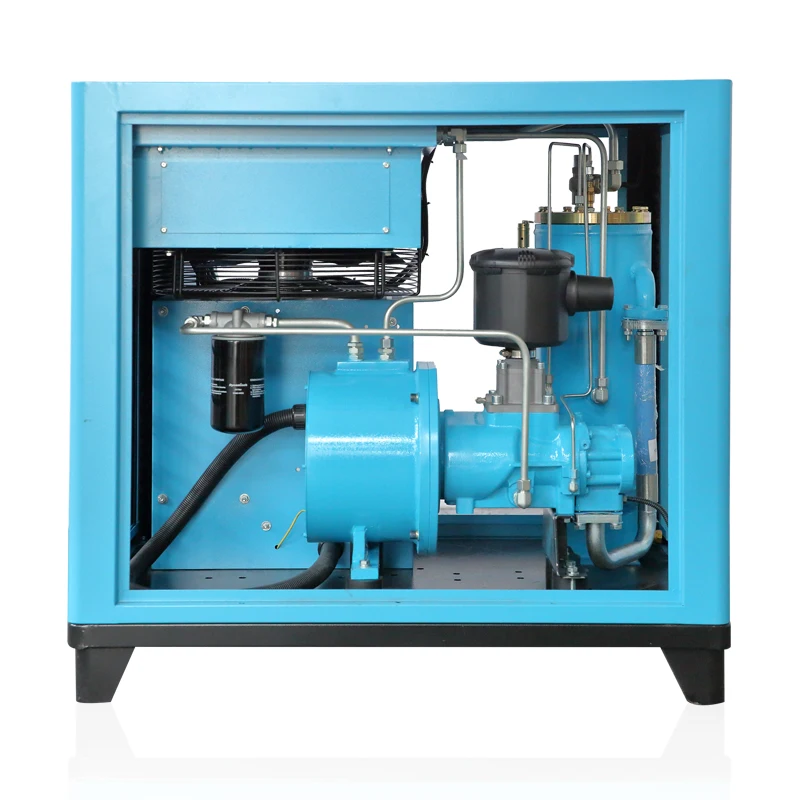

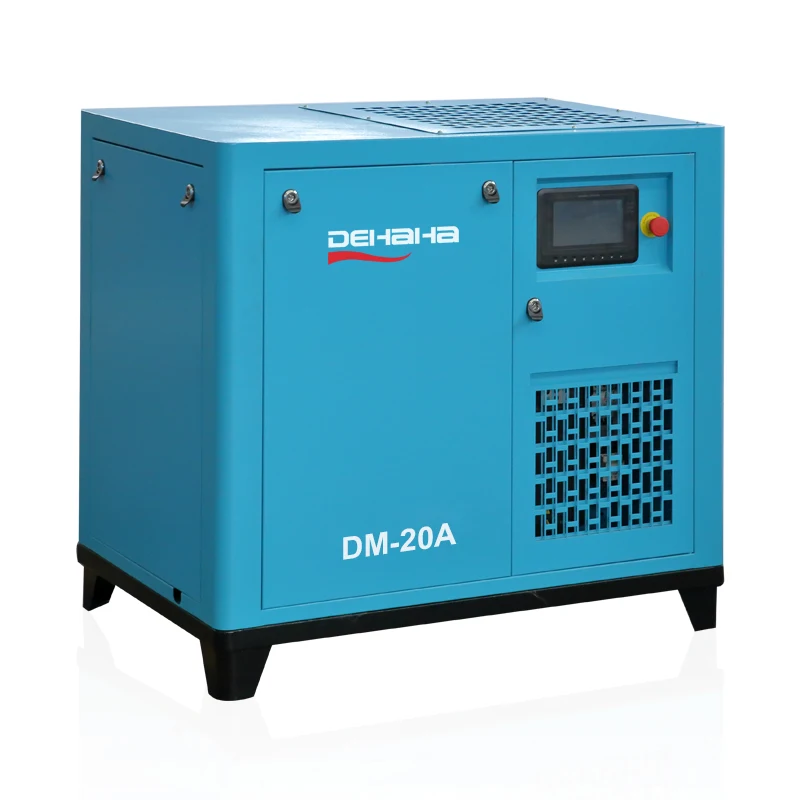

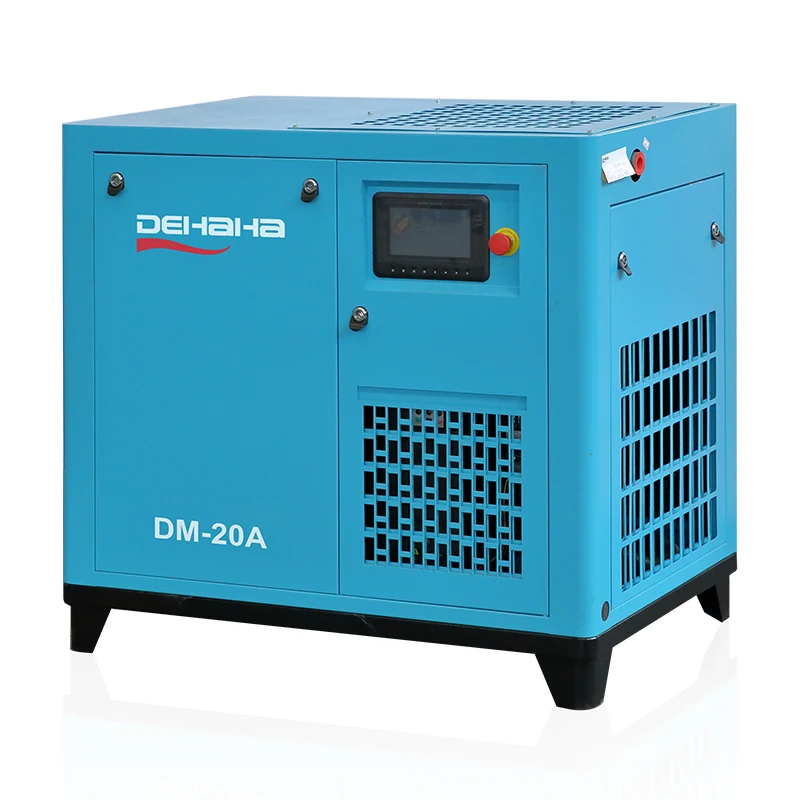

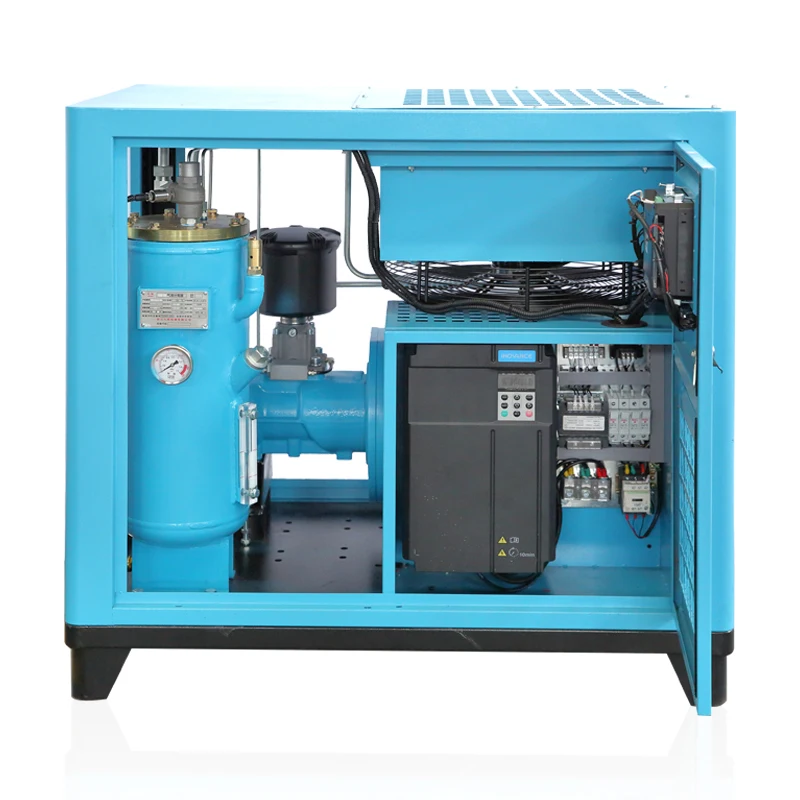

15kw Electric Air Compressor Compresor de aire de tornillo 20 hp
Model: DM-20A
Free air delivery: 2.3m3/min
Working pressure: 8 bar
Screw air end rotor lobe: 5:6
Brand of screw air end: Hanbell Taiwan AB+ series( 6 pcs SKF bearings)
Control: PLC
Driven: direct coupling
Cooling: by air
Electric motor: Permanent Magnet type 20hp 15KW 230V/60hz/3ph, protection level IP65, oil cooling
Discharge temperature: less than ambient +8 ℃
Noise: less than 65 dB(A)
Air outlet size: G3/4”
Dimension: 1062*690*1000mm
Weight: 236kg
Free air delivery: 2.3m3/min
Working pressure: 8 bar
Screw air end rotor lobe: 5:6
Brand of screw air end: Hanbell Taiwan AB+ series( 6 pcs SKF bearings)
Control: PLC
Driven: direct coupling
Cooling: by air
Electric motor: Permanent Magnet type 20hp 15KW 230V/60hz/3ph, protection level IP65, oil cooling
Discharge temperature: less than ambient +8 ℃
Noise: less than 65 dB(A)
Air outlet size: G3/4”
Dimension: 1062*690*1000mm
Weight: 236kg

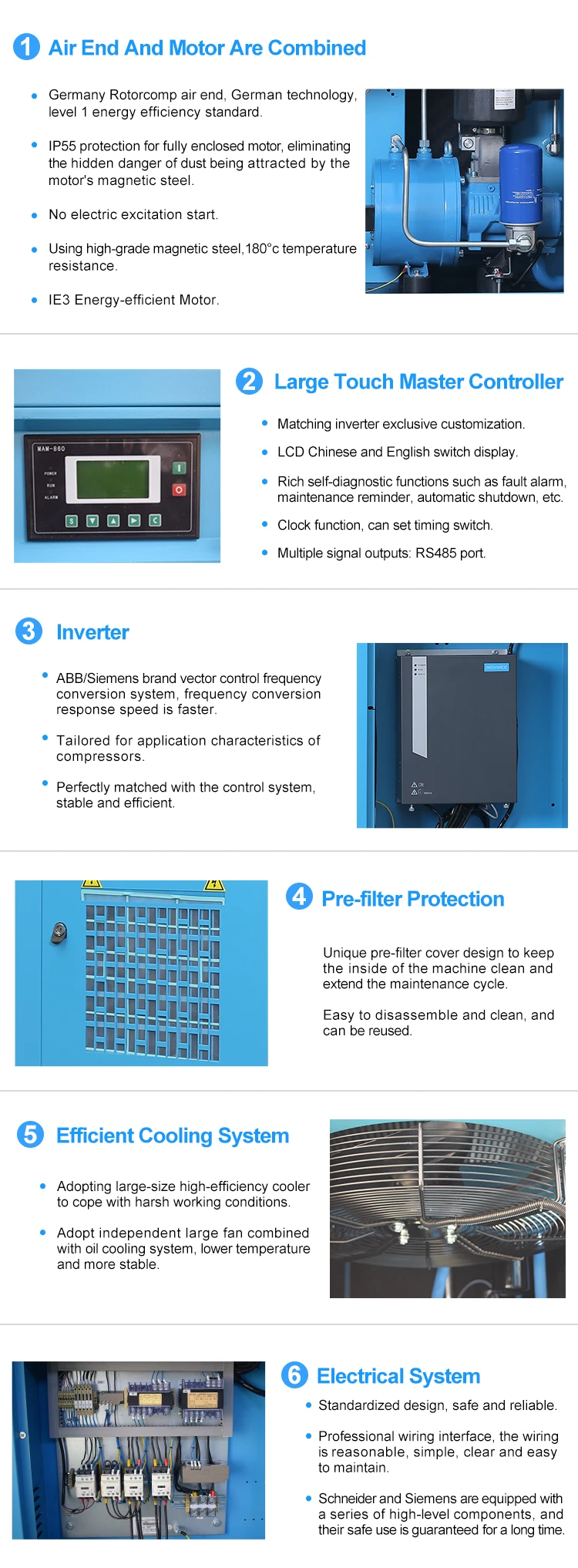

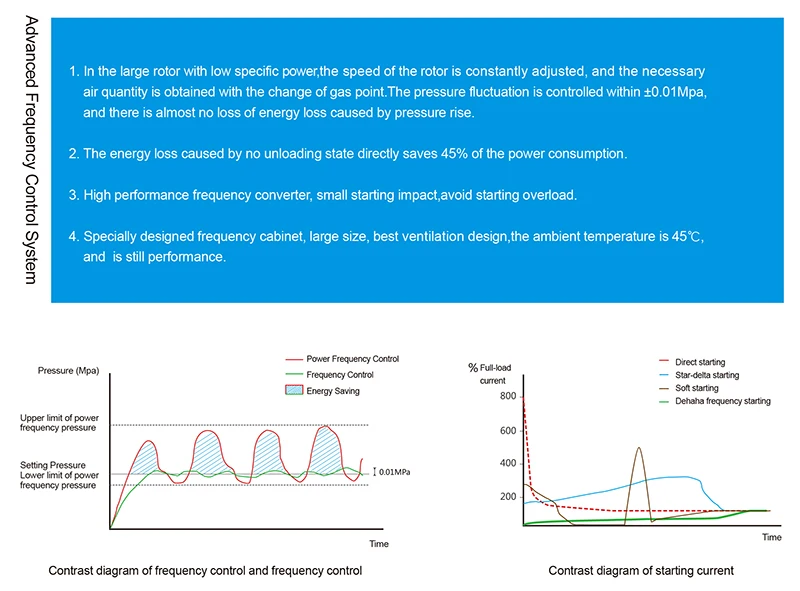

Characteristics of permanent magnet frequency conversion air compressor
Ultra-low temperature rise design, the compressor allows long-term stable operation at ultra-low frequency, adopts closed-loop vector control system, faster control, more precise speed regulation, when the frequency is reduced by more than 50%, the compressor unit can still maintain high-efficiency operation, stable pressure, and precise pressure control Fluctuation within 0.01MPA.
Ultra-low temperature rise design, the compressor allows long-term stable operation at ultra-low frequency, adopts closed-loop vector control system, faster control, more precise speed regulation, when the frequency is reduced by more than 50%, the compressor unit can still maintain high-efficiency operation, stable pressure, and precise pressure control Fluctuation within 0.01MPA.
Related Products
Technical Parameters
Model | Volume flow(m3/min) | (kW) | (db) | ||||||||||
6 Bar | 7bar | 8bar | 10bar | 13 Bar | |||||||||
DM-10A | / | 1.3 | 1.2 | 1 | / | 7.5 | 63 | G3/4 | 895X590X970 | ||||
DM-20A | 2.55 | 2.4 | 2.3 | 2.0 | / | 15 | 65 | G3/4 | 1062X690X1000 | ||||
DM-30A | 4.5 | 4.15 | 3.7 | 3.2 | / | 22 | 68 | G1 | 1330X830X1265 | ||||
DM-40A | 6 | 5.7 | 5.2 | / | / | 30 | 68 | G1 | 1330X830X1265 | ||||
DM-50A | 7.35 | 6.9 | 6.5 | 5.6 | 4.9 | 37 | 69 | G1/2 | 1500X940X1415 | ||||
DM-60A | 8.7 | 8.1 | 7.5 | 6.75 | 5.9 | 45 | 70 | G1/2 | 1500X940X1415 | ||||
DM-75A | 11.2 | 10.3 | 9.5 | / | 7.8 | 55 | 70 | G2 | 1600X1060X1470 | ||||
DM-100A | 13.6 | 13 | 12.8 | 11 | 9.5 | 75 | 72 | G2 | 2000X1120X1590 | ||||
DM-125A | 17.2 | 16.7 | 15.5 | 14.0 | 12.5 | 90 | 72 | G2 | 2000X1120X1590 | ||||
DM-150A | 21.5 | 20.8 | 19.6 | 17.8 | 15.5 | 110 | 72 | DN65 | 2400X1630X1980 | ||||
DM-175A | 24.6 | 24.1 | 23.2 | 19.5 | 17 | 132 | 72 | DN65 | 2400X1630X1980 | ||||
DM-220A | 30.2 | 28.8 | 27.8 | 23.0 | 20 | 160 | 72 | DN80 | 2800X1828X2150 | ||||
DM-250A | 34.9 | 33.2 | 31.2 | 27.5 | 25.8 | 185 | 72 | DN80 | 2800X1828X2150 | ||||
Certifications
Project Case

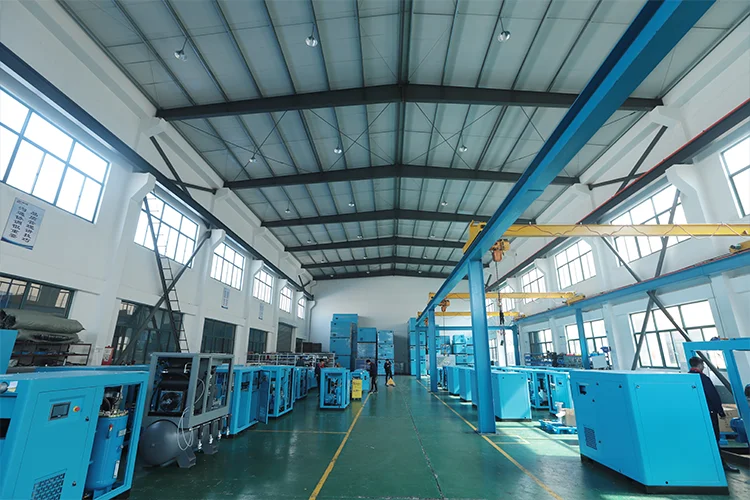

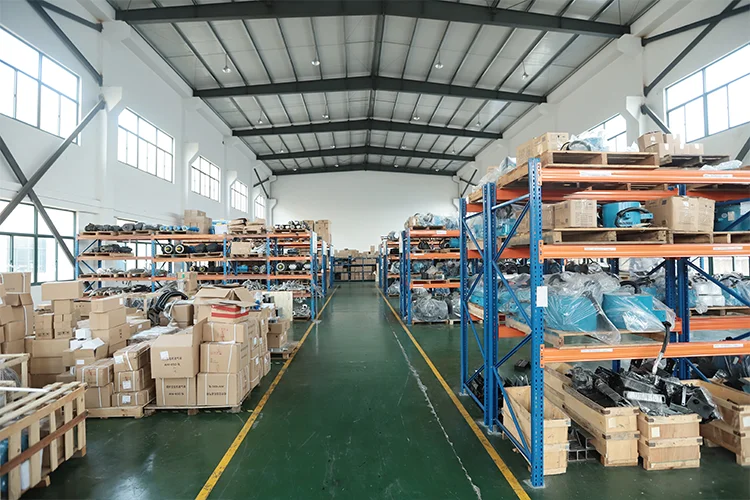

Company Introduction
Dehaha Compressor was founded in 1996 with over 150 skilled employees and more than 25 R&D engineers’ teams.We focus on the research & develop, manufacture and energy-saving solutions of screw air compressor to create value for customers and society.
Dehaha opened to the world since 2015, and now we have a foreign trade department with more than dozens people, serving customers around the world 24 hours. We have sales representatives who can speak English, Spanish, Portuguese, French,and Russian which makes it easier for our clients from all over the world to interact and negotiate with us.now our valued customers are over 130 countries. Germany Standard and 13 years exporting experience help us won more than 50 loyal overseas agents.
Dehaha continuously innovates product development and management to meet customers' demand. The powerful enterprise culture and continuous innovation make Dehaha improved rapidly to reach the business principle "Energy Saving First, Mutual Value Shared". The production line of DEHAHA is consist of screw air compressor from 5.5KW to 550KW, oil free air compressor, portable air compressor, permanent magnet variable frequency air compressor, high pressure air compressor and compressed air purification equipment, etc.
Dehaha mission is to be a world-renowned high-end brand, with sustainable development, constantly improving its own value and sharing it with our customers and staff. Committed to offer our customers a silent and energy-saving manufactured products.
Dehaha opened to the world since 2015, and now we have a foreign trade department with more than dozens people, serving customers around the world 24 hours. We have sales representatives who can speak English, Spanish, Portuguese, French,and Russian which makes it easier for our clients from all over the world to interact and negotiate with us.now our valued customers are over 130 countries. Germany Standard and 13 years exporting experience help us won more than 50 loyal overseas agents.
Dehaha continuously innovates product development and management to meet customers' demand. The powerful enterprise culture and continuous innovation make Dehaha improved rapidly to reach the business principle "Energy Saving First, Mutual Value Shared". The production line of DEHAHA is consist of screw air compressor from 5.5KW to 550KW, oil free air compressor, portable air compressor, permanent magnet variable frequency air compressor, high pressure air compressor and compressed air purification equipment, etc.
Dehaha mission is to be a world-renowned high-end brand, with sustainable development, constantly improving its own value and sharing it with our customers and staff. Committed to offer our customers a silent and energy-saving manufactured products.
Our Services & Strength
● 23 years of experience in air compressor production.
● 150 skilled employees and more than 25 R&D engineers’ teams.
● 13 years exporting experience and more than 50 loyal overseas agents.
● More than 30 series products .
● More than 30 series products .
Packing&Shipping
FAQ
1.Why customer choose us?
DHH SCREW COMPRESSOR JIANGSU CO.,LTD.with 23 years old history,we are specialized in Rotary Screw Air Compressor.Germany Standard and 13 years exporting experience help us won more than 30 loyal foreign agents.We warmly welcome your small trial order for quality or market test.
2.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in Qidong,China,with professional design team.Both OEM & ODM service can be accepted.
3.Where is your factory located? How can I visit there?
Our factory is located in Qidong City, Jiangsu Province, China. We can pick up you from Shanghai, it’s about 1 hour from Shanghai Pudong Airport to our factory. Warmly welcome to visit us!
4.What’s your delivery time?
380V 50HZ we can delivery the goods within 14 days. Other electricity or other color we will delivery within 22 days,if urgently order,pls contact our sales in advance.
5.How long is your air compressor warranty?
One year for the whole machine and two years for screw air end, except consumable spare parts and we can provide some spare parts of the machines
6.How does your factory do regarding quality control?
Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2015 authentication and CE certificate.
7.How long could your air compressor be used?
Generally, more than 10 years.
8. What's payment term?
T/T,L/C,D/P,Western Union,Paypal,Credit Card,and etc.Also we could accept USD, RMB, Euro and other currency.
9.How about your customer service?
24 hours on-line service available.48 hours problem solved promise.
10.How about your after-sales service?
(1) Provide customers with installation and commissioning online instructions.
(2) Well-trained engineers available to overseas service.
(3) Worldwide agents and after service available.
DHH SCREW COMPRESSOR JIANGSU CO.,LTD.with 23 years old history,we are specialized in Rotary Screw Air Compressor.Germany Standard and 13 years exporting experience help us won more than 30 loyal foreign agents.We warmly welcome your small trial order for quality or market test.
2.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in Qidong,China,with professional design team.Both OEM & ODM service can be accepted.
3.Where is your factory located? How can I visit there?
Our factory is located in Qidong City, Jiangsu Province, China. We can pick up you from Shanghai, it’s about 1 hour from Shanghai Pudong Airport to our factory. Warmly welcome to visit us!
4.What’s your delivery time?
380V 50HZ we can delivery the goods within 14 days. Other electricity or other color we will delivery within 22 days,if urgently order,pls contact our sales in advance.
5.How long is your air compressor warranty?
One year for the whole machine and two years for screw air end, except consumable spare parts and we can provide some spare parts of the machines
6.How does your factory do regarding quality control?
Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2015 authentication and CE certificate.
7.How long could your air compressor be used?
Generally, more than 10 years.
8. What's payment term?
T/T,L/C,D/P,Western Union,Paypal,Credit Card,and etc.Also we could accept USD, RMB, Euro and other currency.
9.How about your customer service?
24 hours on-line service available.48 hours problem solved promise.
10.How about your after-sales service?
(1) Provide customers with installation and commissioning online instructions.
(2) Well-trained engineers available to overseas service.
(3) Worldwide agents and after service available.
