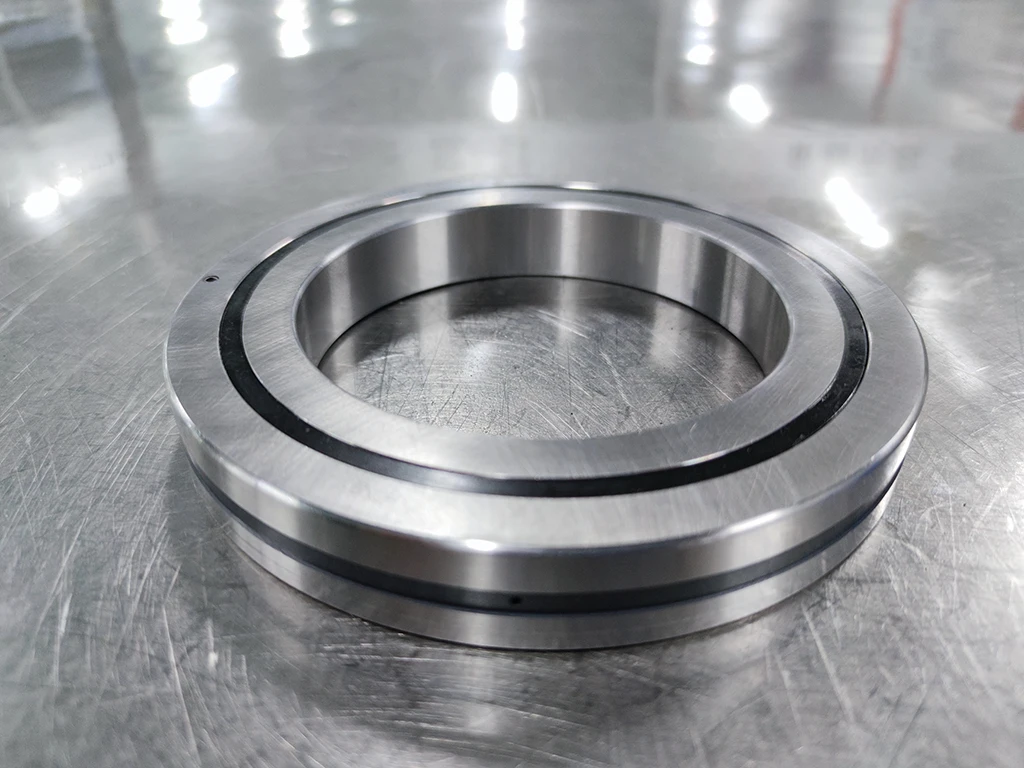

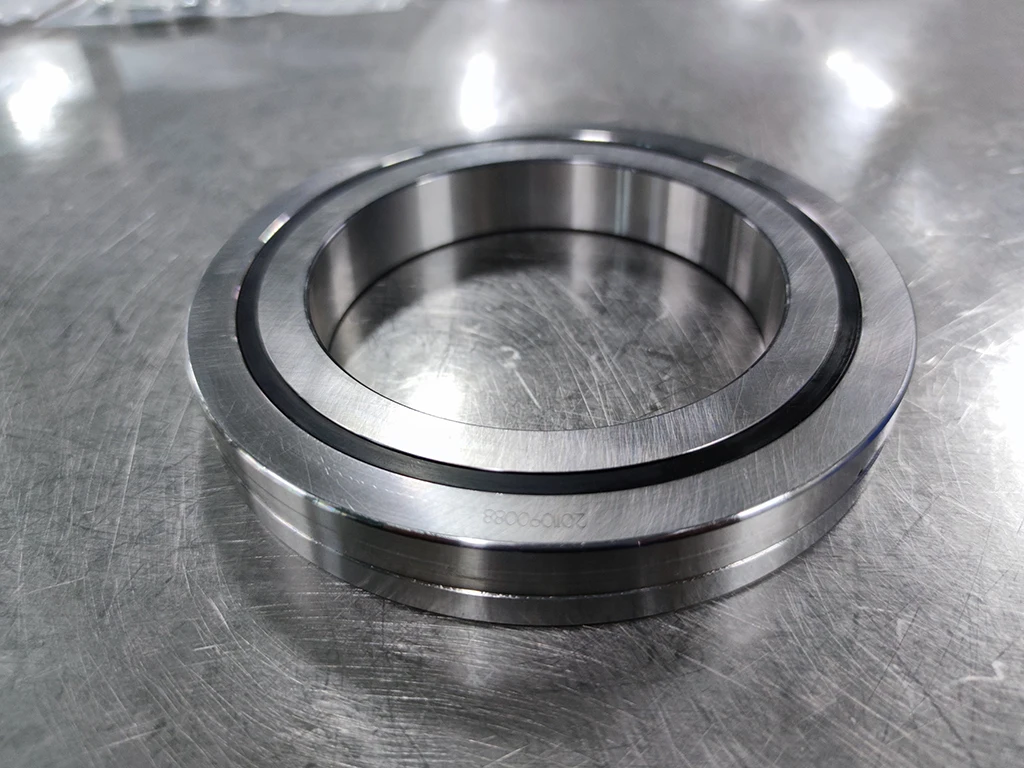

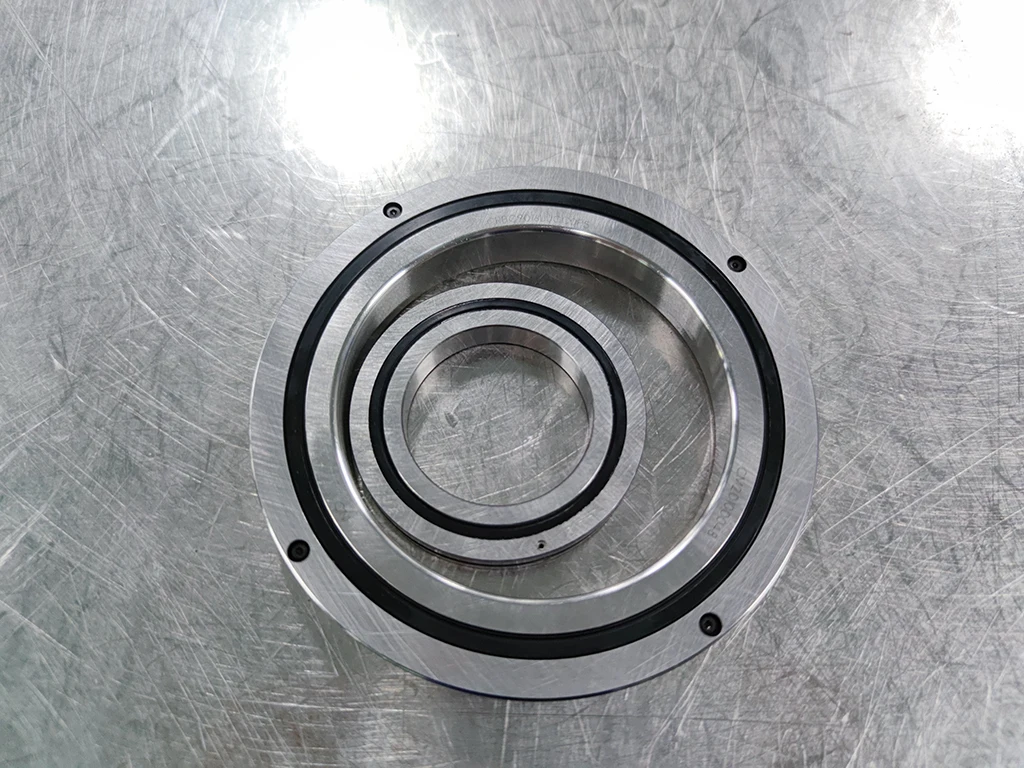

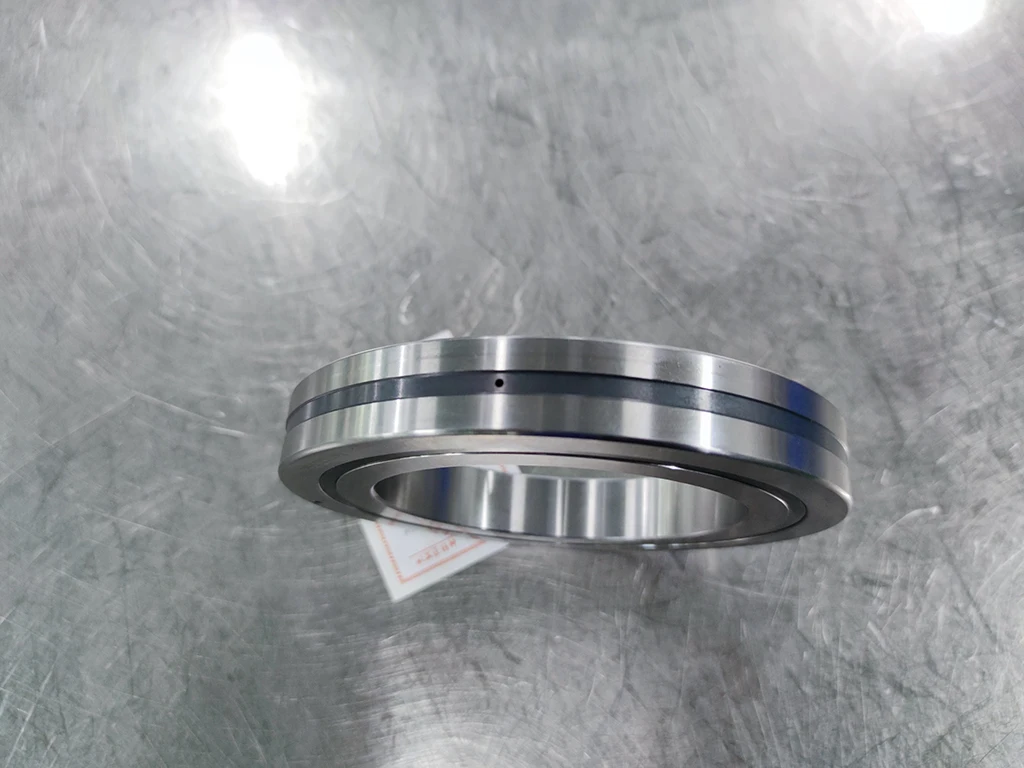

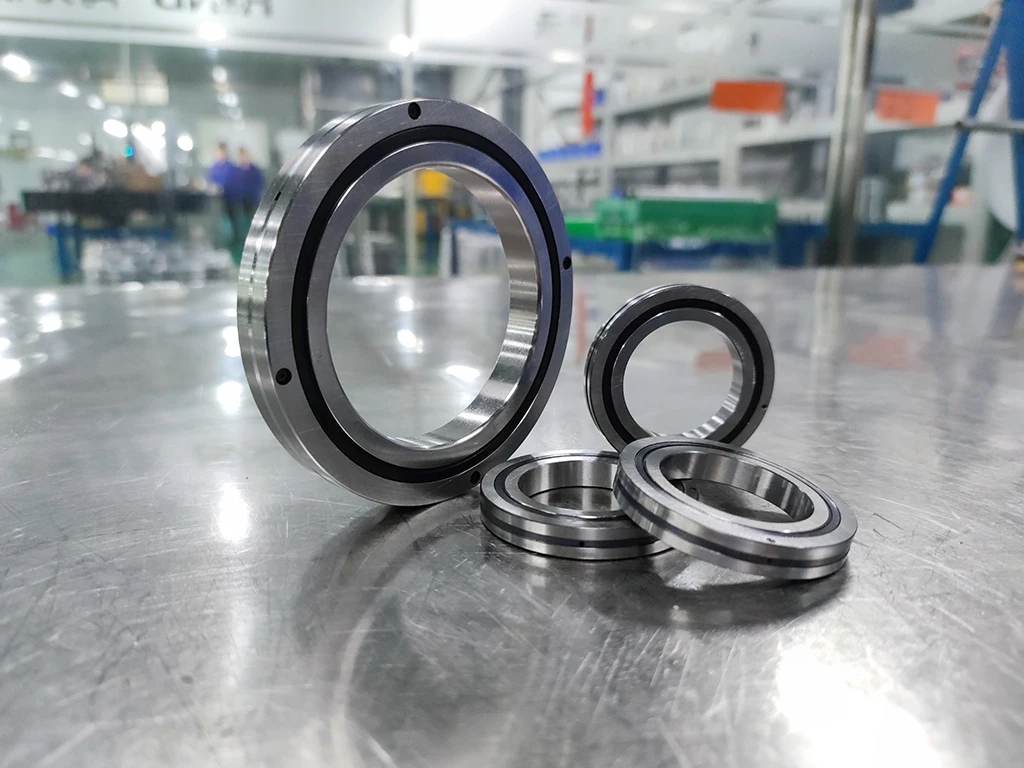

Высокоточный Кроссовый роликовый подшипник CRBH20025 CRBH20030 CRBH20035, в наличии, используется для манипуляторов, вращающихся столов, медицинская машина
- Category: Bearings >>>
- Supplier: Luoyang Hongyuan Bearing Technology Co. Ltd.
Share on (11000007159442):
Product Overview
Description
Product Overview

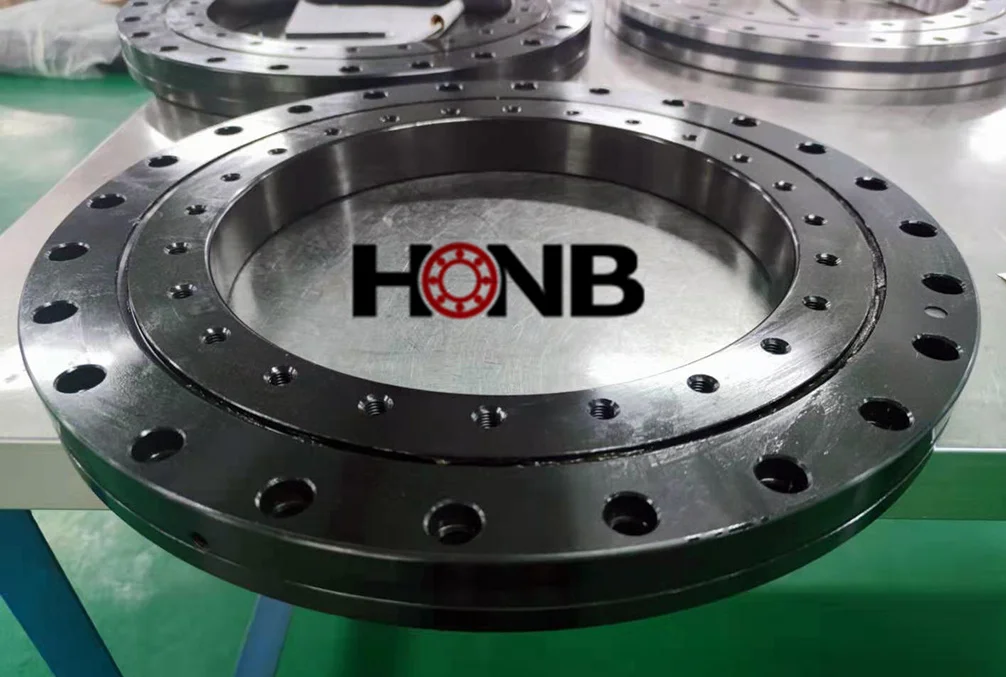

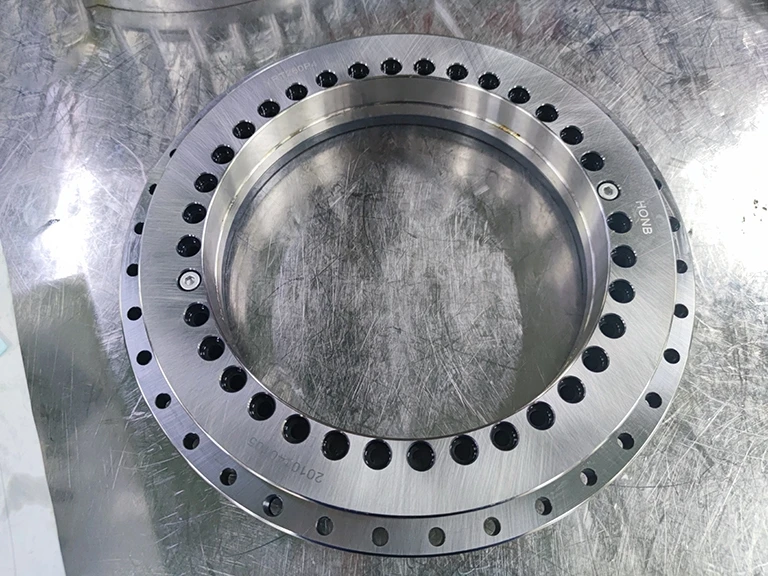

YRT1200
YRTC high precision rotary table bearing series break through the traditional bearing selection and layout. One bearing can meet the requirement of composite load, can simplifies the rotary table’s structure, reduces the cost of designing, mounting and maintain.
The bearing compose of one group of rollers in radial direction, two groups of thrust-rollers in axial direction, and the cage. That makes the structure compact, save much space for the rotary table, the mounting holes make the mounting very easy, the bearing also can be assembled with preload before leaving factory, so the bearings need not to be adjusted the clearance after that. The bearings have high rigidity and high rotary accuracy, both inner ring and outer ring have oil holes, which is very convenient for greasing regularly. The rotary accuracy of HRT bearings can reach to 1.5μm, which is much more sophisticated than that of common bearings
FEATURES AT A GLANCE
HIGH ACCURACY
HIGH AXIAL AND RADIAL LOAD CAPACITY
HIGH TILT RIGIDITY
WITH MOUNTING HOLES
VERSATILITY
HIGH AXIAL AND RADIAL LOAD CAPACITY
HIGH TILT RIGIDITY
WITH MOUNTING HOLES
VERSATILITY
2 YEARS WARRENTY
Right elevation
Left elevation
Front elevation
Product Paramenters
d | 1200mm | Bore diameter | ||
D | 1490mm | Outside diameter | ||
H | 164mm | Height | ||
nG | 25rpm | Limiting speed | ||
Ca | 1453,000N | Basic dynamic load rating, axial | ||
C0a | 12850,000N | Basic static load rating, axial | ||
Cr | 2800,000N | Basic dynamic load rating, radia | ||
C0r | 745,000N | Basic static load rating, radial |
Company Profile
LUOYANG HONGYUAN BEARING TECHNOLOGY CO., LTD.
HONB was established in December 2005, located in the Luoyang Airport Industrial Cluster, with more than 500 employees. At
present, it has occupied 80% of YRT rotary table bearing market and precision cross roller bearing market in China, 90% of
domestic harmonic reducer bearing market, 50% of the products are exported to Europe, North America, India, South Korea, Taiwan
and other countries and regions.
present, it has occupied 80% of YRT rotary table bearing market and precision cross roller bearing market in China, 90% of
domestic harmonic reducer bearing market, 50% of the products are exported to Europe, North America, India, South Korea, Taiwan
and other countries and regions.
Why Choose Us
1.Quality System
Currently, there are six mangement systems adopted and operated collaborative in our company.
Product quality is fundamental for the surival of HONB.
We have a QC team to inspect the product from original process to final packing according to drawing detail.
Accept third party inspection and also offer Video inspection.
Product quality is fundamental for the surival of HONB.
We have a QC team to inspect the product from original process to final packing according to drawing detail.
Accept third party inspection and also offer Video inspection.
2.Fast Delivery
From dia 20~300mm, we have enough stocks of parts.
The lead time is within 7 days.
The lead time is within 7 days.
3.Personalized Customization
Our mission is more than selling bearings, we produce standard bearings, provide customized service and any other solution that can help our customers improve their competitiveness.
4.After-sale service
Relying on a strong technical team, we provide total bearing system solutions and free after sales service during warranty.
For Rotary Table Bearings, we offer 2 year warranty, any bearing problems, we replace new bearings at DDP cost.
For Rotary Table Bearings, we offer 2 year warranty, any bearing problems, we replace new bearings at DDP cost.
