100Ah 200Ah 400Ah 5Kwh 10Kwh 20Kwh Semookii Lifepo4 Solar Lithium Battery 48V For Solar Energy System
- Category: >>>
- Supplier: Mpmc Powertech Corp.
Share on (11000007184348):
Product Overview
Description
Product Description
Features:
• Compact Size & Light Weight
• High Power Output & Usable Energy Ratio
• Modular Design & Expandable System
• Safest Battery & Perfect Compatibility
• Natural Colling & Easy Installation
• Certifications Available
Specification
Module Model | MF51100C | MF51100P |
Cell Chemistry | LFP (LiFePO4) | LFP (LiFePO4) |
Cell Model | 32700 | 32700 |
Module Capacity | 4.92 kWh | 4.92 kWh |
Module Nominal Voltage | 51.2 V | 51.2 V |
Max. Modules in Parallel | 6 | 6 |
Capacity Range | 4.92 ~ 29.49 kWh (90% DoD) | 4.92 ~ 29.49 kWh (90% DoD) |
Usable Capacity Range | 4.42 ~ 26.54 kWh | 4.42 ~ 26.54 kWh |
Max. Charging/Discharging Current | 100 A (1C) | 100 A (1C) |
Cycle Life | 6000 | 10000 |
Dimension (W x H x D) | 628 x 440 x 216 mm | 710 x 440 x 184 mm |
Weight | 56 kg | 55 kg |
Operating Temperature Range | -10 °C ~ 50 °C | -10 °C ~ 50 °C |
Ingress Rating | IP20 | IP65 |
Transportation Certification | UN38.3 | UN38.3 |
Safety | CE, IEC 62619 (Cell), IEC 62619 (Pack) | CE, IEC 62619 (Cell), IEC 62619 (Pack) |
Warranty | 10 years 70% EOL capacity | 10 years 70% EOL capacity |
Our Advantages

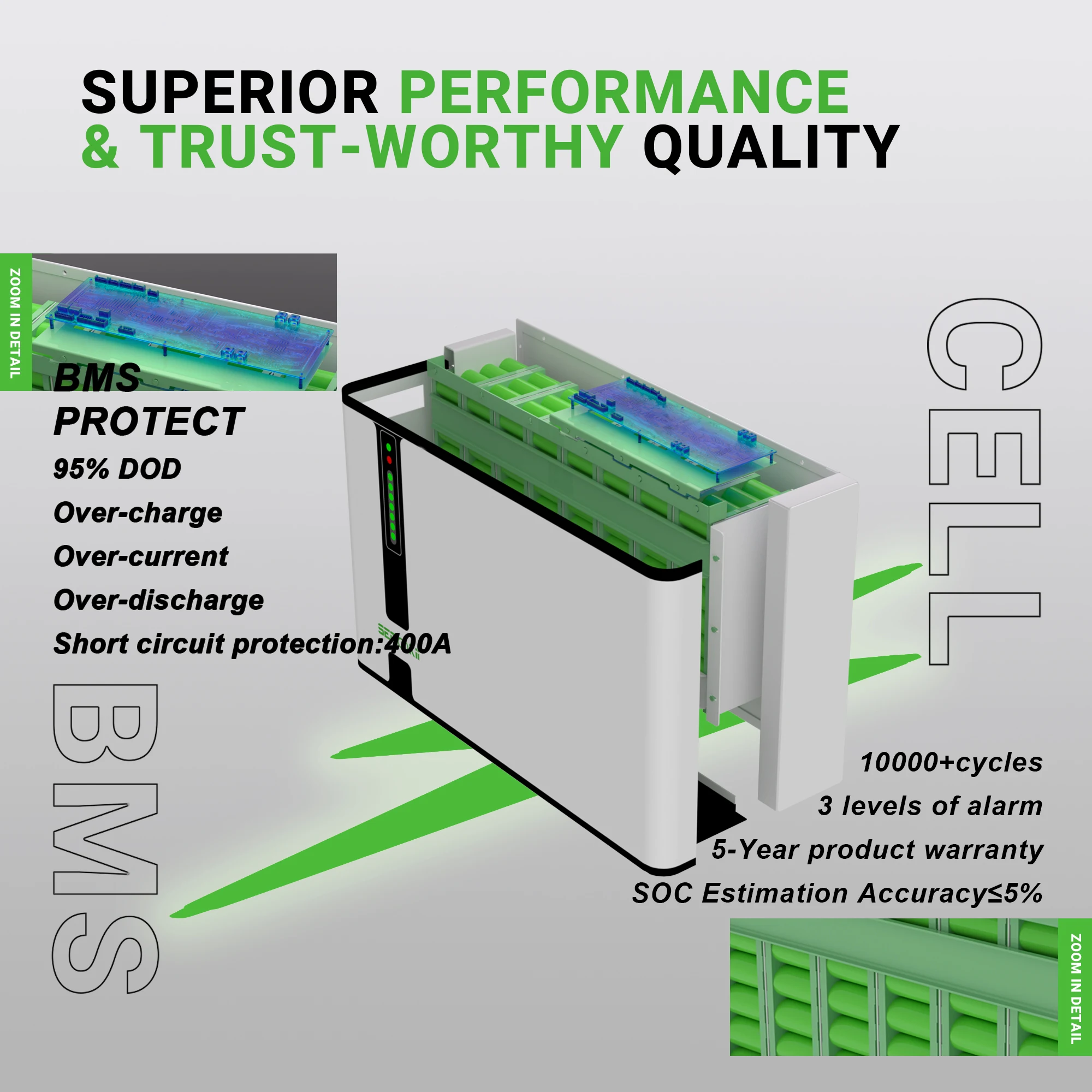

Built-in BMS:
1. Short-circuit protection: 400A
2. Protocol: CAN, RS485
3. Real-time monitoring of ambient temperature and the temperature and voltageof each cell
2. Protocol: CAN, RS485
3. Real-time monitoring of ambient temperature and the temperature and voltageof each cell
0000000
4. 3 levels of alarm
5. SOC Estimation Accuracy ≤5%
6. Great equalization for long cyclelife
Semookii HBC RESS is the first home battery storage product incorporating heat shields. The High-Temperature materials offer a state-of-the-art solution Max.1100°C fireproof, high-temperature stability, low thermal conductivity, low heat storage, thermal shock resistance, and good dielectric streng.
Lithium Iron Phosphate Battery Cell
1. Aluminium alloy casing guarantees strong plasticity, shock resistance and stable chemical properties.
2. High C-rate associated with low heat generation.
3. A built-in breather tube and a safety valve within the cylindrical cell provide dual safety protection.
4. The shape of cylindrical cells is more conducive to heat dissipation and temperature uniformity of the battery pack.
2. High C-rate associated with low heat generation.
3. A built-in breather tube and a safety valve within the cylindrical cell provide dual safety protection.
4. The shape of cylindrical cells is more conducive to heat dissipation and temperature uniformity of the battery pack.
