28khz 60w Piezo PZT vibration piezoelectric clean ultrasonic transducer for ultrasonic cleaner machine
- Category: >>>
- Supplier: Guangzhou Xinchen Ultrasonic Equipment Co.ltd
Share on (11000007197628):
Product Overview
Description
Product Description
Ultrasonic Cleaning transducer is to convert electrical energy into sound energy which also is called ultrasonic.it is composed of outer shell,matching tier, ring piezoelectric ceramic,backing material,outgoing cable and cymbal. The characteristics of transducers depend on material selection and manufacturing process. The performance and service life of transducers of the same size and shape are very different.
Application: ultrasonic cleaning transducer normally used in ultrasonic cleaning industry.
Our product features: High mechanical Q value,high transfer efficiency.
High quality piezoelectric ceramic material with good heat resistence.
Lower resonant Impedance.large amplitude,high vibration speed.
Frequency and static capacitance keep more consistency.
High output power. ight with bolt ,be easy to install,reliable .
High quality piezoelectric ceramic material with good heat resistence.
Lower resonant Impedance.large amplitude,high vibration speed.
Frequency and static capacitance keep more consistency.
High output power. ight with bolt ,be easy to install,reliable .
Application industry: automotive and aerospace industry,mechanical industry,plating industry etc.
Product Name | Ultrasonic Cleaning transducer | Application | Efficient oil removal |
Type | XCCT-2860T-35HSP4 | Static Capacity (pF) | 3800(±10%) |
Resonance Impedance | 10-20Ω | Frequency(KHz) | 28K |

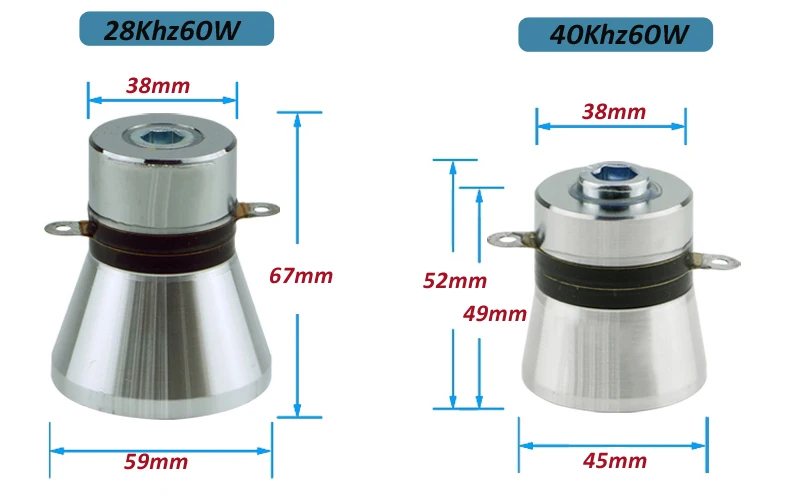

Length(mm) | 67mm | Input Power(W) | 60W |
Piezoceramics size | 35*15*5(pzt4) | Weight | 470g/pcs |
Radiating Diameter | 58mm |

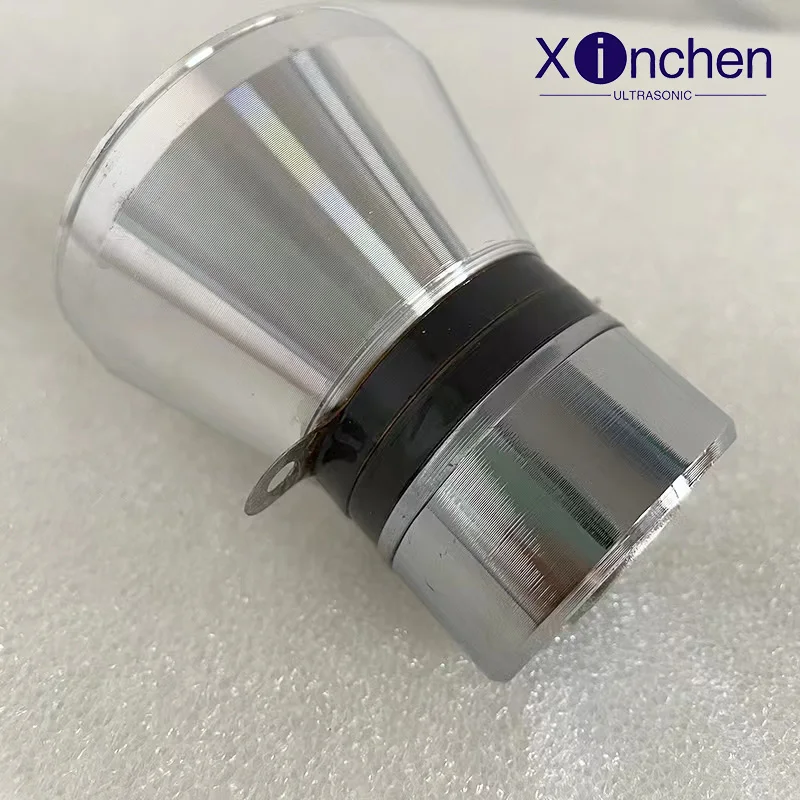

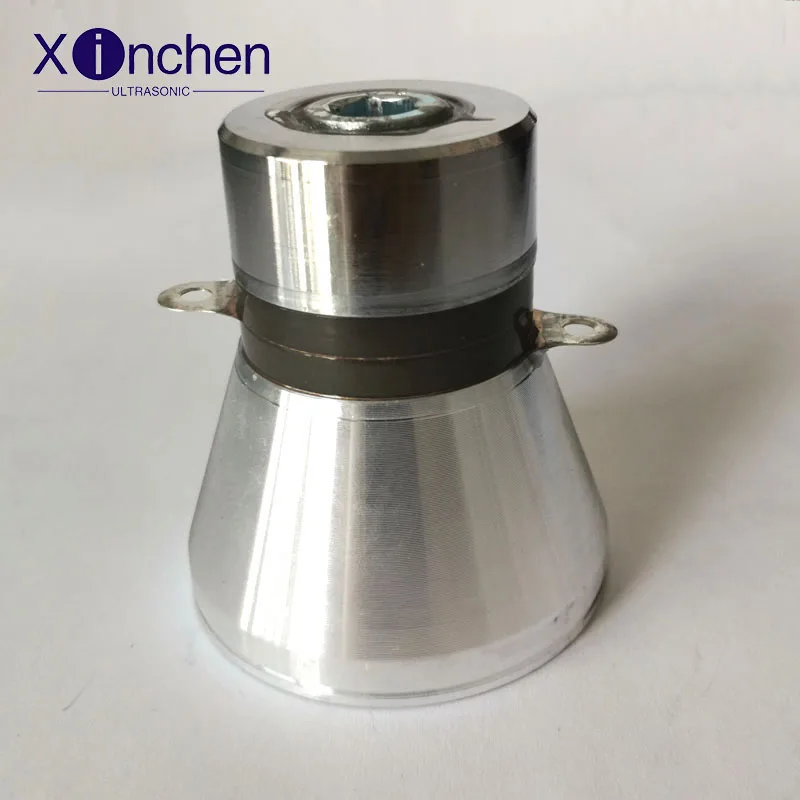

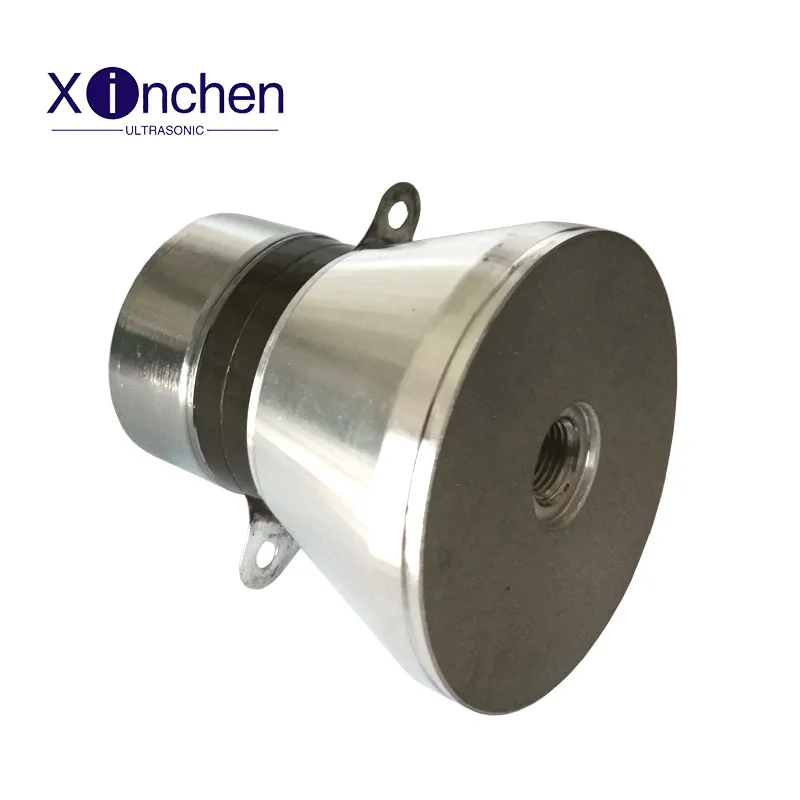

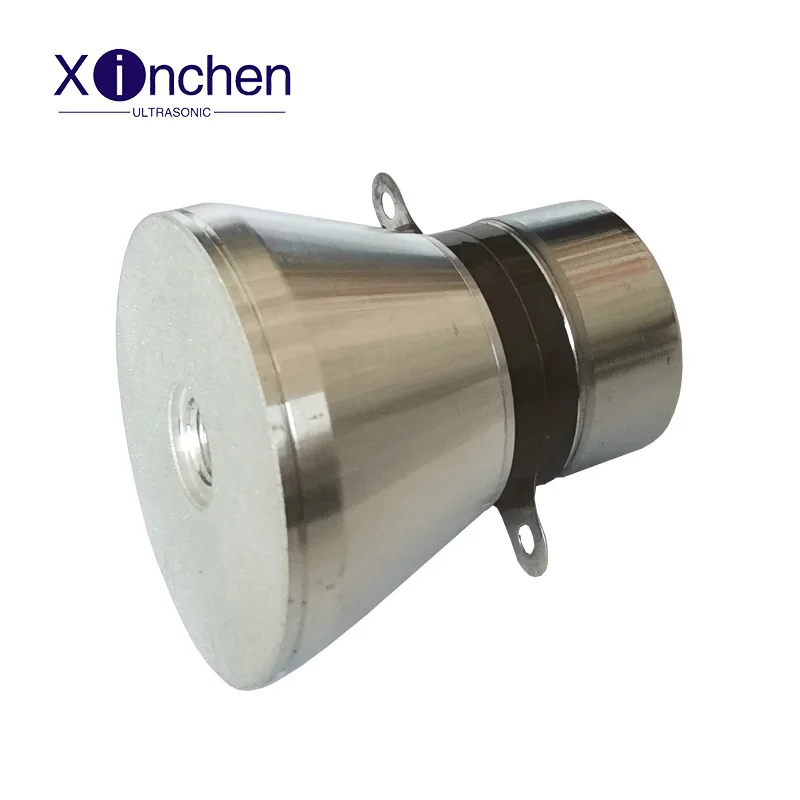

Product photograph
Application
Packing&Shipping
Company Introduction
FAQ
1）Are you a manufactuer?
Yes. We've been in this field for over 10 years. the reliable products and professional service will be provided.
Yes. We've been in this field for over 10 years. the reliable products and professional service will be provided.
2）Why choose us?
1. High quality & competitive price
2. Various styles with different materials
3. Stock available and accept small orders
1. High quality & competitive price
2. Various styles with different materials
3. Stock available and accept small orders
3）Can I get discount?
Yes. For large orders, long-term customers and frequent buyers, we can provide relatively better discount.
New customers can also get some discount with long term business agreements.
New customers can also get some discount with long term business agreements.
4）What is the lead time?
Stock Products: can deliver within 3-7days.
5）How can the products be sent to us?
For small quantity, the goods will be sent by DHL, EMS, UPS, FEDEX or other delivery services. We will choose the safest and the most economical way for customers if they do not have their preference agent. It can send per clients' requirements. For large quantity, we will suggest customer to ship by sea.
