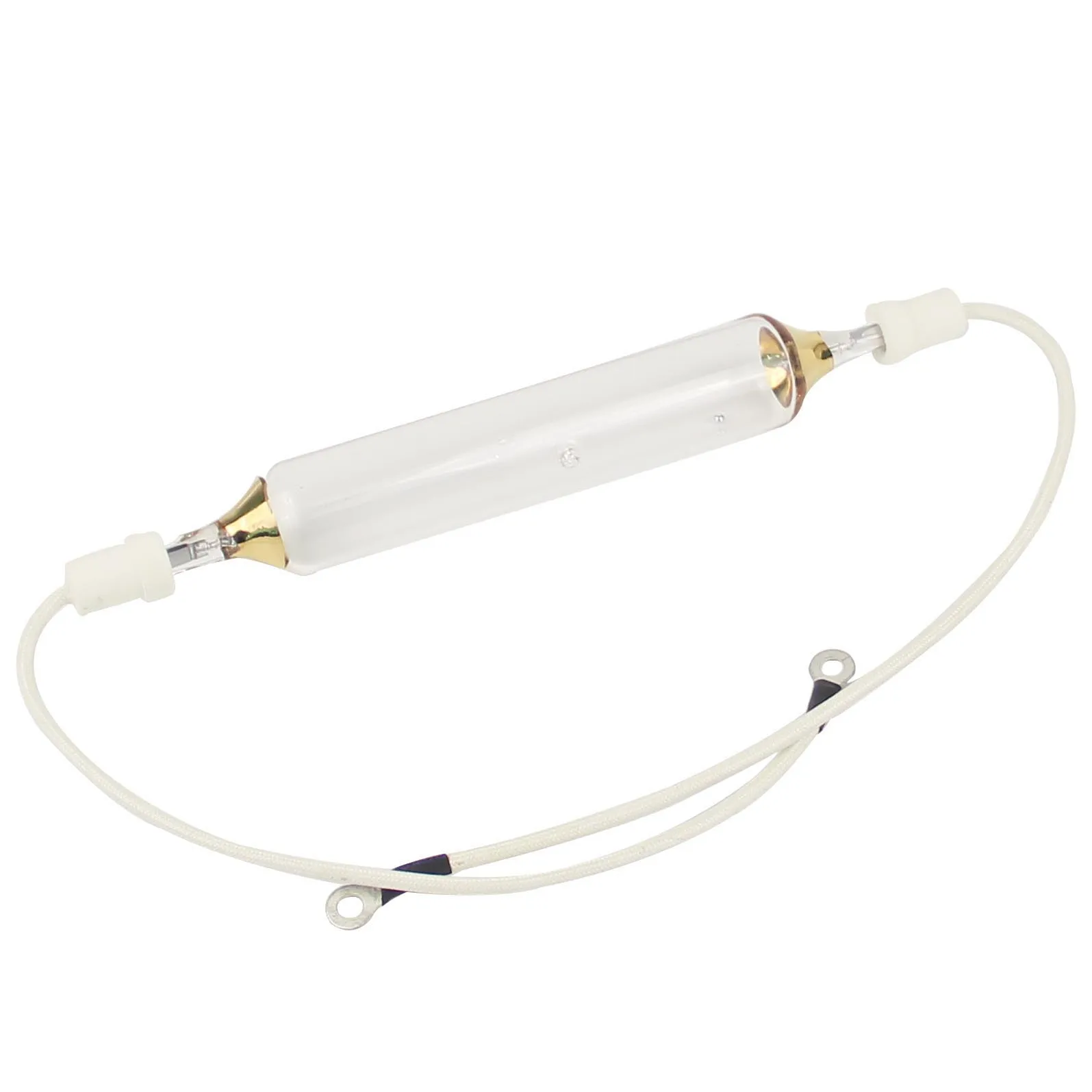

Оптовая продажа от производителя, Высококачественная УФ лампа для отверждения чернил
- Category: >>>
- Supplier: Zhuozhou Lanyu Special Lamp Co. Ltd.
Share on (11000007231798):
Product Overview
Description
Products Description
Feature
· Us General Electric, Raesch Quartz Germany Quartz Glass Materials.
· 100% Hand crafted.
· The guaranteed life of 800 hours.
· Cost-effective.
· Customized available, Support OEM.
· CE IEC Certification.
· 100% Hand crafted.
· The guaranteed life of 800 hours.
· Cost-effective.
· Customized available, Support OEM.
· CE IEC Certification.
Scope Of Application
With a spectrum mainly distributed in the range of 200nm and 450nm, with a peak value of 365nm.Applicable industries
UV curing lamps are mainly used for printing, plate making, display screen mobile phone screens and other glass production, curing UV glue, surface coating industry, furniture, decorative materials industry, printing iron can industry, aging of polymer compounds, semiconductors, printed circuit boards, and Photosensitive flame retardants and photosensitive character inks on signs.How to use:
1.The lamp must be used with the corresponding ballast and flip-flops.2.It commonly needs 1-2minutes to stable work after lighting the lamp.
3.There will be 5-10 minutes to cool the lamp before reboot the lamp again.
Notes
1.Due to the high strength UV output from the iodine gallium lamp. direct irradiation of ultraviolet ray should be avoided;
your eyes should also be avoided caught by the glowing tube in case of harming them.
2.Turn the power off first to prevent unexpected results when replacing new tubes.
3.iIIegal use is strictly prohibited.
your eyes should also be avoided caught by the glowing tube in case of harming them.
2.Turn the power off first to prevent unexpected results when replacing new tubes.
3.iIIegal use is strictly prohibited.

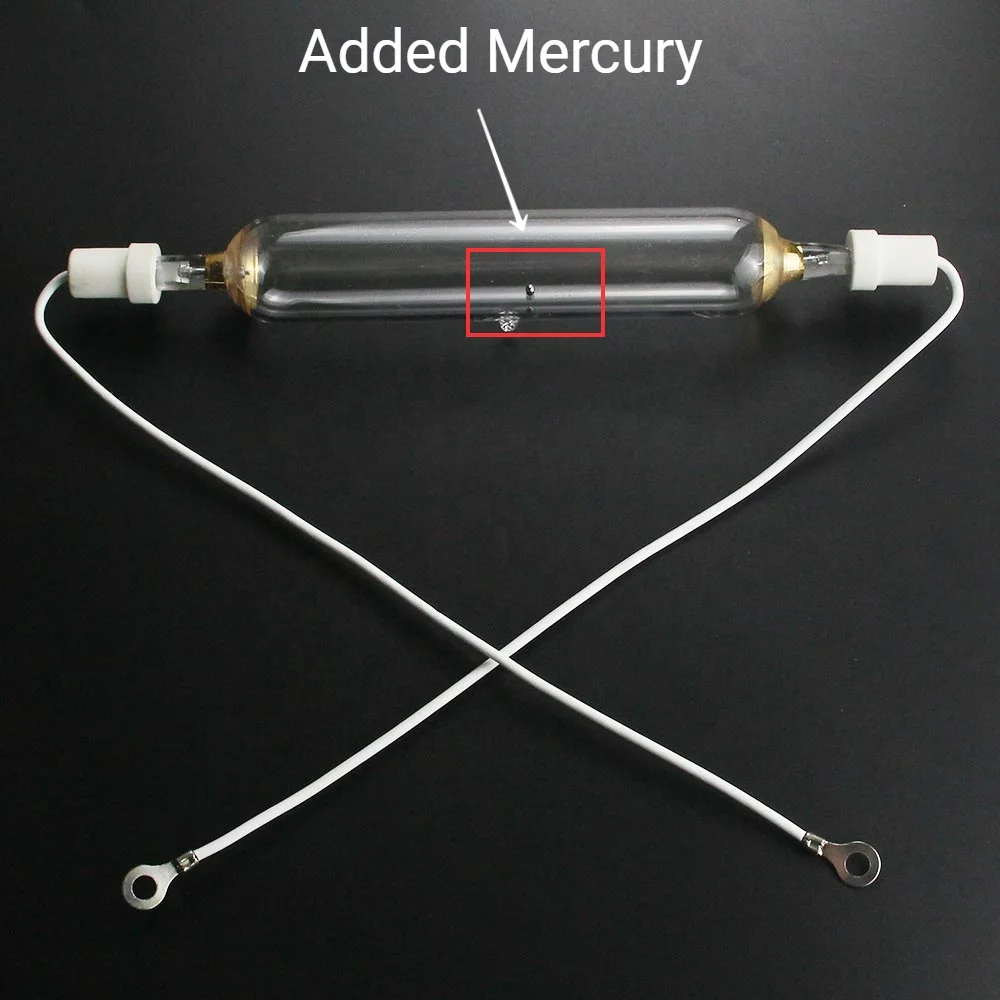

Product display
The Parameter Range Of Lamps And Lanterns Produced By LANYU | ||
Power output | 500w to 40kw | |
Wavelength | 320nm to 450nm | |
Arc length | 50mm to 2000mm | |
Pipe diameter | 18mm to 32mm | |
Power density | 30/60/80/120/160/200 w/cm | |
Spectrum | UVA / UVB / UVC / UVV | |
Fill | Mercury / Metal halide / Gallium iodide | |
Material | US General Electric, Raesch Quartz Germany | |
End caps | Ceramic / metal ( more than 100 kinds) | |
Service life | 800 to 1000 hour | |

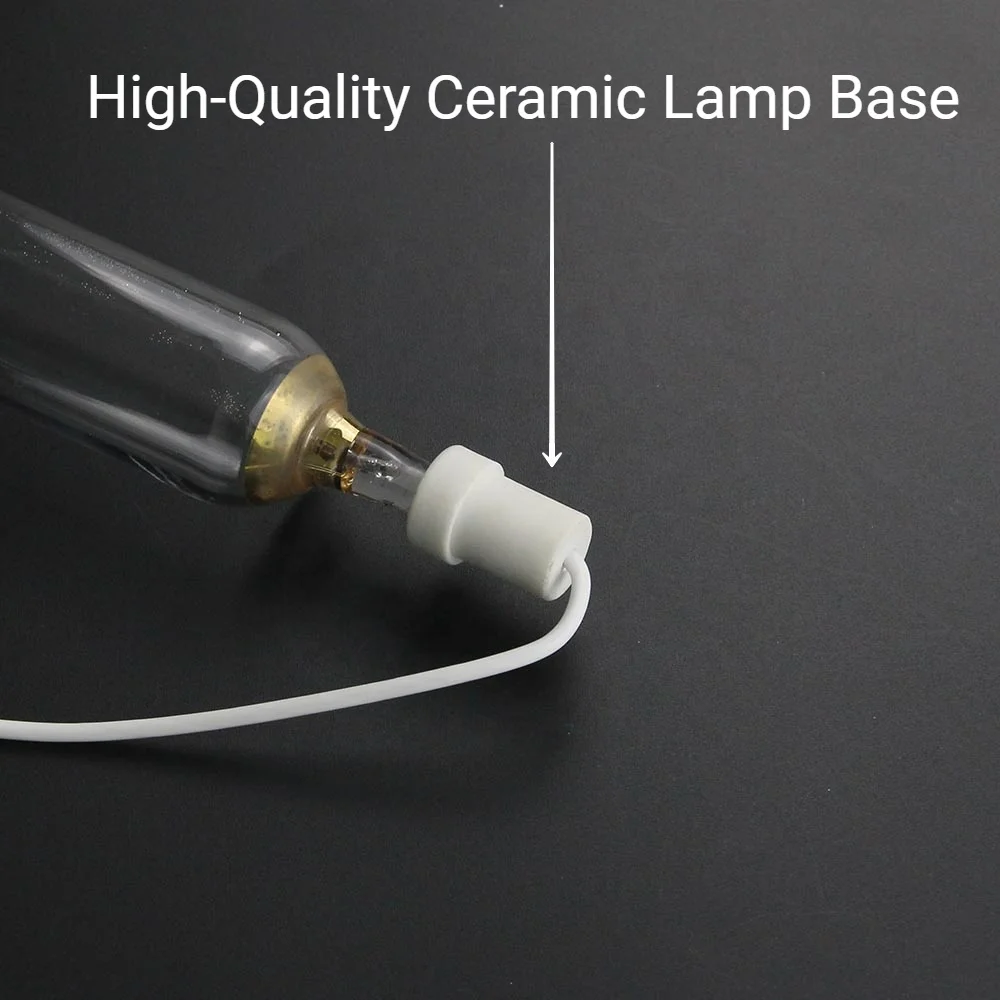

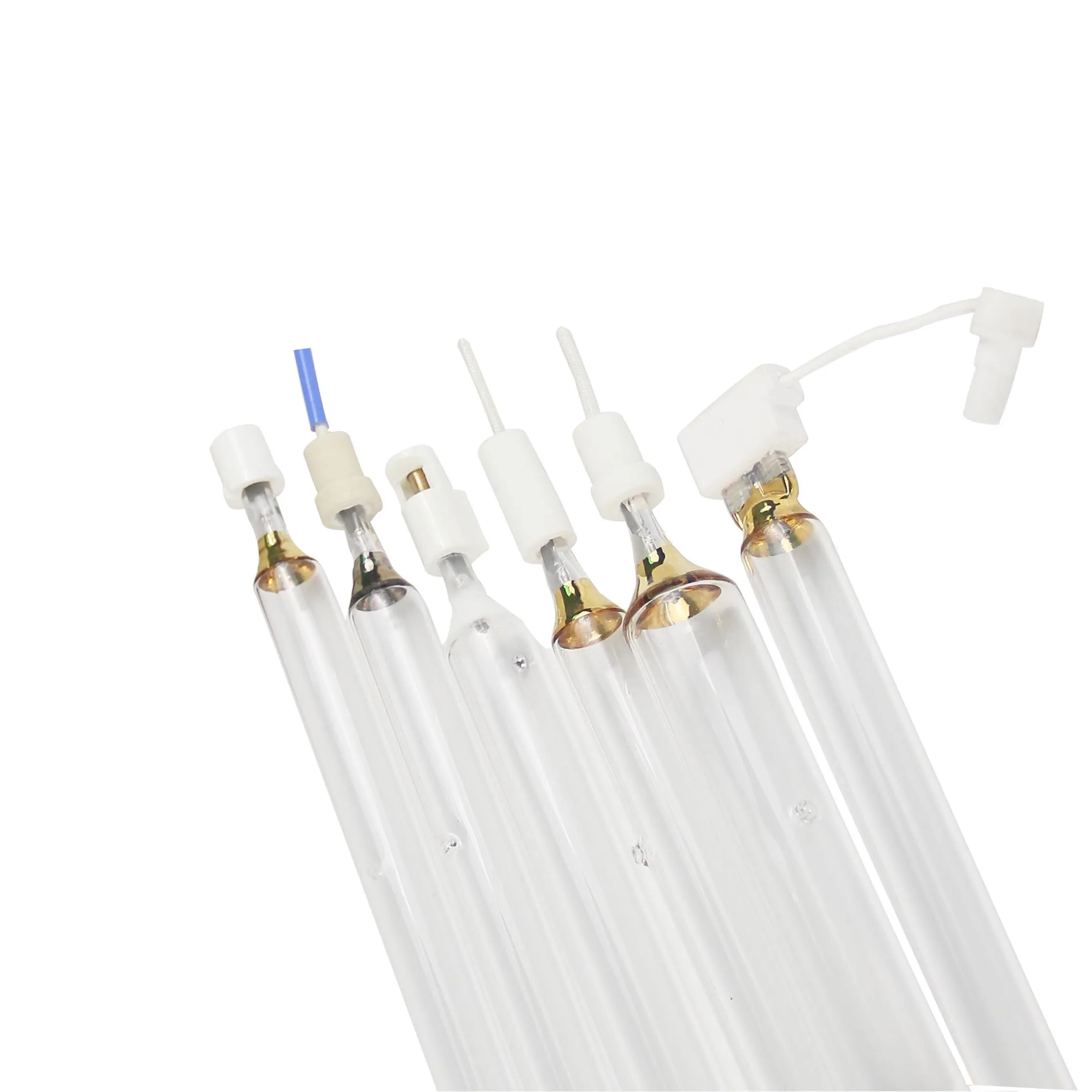

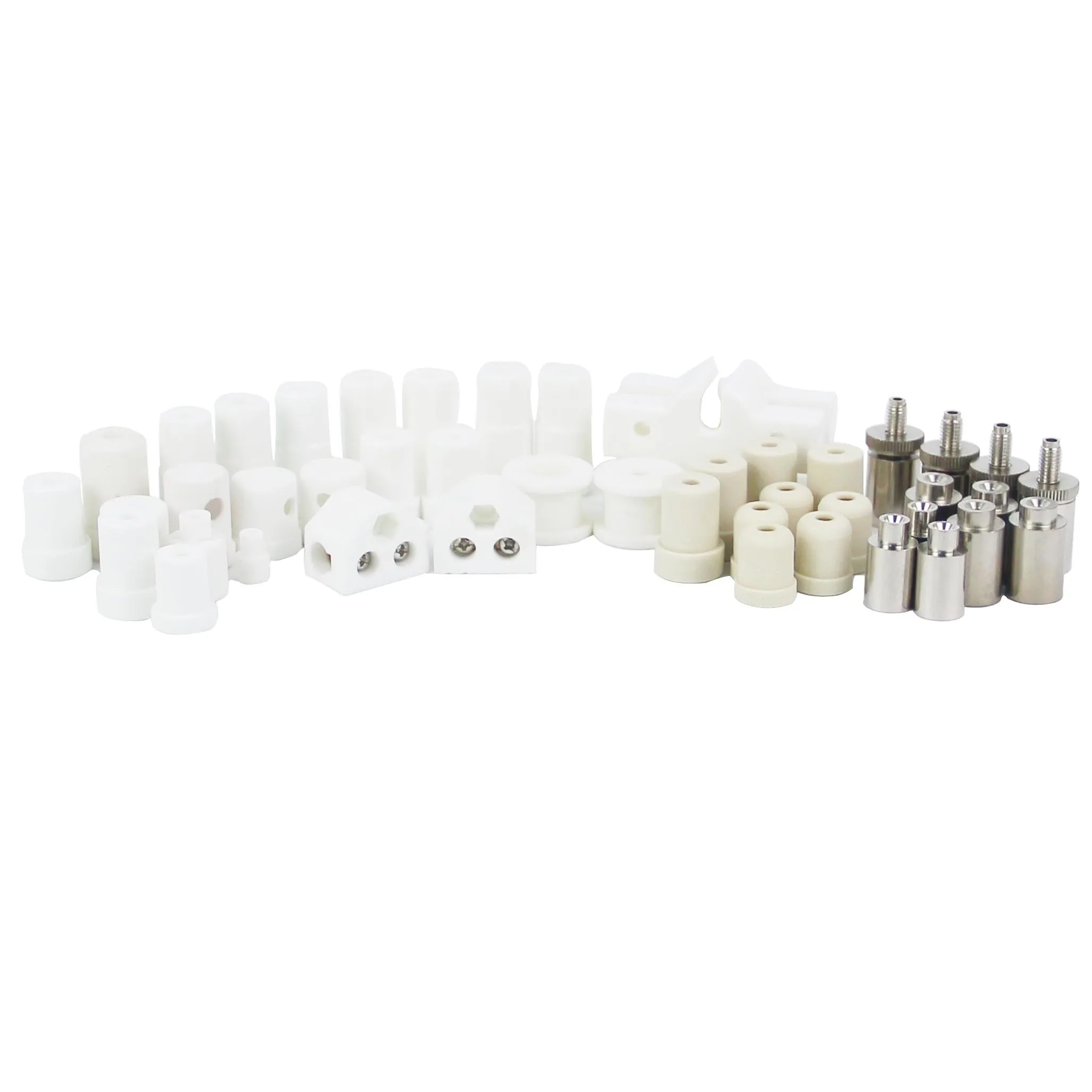

We have various types of lamp holders to meet your various needs.
As shown we use high-quality ceramic lamp holders and metal lamp holders. we have different types of lamp holders to meet your various needs, Our lamp holders are resistant to high temperatures and have a long life.

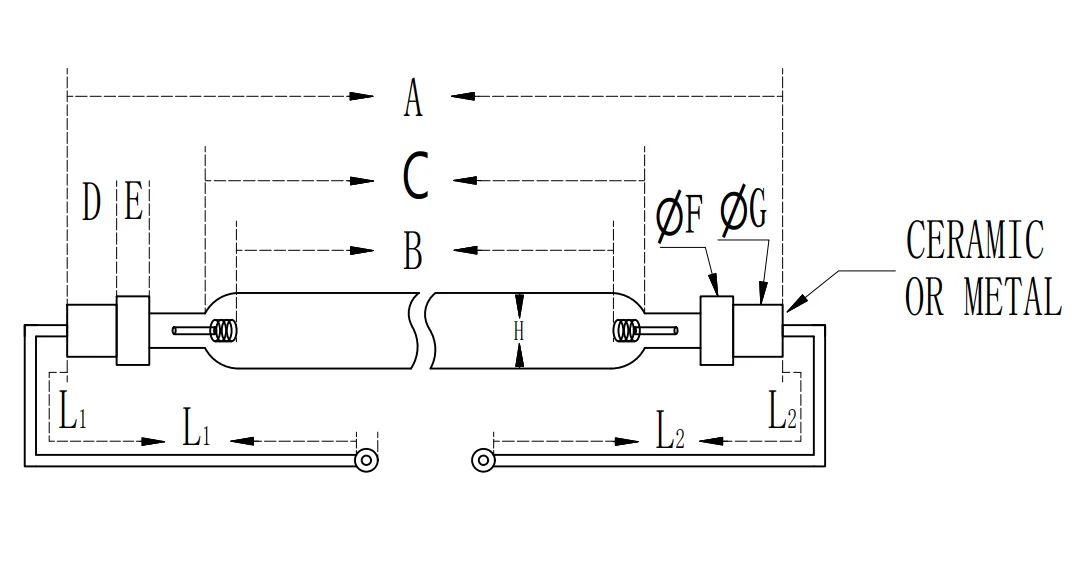

Customized Service
Wattage:__W | A:__mm | B:__mm | C:__mm | ||
Voltage:__V | D:__mm | E:__mm | F:__mm | ||
Current:__A | G:__mm | H:__mm | L1:__mm L2:__mm | ||
Lamp model: | |||||
Machine model | |||||

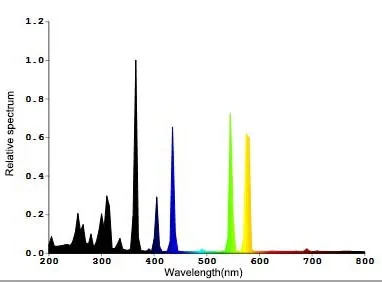

Mercury Lamp Spectrum
If you have detailed lamp parameters, please fill in the form above and contact our technical staff to communicate more details about the product.

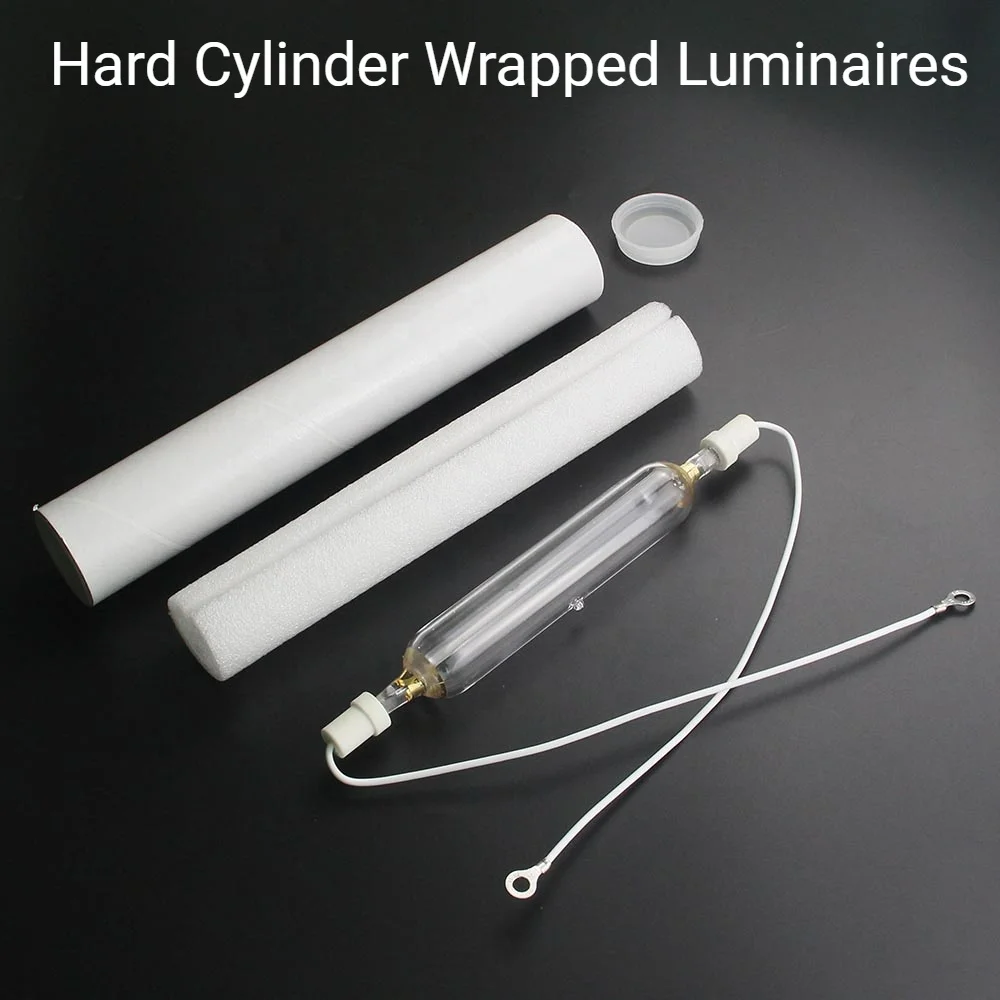

Packing and shipping
FAQ
Q1. Are you a trading company or a manufacturer?
We are a factory with our own production line, welcome to visit our factory anytime.
Q2. Can the product be customized?
We are a factory producing UV lamps, IR lamps and UV curing systems. All our products can be made according to the details you provide.
Q3. How to guarantee quality?
The guaranteed life of our company's products is 800 hours, but it can reach more than 1,000 hours. If the product life cannot meet the promise of our company's lamps, compensation will be made according to the specific situation.
Q4. What about the delivery time?
After receiving your payment, it will be shipped within 3 days at the fastest according to the order quantity. Please consult customer service for a specific time.
Q5. About custom service?
We can provide you with suitable solutions and provide OEM services; can print your logo on your products according to your requirements; also can customize packaging for you.
Q6. About after-sales service?
Each lamp will be tested by our quality control department before shipment. The company solemnly promises: If the bulb is damaged during transportation and any quality problems, we will re-deliver it once it is confirmed.
