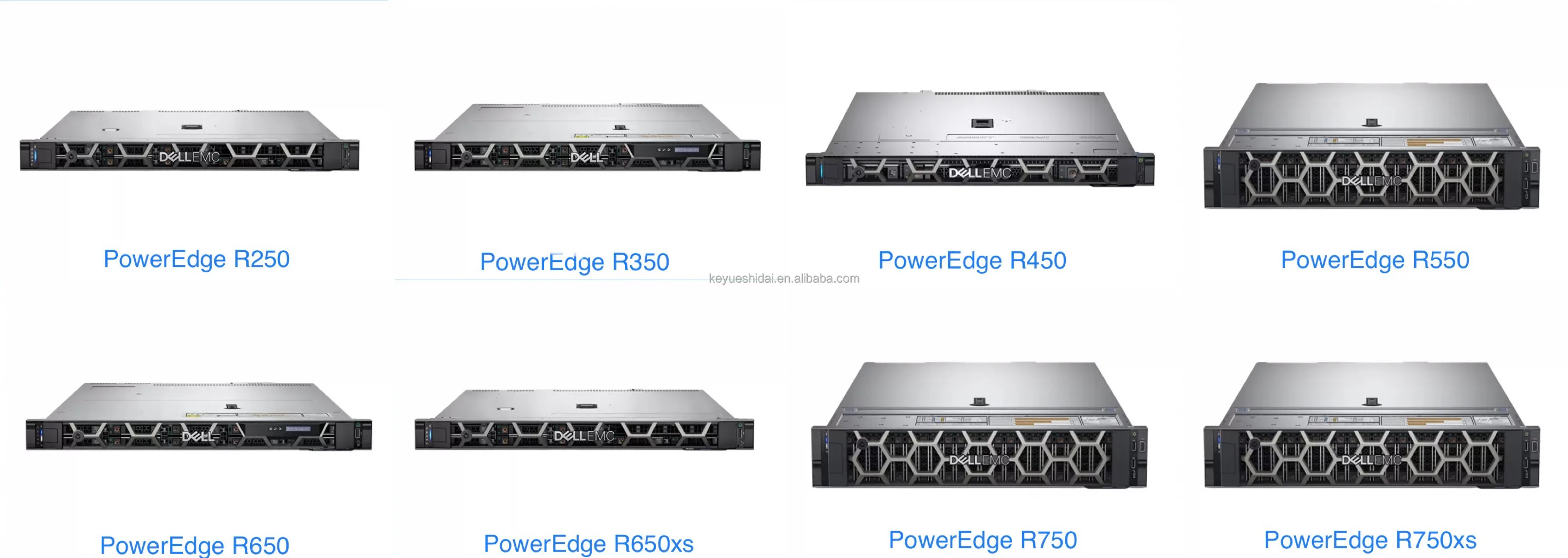

New Original Dell Poweredge r250 r350 r450 R650 1U Rack Server DELL R650
- Category: Servers >>>
- Supplier: Shenzhen,Keyue,Times,Technology,Co.,Limited
Share on:
Product Overview
Description
Dell R650 8SFF Server
Specification
Processor | Up to two 3rd Generation Intel® Xeon® Scalable processors with up to 24 cores per processor | |
Chipset | Intel®C620A chipset | |
Accelerators | Up to three 75 W single-width GPU | |
Memory | DIMM Speed Up to 3200 MT/s Memory Type RDIMM LRDIMM NVDIMM Intel® Persistent Memory 200 series (BPS) Memory Module Slots 32 DDR4 DIMM slots Maximum RAM RDIMM 2 TB LRDIMM 4TB NVDIMM 128 GB Intel® Persistent Memory 200 series (BPS) 8TB | |
Storage | Front Bays Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB Rear bays Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB | |
Storage Controllers | Internal Controllers PERC H745, H345, HBA355I, H755, H755N External Controllers PERC H840, HBA355E Software RAID S150 Internal Boot Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB Internal Dual SD Module or Internal USB 3.0 | |
Power Supplies | 800 W Platinum AC/240 V Mixed Mode 1100 W Titanium AC/240 V Mixed Mode 1400 W Platinum AC/240 V Mixed Mode 1100 W DC -48 - 60 V Hot plug power supplies with full redundancy option | |
Ports | Network Options 2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional) Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 2 x RJ-45 1 x VGA (optional for liquid cooling configuration) Internal Ports 1 x USB 3.0 (optional) | |
Slots | Up to 3 x PCIe Gen4 low profile slots (all x16 except one x8 slot with SNAPI I/O option) or 2 x PCIe (Gen4) full height slots Video Card 1 x VGA (optional for liquid cooling configuration) | |
Bezel | Optional LCD bezel or security bezel | |
Form Factor | 1U rack server | |
Dimensions & Weight | Height 42.8 mm (1.68 inches) Width 482 mm (18.97 inches) Depth 809 mm (31.85 inches) – without bezel 822.84 mm (32.39 inches) – with bezel Weight 21.2 kg (46.7 lbs) | |
Rack Support | ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks. | |
We supply most of parts above, contact me for further information. My Skype Whats App or Email: +86 18923725190 ; keyuetimes@gmail.com | ||
Product Description
The Dell EMC PowerEdge R650 enterprise server features 3rd Generation Intel® Xeon® Scalable processors designed to optimize workload performance and data center density.
shows the 3 configuration of Dell R650 8SFF Server
Configuration | Processor | Memory | Hard Drive | Power Supply |
Dell 1U R650 1*4310 8SFF Server | 1 * Intel Xeon 4310 | 1 * 32G | 1*1.2T SAS 10K | 1*800W |
Dell 1U R650 1*5317 8SFF Server | 1 * Intel Xeon 5317 | 1 * 32G | 1*1.2T SAS 10K | 1*800W |
Dell 1U R650 1*6330 8SFF Server | 1 * Intel Xeon 6330 | 1 * 32G | 1*1.2T SAS 10K | 1*800W |
The Dell EMC PowerEdge R650, powered by 3rd Generation Intel® Xeon® Scalable processors, is designed to optimize workloads performance and data center density.
Optimal performance, high scalability, and data center density for demanding workloads
The dual-socket/1U PowerEdge R650 is the ideal rack server to address performance, high scalability, and density.
* Supports 8 channels per CPU, up to 32 DDR4 DIMMs at 3200 MT/s DIMM speed
* Address substantial throughput improvements with PCIe Gen 4 and up to 10 NVMe drives
* Ideal for traditional corporate IT, database and analytics, VDI, and AI/ML and Inferencing
* Optional Direct Liquid Cooling support to address high wattage processors
Optimal performance, high scalability, and data center density for demanding workloads
The dual-socket/1U PowerEdge R650 is the ideal rack server to address performance, high scalability, and density.
* Supports 8 channels per CPU, up to 32 DDR4 DIMMs at 3200 MT/s DIMM speed
* Address substantial throughput improvements with PCIe Gen 4 and up to 10 NVMe drives
* Ideal for traditional corporate IT, database and analytics, VDI, and AI/ML and Inferencing
* Optional Direct Liquid Cooling support to address high wattage processors
Rear view of the R650 system
Supported Processors for R650
NOTE:
● 8368Q requires liquid cooling
● 6314U, 6312U and 8351N are supported in 1S configurations only.
● 4310, 4316, and 4309Y do not support Intel Optane Persistent Memory.
shows the R650 vs R640
Series | Dell EMC PowerEdge R650 | Dell EMC PowerEdge R640 |
Processor | Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor | Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores per processor |
Memory | • 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 4 TB max, speeds up to 3200 MT/s • Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max • Supports registered ECC DDR4 DIMMs only | 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933 MT/s, 3TB max Up to 12 NVDIMM, 192 GB Max Up to 12 Intel® Optane™ persistent memory PMem, 6.14TB max, (7.68TB max with PMem + LRDIMM) Supports registered ECC DDR4 DIMMs only |
Storage controllers | • Internal controllers: PERC H745, HBA355I, S150, H355, H345, H755, H755N • Boot Optimized Storage Subsystem (BOSS-S1): HW RAID 2 x M.2 SSDs 240 GB or 480 GB • Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB • External PERC (RAID): PERC H840, HBA355E | Internal Controllers: PERC H330, HBA330, HBA350i (adapter only), H730P, H740P, H750 (adapter only) External Controllers: H840, 12 Gbps SAS HBA, HBA355e (adapter only, non-RAID) |
Drive Bays | Front bays: • Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB | Front drive bays: Up to 10 x 2.5” SAS/SATA (HDD/SSD) with up to 8 NVMe SSD max 76.8TB or up to 10 NVMe drives max 64TB, or up to 4 x 3.5” SAS/SATA HDD max 64TB Rear drive bays: Up to 2 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD max 15.36TB Optional DVD-ROM, DVD+RW |
Power Supplies | • 800 W Platinum AC/240 Mixed Mode • 1100 W Titanium AC/240 Mixed Mode • 1400 W Platinum AC/240 Mixed Mode • 1100 W DC -48 - 60 V | 495W Platinum 750W Platinum 750W 240HVDC Platinum* 1100W 48VDC 1100W Platinum 1100W 380HVDC Platinum* 1600W Platinum 750W Titanium Hot plug power supplies with full redundancy option Up to 8 hot plugs fans with full redundancy *Available in China and Japan only |
Recommended Server | Dell R650 8SFF Server | Dell 1U R640 5218/8G*1/600G SAS 10K*1/H330/DVD/750W*1/2.5-8 |
