Product Overview
Description
819784-B21 - HPE ProLiant DL20 Gen9 Server
Specification
Description | HPE ProLiant DL20 Gen9 Nonhot Plug 2LFF Configure-to-order Server | |
SKU Number | 819784-B21 | |
Processor | 1 | |
DIMM Slots | 4 DIMM slots for UDIMM DDR4 Memory | |
Storage Controller | HPE Dynamic Smart Array B140i | |
PCIe | 2 PCIe 3.0 Slots | |
Drive Cage | 2LFF Non Hot Plug | |
Network Controller | HPE embedded 1Gb 2-port 332i network Adapter | |
Fans | 3 non hot plug, non-redundant | |
Management | iLO Management (standard), Intelligent Provisioning (standard) | |
USB | 2 front, 1 internal, 2 rear | |
We supply most of parts above, contact me for further information. My Skype Whats App or Email: +86 18923725190 ; keyuetimes@gmail.com | ||
shows the comparison between HPE 819784-B21 and HPE 819785-B21.
Product Code | 819784-B21 | 819785-B21 |
Description | HPE ProLiant DL20 Gen9 Nonhot Plug 2LFF Configure-to-order Server | HPE ProLiant DL20 Gen9 2LFF Configure-to-order Server |
Processor | 1 | 1 |
DIMM Slots | 4 DIMM slots for UDIMM DDR4 Memory | 4 DIMM slots for UDIMM DDR4 Memory |
Storage Controller | HPE Dynamic Smart Array B140i | HPE Dynamic Smart Array B140i |
PCIe | 2 PCIe 3.0 Slots | 2 PCIe 3.0 Slots |
Drive Cage | 2LFF Non Hot Plug | 2LFF Hot Plug |
Product Description
HPE ProLiant DL20 Gen9 Server
The dense and compact HPE ProLiant DL20 Gen9 Server powered by Intel Pentium, Core i3 and E3 unique blend of enterprise class capabilities & 1200v5 processors provides a value. It offers outstanding configuration flexibility to cater to a wide variety of business requirements at an affordable price point.

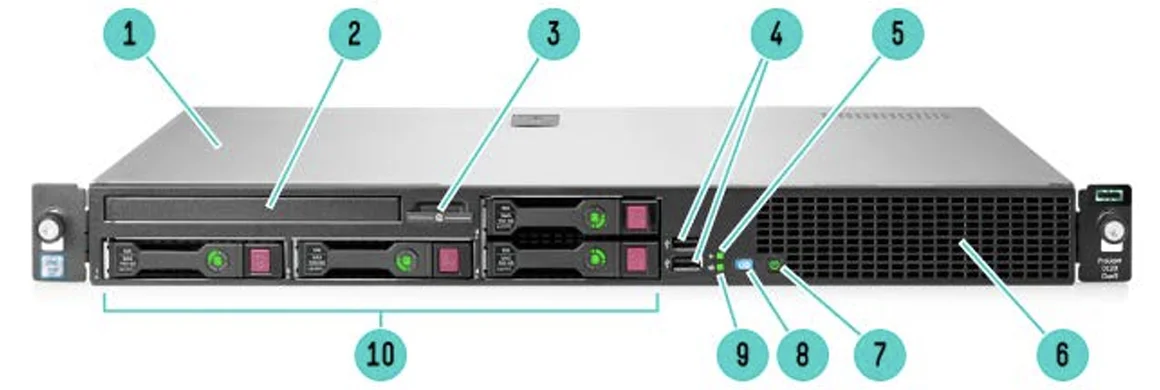

Front View
1.Access Panel
3.Serial number/iLO information pull tab
5.Health LED
7.Power On/Standby button and system power LED button 9.NIC status LED
2.Optical Drive
4.2 USB 2.0 connectors
6.Front 2 Fan Assembly
8.UID LED
10.Hard Drive Bays
4.2 USB 2.0 connectors
6.Front 2 Fan Assembly
8.UID LED
10.Hard Drive Bays

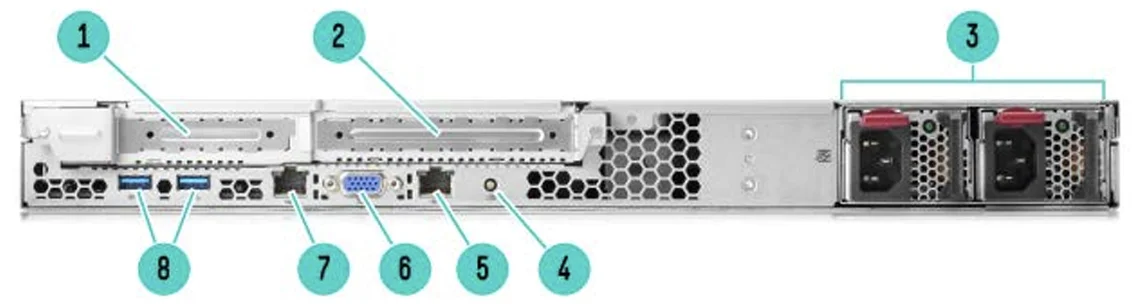

Rear View
1.Expansion Slot 1, PCIe x 8
3.Redundant Power Supply (only on SFF Chassis)
5.NIC Connector 2
7.NIC1/shared iLO connector
2.Expansion Slot 2, PCIe x 16
4.UID LED
6.Video Connector
8.USB 3.0 Connector
4.UID LED
6.Video Connector
8.USB 3.0 Connector

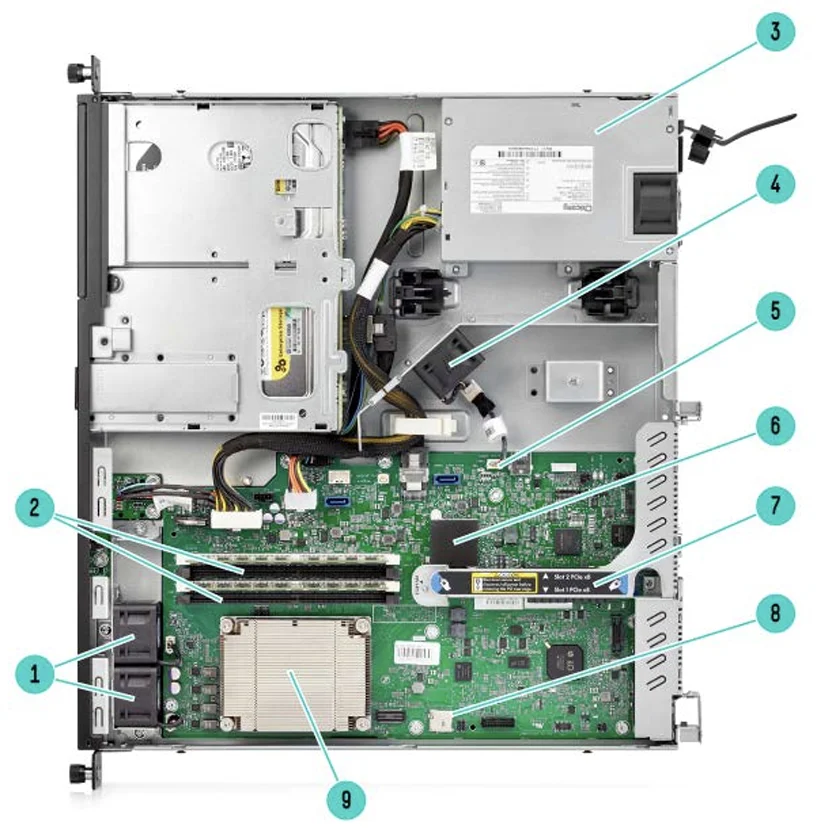

2.DDR4 DIMM slots. 4 slots
3. (Under) Power supply
(1x 290W power supply shown)
4.Central Fan Assembly
5.Internal USB 3.0 connector
6.Embedded HPE Smart Array B140i controller
7.PCIe Riser
8.MicroSD card slot
9.1 Processor, heatsink showing, with HP Smart Socket Guide
Processor
shows the recommended elements for the HPE 819784-B21
Product number | Description |
872487-B21 | HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD |
846524-B21 | HPE 1TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD |
819201-B21 | HPE 8TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD |
872485-B21 | HPE 2TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD |
877784-B21 | HPE 960GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD |
