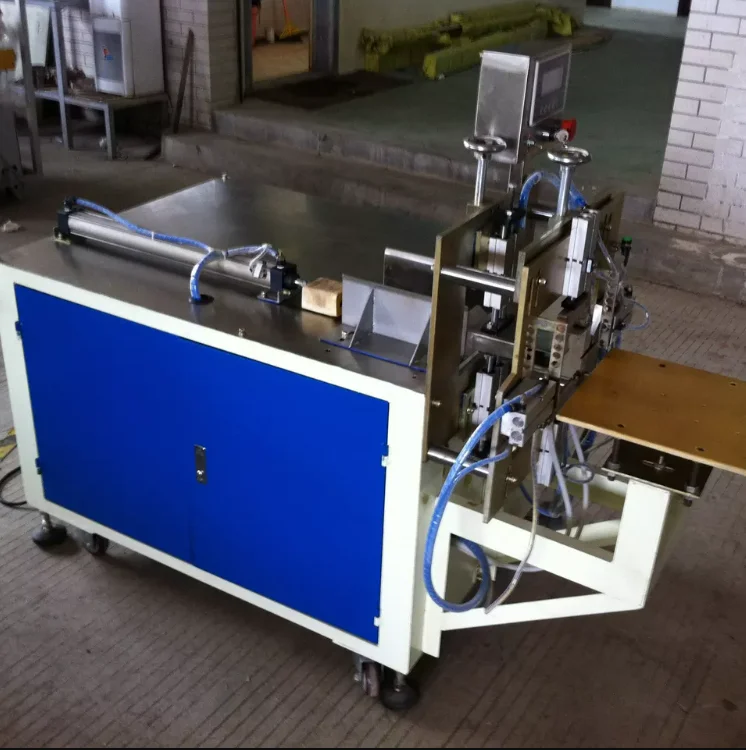

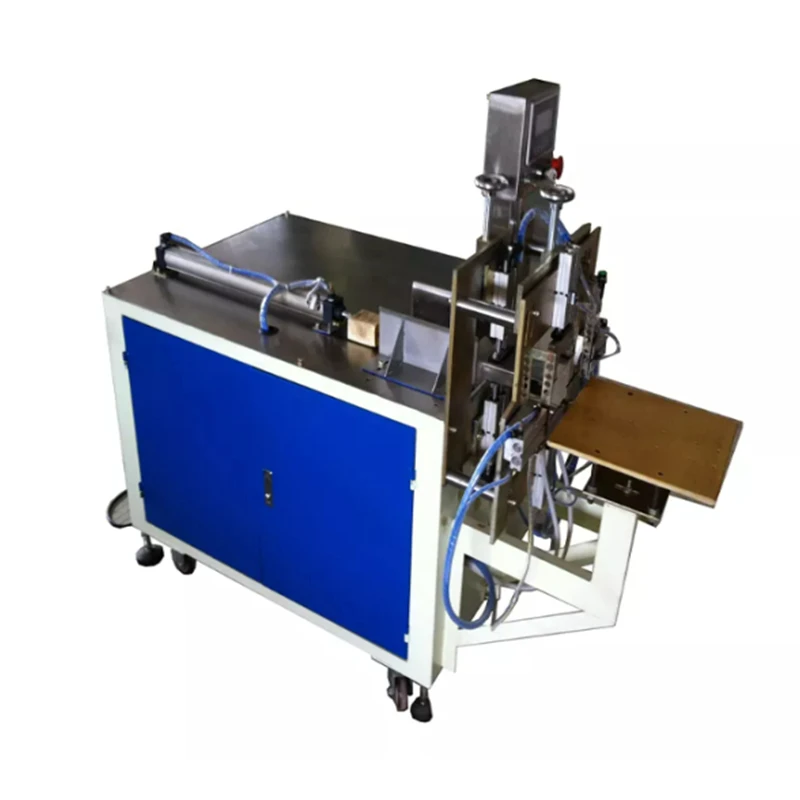

low price high quality semi automatic baby diaper packing machine
- Category: >>>
- Supplier: Quanzhou Xingyuan Machinery Manufacture Co. Ltd.
Share on (11000007374682):
Product Overview
Description
Specification
Model No. | DNW-NKBZ-280 |
Scope | Baby diaper |
Supply voltage | 220V 50/60HZ |
Total power | 800W |
Air pressure | 0.4-0.6Mpa Provided by customer |
Packing speed | about14bag/min |
Max packing size | 470 X 410 X 150mm(L x W x H) |
Minimum packing size | 120 X 100 X 90mm(L x W x H) |
Packaging film material | OPP / PE |
Machine size | 2000 X 800 X1200mm(L x W x H) |
Net weight of machine | 350 kg-400 kg |
Configuration
1.Auto feed the tissue into bag, Insert bag left side and right side as Fork angle, Sealing and cutting in one machine.Controlled by PLC , semi-automatic control, Put the napkin paper or facial tissue onto machine by hand, Open and Feed the bag to machine by labor , its operation is simple and quick.
2.Sealing and cutting device is designed as Independent temperature control, it makes the sealing with good looking and tidy; automatic blow the bag tailing after cutting. Machine with quick packing speed, it saves labor force, reduces cost and improves production efficiency.
3.Suitable for packing the baby diaper, pull-up diaper.
2.Sealing and cutting device is designed as Independent temperature control, it makes the sealing with good looking and tidy; automatic blow the bag tailing after cutting. Machine with quick packing speed, it saves labor force, reduces cost and improves production efficiency.
3.Suitable for packing the baby diaper, pull-up diaper.
