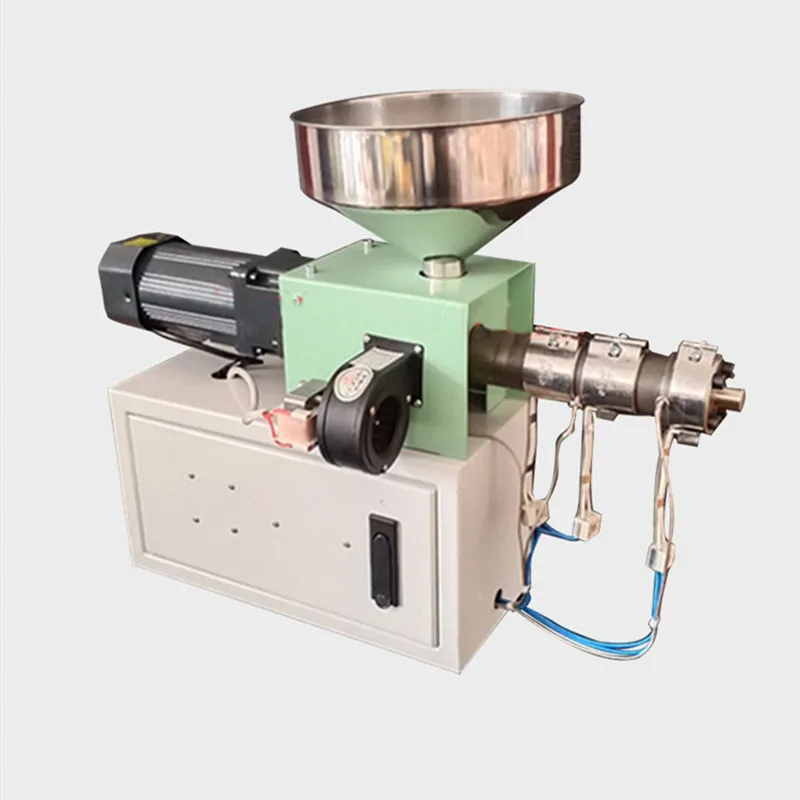

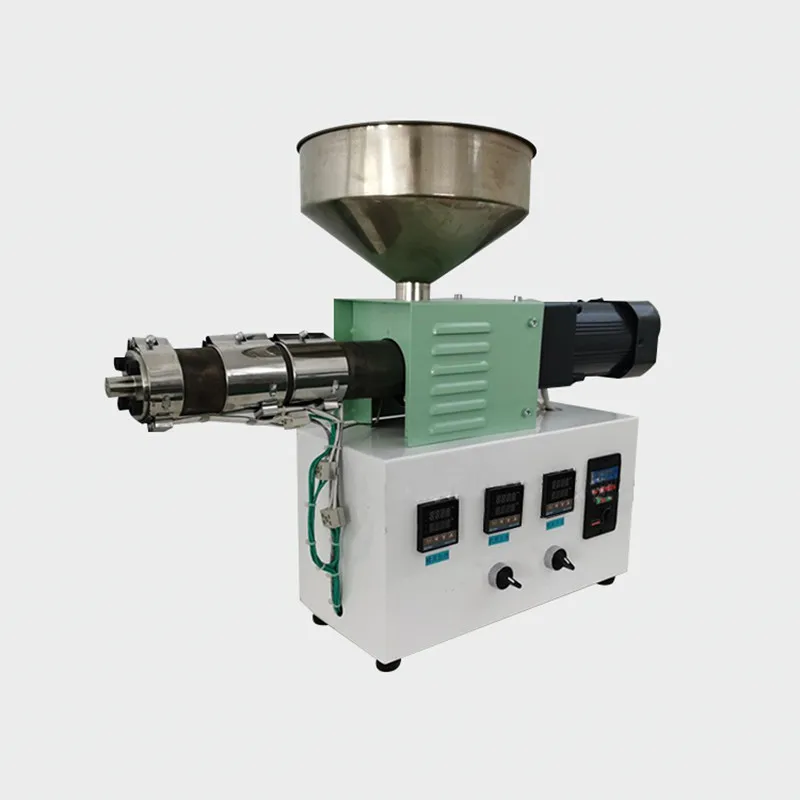

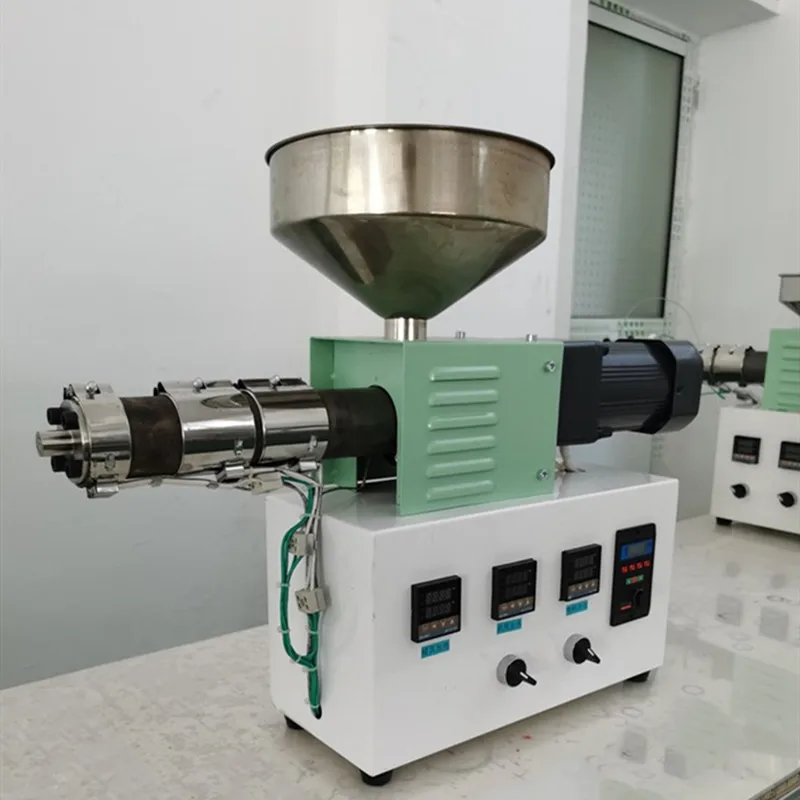

Desktop SJ35 mini plastic extruder lab tiny single solo screw extruding machine extrusora
- Category: >>>
- Supplier: Jugetek (Shanghai) Co. Ltd.
Share on (11000007404268):
Product Overview
Description
FEATURES AT A GLANCE
Screw ratio: An aspect ratio of 12: 1, screw effective length 400mm
main motor power:120w AC motor
Main motor speed:Speed governor

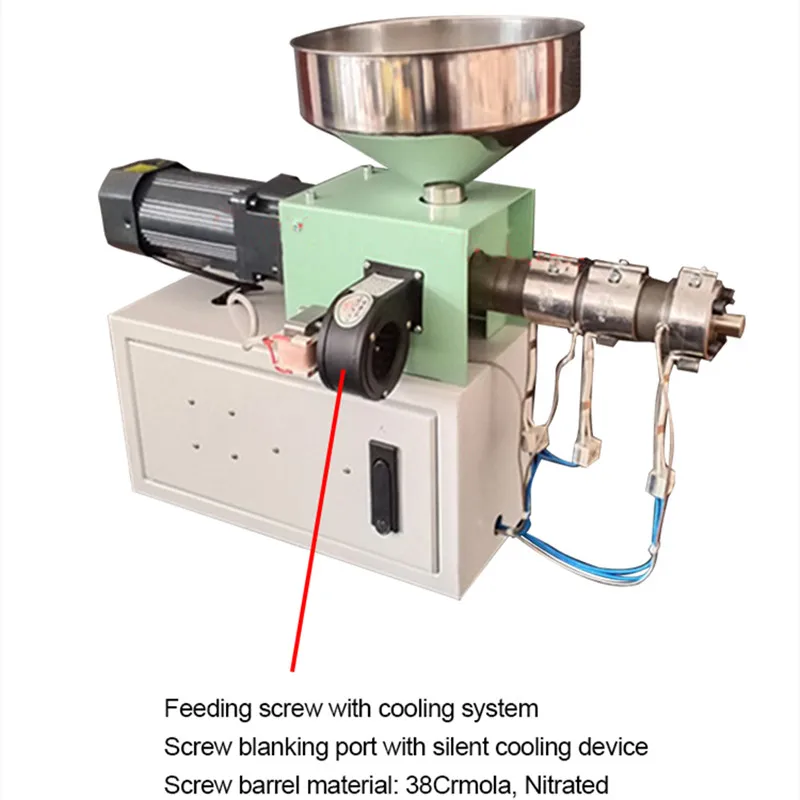

Barrel heating:Stainless steel housing heater
heating power:An area 800w
Productivity: 3-5kg/h
Gearbox:Planetary reducer (ratio based on customer requirements)
main motor power:120w AC motor
Main motor speed:Speed governor
Barrel heating:Stainless steel housing heater
heating power:An area 800w
Productivity: 3-5kg/h
Gearbox:Planetary reducer (ratio based on customer requirements)
PRODUCT SPECIFICATIONS
Plastic proceed | PE, PP, PVC, ABS, XPS, WPC, Polystyrene, PA, EVA, EPS, PET and so on |
Output | 3-5kgs/h |
Voltage | 110V/220V |
Main Motor Power | 250W |
Heating Power | 400W |
Highest temperature | 500℃ |
Nozzle size | 1.75mm/2.8mm |
Screw | Single screw Extruder |
Diameter | 35mm |
L/D | 13:1 |
Raw material | 38CrMoALA |
Surface treatment | Nitrogenization and polished |
Screw speed | 0-25r/min |
Barrel | |
Material | 38CrMoALA |
Inner surface treatment | Nitrogenization and polished |
The nitride layer thickness | 0.5~0.7mm |
The surface hardness | HV850~940 |
