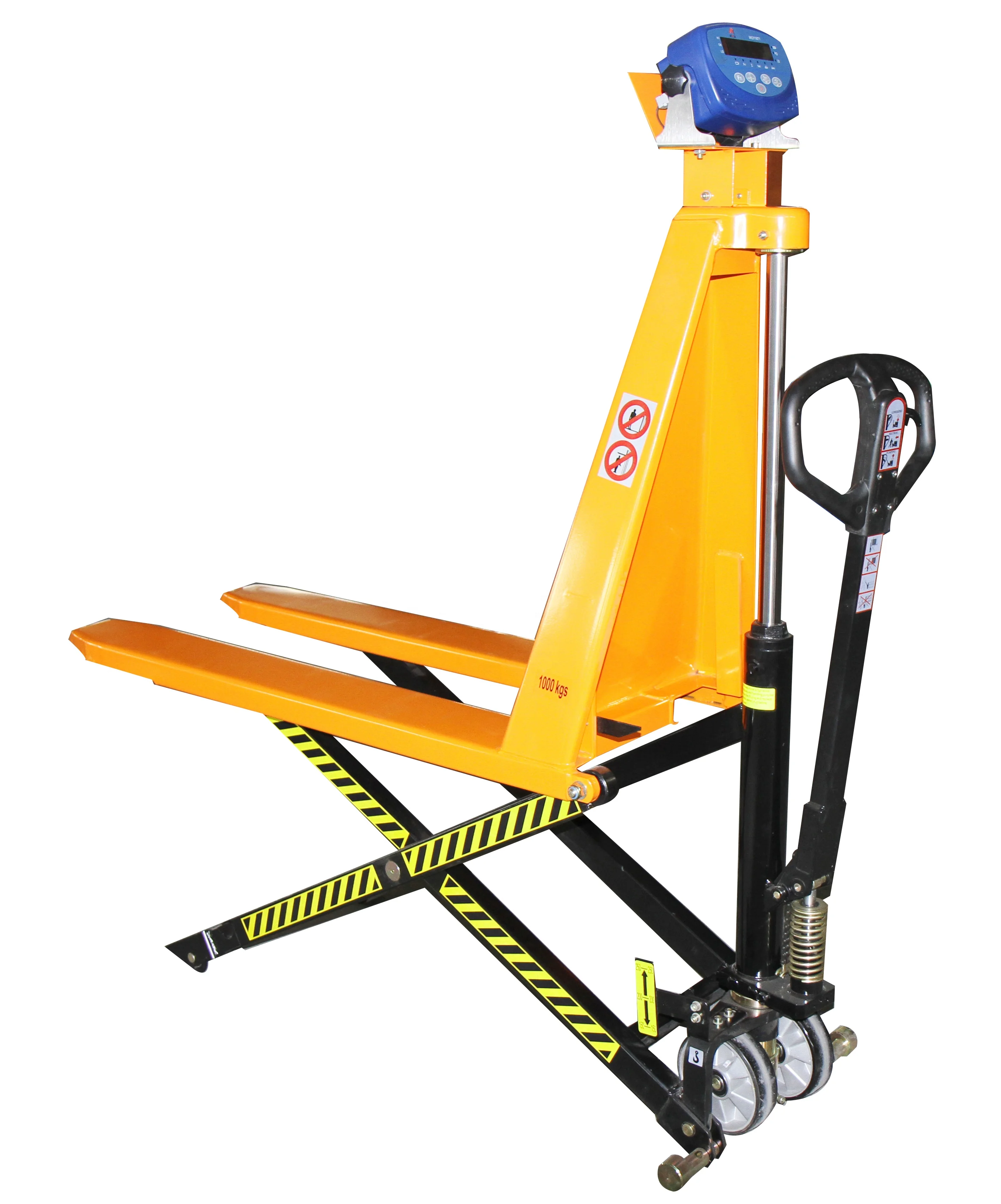

High Lift Pallet Truck with Scale HBW series

Product Overview

Description

High Lift Scissor Truck with Scale

• Accuracy 1% of the weight applied to the scale
• Single-sensor

• HBW1056M,1068M :manual lifting

• HBW1056EN, 1068EN: electric lifting















Model		HBW1056EN	HBW1068EN	HBW1056M	HBW1068M
Rated Capacity	(kg)	1000	1000	1000	1000
Max. Fork Height	H (mm)	800	800	800	800
Min. Fork Height	h (mm)	85±2	85±2	85±2	85±2
Overall Fork Width	B (mm)	560	680	560	680
Fork Length	L (mm)	1190	1190	1190	1190
Battery		70Ah/12V	70Ah/12V	70Ah/12V	70Ah/12V
Weight without battery	kg	159	164	159	164
