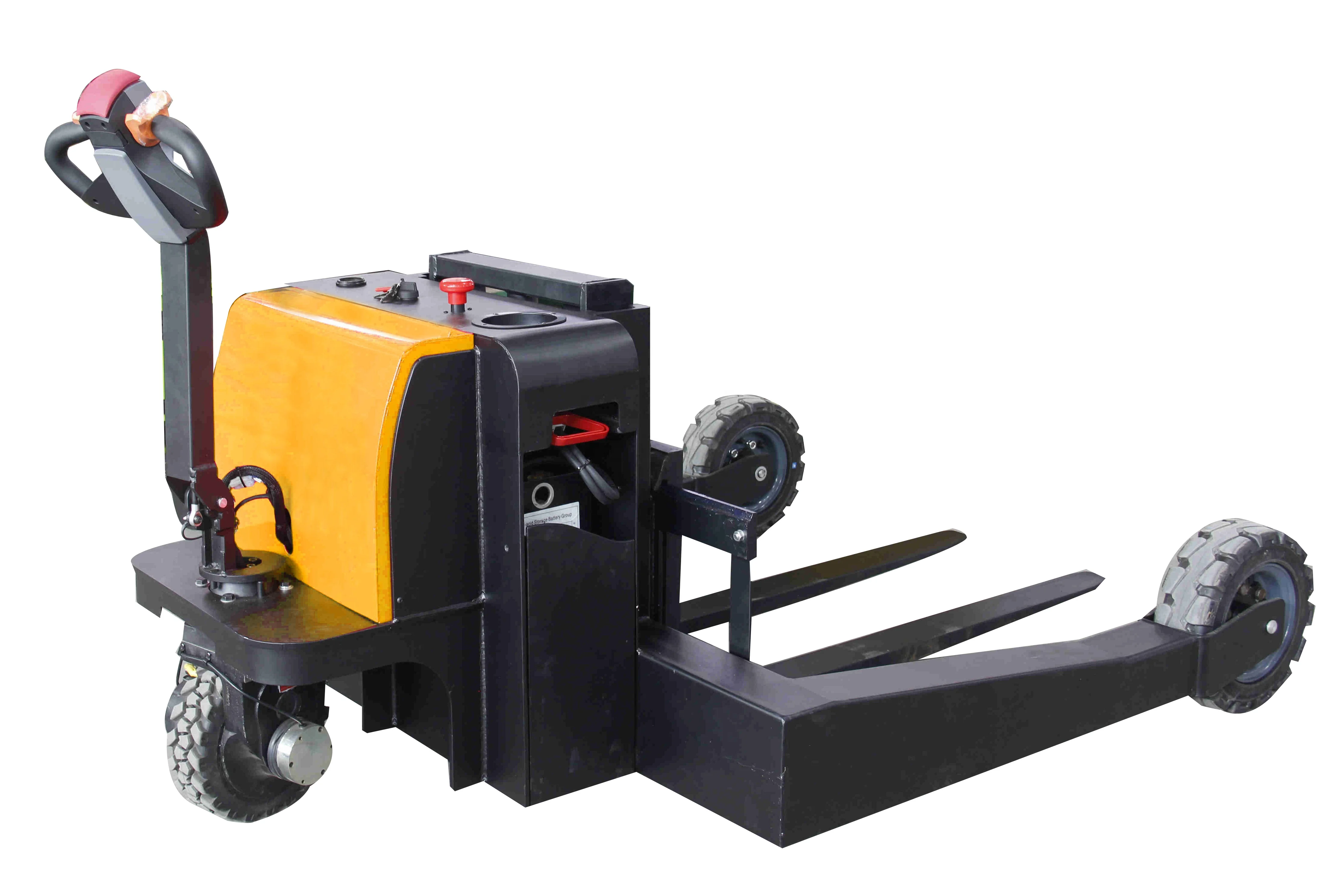

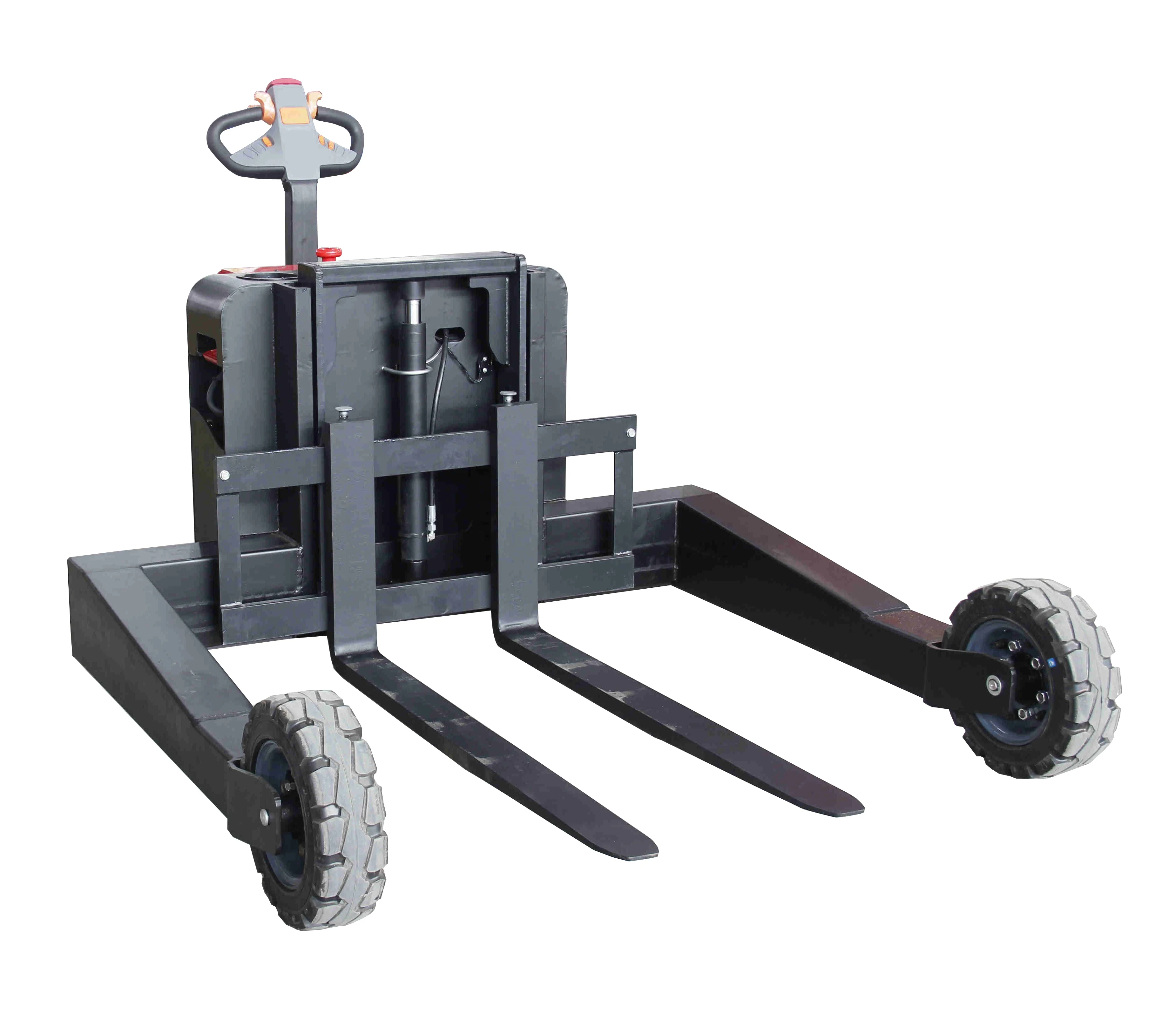

Electric Rough Terrain Hydraulic Pallet Truck 1500Kg
- Category: >>>
- Supplier: Nu-Lift Equipment Co. Limited
Share on (11000007457767):
Product Overview
Description
Power Rough Terrain Hydraulic Pallet Truck
• Full electric make more efficient and labor-saving.
• This special rough terrain truck is for applications such as builders yards, garden
ceners or out on site where there is only an occasional need for moving pallets by
forklifts or where no ordinary forklift or even pallet truck can go(for example roof-tops
where forklifts aren't allowed)
• Large wheels and straddle forks arrangement can be used for any type of pallet on
uneven ground.
• Customization is acceptable.
| Capacity | (kg) | 1500 |
| Type of lifting | Electric | |
| Operating type | Walkie | |
| Wheel base | (mm) | 1900 |
| Bearing wheel size | (mm) | 380x112(Solid tire) |
| Driving wheel size | (mm) | 300x90(Solid tire) |
| Min.fork height | (mm) | 70 |
| Max.fork height | (mm) | 330 |
| Max.lifting height | (mm) | 260 |
| Fork length | (mm) | 1220 |
| Single fork size | (mm) | 100 |
| Overall length | (mm) | 2210 |
| Overall width | (mm) | 1550 |
| Overall height | (mm) | 1260 |
| Min. turning radius | (mm) | 1900 |
| Travel speed(laden/unladen) | (km/h) | 4/6 |
| Lifting speed(laden/unladen) | (mm/s) | 22/27 |
| Lowering speed(laden/unladen) | (mm/s) | 65/45 |
| Gradeability(laden/unladen) | (%) | 4/6 |
| Driving mode | AC | |
| Drive motor | (kw/V) | 1.5/24 |
| Battery capacity | (V/Ah) | 24/170 |
| Battery weight | (kg) | 155 |
| Net weight | (kg) | 720 |
