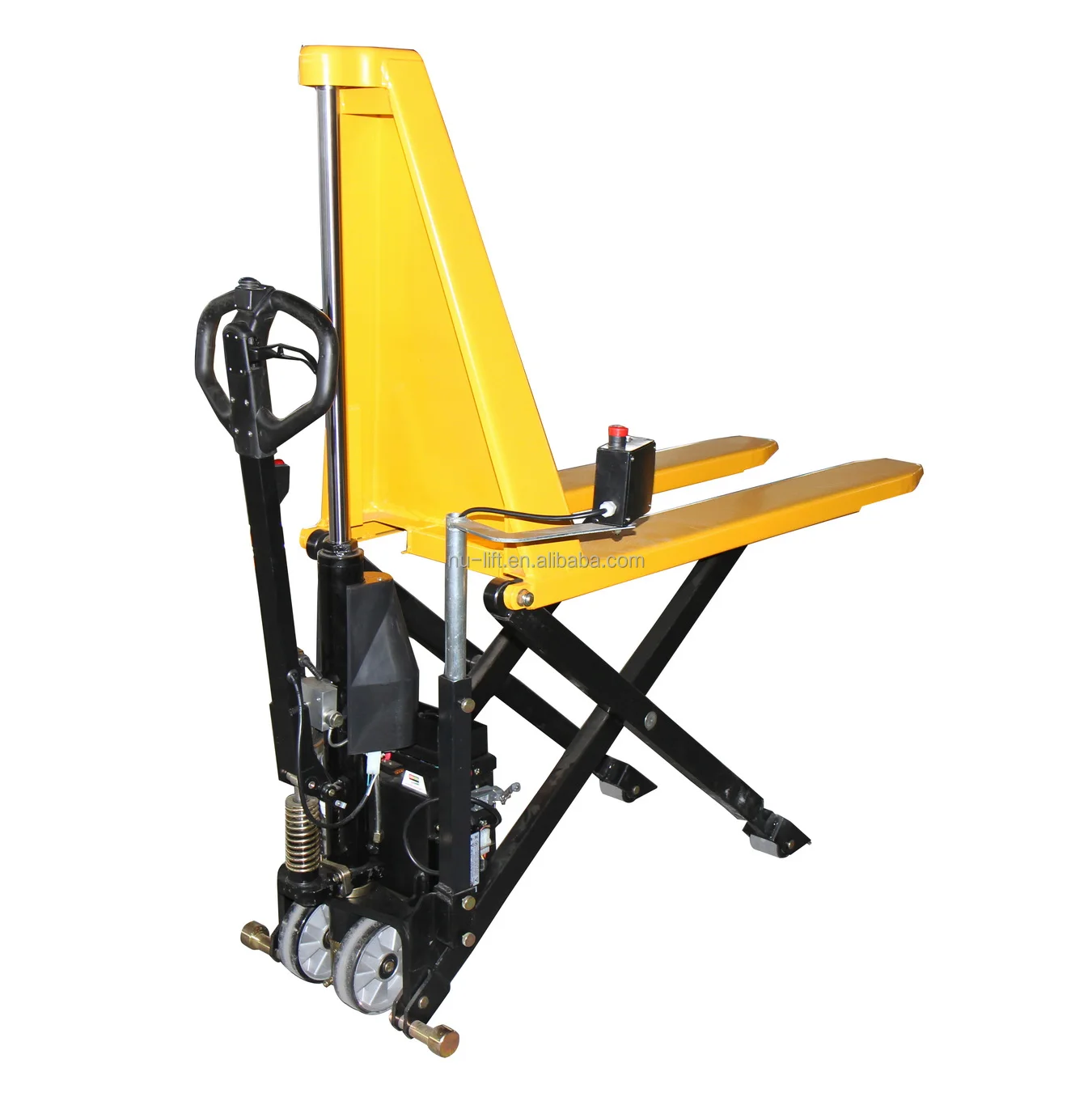

Electric High Lift Pallet Truck with Automatic Height Adjustment HBY series

Product Overview

Description

• Ideally used for automatic loading and unloading and automatic work positioning

• It's equipped with safety valve to avoid overload condition

• With single section piston

• With built in charger

• Customized design is acceptable.

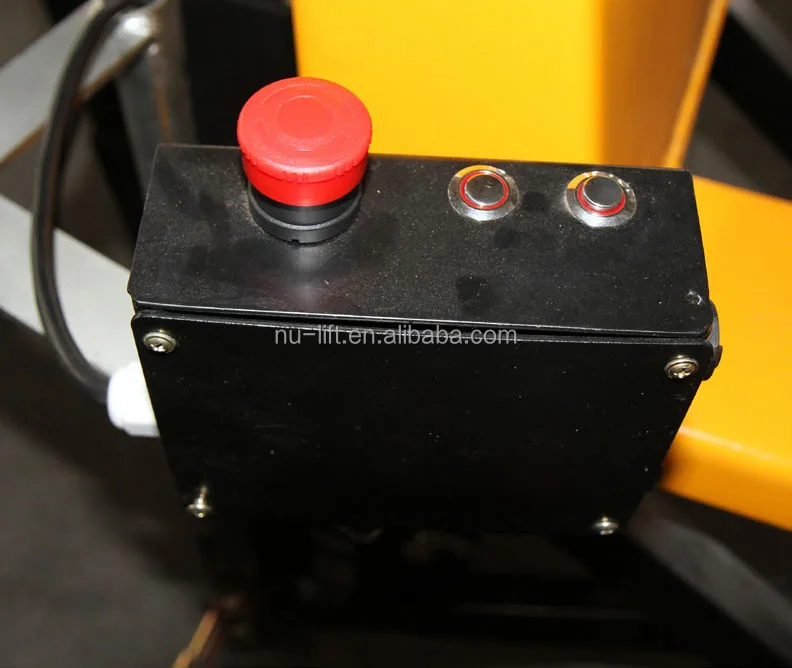

Emergency stop button



Model		HBY1056EN	HBY1068EN	HBY1556EN	HBY1568EN
Type		Electric
Capacity	(kg)	1000	1000	1500	1500
Min./Max.Height	(mm)	85/800	85/800	85/800	85/800
Fork Width	(mm)	560	680	560	680
Fork Length	(mm)	1190	1190	1170	1170
Working Distance	(mm)	700-1000	700-1000	700-1000	700-1000
Battery	(V/Ah)	12/70	12/70	12/70	12/70
Net Weight	(kg)	169	174	176	181
